Grandstream GWN7670 Grandstream GWN7670 2x2 Dual Band Wi-Fi 7 Indoor Access Point, 2 x 2.5 GigE,BLE
The Grandstream GWN7670 is a new generation enterprise-grade Wi-Fi 7 access point, designed for small-to-medium-sized businesses to build next-generation Wi-Fi networks. It offers dual-band 2x2:2 MIMO with DL/UL OFDMA technology and a sophisticated antenna design to maximize network throughput and expand Wi-Fi coverage. The GWN7670 also improves bandwidth utilization and anti-interference performance with multi-RU and Preamble Puncturing technology. With 4096 QAM modulation, Wi-Fi 7 delivers a significant boost in data transfer rates, while MLO technology optimizes spectrum resource usage to ensure a smooth experience for every user.
To simplify installation and management, the GWN7670 features a controller-less distributed network management design with an embedded controller accessible via the product's web user interface. It is also supported by Grandstream's cloud and on-premise Wi-Fi management platforms, GDMS Networking and GWN Manager, making it easy to scale and monitor your network.
The GWN7670 is an excellent choice for voice-over-Wi-Fi deployments and offers seamless integration with Grandstream's Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, BT location with BLE 5.3, and the ability to handle 256 concurrent clients per access point, it is well-suited for medium wireless deployments with medium-to-high user density. The device also features two 2.5 Gigabit network ports with PoE+ for flexible and efficient connectivity.
- 3.6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
- Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto-detection of PoE+
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
GWN7670 Key Deployment Scenarios
The GWN7670 can be deployed in various scenarios including:
Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn't sacrifice on performance.
Commerical Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.
Brand
Grandstream
Manufacturer Part Number
GWN7670
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Antennas
5 single frequency antennas
2.4GHz x 2, gain 3.5dBi
5GHz x 2, gain 5.5dBi
BT gain 3.5dBi
Wi-Fi Data Rates
5G:
IEEE 802.11be: Up to 2882 Mbps
IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
IEEE 802.11n: 6.5 Mbps to 600 Mbps
IEEE 802.11a: 6,9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11be: Up to 688 Mbps
IEEE 802.11ax: 7.3 Mbps to 574 Mbps
IEEE 802.11n: 6.5Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands
2.4GHz Radio: 2400 - 2483.5 MHz
5GHz Radio: 5150 - 5895 MHz
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20, 40, 80, and 160 MHz
*Not all frequency bands can be used in all regions
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
2x2:2 2.4GHz
2x2:2 5GHz
Coverage Range
Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power
5G: 26dBm
2.4G: 26dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
5G
802.11a: -92dBm @ 6Mbps, -74dBm @ 54Mbps
802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz:-70dBm @ MCS7
802.11ac 20MHz: -67dBm @ MCS8; 802.11ac: 40MHz:- 63dBm @ MCS9; 802.11ac 80MHz: -59dBm @ MCS9
802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS11;802.11ax 80MHz: -56dBm @ MCS11
MCS11;802.11ax 160MHz: -52dBm @ MCS11
802.11be 20MHz: -59dBm @ MCS13; 802.11be 40MHz: -56dBm @ MCS13; 802.11be 80MHz: -54dBm @ MCS13; 802.11be
160MHz: -52dBm @ MCS13
2.4G
802.11b: -96dBm @ 1Mbps, -88dBm @ 11Mbps; 802.11g: -93dBm @ 6Mbps, -75dBm @ 54Mbps
802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz:-70dBm @ MCS7
802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS11
802.11be 20MHz: -65dBm @ MCS11; 802.11be 40MHz: -62dBm @ MCS11
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
256
Network Interfaces

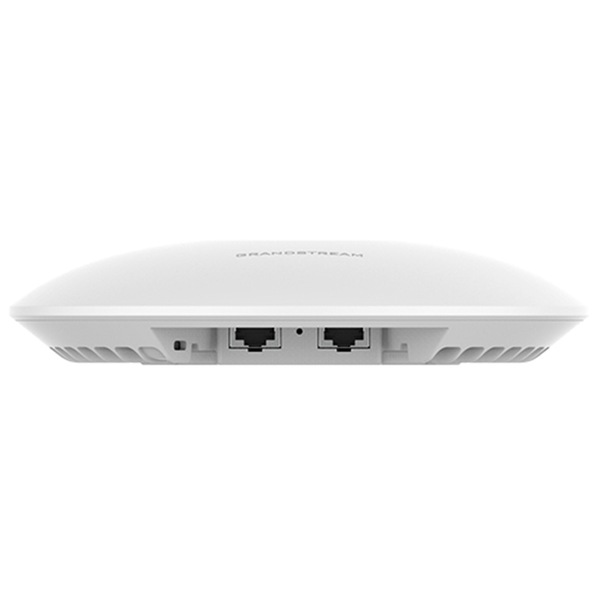

2x 2.5G Ethernet WAN/LAN
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Bluetooth®
BLE 5.3
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
1 tri-color LED for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GDMS Networking offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE/PoE+ 802.3af/at
Maximum Power Consumption: 14.5W
Environmental
Operation: 0°C to 45°C
Storage: -30°C to 60°C
Humidity: 10% to 90% Non-condensing
Compliance
FCC, CE, RCM, IC
Dimensions
185mmx185mmx44.5mm
Weight
527g
- MPN: GWN7670
