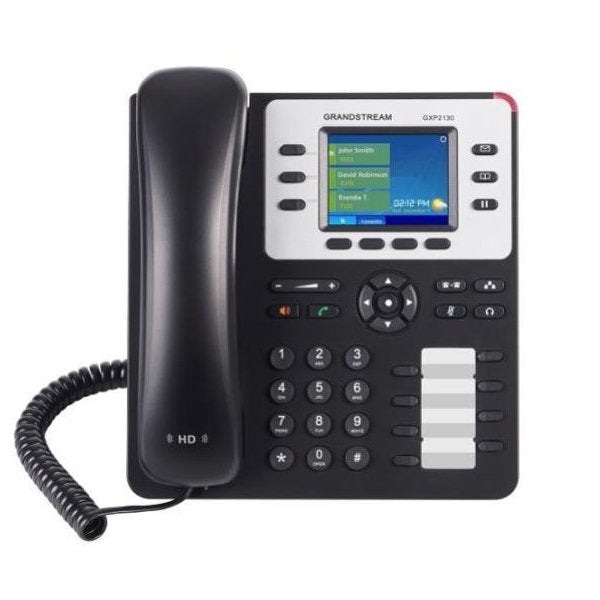

GRANDSTREAM GXP2130 VOIP PHONE WITH 2.8 INCH COLOUR LCD SCREEN

The Grandstream GXP2130 is the perfect selection for a user who wants a flexible and powerful High-End VoIP phone to handle medium to high call volumes. Equipped with dual color LCD BLF/speed-dial and line keys, a 2.8” colour LCD screen and its 4 XML programmable soft keys this device delivers a quality call experience for the user. The GXP2130 v2 VoIP Phone allows for fluid call control with 3 lines/SIP accounts. Other features include: integrated Bluetooth,HD audio, and dual Gigabit network ports (with integrated PoE).

As all Grandstream IP phones do, the GXP2130 v2 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2130 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.

FEATURES

3 dual-colour line keys (with 3 SIP accounts)

4 programmable context sensitive soft keys, Up to 4-way conferencing, and 8 dual-colour BLF extension keys

320x240 TFT colour LCD

Dual switched auto-sensing, 10/100/1000Mbps Gigabit network ports, PoE

EHS (Electronic Hook-Switch) with Plantronics headsets

Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection

GXP series is officially supported by 3CX

SPECIFICATIONS

Manufacturer's Product Code: GXP2130

Protocols / Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6

Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Graphic Display: 2.8 inch (320x240) TFT color LCD

Feature Keys: 3 line keys with up to 3 SIP accounts, 8 speed-dial/BLF

Voice Codecs: Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics headsets)

Telephony Features: Hold, transfer, forward, 4-way audio conference, call park, call pickup, shared-call-appearance (SCA) bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen,

Sample Applications: Weather, currency, GMI available for advanced custom application development

HD Audio: Yes, both on handset and speakerphone

QoS: Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security: User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control

Upgrade/Provisioning: Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file

Power & Green Energy Efficiency: Universal power adapter included: Input: 100-240VAC; Output: +12VDC, 0.5A (6W) Integrated PoE (Power-over-Ethernet) 802.3af, Class 2

PACKAGE CONTENTS

1 x Grandstream Gxp2130 Voip Phone With Colour Lcd Screen
1 x Power Supply 12VDC
1 x Desk Stand
1 x Wall Mountable
1 x Ethernet Cable
