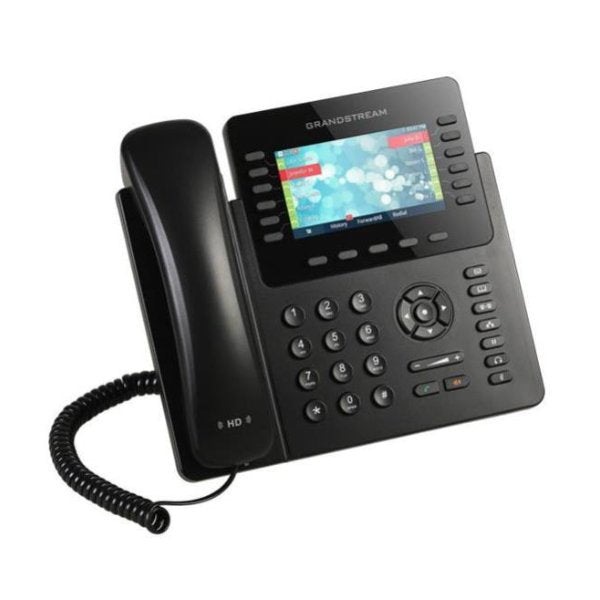

GRANDSTREAM GXP2170 ENTERPRISE VOIP PHONE

The Grandstream GXP2170 is a powerful enterprise-grade VoIP phone that is ideal for busy users who handle high call volumes. This top-of-the-line Enterprise IP Phone features up to 12 line keys/line appearances and 6 SIP accounts using a 4.3 inch color display LCD and full HD audio. It features up to 48 digital, on-screen speed dial/BLF keys to help users be more productive and efficent.

The GXP2170 supports the fastest possible connection speeds with dual Gigabit network ports, features integrated PoE and includes built-in Bluetooth for syncing with mobile devices and Bluetooth headsets. This Enterprise IP phone can connect to up to four GXP2200 EXT modules with LCD display to access up to 160 speed dial/BLF contacts.

The GXP2170 is the perfect choice for enterprise users looking for a top-notch executive IP phone with advanced functionality. As all Grandstream VoIP phones do, the GXP2170 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2170 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.

FEATURES

12 lines, 6 SIP accounts, 5 softkeys and 5-way voice conferencing

48 on-screen digitally customizable BLF/speed-dial keys

4.3 inch (480x272) color-screen LCD

Dual Gigabit ports, integrated PoE

Integrated Bluetooth

Supports up to four GXP2200EXT Modules for BLF/speed-dial access to up to 160 contacts

GXP series is officially supported by 3CX

SPECIFICATIONS

Manufacturer's Product Code: GXP2170

Protocols / Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR- 069, 802.1x, TLS, SRTP, IPV6

Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Graphic Display: 4.3 inch (480x272) TFT color LCD

Bluetooth: Yes, integrated

Feature Keys: 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE(with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-

Video Codes: Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), in-band and out- of-band DTMF(in audio, RFC2833, SIP INFO)

Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port

Telephony Features: Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-ap- pearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customization of screen, on-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over

Sample Applications: Yes, HD handset and speakerphone with support for wideband audio

HD Audio: Yes, HD handset and speakerphone with support for wideband audio

QoS: Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security: User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control

Upgrade/Provisioning: Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file

Power & Green Energy Efficiency: Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ; Integrated Power-over-Ethernet(802.3af) Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs)

PACKAGE CONTENTS

1 x Grandstream Gxp2170 Enterprise Voip Phone
1 x 12VDC PSU
1 x Desk Stand
1 x Ethernet Cable
