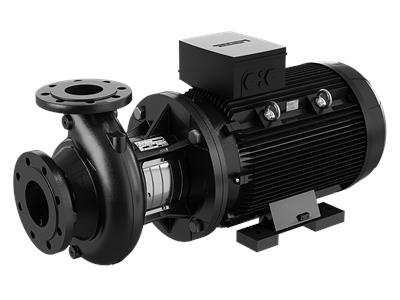

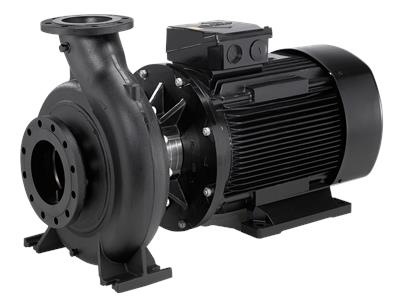

Grundfos NB 50-160 2-Pole NB Close Coupled End-Suction Pump (EN 733)

Image 1
Image 2
Image 3
Image 4
From$5348

Collect 5348 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)
Sold & shipped by Sprinklerpros
Secure ways to pay at checkout

NB: with fixed speed motor.

NBE: variable speed motor, with built-in frequency converter - available on request

End-suction close-coupled pumps according to EN 733


Specification:

Ambient temperature : 0°C to +40°C
Liquid temperature : Clean water / Glycol: -25°C to +120°C
Shaft seal : Clean water / Glycol: BQQE (Rubber bellows seal / Silicon carbide / Silicon carbide / EPDM) - Others on request
Supply voltage : Up to 3 kW - 3 x 220-240 Volt D/380-415 Volt Y 50 Hz
From 4 kW to 5.5 kW - 3 x 380-415 Volt D 50 Hz
From 7.5 kW - 3 x 380-415 Volt D/660-690 Volt Y 50 Hz
Efficiency class : IE3
Enclosure class : IP55
Material : Cast iron housing / Bronze impeller / Stainless steel AISI 304 shaft /
Brass wear ring
Connections : DIN Flange
Base Plate : Available on request - refer to Page 4.33
Variable Speed Option : Available on request
Motor Speed : 2900 rpm
Warranty : 2 Years

Inlet Outlet P2 [KW] PN [bar]
DN 65 DN 50 5.50 16
7.50 16
11.00 16
15.00 16

Estimated Delivery Time Frame:7-14 business days
