GSM/3G/4G Yagi Antenna High Gain (12.0 dBi) dual band for signal boosting
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 119 Everyday Rewards points
Collect 119 Everyday Rewards points
ITEM ID:AN_GSM_Yagi_900_1800
High quality Aluminum alloy frame
7/24 Operation Capability
Applications:
GSM/3G/4G/LTE 900/1800/PHS system
Repeater station system
Long distance telecommunication
Electric specifications:
Frequency 700~4000 MHz
Band Width 3300 MHz
Gain 12.0dBi
Element 16
Beam width:
H:48degrees
V: 40degrees
F/B ratio: ≥16 dB

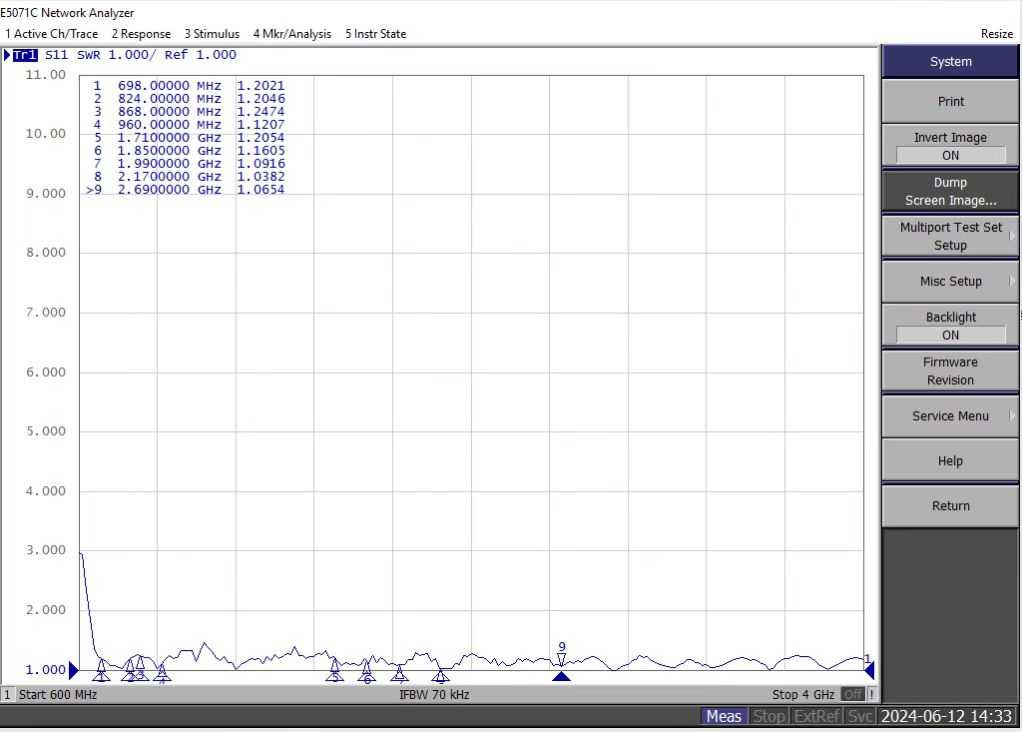

V.S.W.R ≤1.5
Input Impendence :50 ohmÂ
Polarization: horizontal or vertical
Max Power: 100W
Lightning protection: DC ground
Mechanical specifications:
Dimensions: 740*185*60 mm
Cable length: 5 m
Antenna weight: 1.2 kg
Working Temp: -40 Degrees Celsius ~+60 Degrees Celsius
Rated wind velocity:60m/s
Clamp: U
Pole diameter: ø 40 to ø 50
Connector type: SMA male
Outdoor wall/roof mount antenna for GSM/3G/4G signal boosting with dual frequency band and high gain (12.0 dBi)
Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G
GTIN: 747356052245
