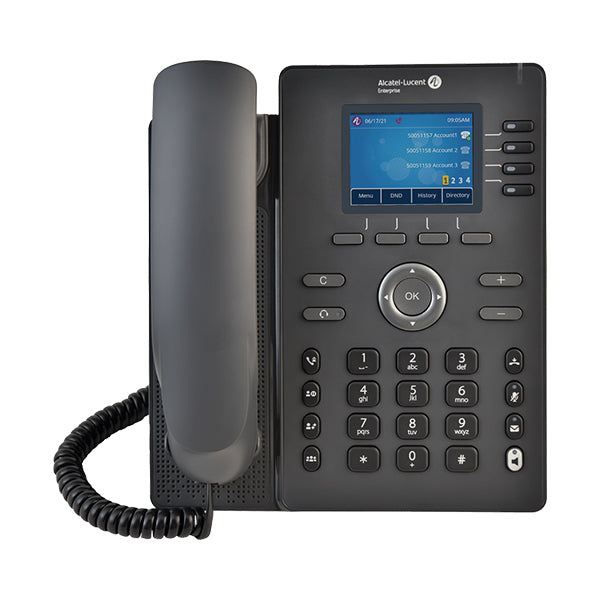

H6 DESKPHONE

The Alcatel-Lucent Enterprise H6 is a high-performance, entry-level wired desk phone. A 2.8-inch color display is applied to bring a pleasant visual experience to customers.

In addition to its stylish and professional design, the H6 DeskPhone represents another step in Alcatel-Lucent Enterprise’s push for enhanced audio quality.

It is equipped with a suite of full-duplex and high-def broadband audio components that deliver a vivid and crisp audio experience.

The H6 DeskPhone can fit up to 4 lines of text, and support up to 1000 contacts and call logs. The phone also comes with a multi-angle adjustable stand designed to meet user needs across various scenarios.

The H6 DeskPhone is highly compatible with mainstream SIP platforms such as Broadsoft and Metaswitch.

The phone supports the use of an external power supply and Power over Ethernet (PoE).

The phone is compatible with ALE Easy Deployment Server (EDS) and Easy Provisioning Server (EPS), providing easy large-scale configuration and deployment.

SPECIFICATIONS

Physical Characteristics

Dimensions (L x W x H): 214 mm x 191 mm x 47 mm

Weight: 795 g (with handset and stand)

Color: Gray

2.8-inch, 320×240 color display

Adjustable stand: 45° & 50°

Wall mountable (optional accessory)

Keys

4 LED line keys

4 menu keys (corresponding to display)

Volume keys (+ and -)

4-way navigation, along with a return and confirm keys

9 function keys: handsfree, mute, info, headset, hold, transfer, conference, redial, and hang up

Standard dial pad

Telephony Features

4 SIP accounts

Incoming/outgoing/rejected

Call forwarding

Call waiting

Call hold/resume

Redial

Speed dial

Mute/unmute

Do not disturb (DND)

Auto answer

Voicemail

Local 5-party conference

Call Log (1000 entries)

Contacts (1000 entries)

Audio Characteristics

Full-duplex handsfree

Codec: Opus (NB and WB), G.722, ILBC, G711 (a-law and u-law), G.729AB

Voice Activity Detection (VAD)

Comfort Noise Generation (CNG)

Acoustic Echo Cancellation (AEC)

DTMF: In-Band, RFC 2833/4733,

SIP info

Hearing Aid Compatible (HAC) Power

Power over Ethernet (IEEE 802.3af), Class 2

Power adapter: 5V/2A DC output (optional)

Connectivity

RJ-45 LAN: 10/100/1000M Ethernet

RJ-45 PC through 10/100/1000M Ethernet switch

RJ-9 handset connector

USB Type-A connector Network, Security, and Other Protocols

SIP V2: RFC 2474, 2833, 3261, 3263, 3264, 3265, 3325, 3550, 4566, 4568, 5359, 6086, etc.

Static IP and DHCP

IPv4

IEEE 802.1AB/LLDP-MED

QoS: 802.1p/Q tagging (VLAN),

Layer 3 TOS, DSCP

TFTP/HTTP/HTTPS/TR069

OpenVPN, 802.1x

Authentication: basic or digest

Denial-of-service (DoS) attack prevention

TLS 1.2/1.0 and SRTP support

Ships with X509v3 certificate, with support for client certificate installation

Configuration

Web-based management, phone configuration, and automated configuration

ALE Easy Provisioning Server (EPS)

ALE Easy Deployment Server (EDS)

Languages

Multi-language menu support: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Korean, Portuguese, and Spanish

Security

IEC 62368-1:2014, ANSI/UL 62368-1-2014, CAN/CSA-C22.2 NO. 62368-1-14EMC

EN 55032, CISPR 32

EN 55024, CISPR 24

EN 61000-3-2, EN 61000-3-3

47 CFR Part 15 B Subpart B

ICES-003 Issue 6

Telecommunications Standards

TIA/EIA 810-B, TIA 920.130-A-1, AS/CA S004

Eco Design

ErP 2009/125/EC, WEEE 2012/19/EU

ROHS 2011/65/EU, China RoHS 2.0: GBT 26572-2011

REACH (EC1907/2006)

Proposition 65

Packaging: EU 94/62/EC

Hearing Aid Compatibility

FCC 47 CFR Part 68, CS-03, AS/ACIF S040

Environmental Conditions

Operating temperature: -5°C to +45°C

Relative humidity: 5% to 95%

Storage/transportation temperature: -25°C/+70°C

Accessories

External power supply

Wall mounting kit

Alcatel-Lucent Enterprise AH 11GA/12 GA, AH 12U/22U/22M/22U USB headset

PACKAGE CONTENTS

1 x H6 DeskPhone

1 x Wired HD wideband handset and cable

1 x Phone Stand

1 x 1.5 m network cable (cat5e)

1 x Quick Start Guide
