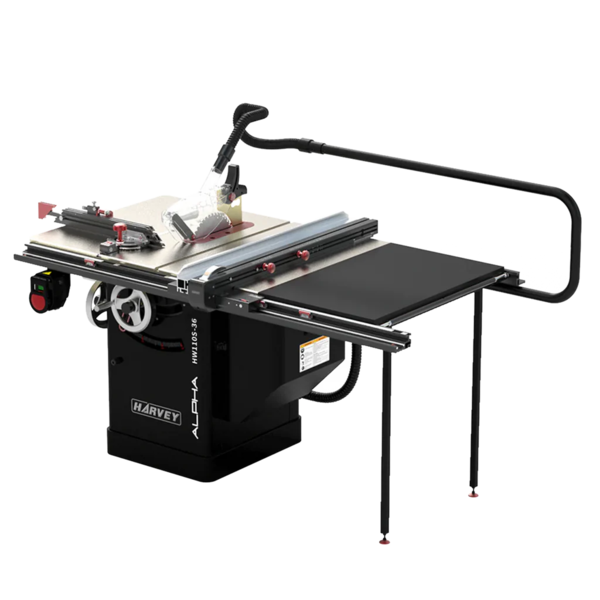

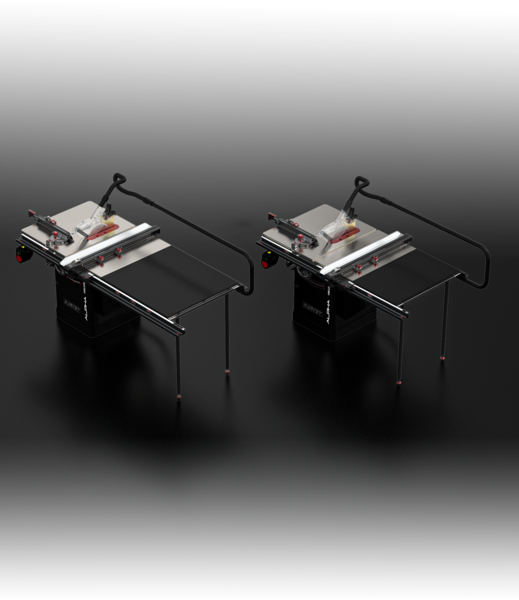

Harvey Alpha HW110S-52Pro

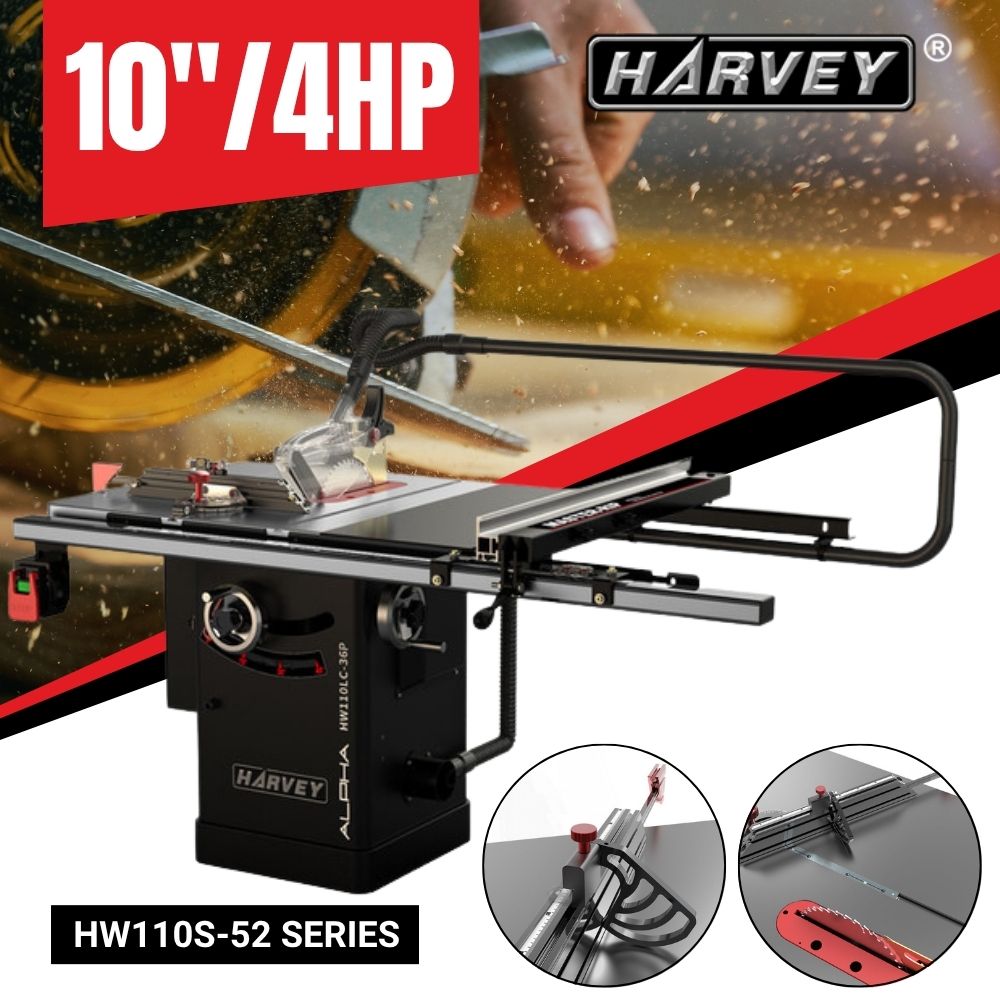

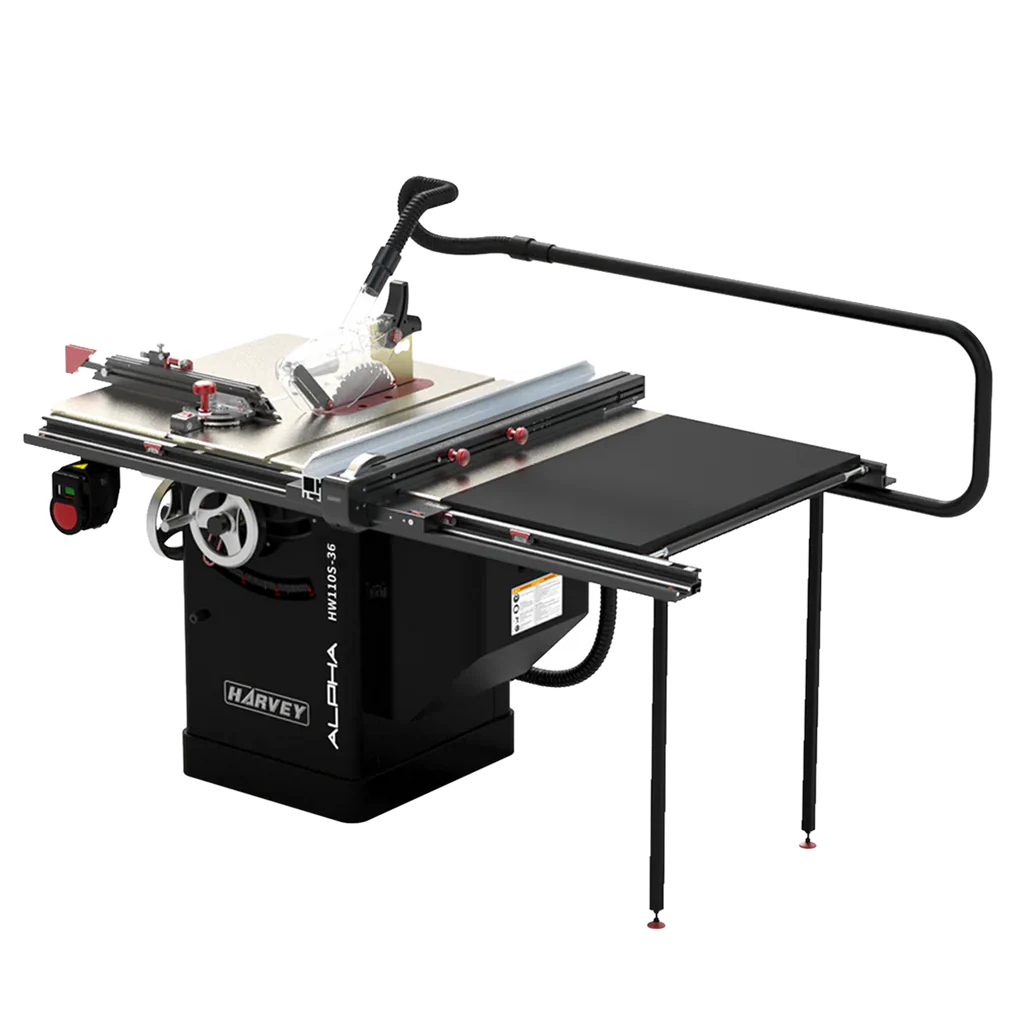

10" 4HP Stain-less Cabinet Saw with Big Eye Rip Fence

For many woodworkers, rust on table saws has long been a source of frustration. About ten years ago, Harvey began addressing this challenge by incorporating the TiN PVD Coating technology into products, reducing wear and rust on table saw surfaces.

However, Harvey is always striving for perfection. Five years ago, we started exploring the nickel plating technology. After countless tests on the process and formulation, we have successfully implemented optimal nickel plating technology on the tabletop and the dovetail trunnion system within the table saw, ensuring a literally rust-free experience for users by completely eliminating issues of wear and rust.

This superior nickel plating solution adopts the autocatalytic plating process, combining with a mid-phosphorus chemical nickel formula, significantly enhances wear resistance and rust prevention capabilities, resulting in a smoother and more lustrous finish.

Furthermore, the nickel-plated table surfaces achieved an impressive hardness of 500HV - 700HV, considerably improving their wear resistance. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer effectively protected the table surface.

We conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated surfaces. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities.

We are confident that the ALPHA HW110S PRO Series cabinet table saw represents the ultimate solution to the rust problem in table saws. Guided by our steadfast philosophy that "Good Enough is Not Enough," these saws exemplify our unwavering dedication to innovation and precision. Central to their groundbreaking functionality is the innovative Big Eye Rip Fence System, revolutionizing woodworking precision and ease of use.

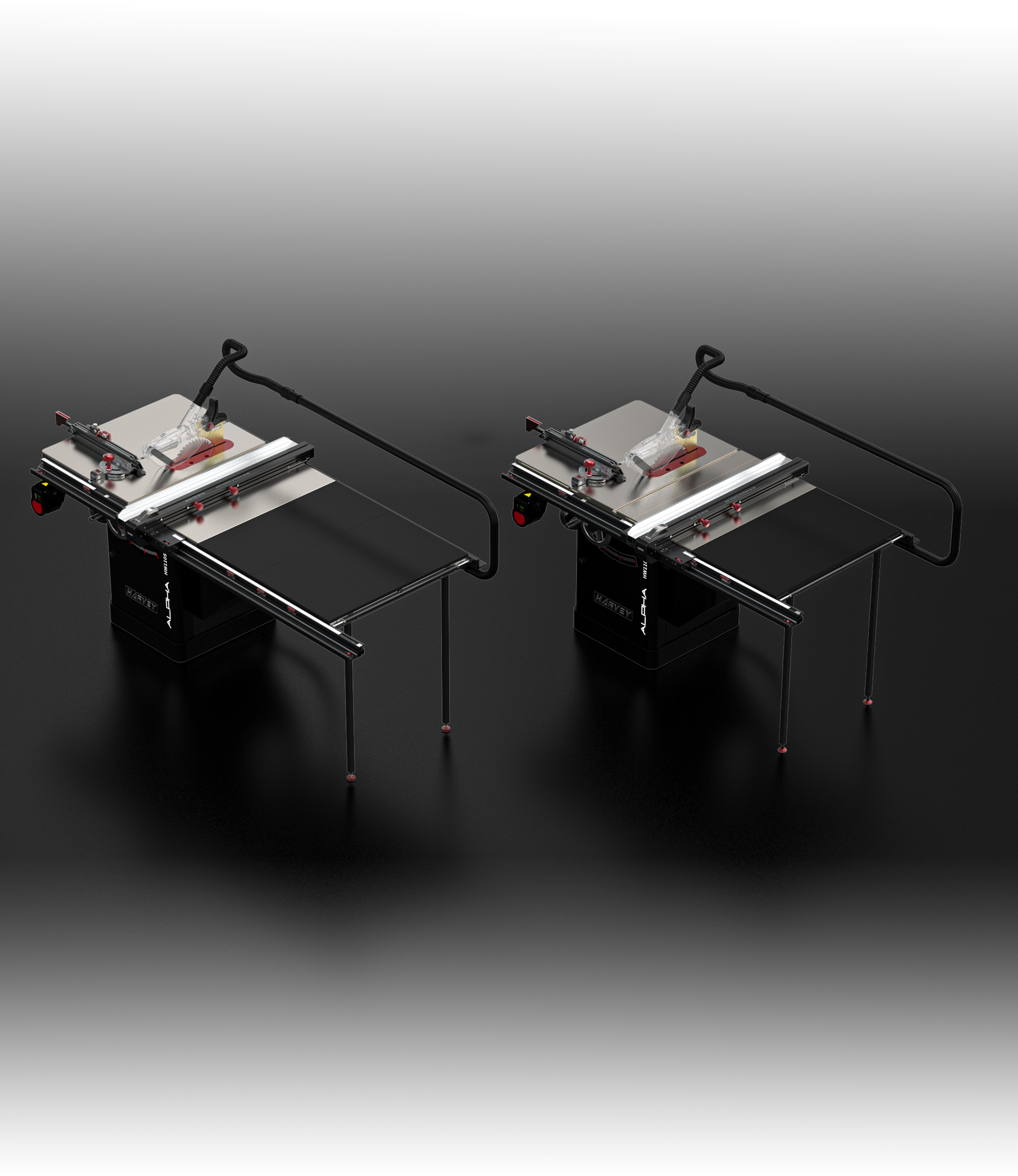

The HW110S-52Pro series cabinet saws are a testament to performance and safety, incorporating all the exceptional features you have come to appreciate and love in the prior HW110S-52 series.

Crafted to the highest standards of quality, the ALPHA Series HW110S-36Pro Stain-less Cabinet Saws are not merely tools but an investment in your craft. Whether you are a seasoned professional or setting up your first woodworking shop, these saws offer the reliability and performance necessary to elevate your woodworking projects to new heights.

Features

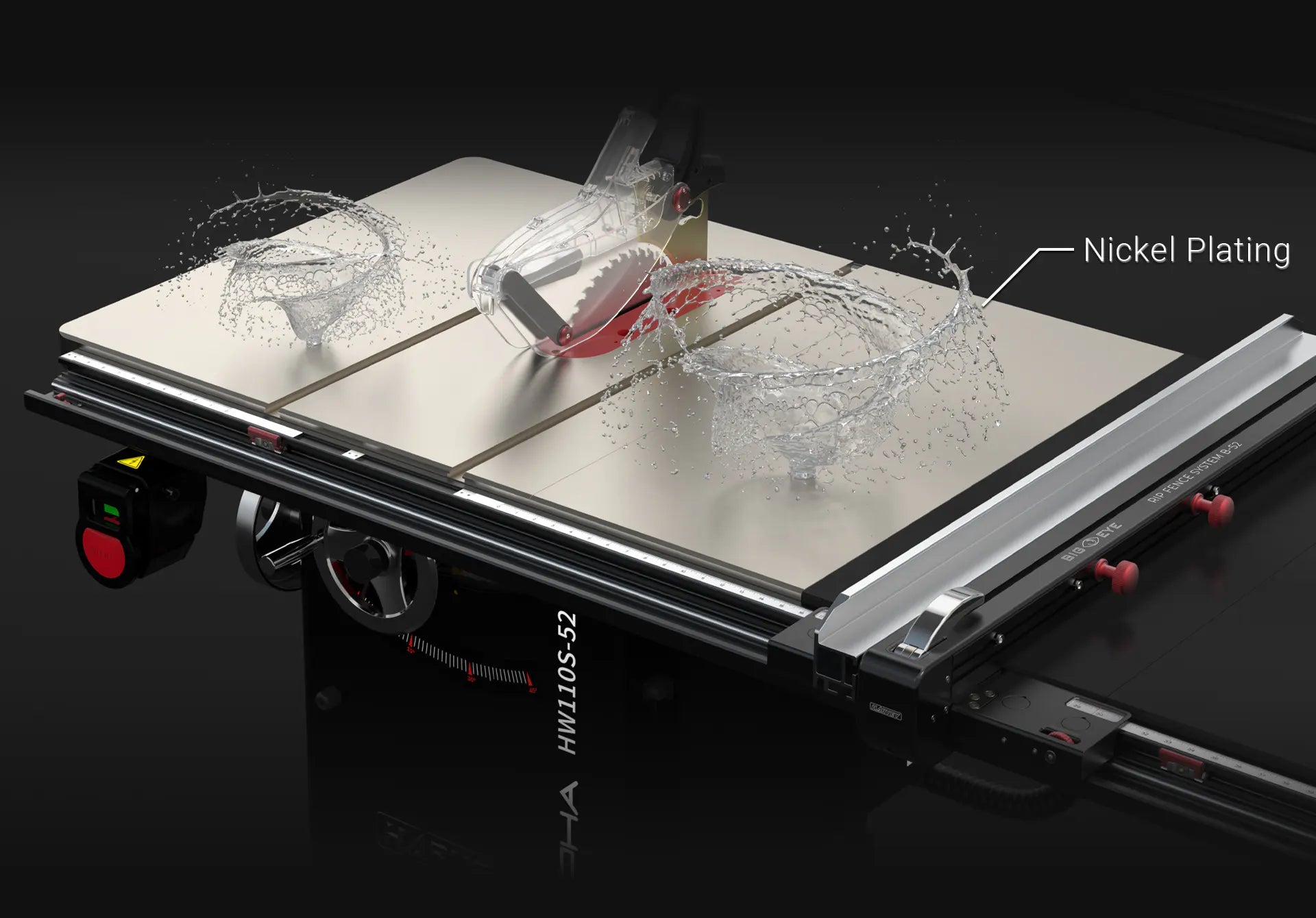

Extraordinary Nickel-plated Cast Iron Table

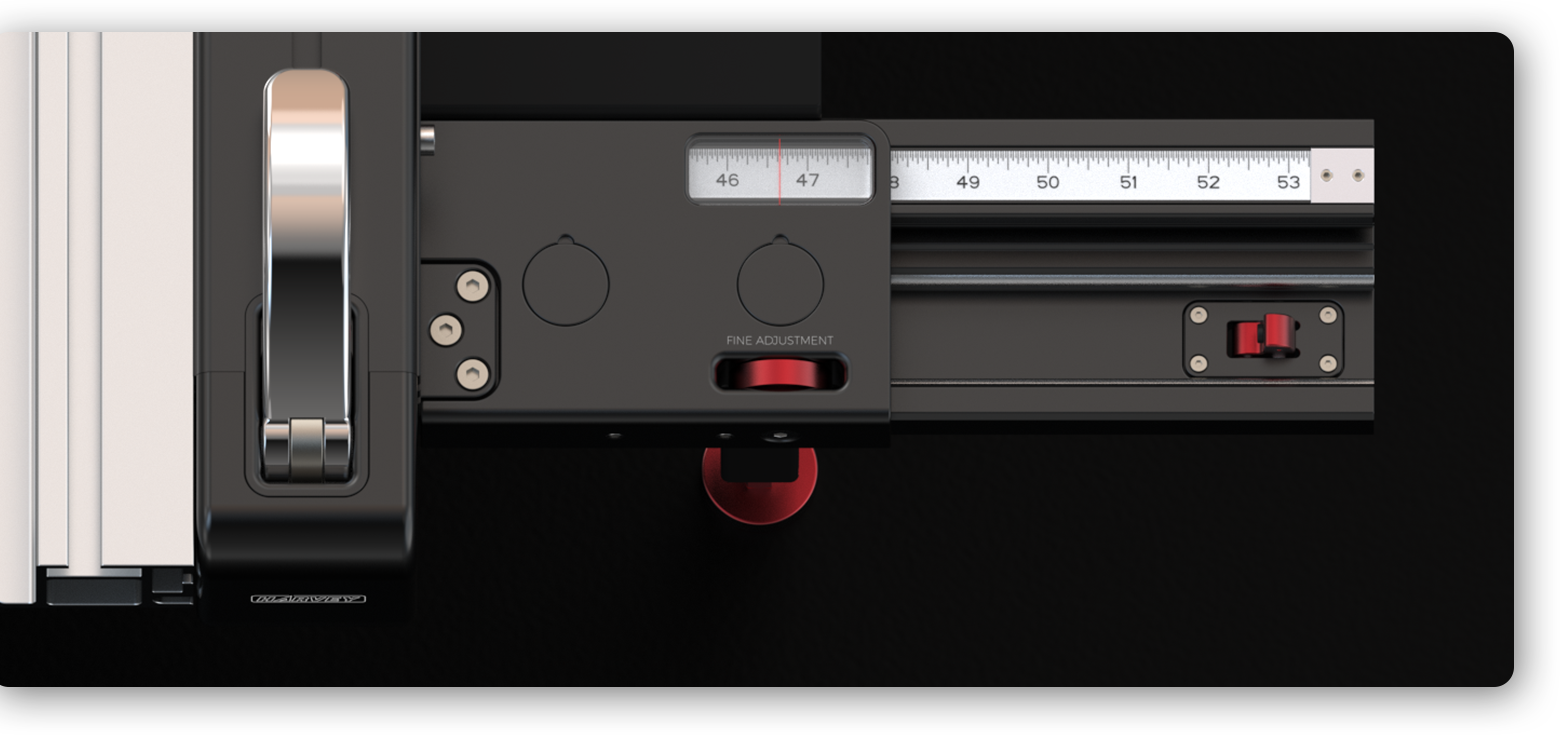

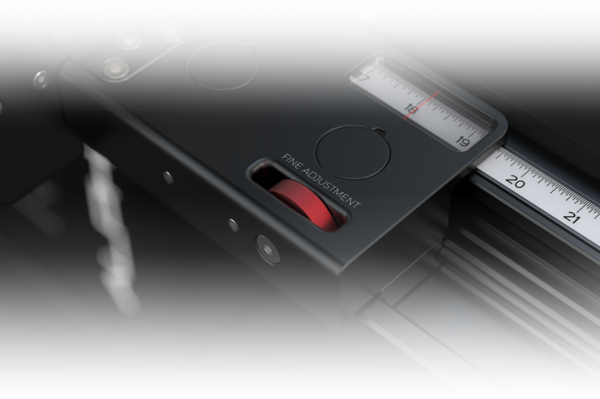

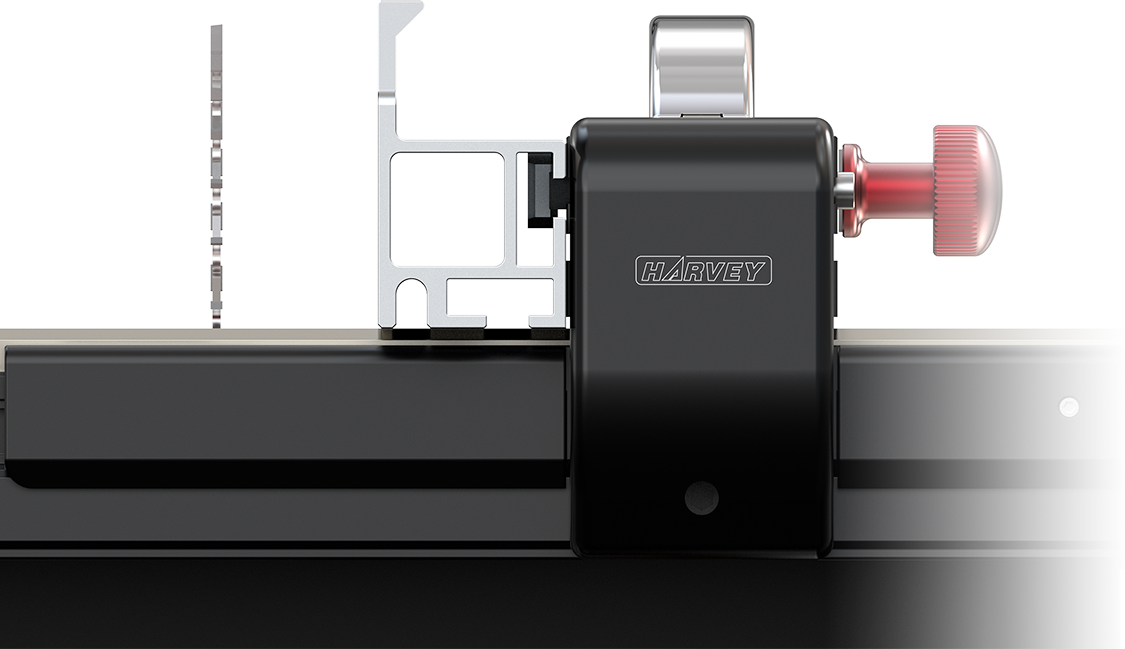

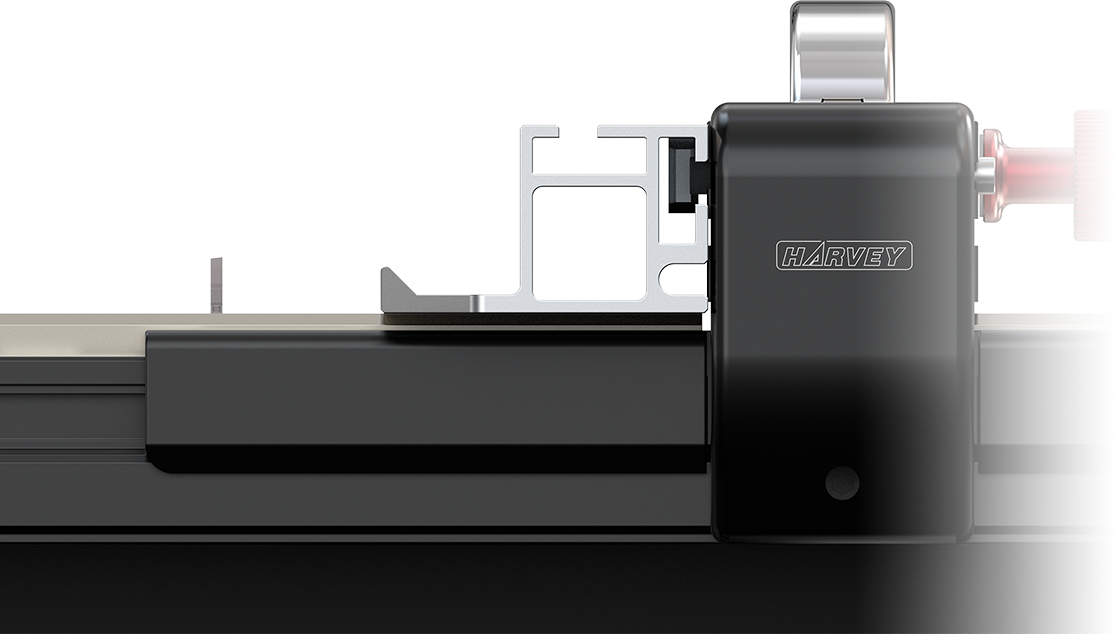

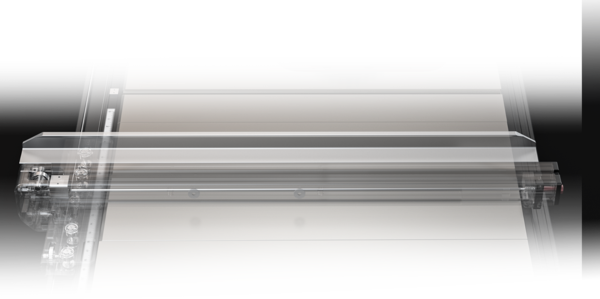

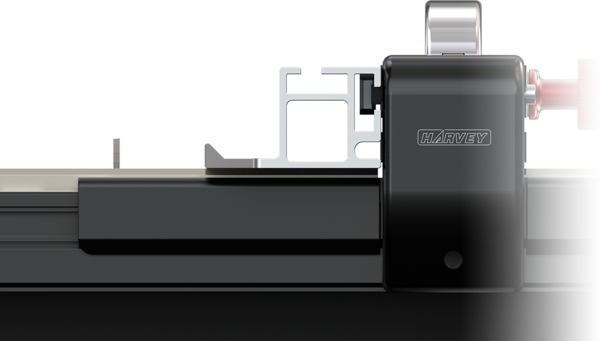

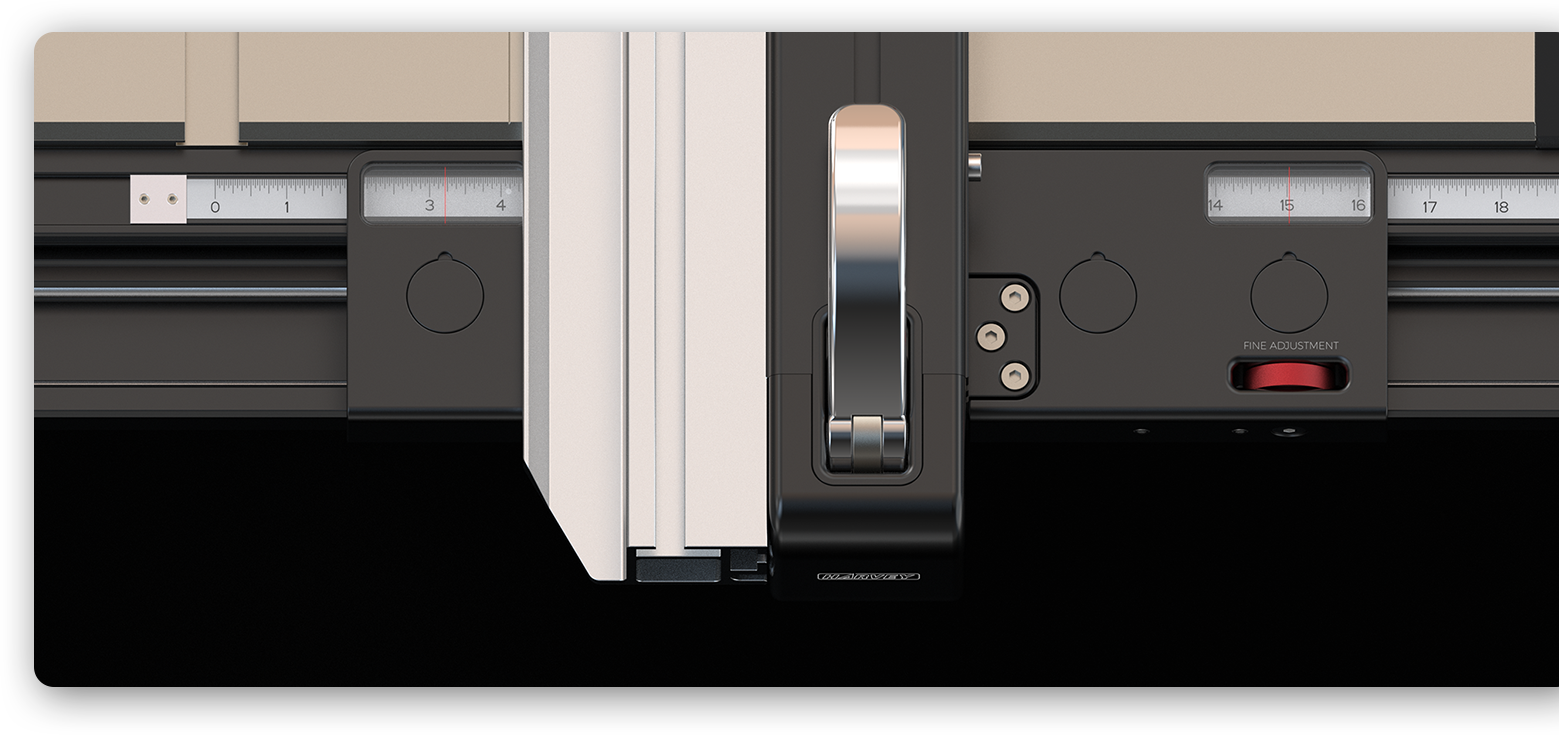

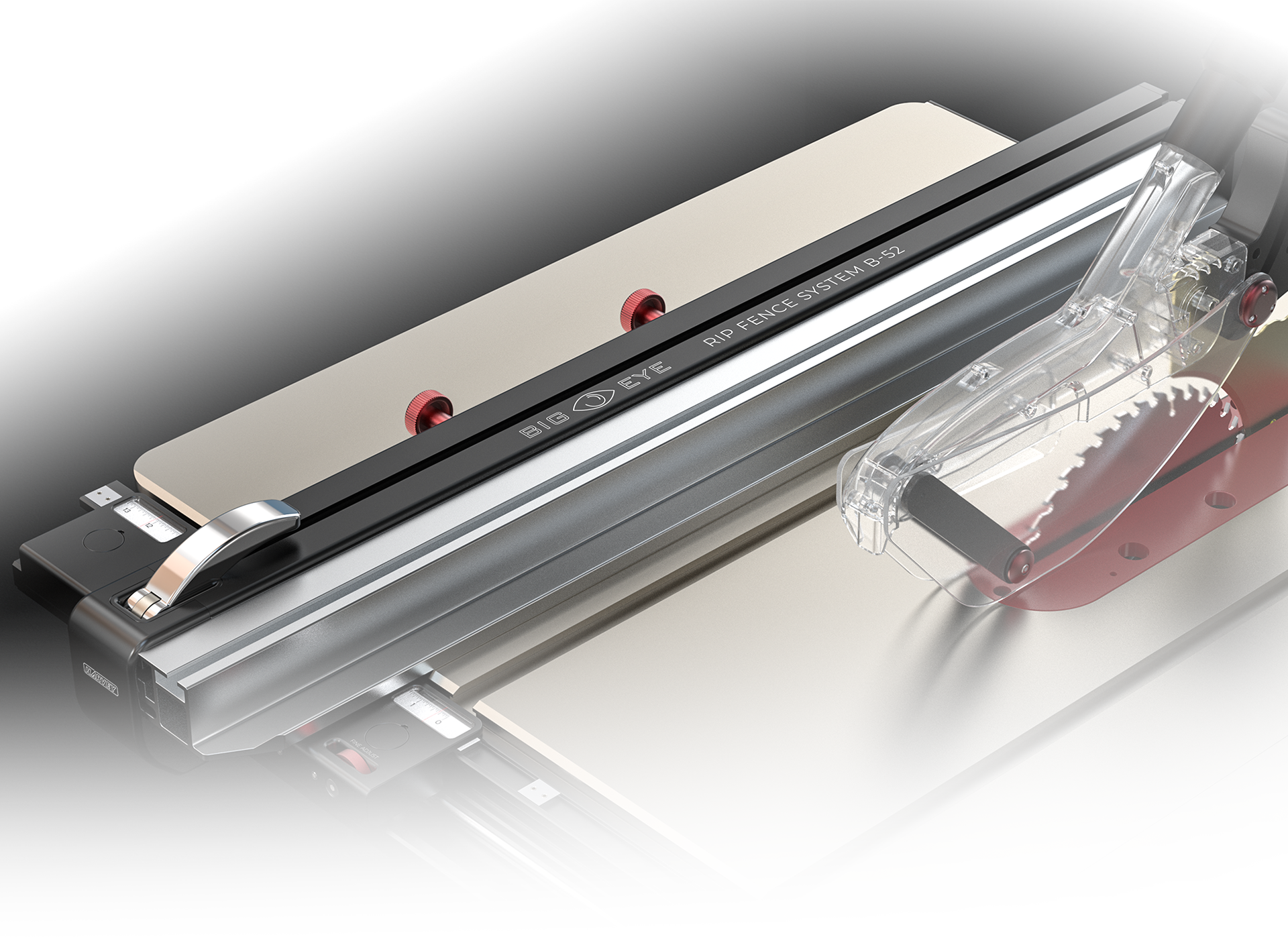

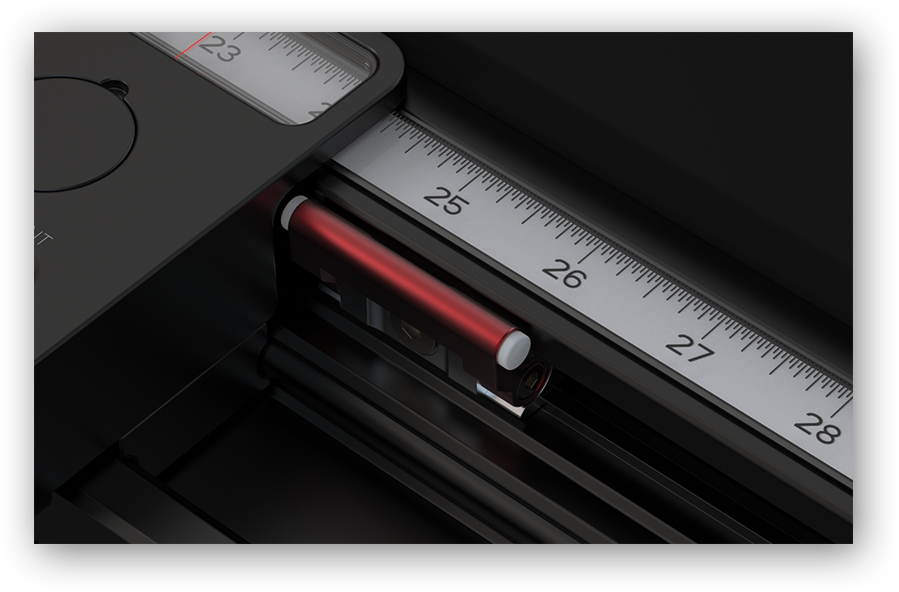

Unprecedented Big Eye Rip Fence System

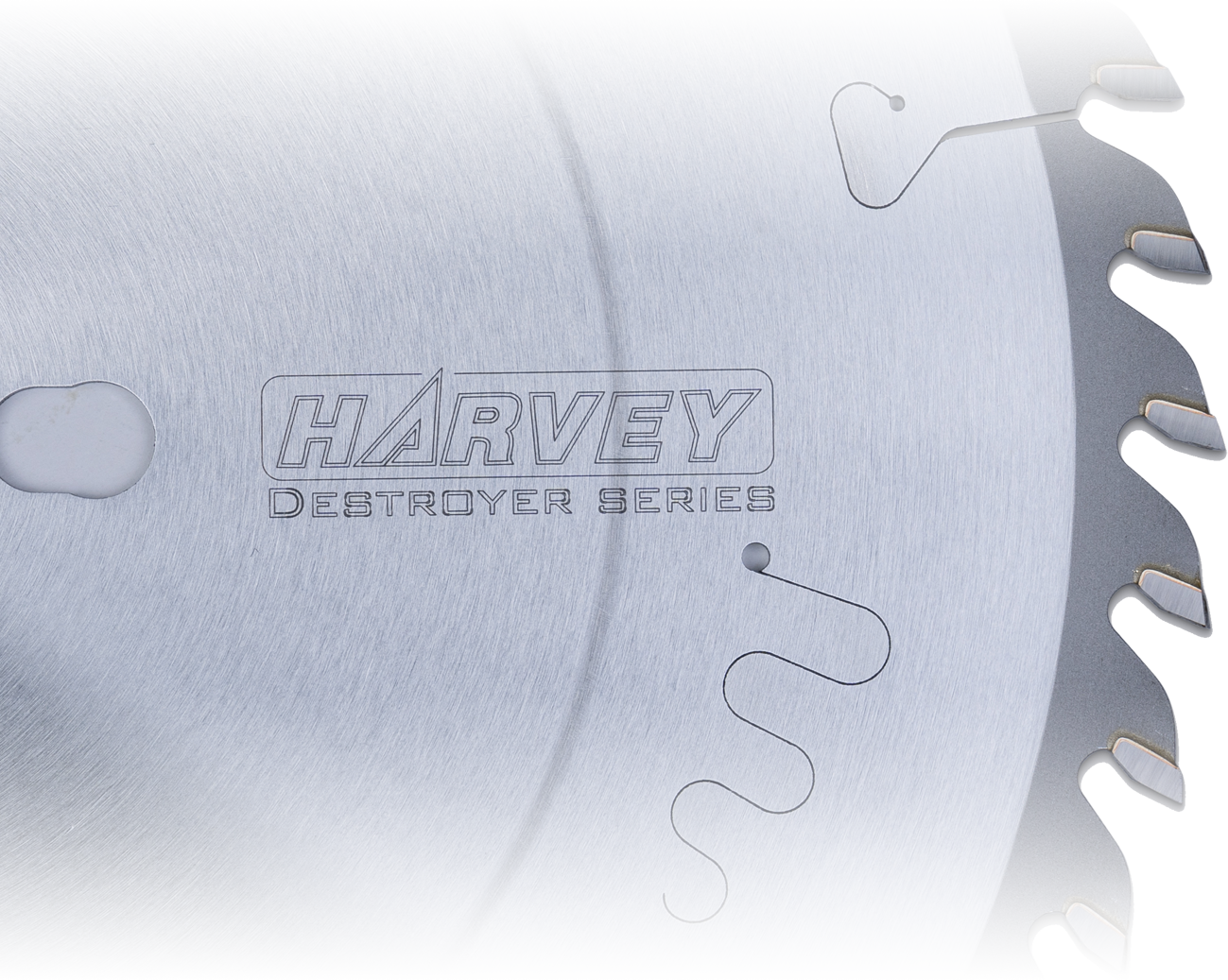

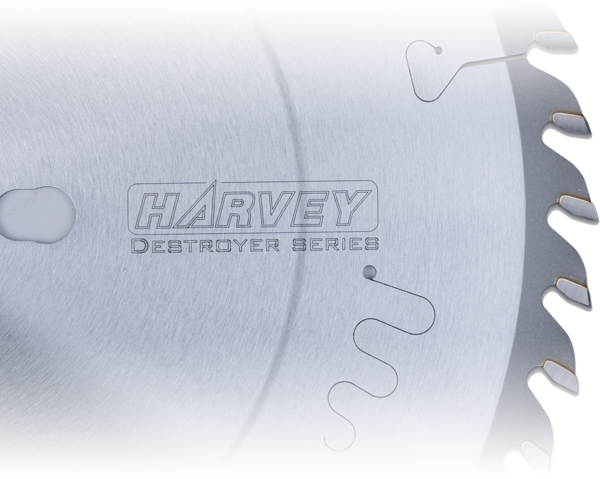

Industrial-grade DESTROYER General Purpose Blade

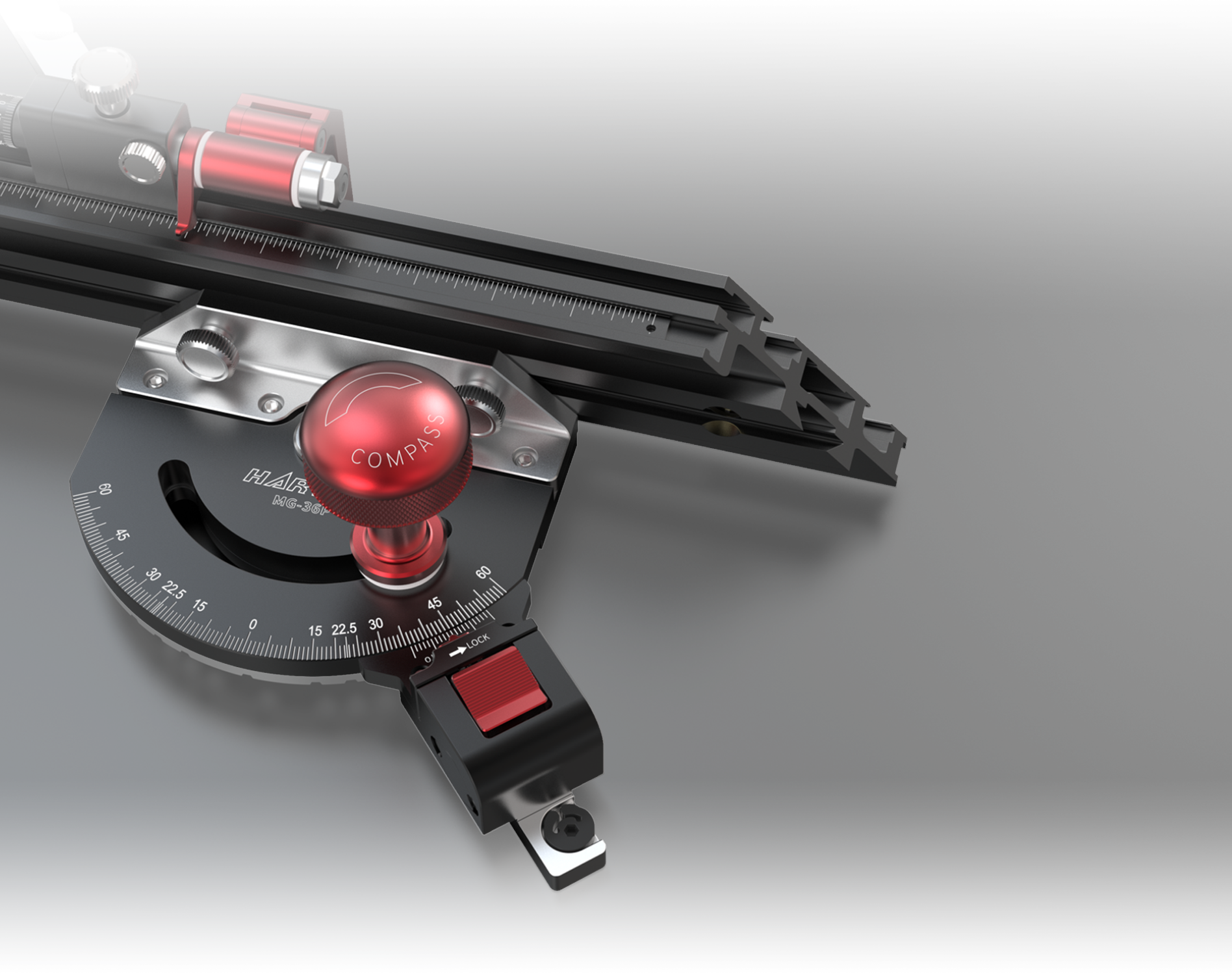

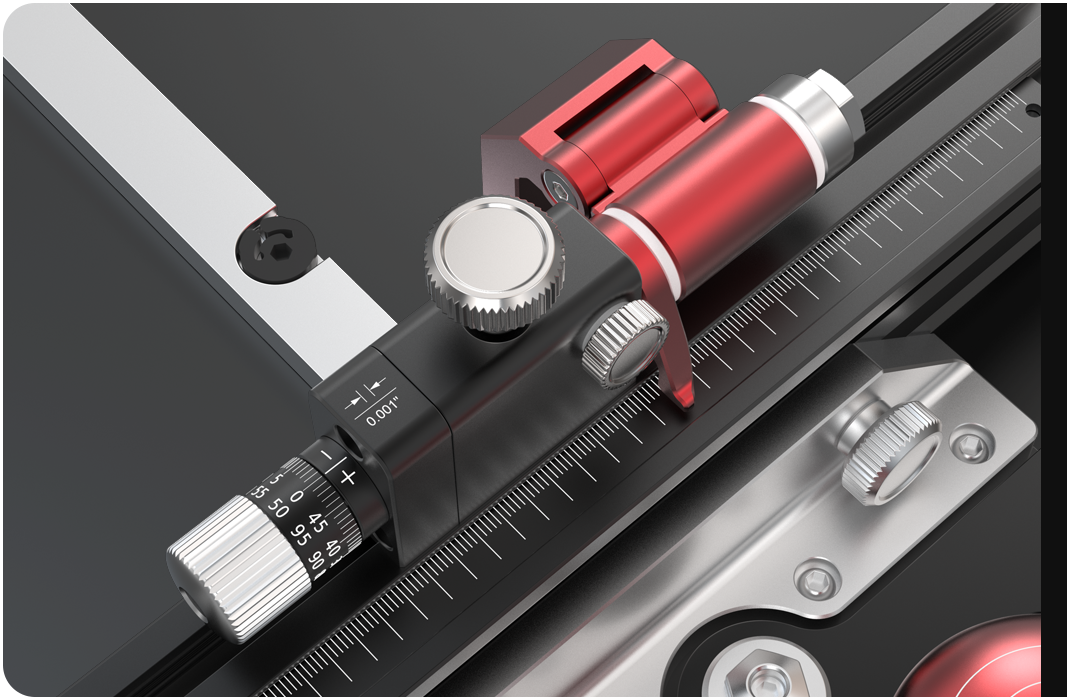

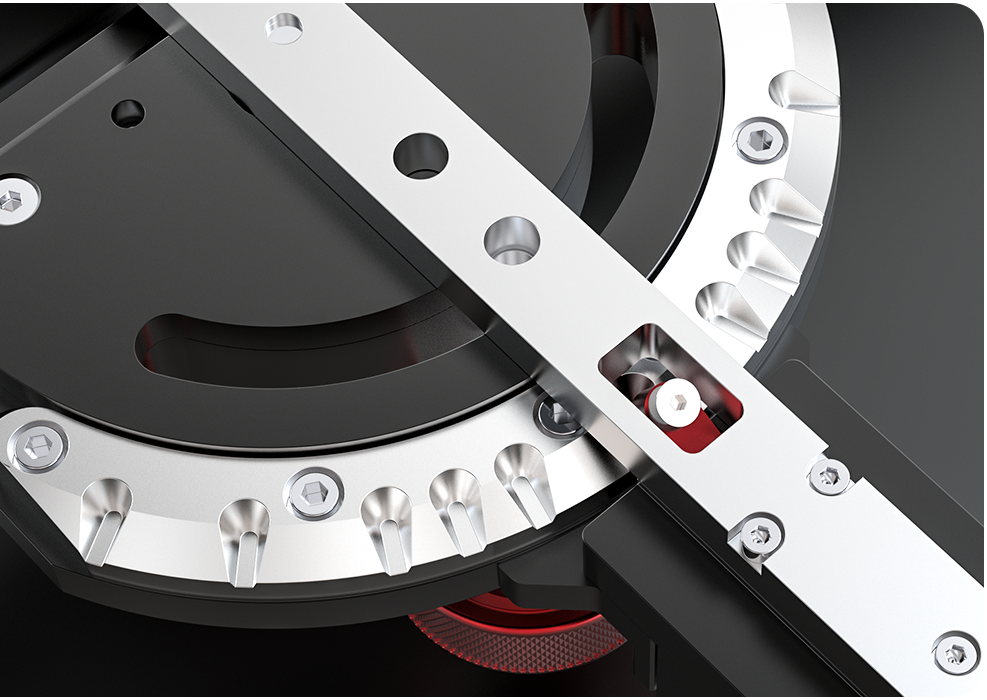

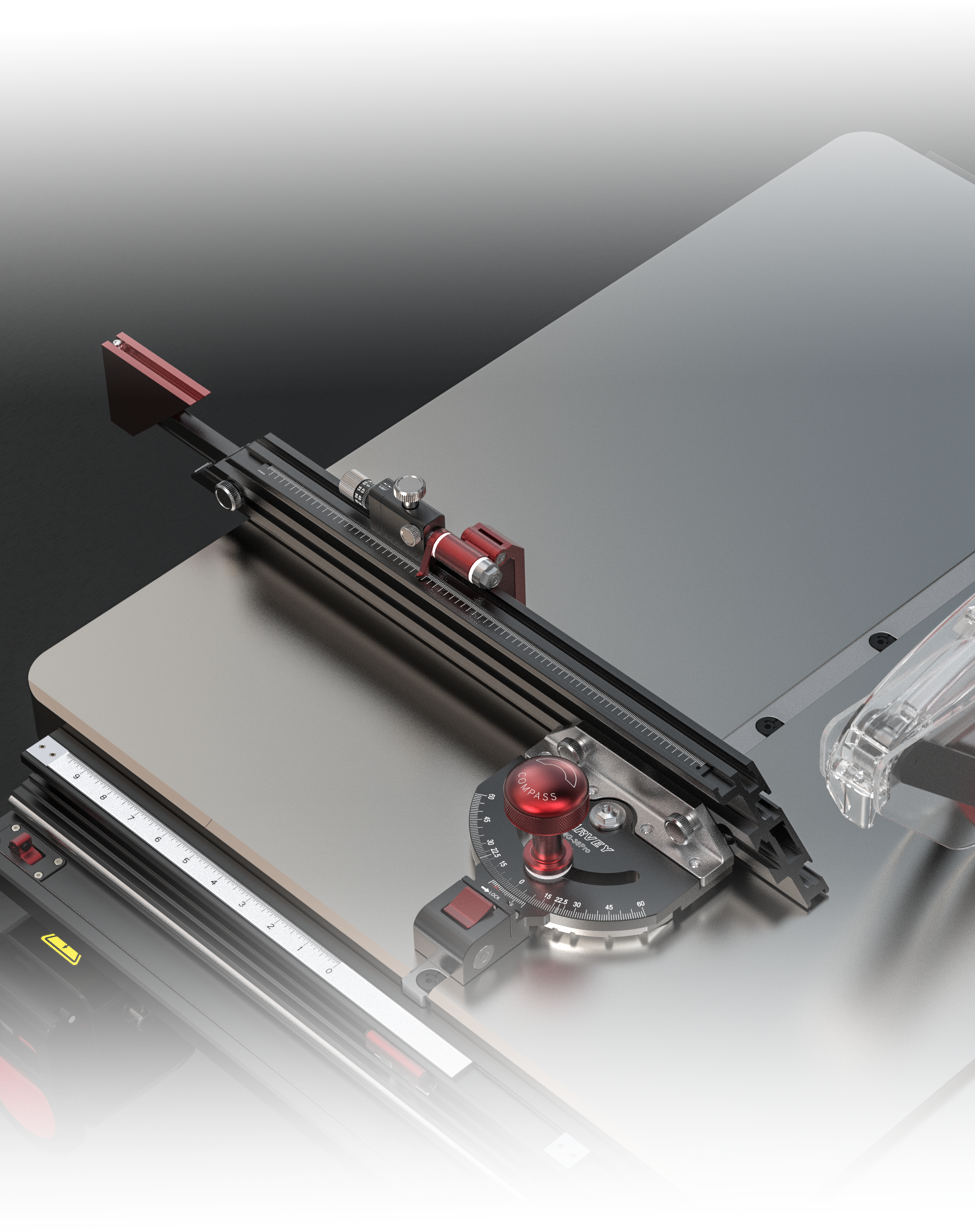

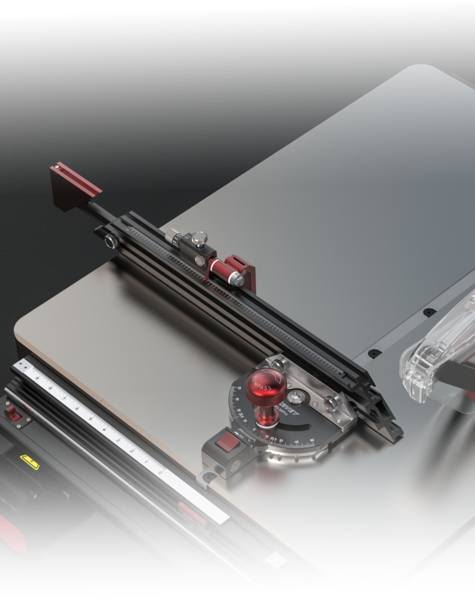

MG-36Pro COMPASS Miter Gauge
Powerful 4HP single phase TEFC motor
The Versatile Fence Positions
Unique Dovetail Structured and Nickel-plated Trunnion System
Dust Shroud Under Blade

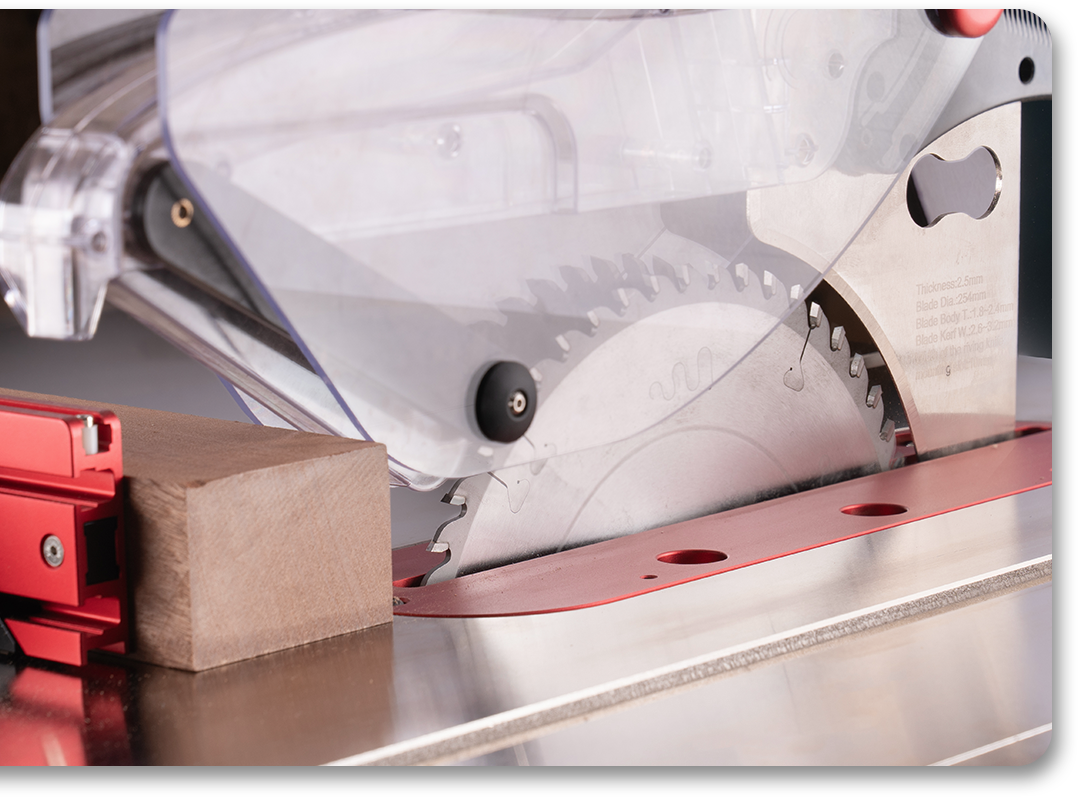

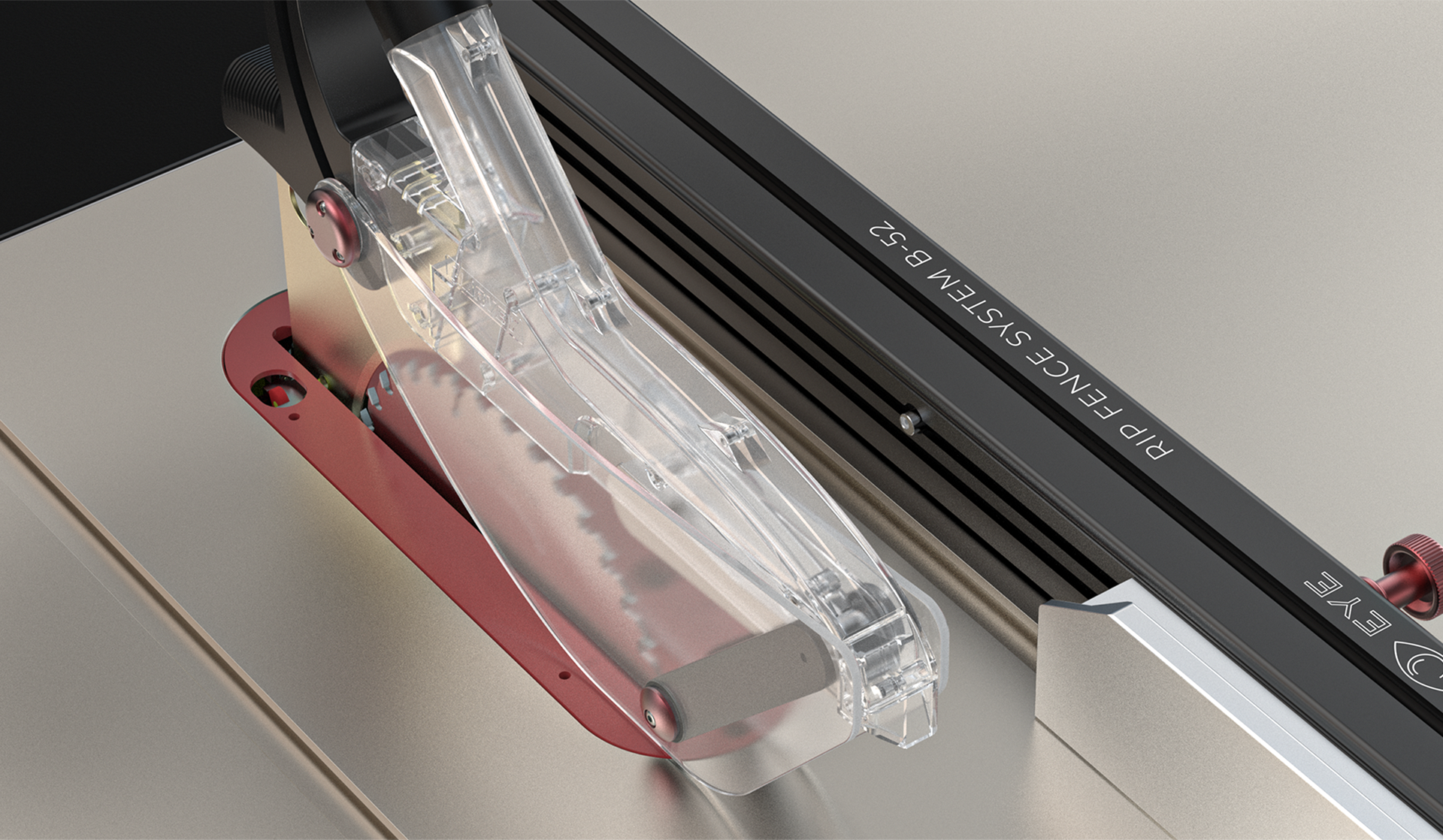

Special Transparent Blade Guard with Optimized Protection and Dust Control
Built-in Dust Collection Hose System
Magnetic Safety Switch
31 -1/2" Extra Deep Precision Ground Cast Iron Table
Powerful 3HP single phase TEFC Motor
Unique Compass Mitre Gauge
Heavy Duty T-square Fence with High/Low Dual Viewers
Special Transparent Blade Guard with optimised protection and dust control
Unique Dovetail Structured Trunnion
Dust Shroud Under Blade
Built-in Dust Collection Hose System
Magnetic Safety Switch

Specification

Weight	582 lbs (approx.)
Length/width/height	1752 x 1120 x 1220 mm
Footprint	533 x 560 mm
Switch
Switch Type	Magnetic with Thermal Overload Protection
Standard	UL62841
Motor
Type	TEFC, Capacitor Start, Induction
Horsepower	3 HP
Voltage	230 V
Phase	1 PH
Amps	16 A
Speed	3450 RPM
Power Transfer	V-Ribbed Belt Drive
Blade Information
Maximum Blade Diameter	254 mm
Riving Knife Thickness	2.5 mm
Maximum Width of Dado	20.3 mm
Blade Tilt	Left 0-45o
Arbor Diameter at Blade	15.875 mm 5/8'
Arbor Speed	4800 RPM
Arbor Bearings	Sealed and Permanently Lubricated
Cutting Capacities
Maximum Depth of Cut at 90o	79.375 mm
Maximum Depth of Cut at 45o	55.5 mm
Maximum Rip, Right of Blade	915 mm, 1320 mm
Maximum Rip, Left of Blade	228 mm
Table Information
Height	860mm
Main Table - Length/width/thickness	800 x 1120 x 46.5 mm
Miler Slot
Miler Gauge Slot Type	T-Shape
Miler Gau...
