HD SET TOP BOX WITH USB

{tab Overview}

Perfect for DVB-T & Ready for DVB-T2, Features TimeShift or Record Live TV & Programmable Remote.

Features:

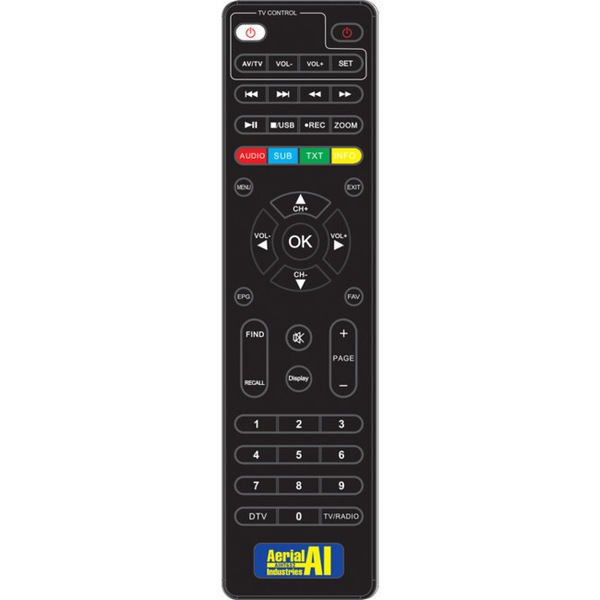

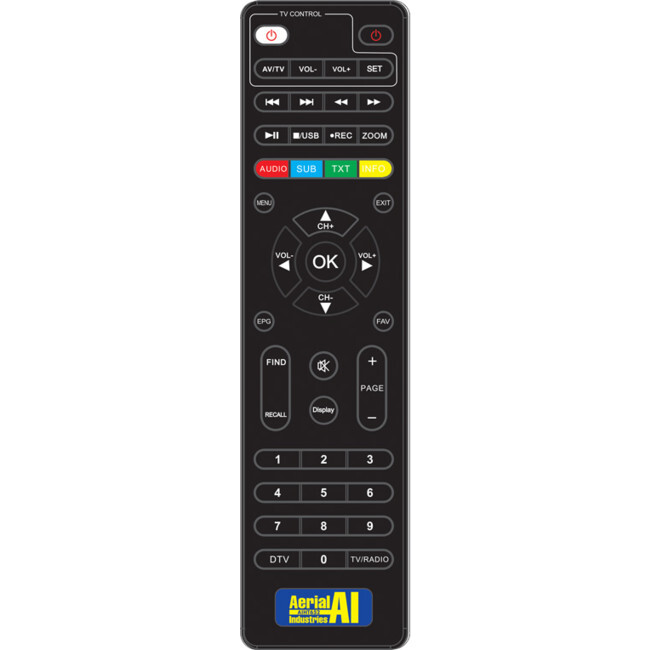

• Programmable remote control

• Small Steel Case easier to conceal

• Standby Power Consumption <0.5W

• Parental Lock Program Control Option

• 7-Day Electronic Program Guide (EPG)

• Internet Radio via optional WiFi Modem

• Audio Description (AD) Function included

• Front Panel LED Clock with adjustable brightness

• Signal Level & Quality bars included in Info Display

• Media Player Function from USB Flash or HDD Storage

• Jump moves instantly through recordings in user defined steps

• DVB-T Receiver ready for DVB-T2 & HEVC H.265 Compression

• Digital Audio: Coaxial S/PDIF with Dolby Digital (where Broadcast)

• Video Outputs: HDMI & Composite CVBS are Active Simultaneously

• External Mains Power Supply enables use from Mains or DC Power 12 to 15V

• Extension RCU Command Receiver (optional) enables Total Receiver Concealment

{tab Specs}

TUNER

FREQUENCY RANGE: 174 MHz to 820MHz
DVB T2 SIGNAL LEVEL: >28dBµV typical
ANTENNA POWER: 5V, I Max. = 300mA
INPUT VOLTAGE: Input DC 12V @<1A
POWER CONSUMPTION: <7.5W Max. (Standby <0.5W)
PROTECTION: Separate Internal Fuse
OPERATING TEMPERATURE: 0°C to 40°C
STORAGE TEMPERATURE: -40°C to 65°C
DIMENSIONS: 150(W) x 91(D) x 30(H)mm

VIDEO

TRANSPORT STREAM: MPEG2, MPEG4 (H.264), HEVC (H.265)
PROFILE LEVEL: Single-chip HEVC, H.264, H.263, MPEG4, MPEG-2, AVS, AVS+, VC1
ASPECT RATIO: 16:9 or 4:3
VIDEO RESOLUTION: 1080p/1080i/720p/575p/576i/480p/480i
VIDEO MEDIA FILES: AVI, FLV, MKV, MOV, MP4, MPG, MT2S, TS, VOB, 3GP
PICTURE MEDIA FILES: BMP, GIF, JPG, JPEG, PNG

AUDIO

AUDIO DECODING: MPEG-1/2 layer I/II/III, Dolby AC3 (AC3+ option), DRA 2 CH/5.1 CH (optional)
AUDIO MODES: Stereo, Joint Stereo, Dual Channel, Single Channel
AUDIO/MUSIC FILES: AAC, MP2, MP3

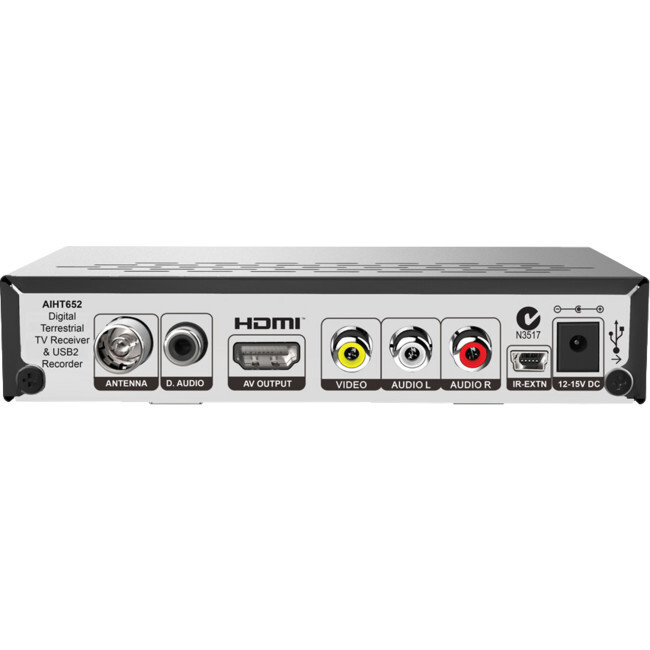

INPUTS & OUTPUTS

ANTENNA: Coaxial Cable TV Signal Input, IEC/PAL 9.5mm type.
DIGITAL AUDIO: Digital Audio Output for HiFi Amplifier or Decoder etc.
DIGITAL AV: High Definition AV Cable Output to TV or Display.
VIDEO/AUDIO L&R: Composite Video and Analogue Audio RCA Cable Outputs.
IR EXTENSION: External IR Receiver Input (optional) to Receive RCU Commands.
USB2: Host Port for Flash SSD or HDD Storage, tested to 3TB.Compatible WiFi Modem <500mA. Port side located.

OPTIONAL PRODUCTS

AIHTEXT: Remote Control Receiver/Target Extension
AIHTRRMOTE: Extra Remote Controls with Learning Keys
AIHWFM: WiFi Modem for Internet Remote

{tab In The Box}

1 x Digital TV Receiver & USB2 Recorder
1 x Remote Control x2 AA Batteries
1 x 12V/1A DC Power Adapter
1 x HDMI Cable
1 x User Manual

{/tabs}
