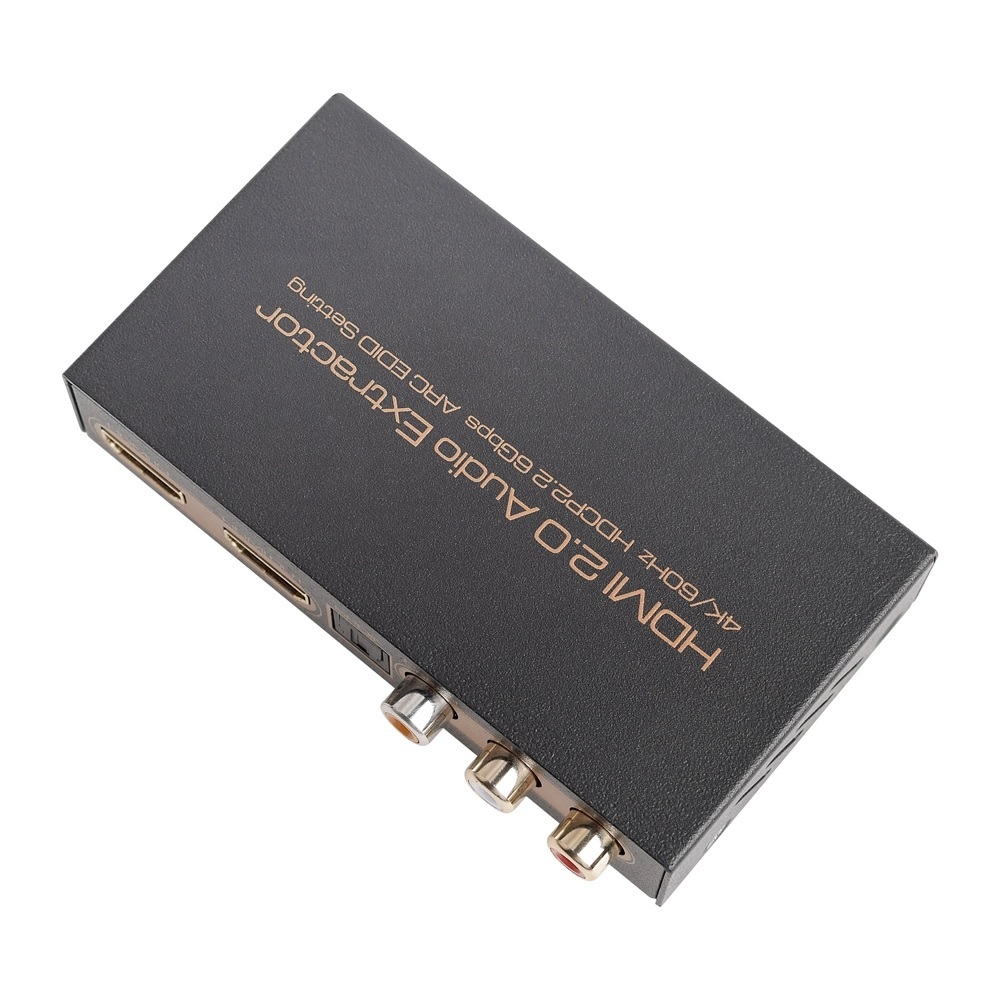

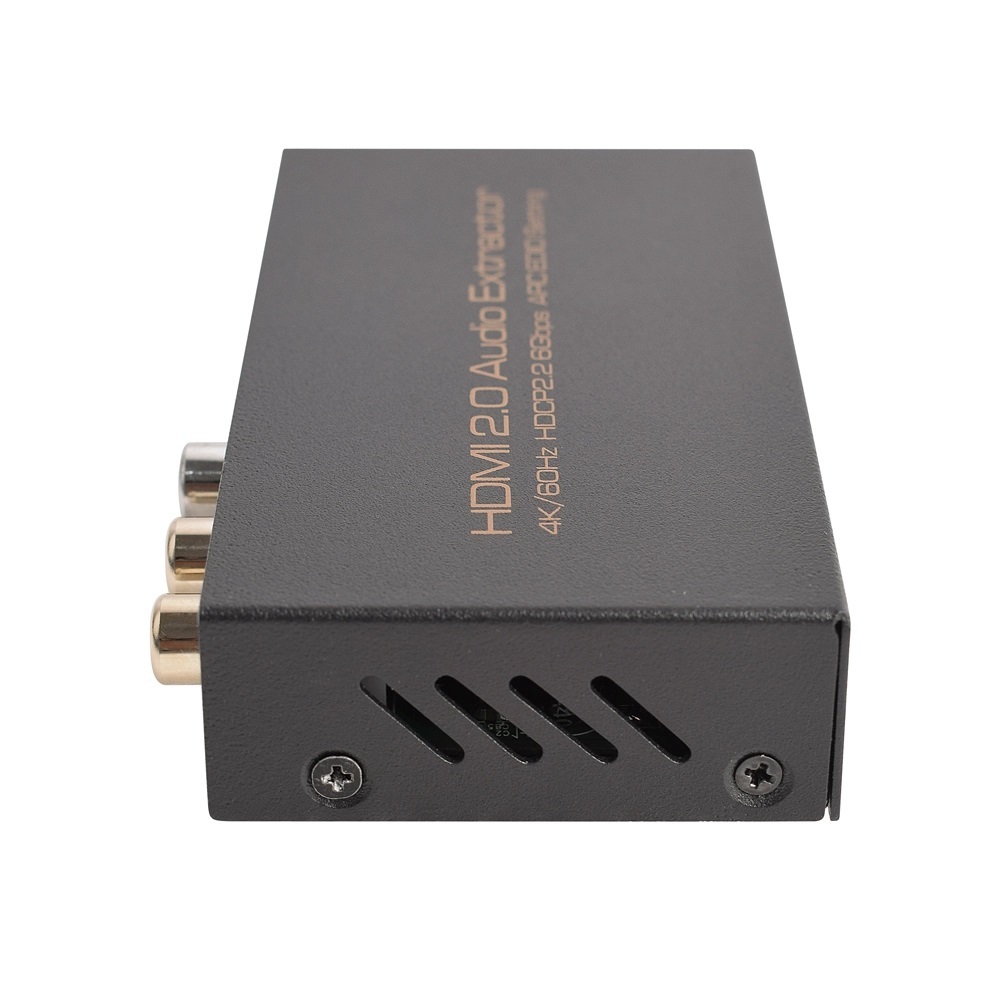

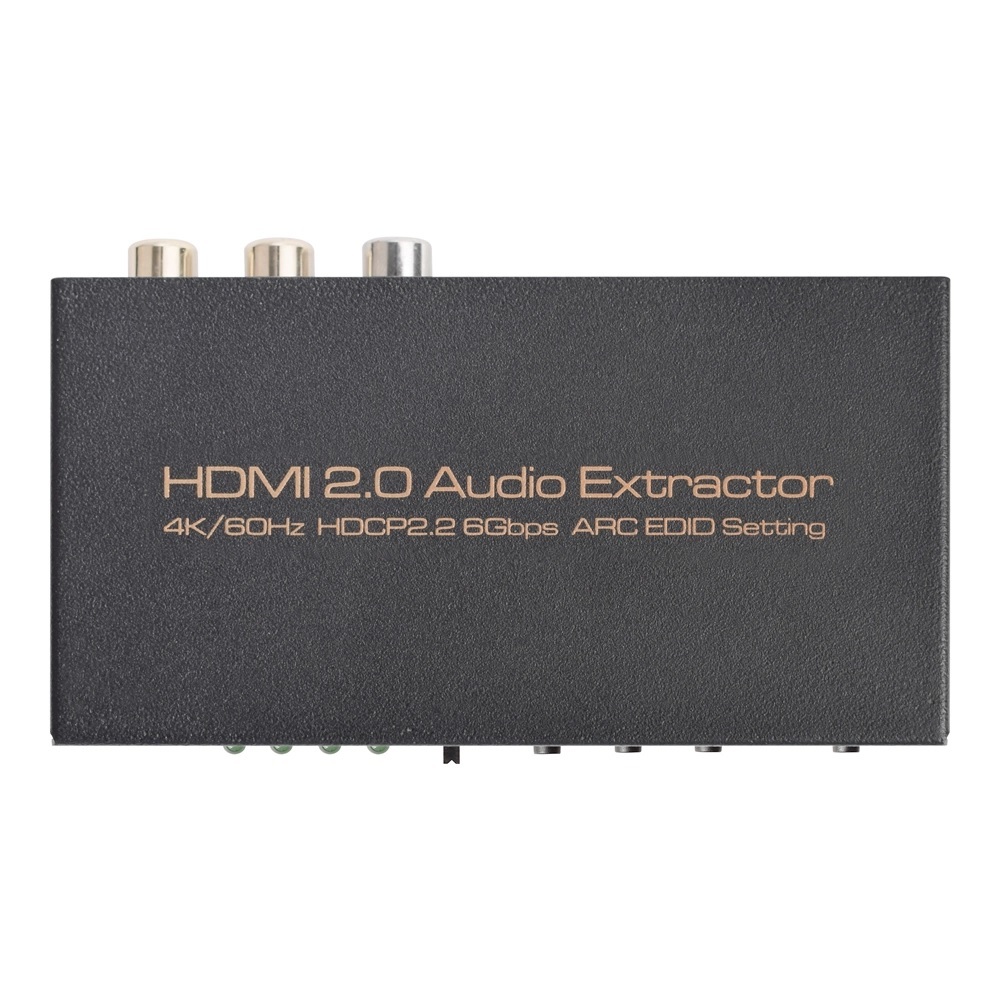

This HDMI 2.0 Audio Splitter/Extractor allows you to connect your HDMI Devices (PS4, XBOX, Set Top Box, Blu-ray) to older hi-fi receivers, amplifiers and even headphones with fibre optic/toslink and analogue RCA Audio inputs.
The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
Features:
• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 4K2K @ 50/60Hz (YUV444)

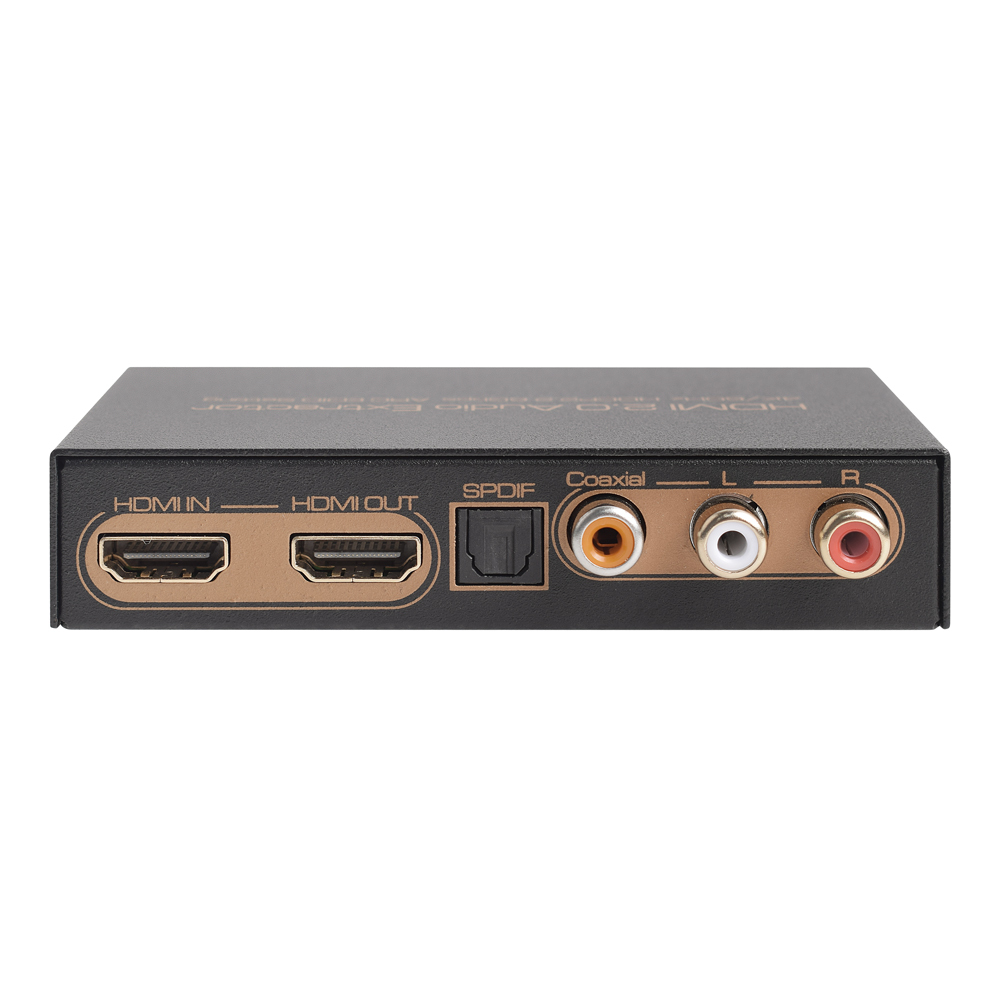

• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
• Supports HDMI High Bit Rate(HBR) audio pass through
• Audio sample rates up to 192kHz
• 10bits HDR (High Dynamic Range) pass through
• Supports ARC
Specifications:
HDMI resolution : 4K @ 60Hz /4K @ 30Hz/ 1080P / 1080i / 720p / 576p / 576i / 480P / 480i
Support audio format : DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
Max bandwidth : 600MHz
Max baud rate : 18Gbps
Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal : 5Volts p-p (TTL)
Input cable distance : ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable
Output cable distance : ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable
Max working current : 700mA

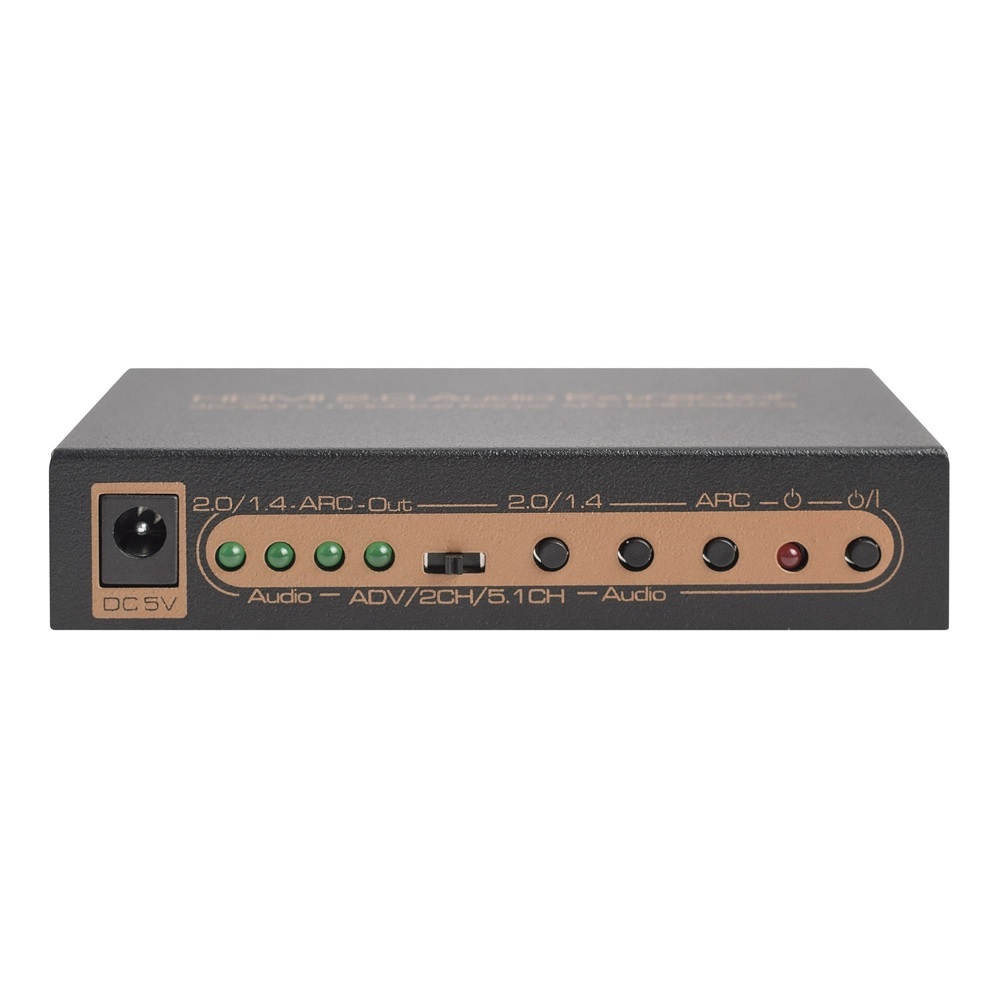

Power adapter : DC5V/2A
Operating Temperature range : -0 to +40℃
Storage Temperature range : -20 to +60℃
Operating Humidity range : 5 to 85%RH (No Condensation)
Storage Humidity range : 5 to 95%RH (No Condensation)
Dimension (L x W x H) : 105X56.8X22.5 (mm)
Weight : 160g
12 Month Warranty
