HDMI OVER SINGLE CAT6 EXTENDER

Image 1
Image 2
Image 3
Image 4
$88.90

Collect 88 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

Popular Products

When installing cables, follow the IEEE-568B termination standards and use solid core cables. For runs longer than 15 meters, it’s best to use SOLID/FTP CAT5e or CAT6 cables. We’ve tested F/UTP solid CAT6 cables at 60 meters, and they work fine, but only if the cable is laid straight with no bends, kinks, interference, patch panels, or wall outlets. Most off-the-shelf CAT5/6 cables are stranded, not solid core, so they’re not ideal for long-distance runs.

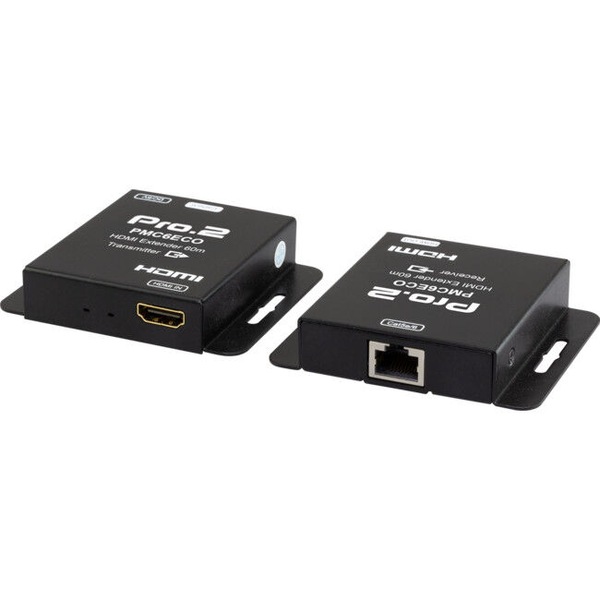

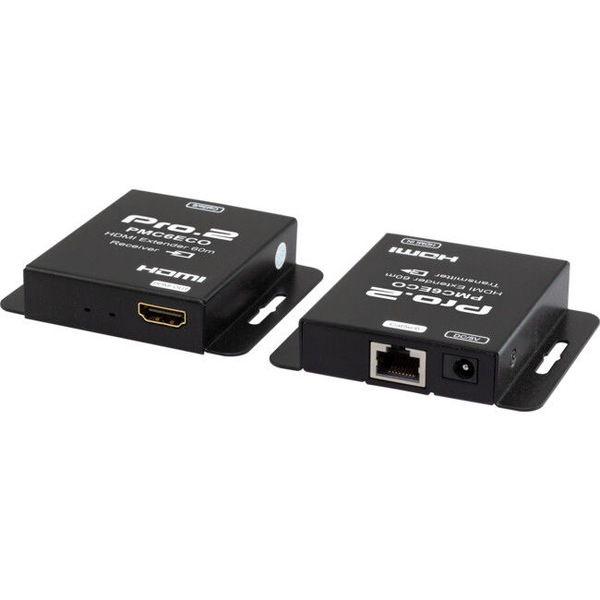

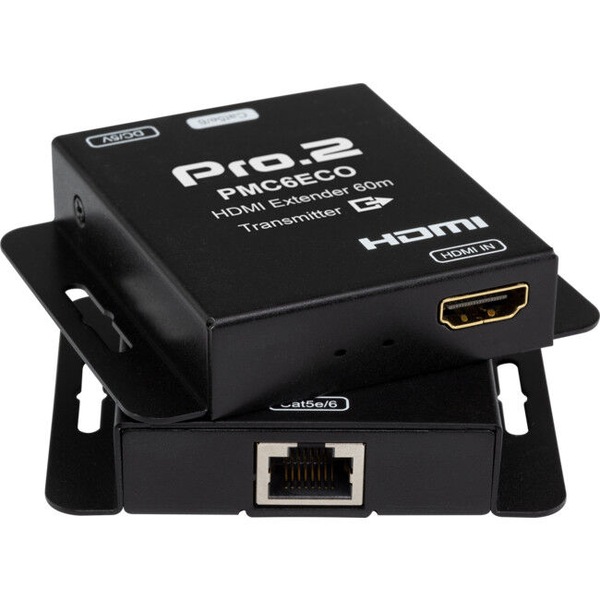

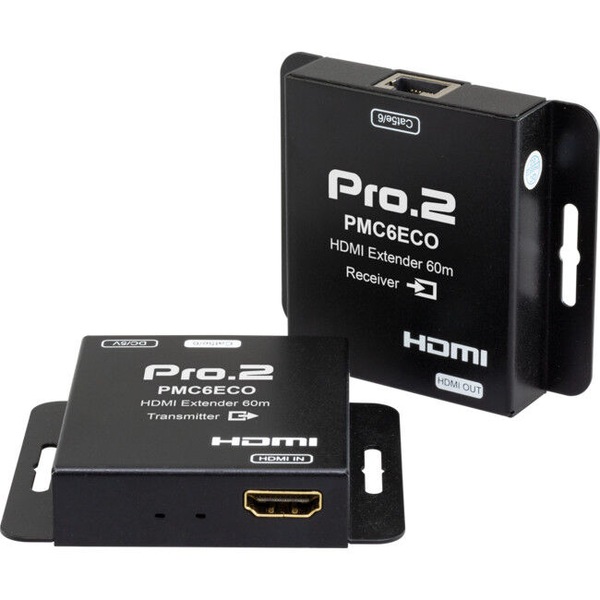

PMC6ECO HDMI Over Single Cat5e/6 Extender

This compact and simple mini HDMI extender kit allows you to extend high-definition audio and video signals from devices like Blu-ray DVD players, game consoles, and more, up to a maximum distance of 60 metres. It uses a single solid CAT5e/6 cable, making it perfect for routing through wall cavities. With its power-over-cable feature, only one power supply is needed at the transmitter end, eliminating the need for a separate power source at the receiver.

Features
  • EDID: Default 1080p
    pre-set resolution for standard Full HD
  • LPCM 2.0 48KHz audio
  • POC (Power over cable) – receiver powered by transmistter
  • Distance: 60m
  • Plug and play with surface-mount design
  • High-definition resolution up to Full HD 1080p@60hz YUV4:4:4
  • Supports 3D
Specifications
  • Operating Temperature Range:0 to +40°C (32 to +104°F)
  • Operating Humidity Range:5 to 90%RH (No Condensation)
  • Input Video Signal: 0.5-1.0 Volts P-P
  • Input DDC Signal:5 volts p-p (TTL)
  • Supported Video Formats:DTV/HDTV:720P/1080i/1080P, 3D video
  • Video Output: HDMI, HDCP 1.4
  • Support Audio Format:LPCM 2.0 48Khz
  • Transmission Distance:up to 60m with single CAT5e/6
  • Power consumption: 2 watts (Maximum)
  • Power supply: 5V 1A DC
  • Dimensions: 79.3 (W) x 68 (D) x 16.5 (H) mm
  • Net Weight: 232g
What is in the box?
  • PMC6ECO Main Unit:
    1x Transmitter & 1x Receiver
  • 1x 5V 1A DC power supply
  • 1x User Manual

GTIN: 9328202035653

Estimated Delivery Time Frame:5-7 business days
