PRO2 HDMI/IR Remote Control Wall Plate Extender/Transmitter/Over Cat5e/Cat6
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 117 Everyday Rewards points
Collect 117 Everyday Rewards points

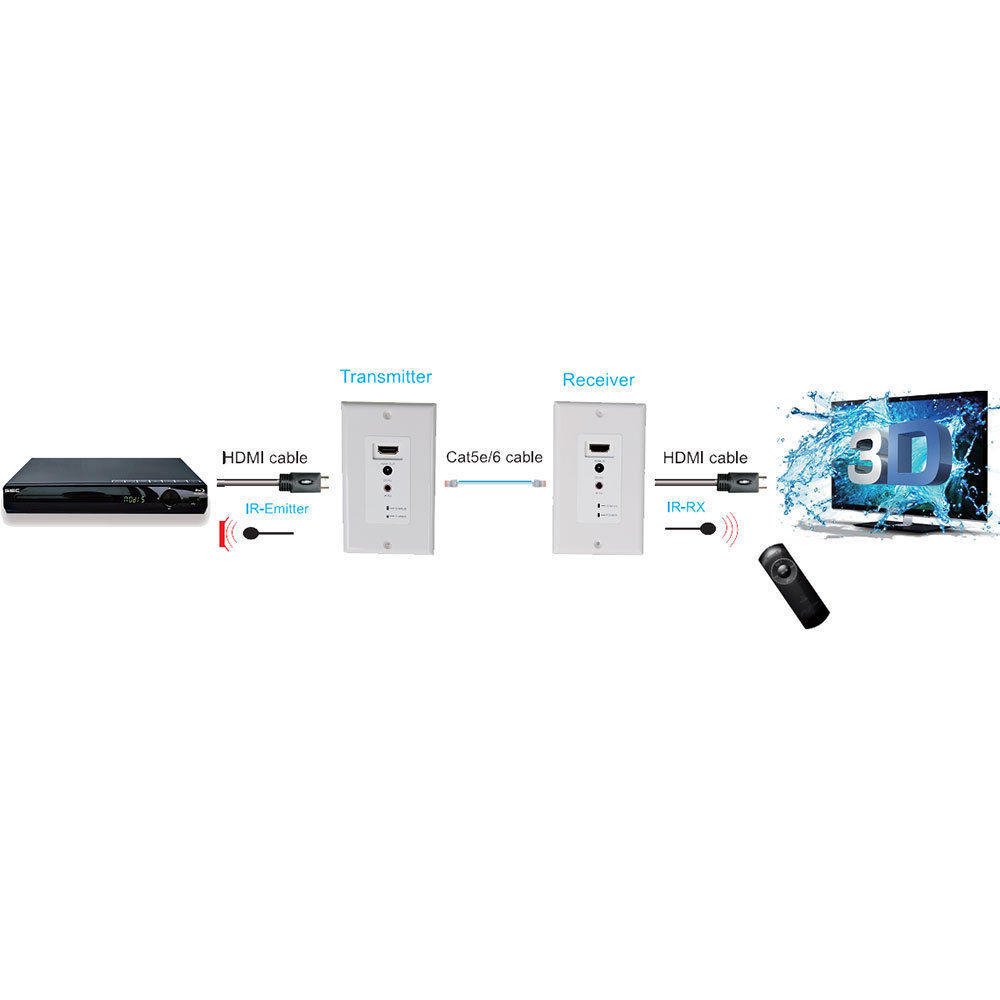

A neat and simple wall plate high definition HDMI extender kit. This kit extends your high definition AV source from your Blu-ray DVD Players, PS3 and XBOX etc. up to a maximum 60m via CAT5E/6 cables through the wall cavities. Supports full 1080P high definition of up to 60m. Integrates an infra-red control extender for full controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection.

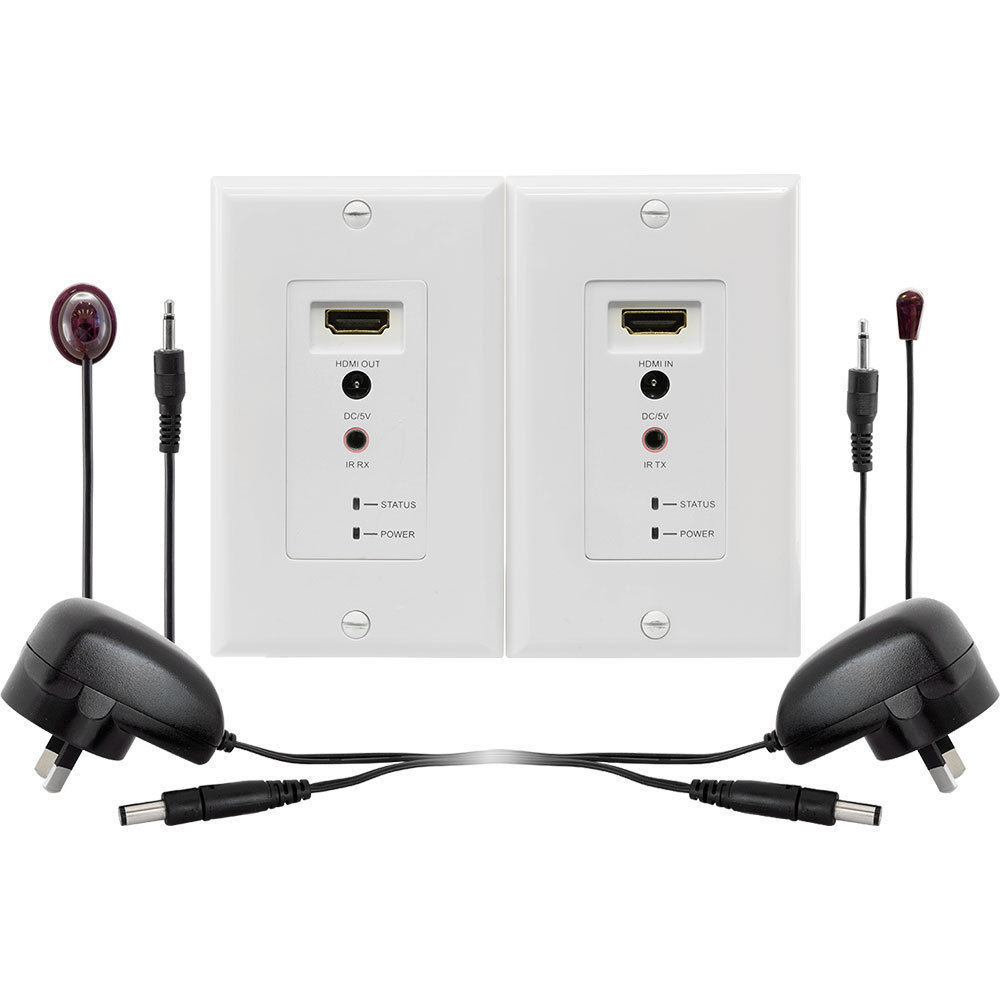

Each set includes one transmitter and one receiver
Modular design
Connect with single Cat5E/6 cable to reach a longer distance than HDMI cable
Transmission distance could be up to 60m with 1080P video format
Auto adjustment of feedback, equalisation and amplify
Up to 2.25Gbits signal rates in support of 1080P display
With Infrared control signal passing through
Compatible with the 3D format

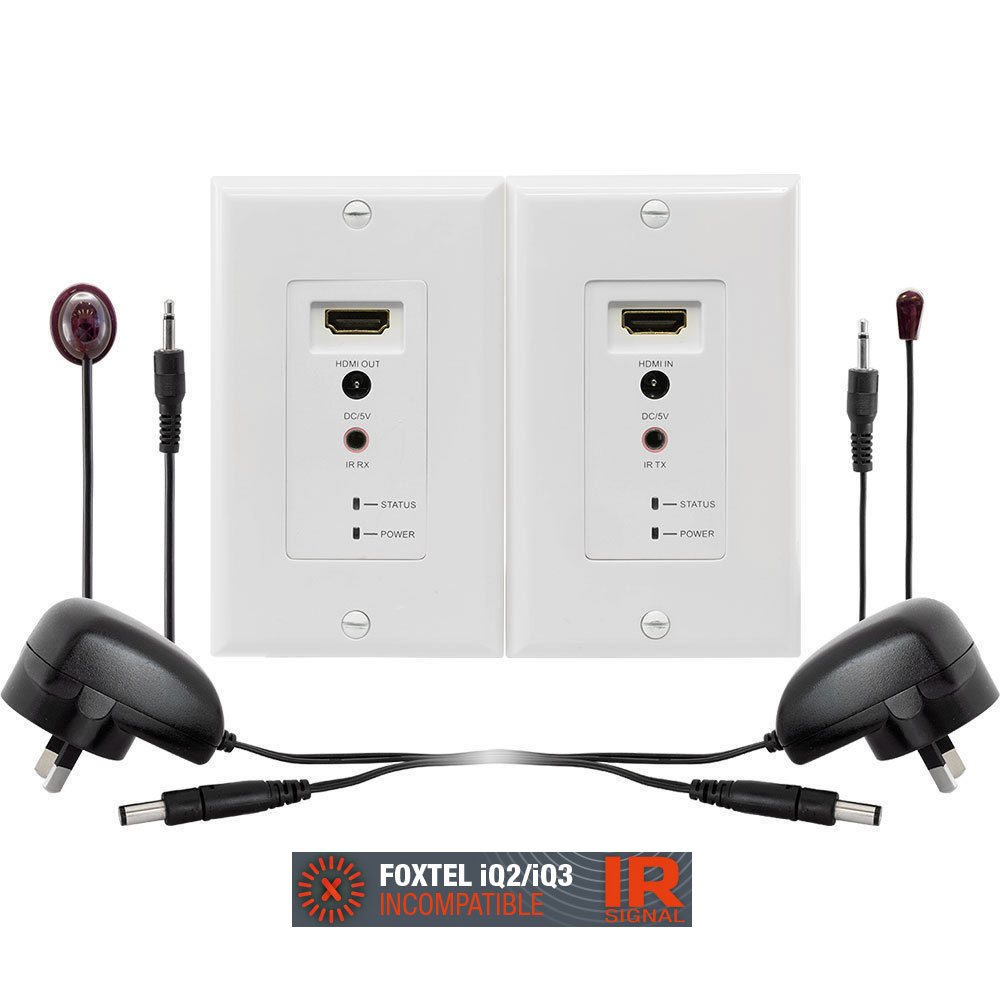

Note Foxtel iQ2/iQ3 Incompatible
Operating Temprature Range: −5 to +35°C
Operating Humidity Range: 5 to 90% RH (No Condensation)
Input Video Singal: 0.5-1.0 Volts P-P
Input DDC Signal: 5 Volts p-p(TTL)
Support Video Format: DTV/HDTV: 480i/576i/480P/576P/720P/1080i/1080p/3D video format
Video Output: HDMI
Support Audio Format: DTS-HD Master Audio, Dolby true-HD etc.
Power consumption: 3watts (Maximum)
Dimension (LxWxH): 115x70x35mm
IR wavelength & Frequency: Wavelength 940nm, frequency 38kHz
Net Weight: 260g (Pair)
Power supply: 2 x DC/5V 1A (included)
Transmission Distance:
1080P 8-bit 60m (Maximum)
over CAT5E/CAT6/24AWG/Solid (recommend to use 23AWG Cat6cable)
This item comes with a 12-month warranty.
