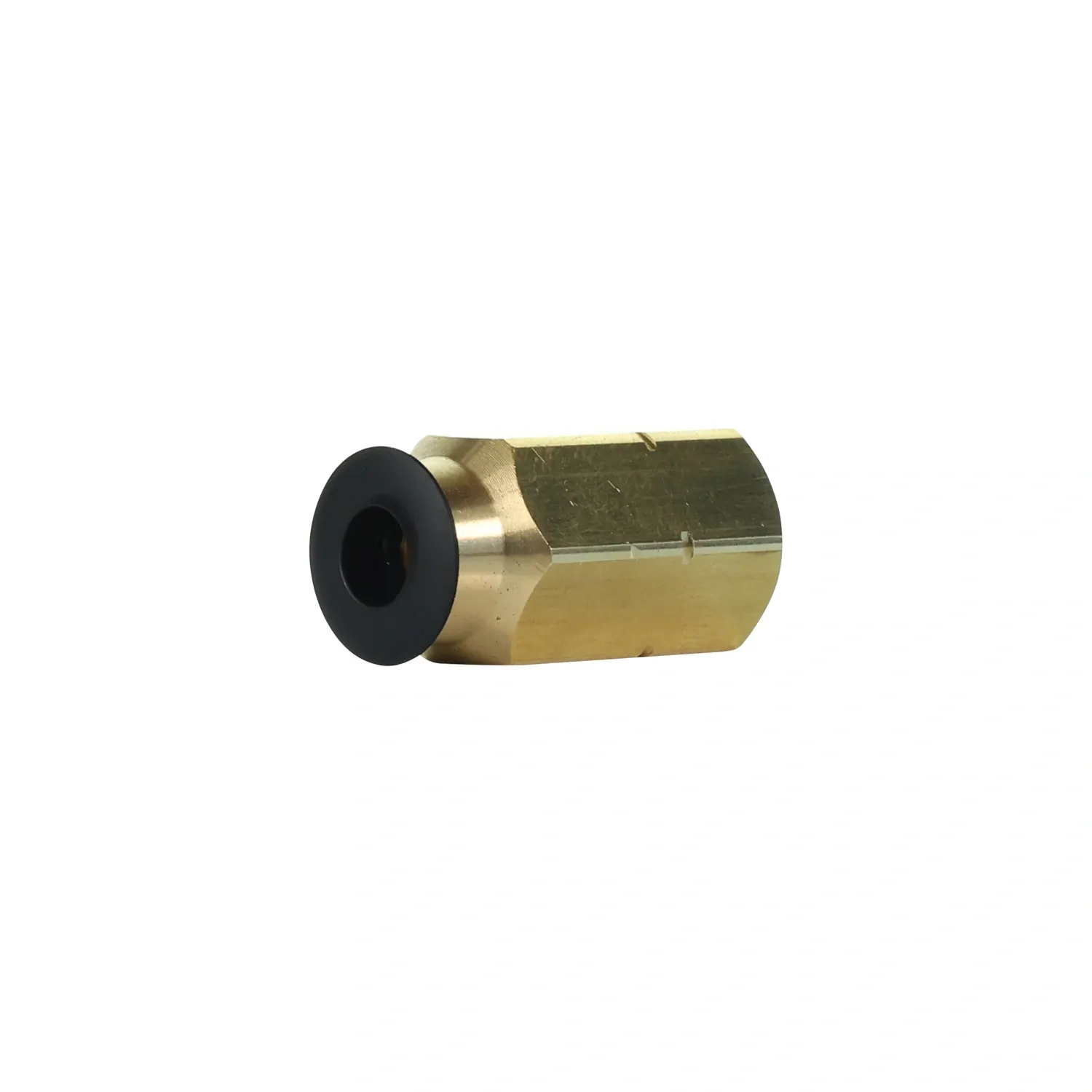

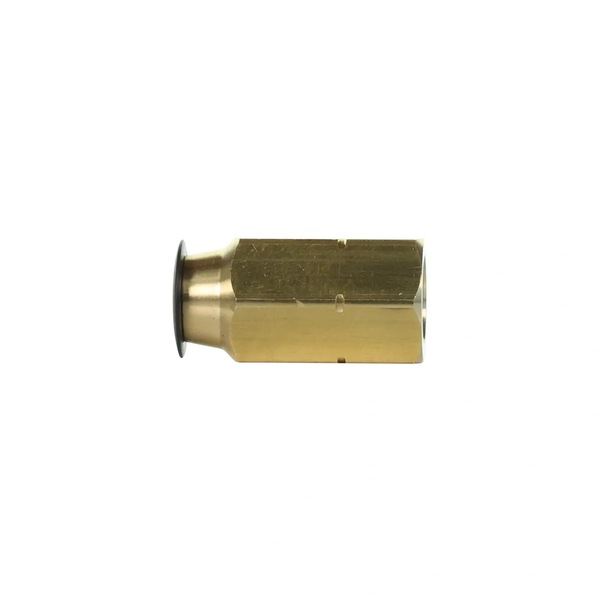

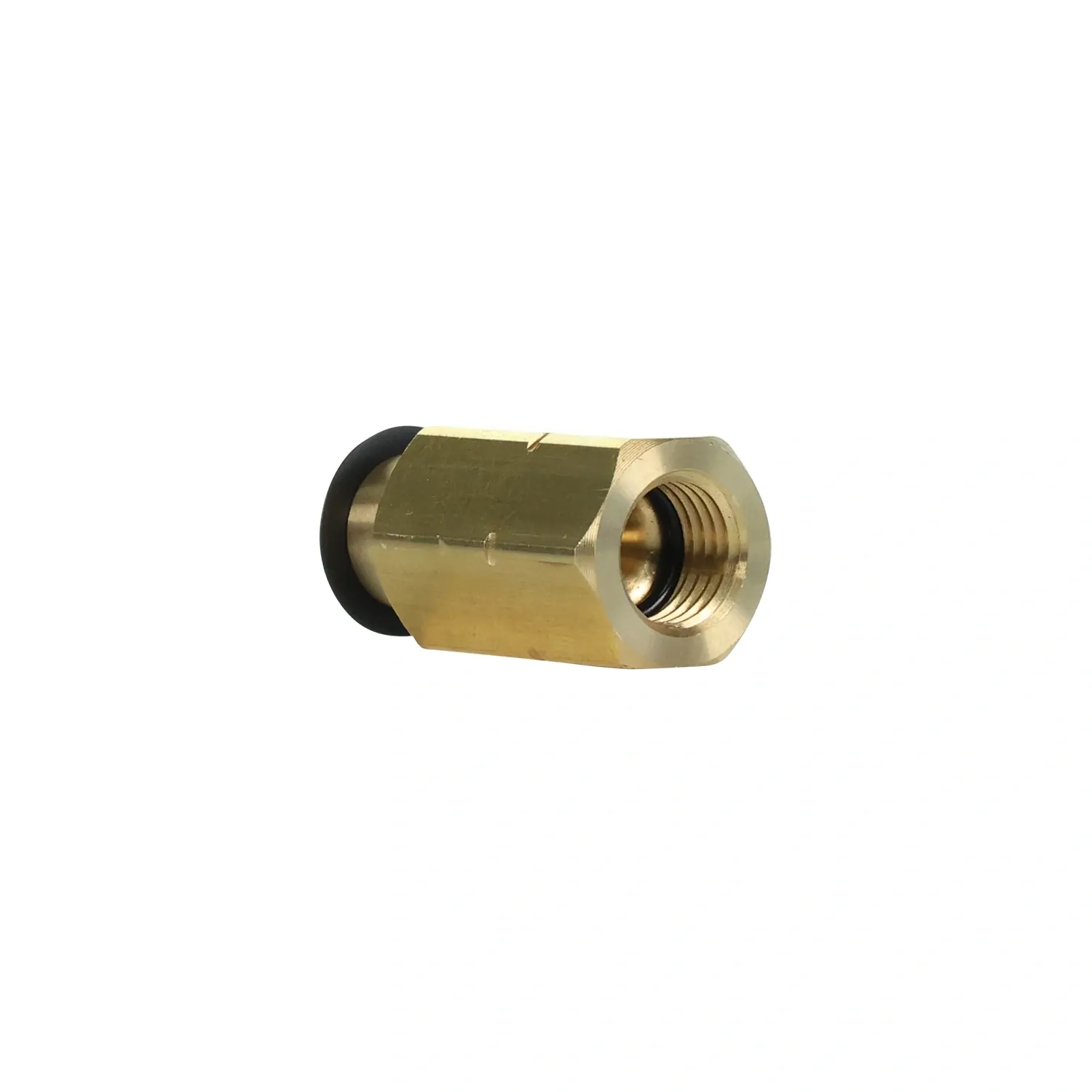

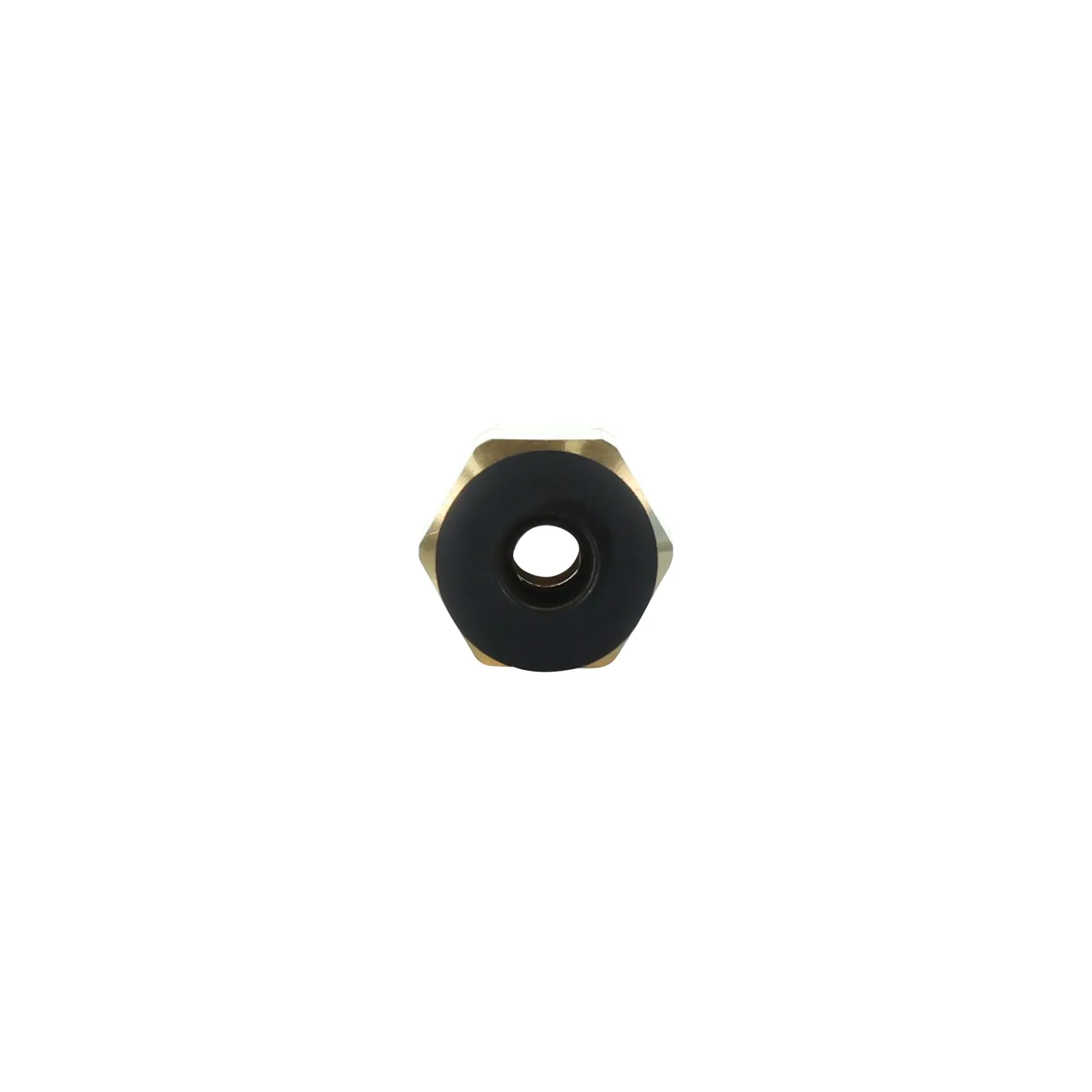

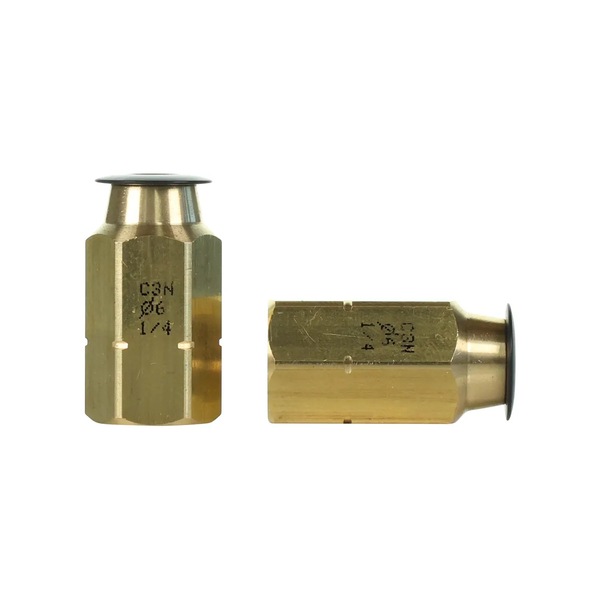

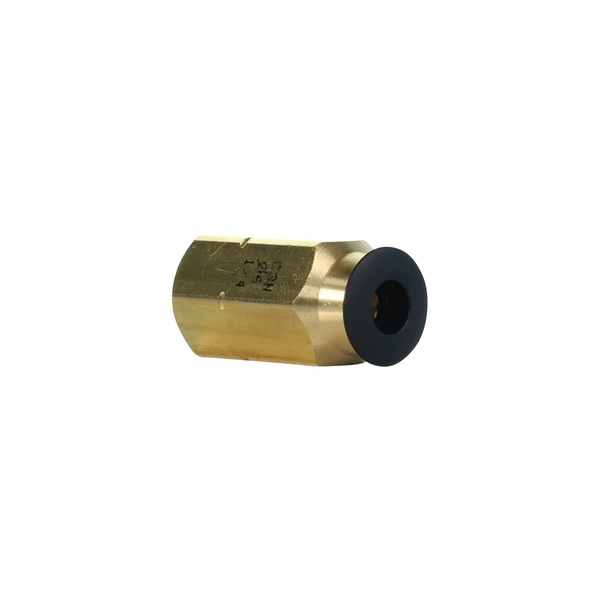

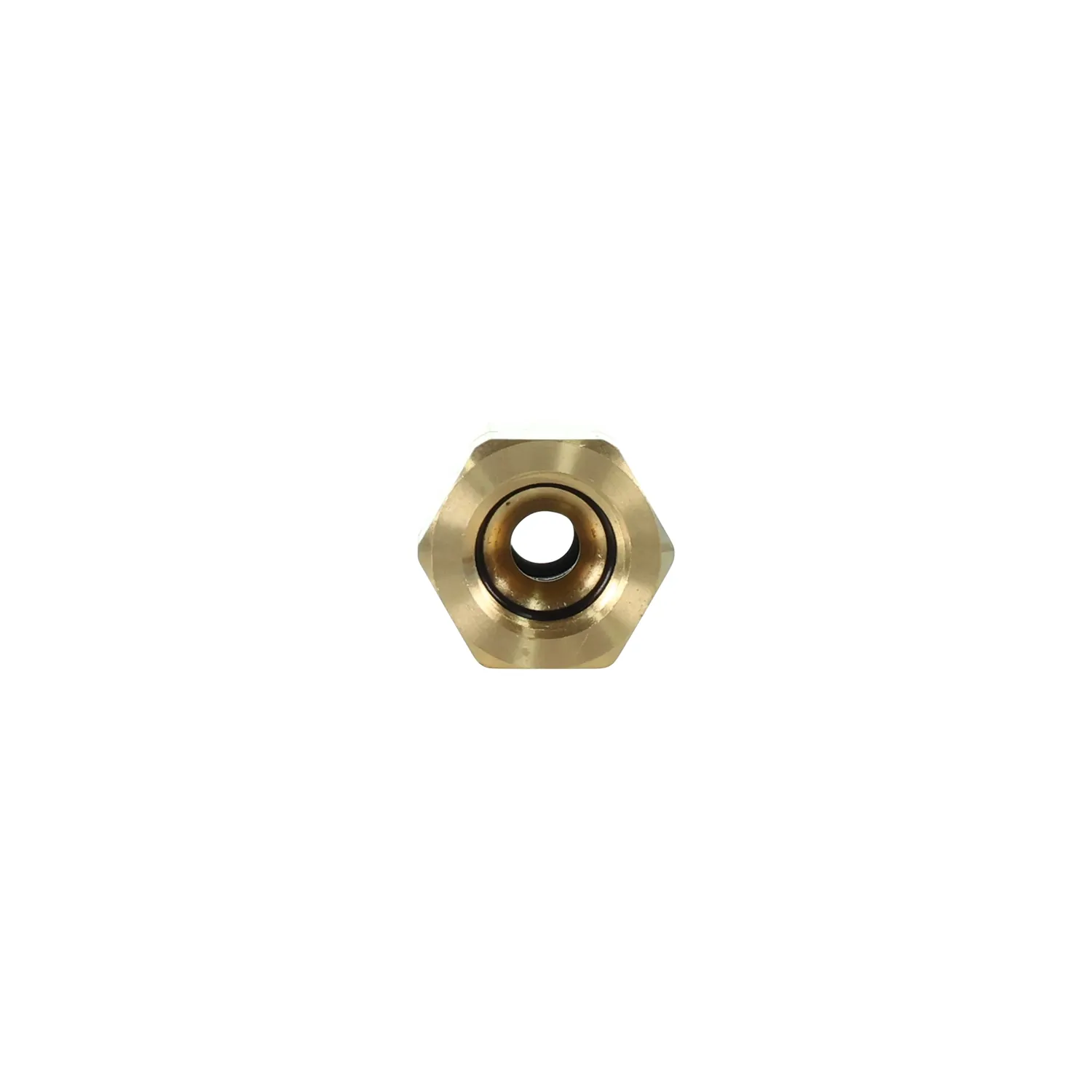

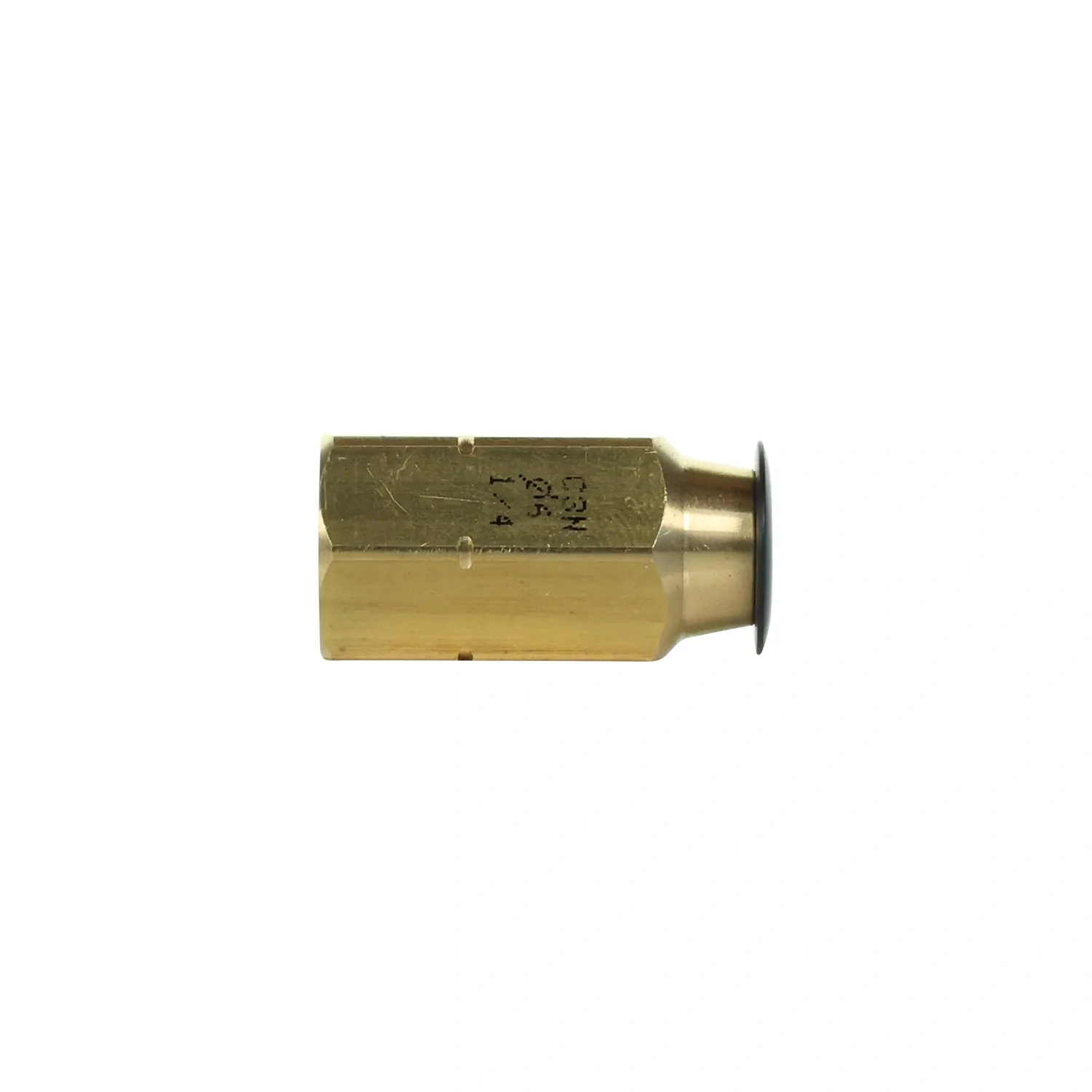

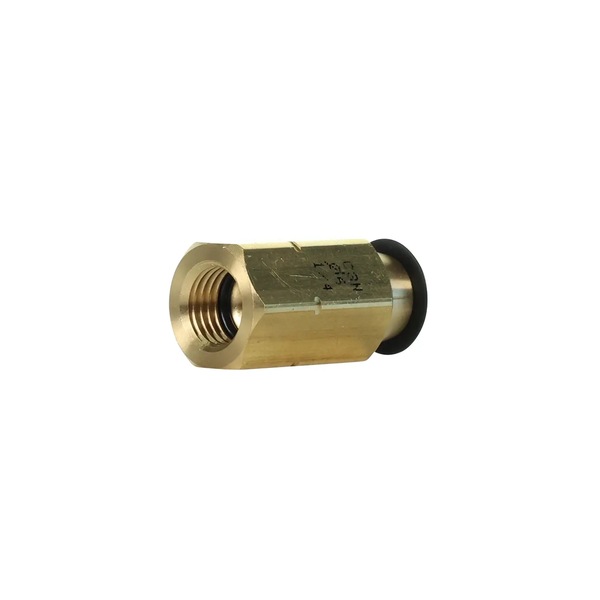

The Inoac CJ-06G is a 1/4" no-flare HVAC fitting designed for quick, secure refrigerant line connections — no flaring, deburring, or torque wrenches required. With a two-step tightening process, it ensures consistent, leak-free seals and cuts install time dramatically.

Rated up to 625 psi, it’s built for high-pressure refrigerants like R32 and R410A, and features a dual O-ring seal with a metal backup ring for long-lasting reliability. The CJ-06G works with both aluminium and copper tubing and includes a water-stop design to prevent galvanic corrosion between dissimilar metals. Supplied in a 2 pack.

Installation Instructions

1. Cut and Deburr the Pipe: Make sure the pipe ends are clean, round, and free of burrs.
2. Insert the Fitting: Push the pipe into the Conic Joint fitting until it reaches the internal stop.
3. Tightening Tools (Recommended, Not Required): The fitting can be installed using a standard wrench alone, but for optimal sealing and consistency, the dedicated tightening tools — CJTT-0612 for CJ-06G (1/4") and CJ-12G (1/2"), or CJTT-0915 for CJ-09G (3/8") and CJ-15G (5/8") — are recommended.
4. Tighten in Two Stages: Using a standard wrench (and the tightening tool, if preferred), apply the first stage of compression. Continue to the second stage until firm resistance is met. Do not overtighten.
5. Pressure Test: Pressurise the system and check for leaks before final commissioning.

CJ-06G Features

• No-Flare Installation: Quick, tool-light connection with no flaring or torque wrench needed.
• 625 psi Pressure Rating: Handles modern refrigerants like R32 and R410A with ease.
• Dual O-Ring + Metal Backup Seal: Provides a long-lasting, pressure-tight seal.
• Aluminium & Copper Compatible: Ideal for use with soft tubing of either material.
• Corrosion Control Design: Water-stop feature reduces galvanic reaction at connection point.
