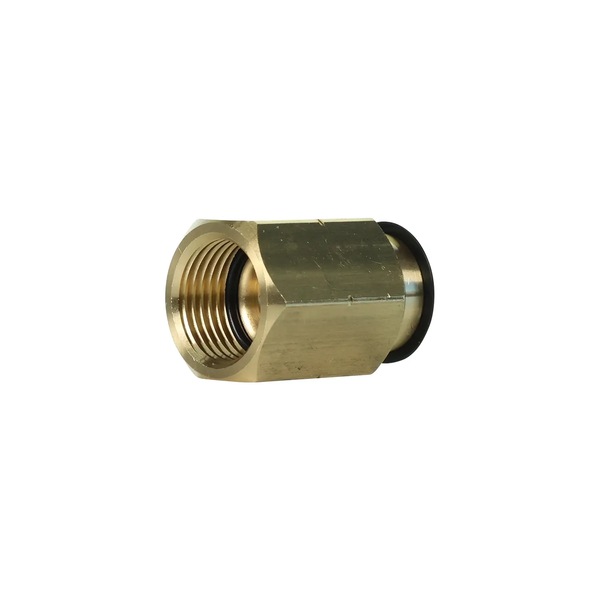

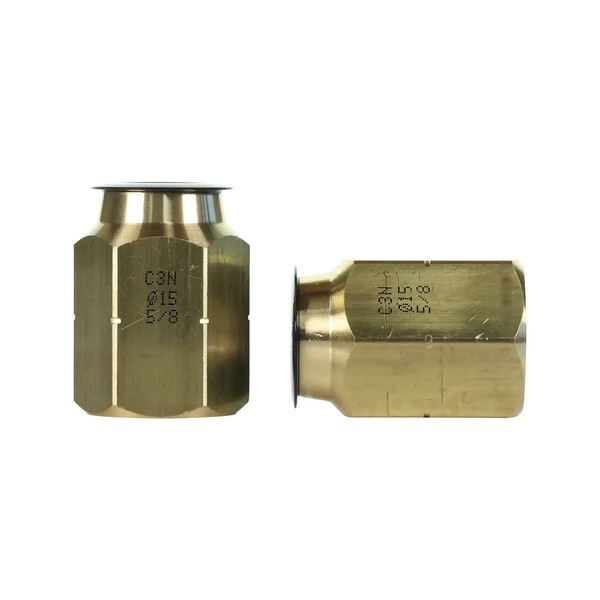

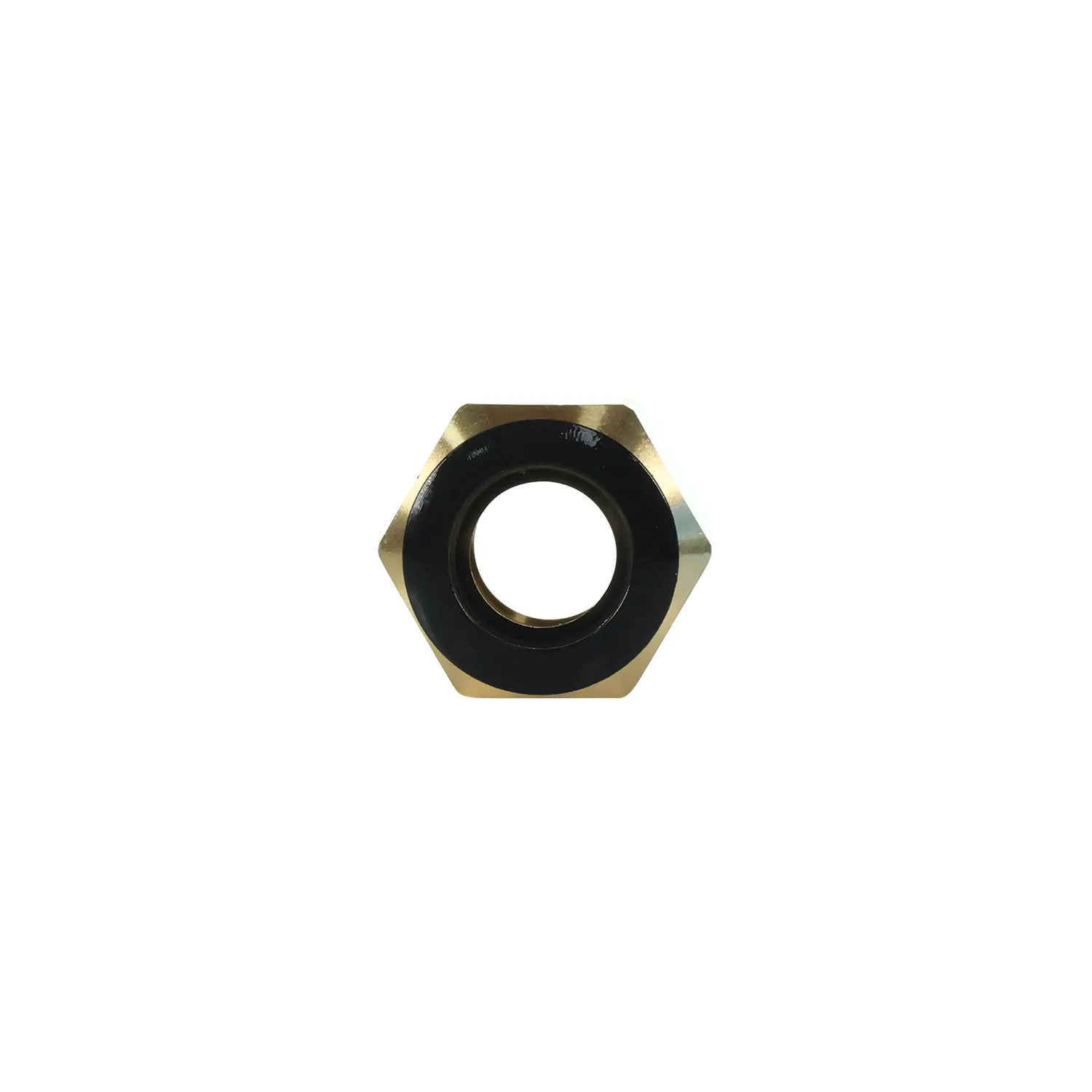

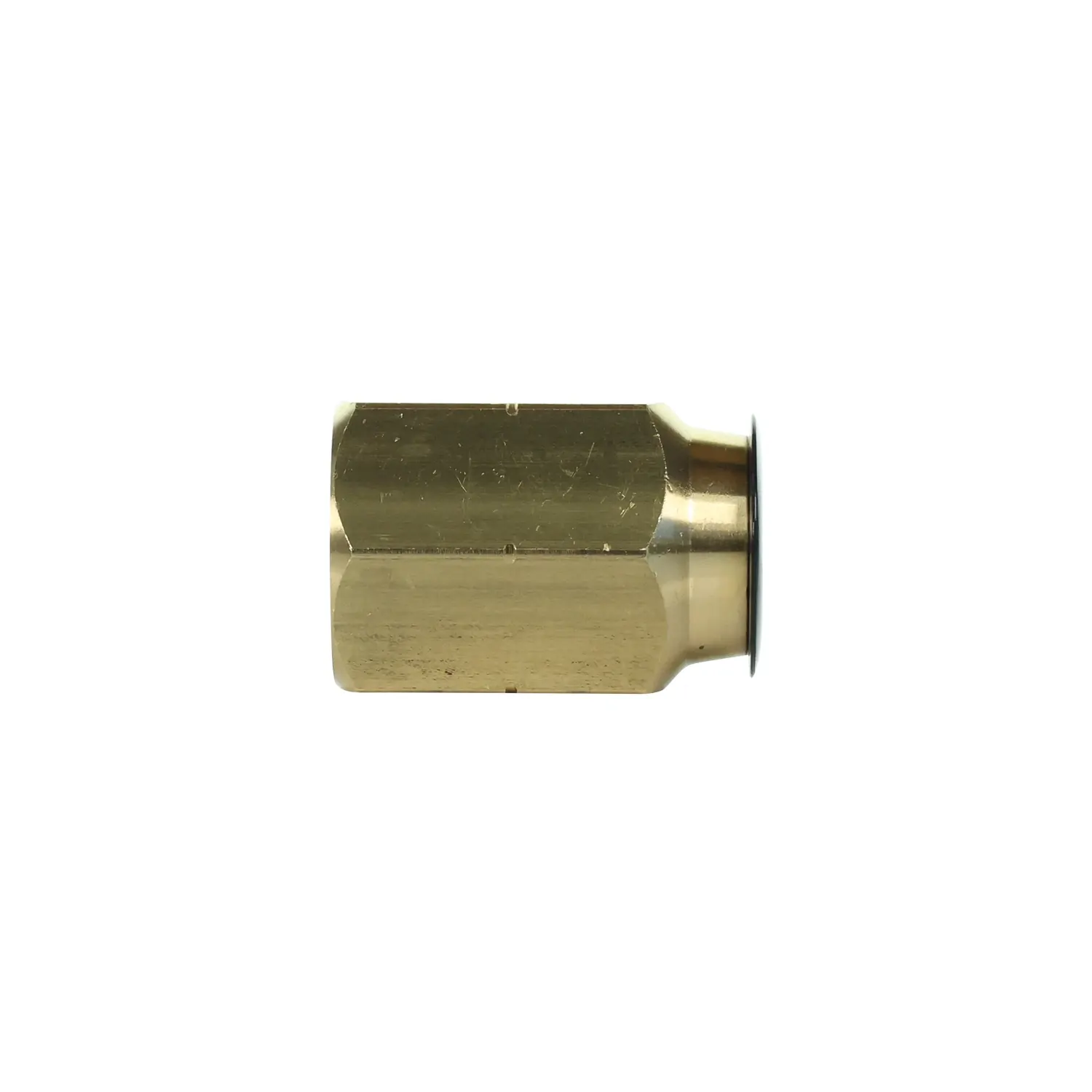

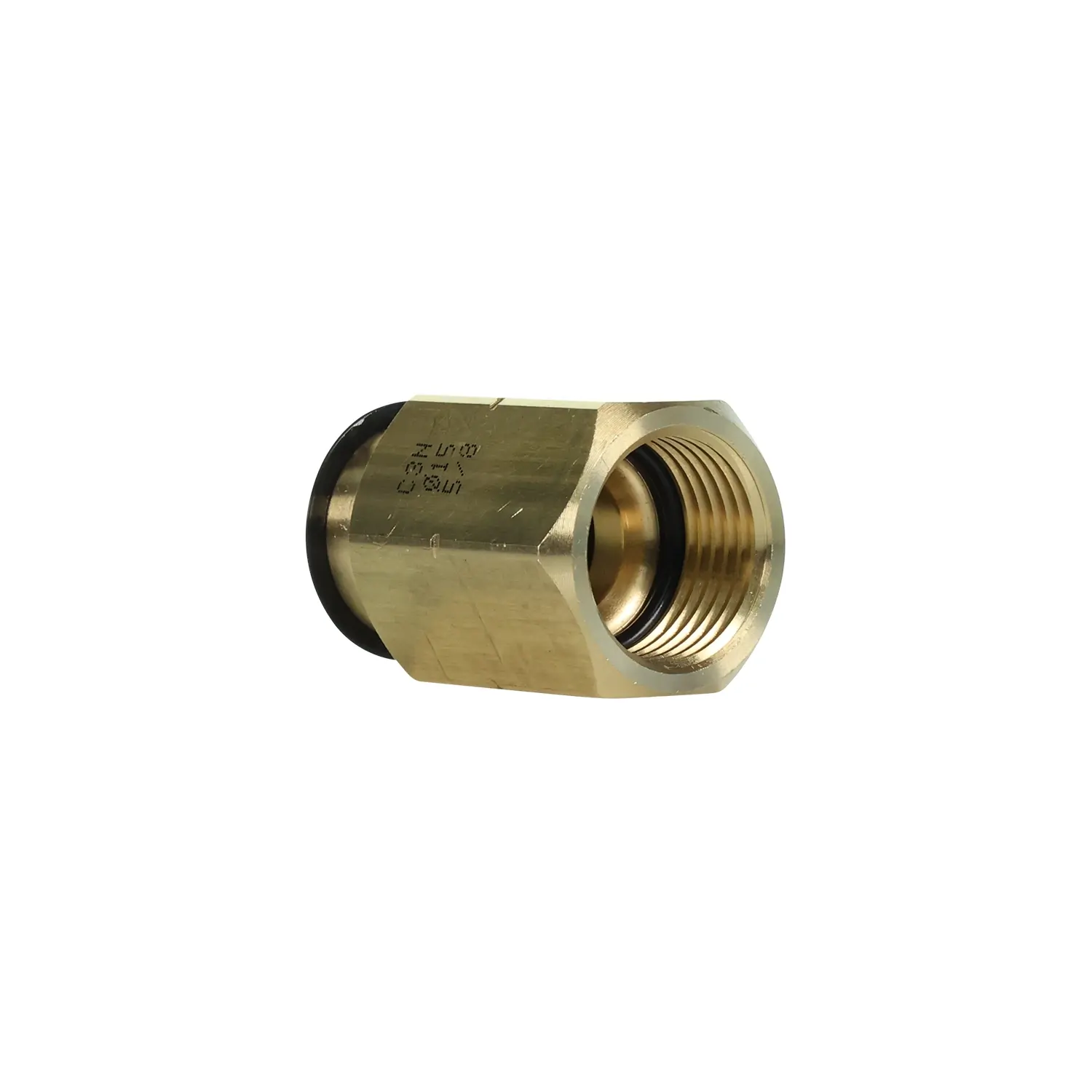

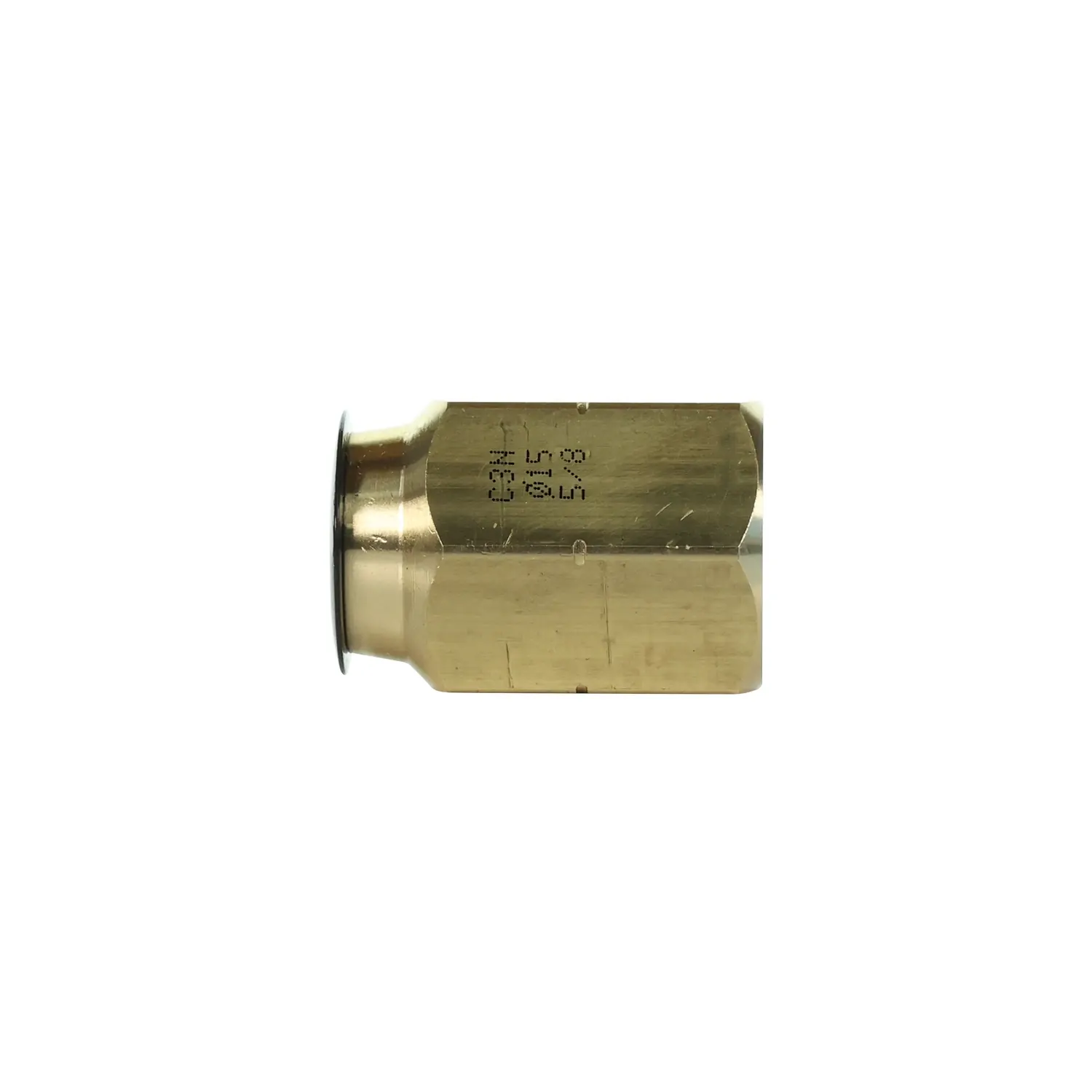

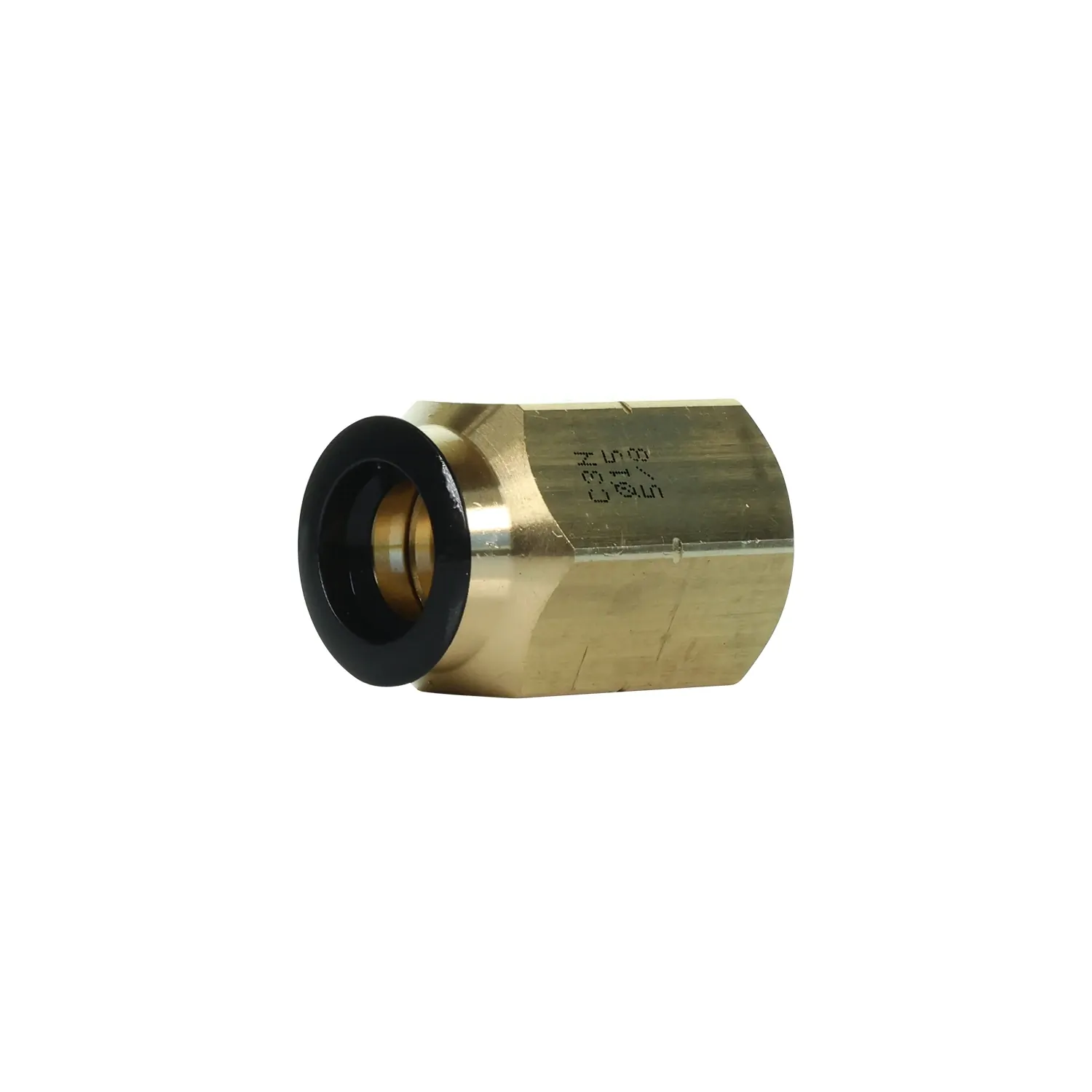

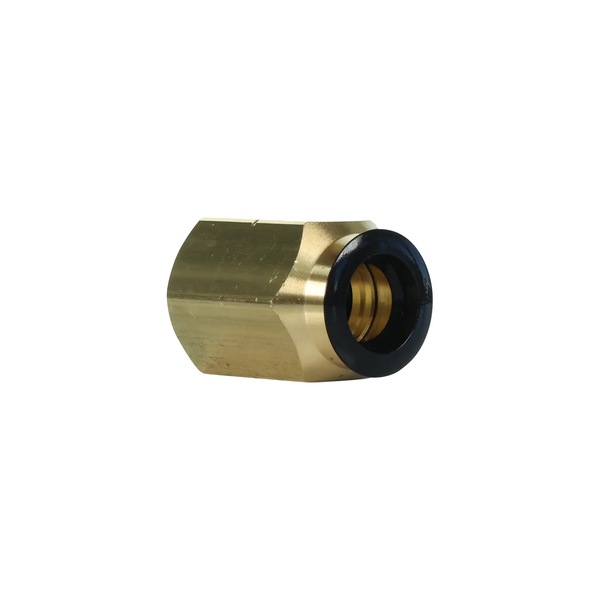

The Inoac CJ-15G is a 5/8" no-flare HVAC fitting engineered for quick, secure refrigerant line connections without the need for flaring, deburring, or torque tools. Its two-step tightening process ensures consistent, leak-free results while saving valuable time on-site.

Built to handle pressures up to 625 psi, this fitting is ideal for modern refrigerants like R32 and R410A. It features a dual O-ring seal and metal backup ring to maintain integrity under load. Compatible with both aluminium and copper tubing, it includes a water-stop isolation feature to minimise galvanic corrosion between dissimilar metals. Supplied in a 2 pack.

Installation Instructions

1. Cut and Deburr the Pipe: Make sure the pipe ends are clean, round, and free of burrs.
2. Insert the Fitting: Push the pipe into the Conic Joint fitting until it reaches the internal stop.
3. Tightening Tool (Sold Separately, Optional): The connection can be made using a standard wrench alone, but for best results and ease of installation, the use of a dedicated tightening tool is recommended — CJTT-0612 for CJ-06G (1/4") and CJ-12G (1/2"), CJTT-0915 for CJ-09G (3/8") and CJ-15G (5/8").
4. Tighten in Two Stages: Using a standard wrench (and tightening tool if available), apply the first stage of compression. Continue to the second stage until firm resistance is met. Do not overtighten.
5. Pressure Test: Pressurise the system and check for leaks before final commissioning.

CJ-15G Features

• No-Flare Installation: Installs in two steps with no special flaring tools required
• 625 psi Pressure Rating: Rated for high-pressure refrigerants like R32 and R410A
• Dual O-Ring and Backup Seal: Delivers a strong, lasting connection
• Aluminium and Copper Compatible: Suitable for mixed-metal systems without damaging tubing
• Water-Stop Design: Prevents galvanic corrosion between dissimilar materials

CJ-15G FAQ

Q: Do I need any special tools to install this?
A: No special tools are required — a standard wrench is all you need. That said, using the dedicated tightening tool (sold separately) is recommended to ensure a consistent seal and avoid potential damage during installation.

Q: Is this compatible with R410A and R32 refrigerants?
A: Yes. It’s fully rated for use with both high-pressure refrigerants.

Q: Can I use this on aluminium lines?
A: Yes. It’s designed for safe use on aluminium and copper tubing.
