Daikin VRV and Sky systems to AC Cloud Control (WiFi) Interface

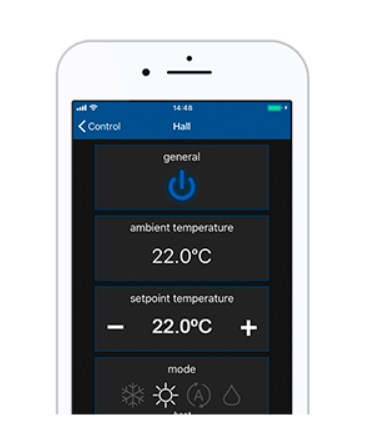

This model allows you to control your AC unit from the AC Cloud app and also integrates with HomeAssistant

The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint, but the monitoring of errors and alarms.

Daikin's VRV (Variable Refrigerant Volume) and Sky Air systems are advanced commercial and residential HVAC (Heating, Ventilation, and Air Conditioning) systems known for their efficiency and flexibility. These systems often offer an option to connect to a cloud control system using Wi-Fi for remote monitoring and management.

Here's a general overview of what a "Daikin VRV and Sky systems to AC Cloud Control (WiFi) Interface

•


  VRV and Sky Systems: Daikin's VRV systems are advanced commercial HVAC systems that offer precise control over temperature and energy efficiency. Sky Air systems are designed for residential and light commercial applications and are known for their quiet operation and comfort features.






•


  AC Cloud Control (WiFi) Interface: This refers to the capability of connecting Daikin VRV and Sky Air systems to a cloud-based control system using a Wi-Fi interface. This feature allows users to remotely monitor and manage their HVAC systems through a smartphone, tablet, or computer, as long as they have internet access.






•


  Wi-Fi Setup: Users typically need to configure their Daikin VRV or Sky Air systems to connect to a local Wi-Fi network. This is done through a setup process that may involve entering the Wi-Fi network's SSID and password into the HVAC system's controller or interface.






•


  Cloud-Based Control Platform: Daikin provides a cloud-based platform or mobile app that users can install on their smart devices. This platform allows users to access and control their HVAC systems remotely.






•


  Remote Control Features: Once the HVAC systems are connected to the cloud control system, users can perform various functions remotely, such as:








  • Adjusting temperature settings.



  • Changing operating modes (cooling, heating, fan-only, etc.).



  • Creating and managing schedules for temperature control.



  • Monitoring energy consumption and system performance.



  • Receiving alerts and notifications (e.g., maintenance reminders, fault alerts).






•


  Compatibility and Configuration: It's important to ensure that your specific Daikin VRV or Sky Air system is compatible with the Daikin cloud control system and that you follow the manufacturer's instructions for setting up the Wi-Fi connection and using the cloud platform.




Technical Details

Enclosure: ABS (UL 94 V-0). 2,5 mm thickness

Dimensions: 70 x 100 x 28 mm

Weight: 100 g

Colour: White

AC Connector: 14V, 110mA typical

Power supply: 12DCV, 100mA

Radio Parameters: RF Frequency range: 2412 to 2484 MHZ Output power (typical): 14/20 dBm

WIFI: 802.11 b/g/n (802.11n up to 150 Mbps)

Mounting: Wall

LED indicators: 1 x Device status

Operating Temperature: From 0oC to 40oC

Operating Humidity: <93% HR, no condensation

Stock Humidity: <93% HR, no condensation

RoHS Conformity: Compliant with RoHS directive (2011/65/EU).

Certifications: CE conformity to EMC directive (2014/53/EU) EN 62368-1:2014 CSA/UL 62368-1:2014 AS/NZS 62368.1:2018 EN 300 328 V2.1.1 EN 303 446-1 V1.2.0 Regulations: FCC/IC. Standards: Title 47 CFR Part 15B ICES-003 (Issue 6)

Properties

Compatibility checker

Intesis product information page & Datasheet
