Mig Stick Tig Welder Unimig Razor 250 Amp 3 in 1 KUMJR250K-SG Multi Function

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Shop More Products

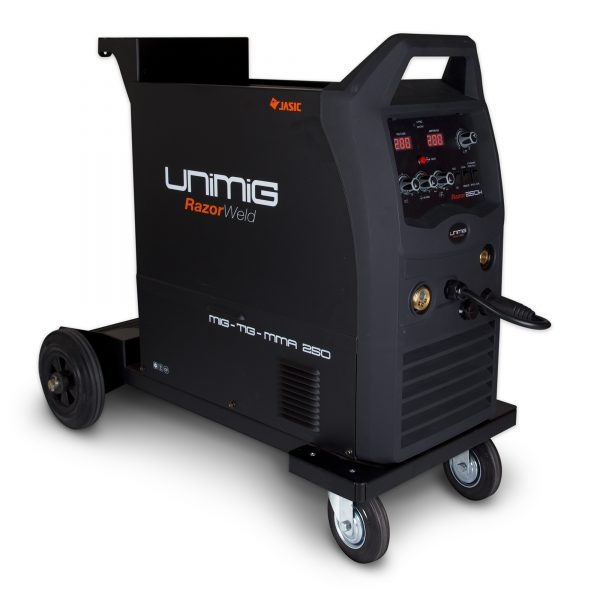

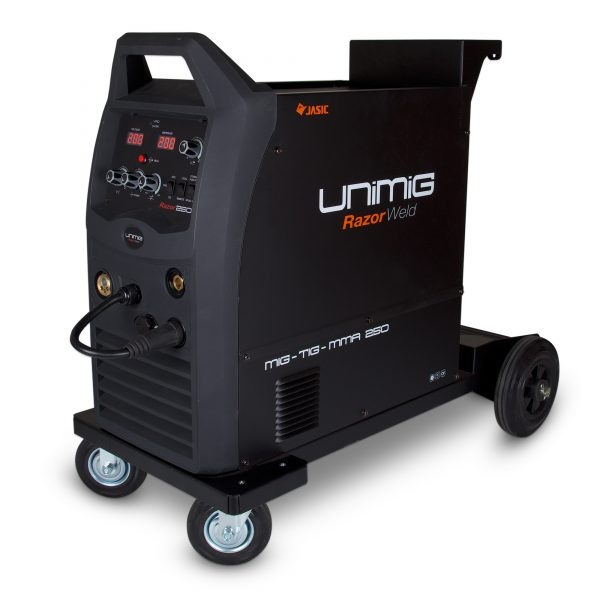

The RAZORâ„¢ 250 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORâ„¢ 250 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.

  • The MIG function provides superb arc characteristics when using either Gas Shielded or Gasless Wires.

  • The machine features an adjustable Burnback control and easy to use panel layout to get your job done faster.

  • The machine is also a very capable MMA (Stick) welder capable of running most MMA Electrodes up to 4.0mm.

  • An added feature of Hot Start helps when striking an Arc to minimise the Electrode sticking to the work piece.

  • The machine is capable of running a 6 metre Push Pull gun which is ideal for Aluminium work adding yet another feature to this machines capabilities.

  • The UNIMIG 250K is also a DC TIG welder with Lift Arc function. DC TIG will allow welding of materials such as Mild and Stainless Steels as well as Bronze, Copper and Chrome Moly’s.

The machine is industrial rated and of solid construction, large industrial wheels allows easy and smooth manoeuvrability. Being 240v single phase gives great portability, providing more flexible use for site and workshop locations.

Designed and built to our specification. Certified to – AS/NZ60974-1

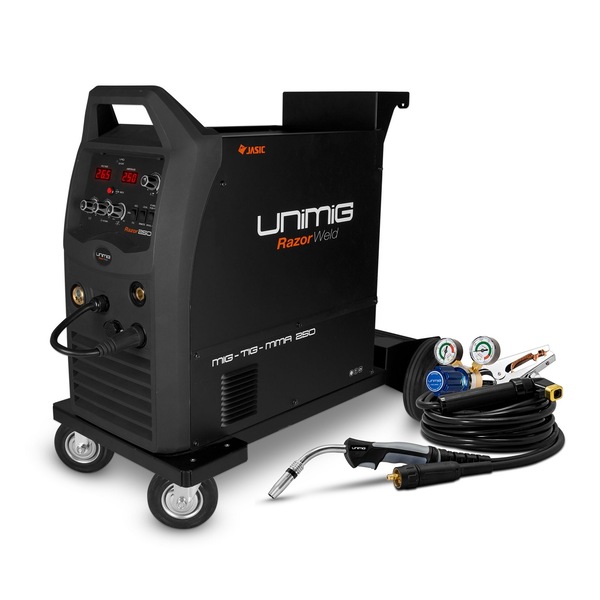

  • Standard Package includes:

1 x UNIMIG Compact 250 Power Source

1 x 4 metre SB24 MIG Torch

1 x 4 metre Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp

1 x UNIMIG Twin Gauge Argon Regulator

1 x 2 metre Gas Hose with connections

1 x Instruction Manual

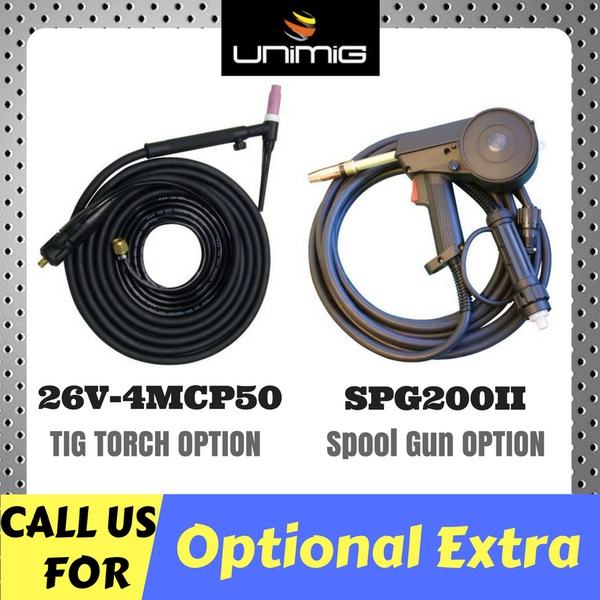

Tig Torch or Spool Gun is optional at extra cost.

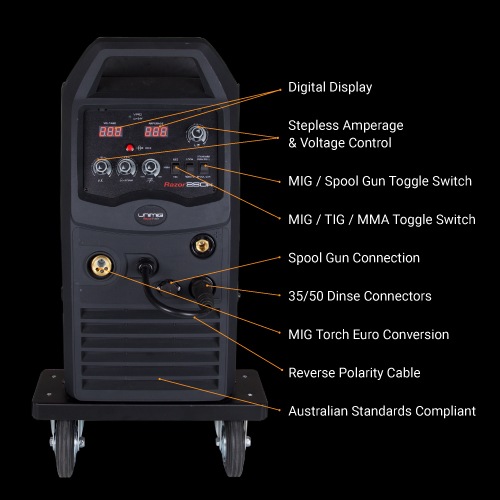

PRODUCT FEATURES:

Latest IGBT inverter technology

MIG/MAG with Gas and Gasless wire function

Spool Gun connection

MMA

DC TIG welding with Lift Arc start

VRD (Voltage Reduction Device)

Wire Inch & Burn Back control

Industrial application

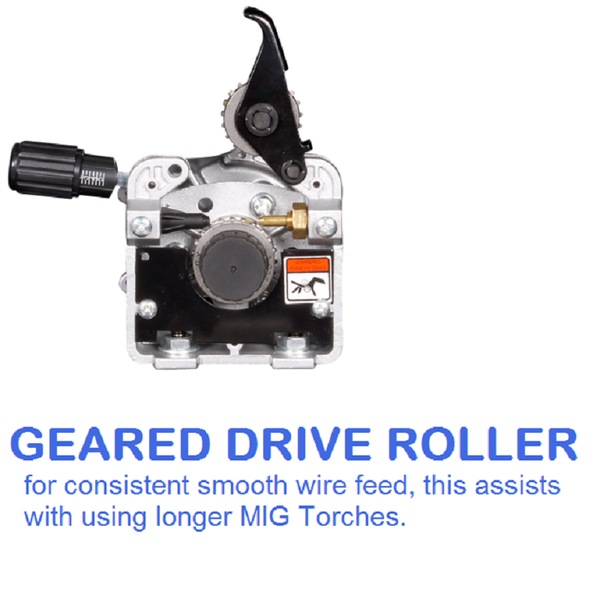

Internal wire feeder, gear driven

5Kg to 15Kg Spools

Euro style MIG torch connection

IP21S rating for environmental/safety protection

Stepless voltage and wire feed control

Excellent MIG welding with CO2 gas & mixed gas

Excellent arc stability for MIG/TIG/MMA welding

PRODUCT SPEFICATIONS:

  • Part Number KUMJR250K-SG
  • Primary Input Voltage 240V 1 Phase
  • Rated Input Power KVA 10.4 KVA MIG / 11.8 KVA MMA
  • ieff AMPS 25.4A MIG / 29.0A MMA
  • Rated Output MIG 30A/15.5V - 250A/26.5V
  • Rated Output MMA 10A/20.4V - 250A/30.0V
  • Welding Current Range 10 - 250 Amps
  • Duty Cycle 40 Deg C - MIG 35% @ 250 Amps
  • Duty Cycle 40 Deg C - MMA 35% @ 250 Amps
  • Dimensions (mm) 900 x 400 x 670mm
  • Weight Power Source (Kgs )58
  • For your peace of mind, UNIMIG is pleased to offer a 3-year warranty on all RAZORâ„¢ Machines*.
  • MPN: UMGKUMJR250K-SG
