IP67 In-Line Weatherproof Cat6 Joiner RJ45 Back to Back Internal Connection BLK

Image 1
Image 2
Image 3
Image 4
$29.90

Collect 29 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
Overview

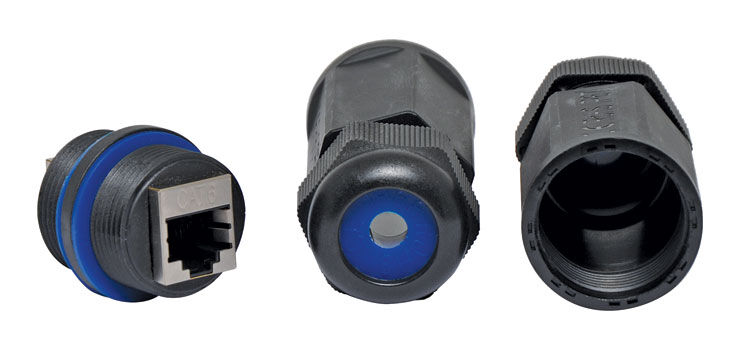

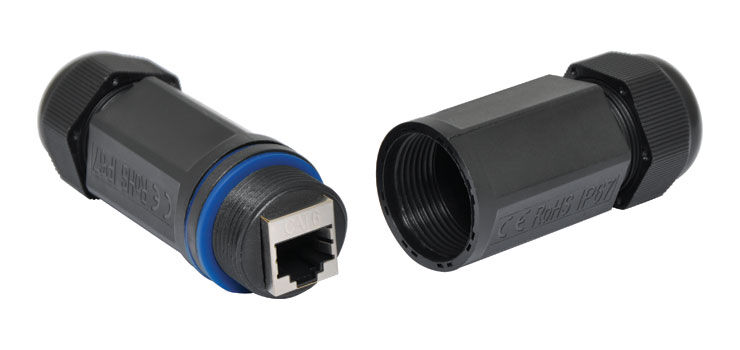

A waterproof joiner for data cables with RJ45 back to back internal connection. The blue sealing o-rings have a split allowing cables which have already been terminated, or pre-made patch leads to be threaded through the connector housing.

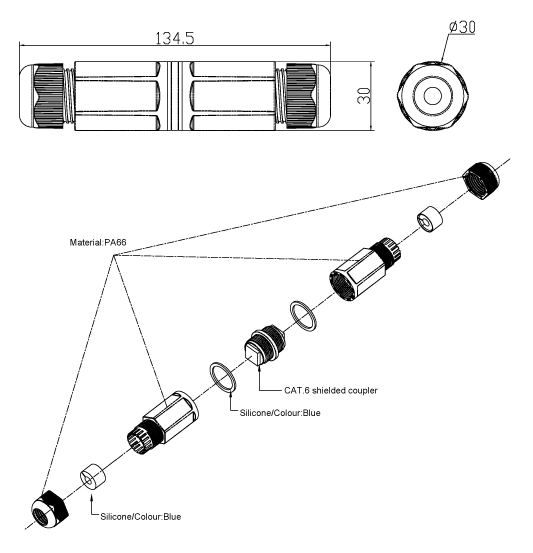

Specifications

Coupler Material

  • Shield: BRASS
  • Plastic Housing:ABS
  • RJ45 contact material& finished:
  • Phospor Bronze Nickel plated
  • Contact area: Gold plated

Performance

  • Insertion force: 900gms for 8 contacts.
  • Retention strength: 7.7kgs between jack and plug.
  • Operation temperature: -20°C to 68°C

Durability

  • Jack: 750 cycles plug-jack mating and unmating test,
  • Insertion cycle at 20 cycles/minute max.
  • Contact resistance test per 100 cycles.
  • The cat.6 performance is in compliance with the ANSI/TIA/EIA 568C standard. RoHS2.0 (2011/65/EU) Compliant

    *Specifications are subject to change without notice.





GTIN: 9321758237403
