JTS R4TBB1 Belt Pack Tx 520-556Mhz & Cm501 Lapel Mic Suits R4b1 Receiver

Image 1
Image 2
Image 3
Hurry! 1 items left!
$406

Collect 406 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

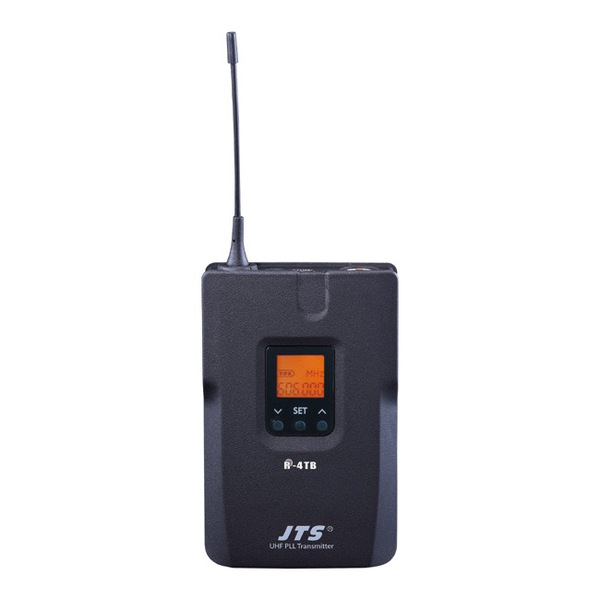

R-4TB
JTS transmitter belt-pack inc CM-501 lapel mic for R-4 system- 520-566MHZ
R-4TB
  • 2400 to 3000 selectable frequencies.
  • Preset 15 groups each of up to 63 compatible channels.
  • Phase-Locked Loop (PLL) synthesized tune.
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High.
  • The panel Lock-On function prevents tampering and RF interruption.
  • Together with JTS various music instrument mics, headset mics and tie clip mics; this bodypack is versatile for all applications.

NEWEST FEATURES:
  • It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

Specifications:
  • Frequency Preparation
PLL Synthesized Control
  • Carrier Frequency Range
  • B1: UHF 520~566 MHz
  • B4: UHF 638~674 MHz
  • Bandwidth
108MHz Wideband
  • RF Outputs
Low / High
  • Stability
< ±10KHz
  • Frequency Deviation
±48KHz (Peak)
  • LCD Display
Group, Channel, Frequency, Battery Status, Username, GAIN Adjust
  • Controls
Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
  • Spurious Emissions
<−50 dBC
  • Audio Frequency Response
50Hz ~ 18kHz
  • Battery
UM3, AA ×2
  • Capsules Module
Interchangeable
  • Dimensions (W×H×D)
62.3mm × 97.5mm × 20mm
  • Weight
75g
  • Notes
Actual product specifications may vary depending on model and region.
CM-50
JTS transmitter belt-pack inc CM-501 lapel mic for R-4 system-520-566MHZ

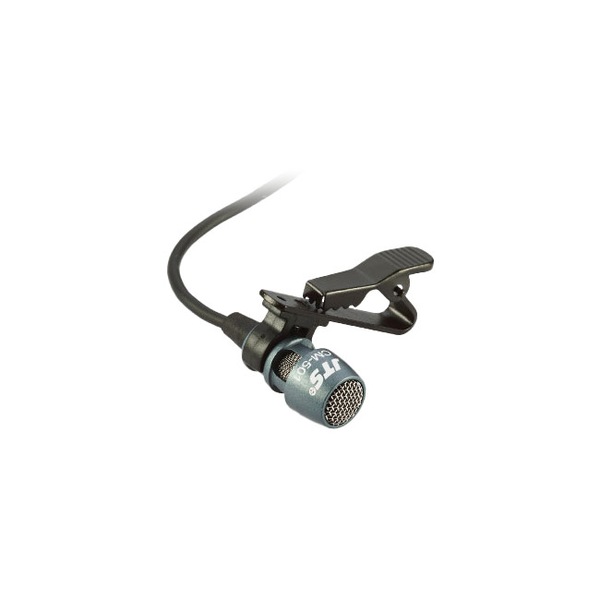

CM-501
  • Uni-direction for high-quality voice pick-up.
  • Wide dynamic range and frequency response for excellent sound reinforcement.
  • Small size for minimum visibility.
  • Together with clip for easy attaching to a tie, lapel, dress etc.

Specifications:
  • Connector
4P Mini XLR
  • Frequency Response
100~15,000 Hz
  • Polar Pattern
Cardiod
  • Sensitivity (at 1KHz)
-60±3 dB* (1mV)
*0dB=1V/µbar
  • Impedance
2.2k
  • Max. SPL for 1% THD
130dB
  • Dimensions (W×H)
Ø10.1mm × 26.4mm
  • Net Weight
21.5g
