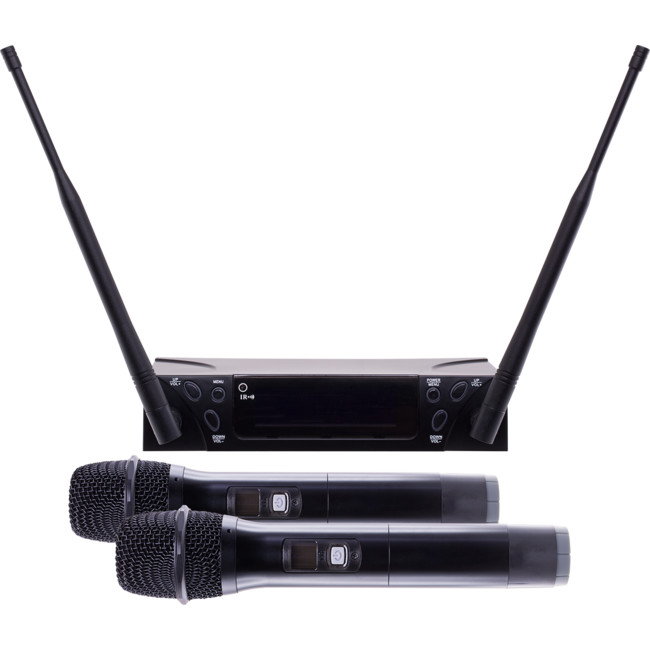

Dual Channel PLL Wireless System

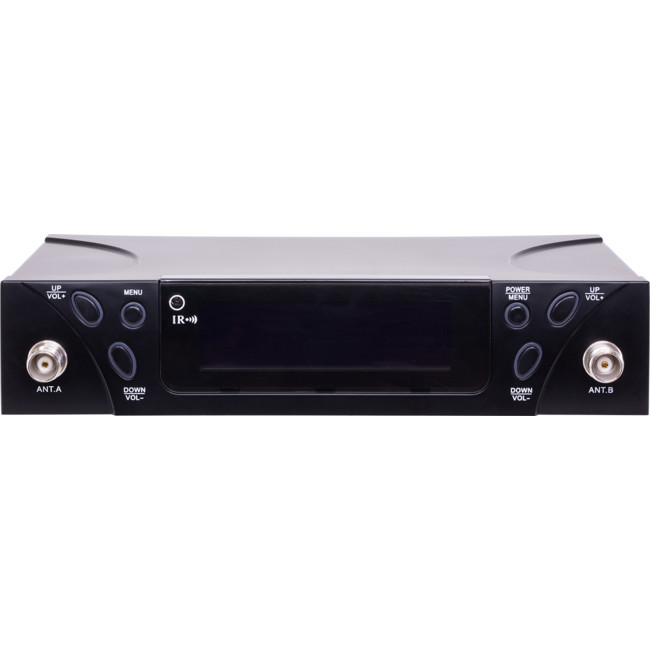

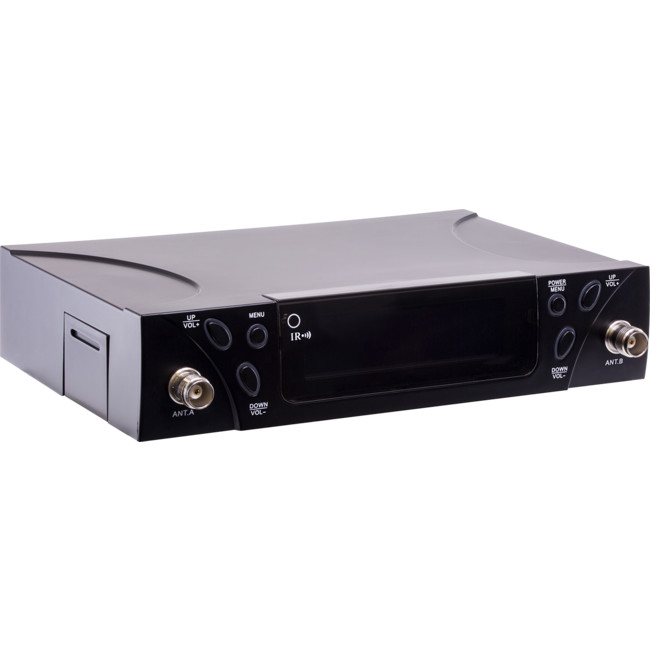

Dual Channel Professional Receiver
Match with Stage Professional Handheld Microphone
Match with Body Pack Transmitter
SPECIFICATIONS
OVERALL SYSTEM
Carrier Frequency Range: UHF 654-694MHz
Stability: ±0.005%
Normal Deviation: ±35 KHzMax Deviation: ±80KHz
S/N Ratio: <-110dB
T.H.D: <0.5%
Squelch: Tone control and noise lock dual squelch
Frequency Response: 30Hz - 20KHz
Operating Range: 100m(approximately 300 feet under typical conditions)
Receiver

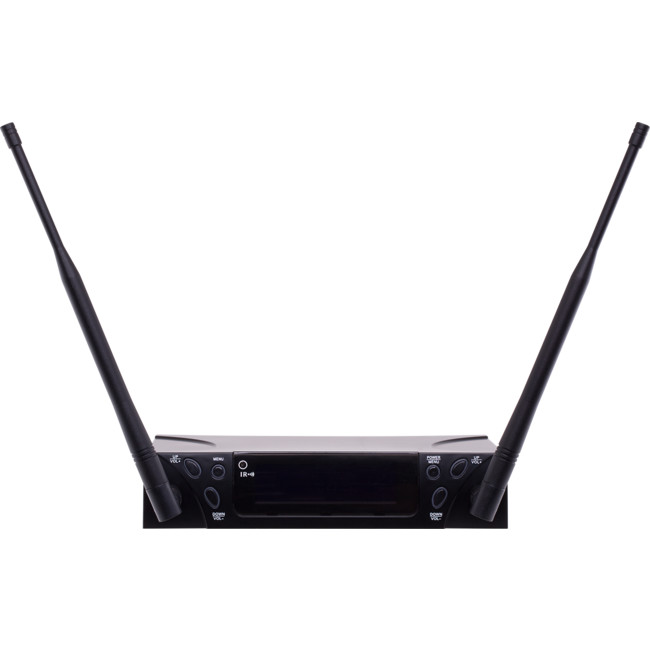

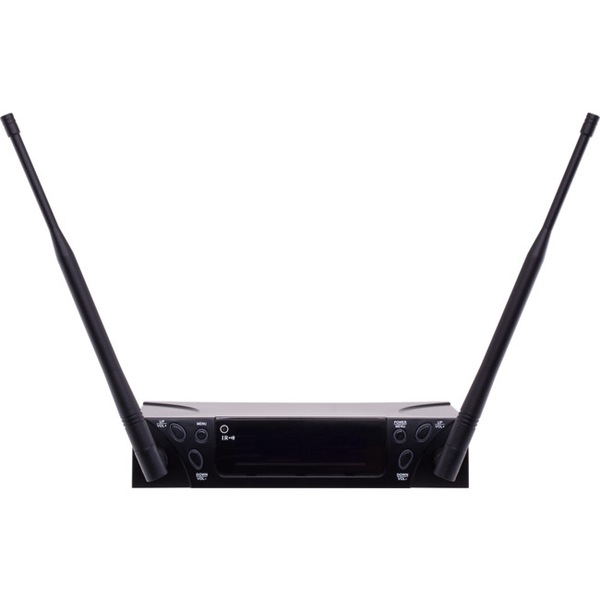

Receiving Mode: PLL Diversity (Dual Antenna)
Sensitivity: >-107dB
Image Rejection: Over 90dB

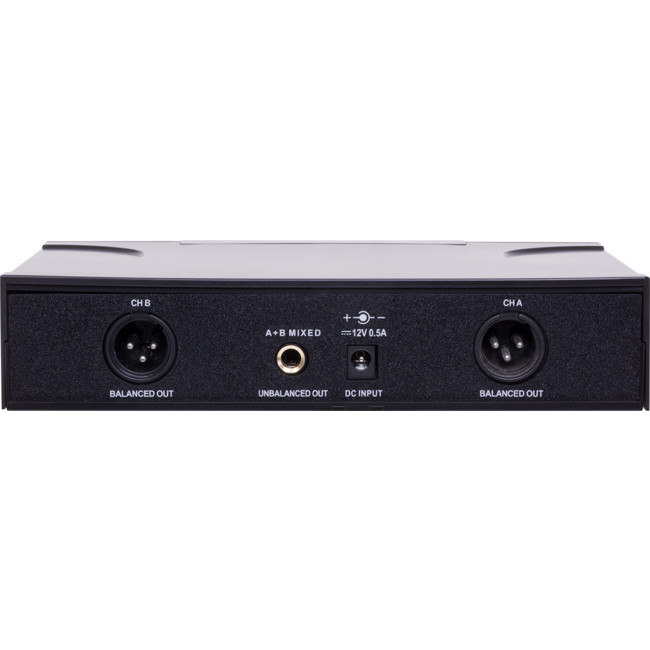

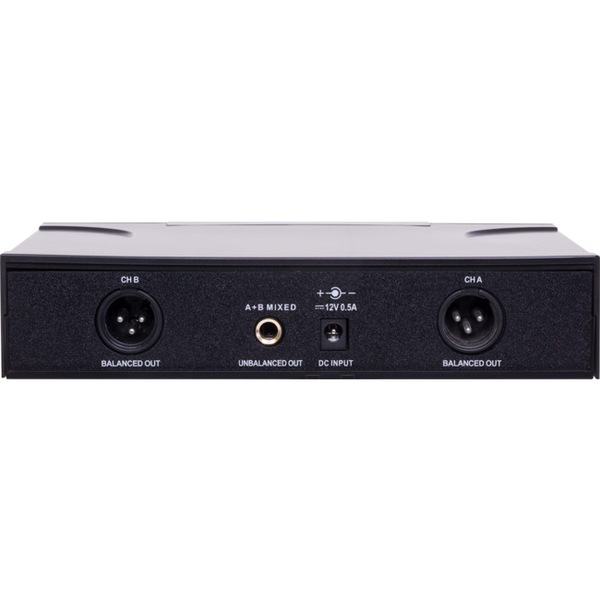

Audio Output: Balanced and Unbalanced
Power Requirement: AC 110-120V/220-240V
(50-60) External DC 12V 500mA
Dimensions (W x D x H): 240 x 130 x 42mm
Net Weight: Approx. 1.5kg
Wireless Microphone
Cartridge: Dynamic
Antenna: Built-in
RF Output: <10mW
Spurious Emissions: <45dBc
Normal Deviation: ±35KHz
Maximum Deviation: ±80 KHz
Battery: Two 1.5V AA battery or 1.2V AA rechargeable battery
Battery Life: >8 Hours
GTIN: 9328202023070
