Kingston 32GB DDR5-5600MT/s ECC Registered RDIMM CL46 1RX4, 1.1v, For AMD Threadripper Platform KSM56R46BS4PMI-32HAI [KSM56R46BS4PMI-32HAI]

Image 1
Hurry! 18 items left!
$323.99

Collect 323 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

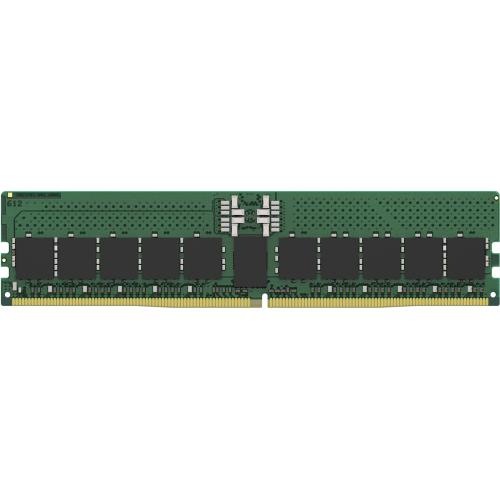

Kingston 32GB DDR5-5600MT/s ECC Registered RDIMM CL46 1RX4, 1.1v, For AMD Threadripper Platform KSM56R46BS4PMI-32HAI

KSM56R46BS4PMI-32HAI 32GB 1Rx4 4G x 80-Bit PC5-5600 CL46 Registered EC8 288-Pin DIMM
Kingston's KSM56R46BS4PMI-32HAI is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx4, ECC, memory module, based on twenty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free

CL(IDD)
46 cycles

Row Cycle Time (tRCmin)
48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)

Row Active Time (tRASmin)
32ns(min.)

Row Precharge Time (tRPmin)
16ns(min.)

UL Rating
94 V - 0

Operating Temperature
0°C to +95°C

Storage Temperature
-55°C to +100°C
- MPN: KSM56R46BS4PMI-32HAI

GTIN: 740617337204
