StarTech Bi-Directional SATA to IDE or IDE to SATA Motherboard Adapter/Converter

13 Reviews

Image 1
Image 2
Image 3
Hurry! 3 items left!
$36

Collect 36 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout
Pay in 4 interest-free payments of $9.00 with Learn More

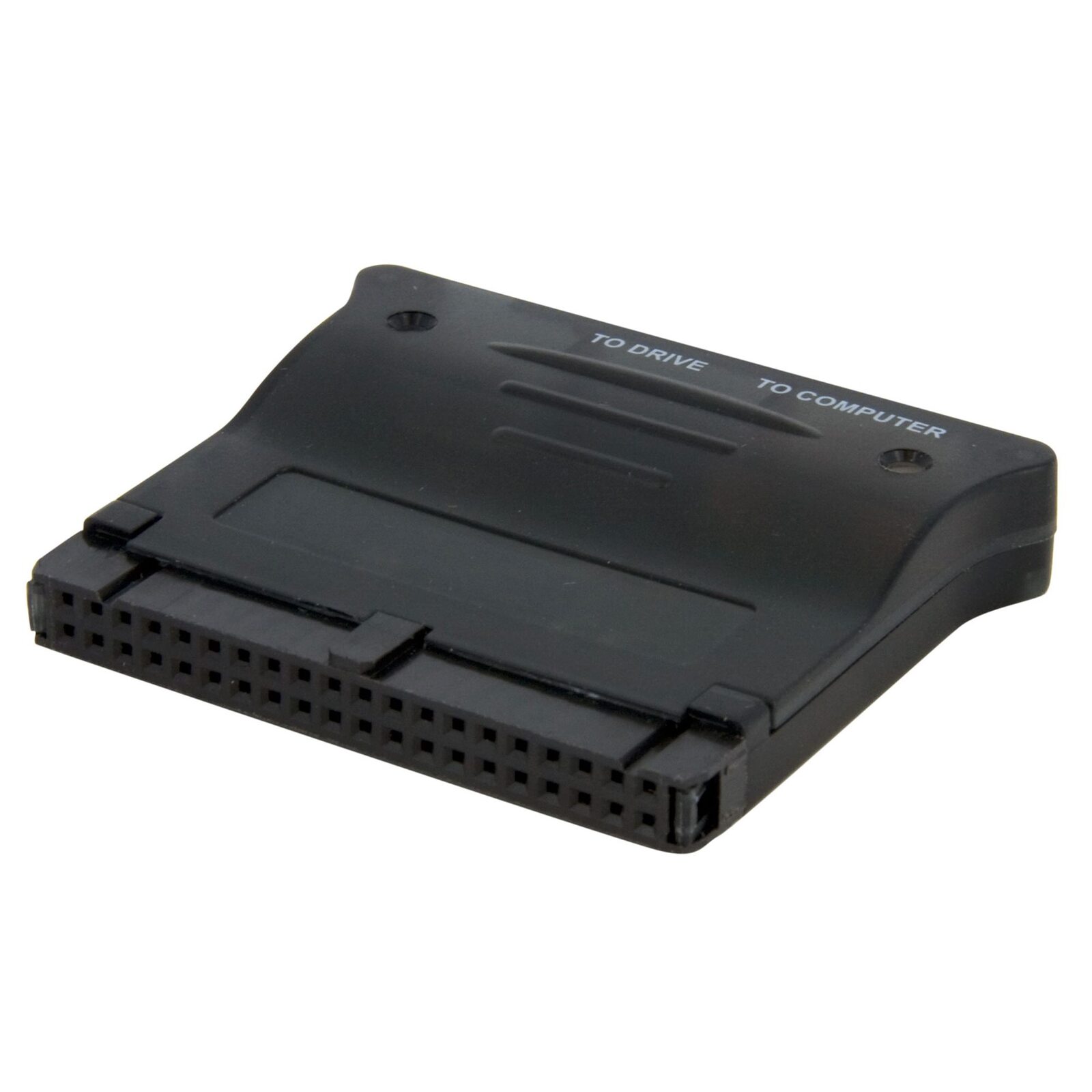

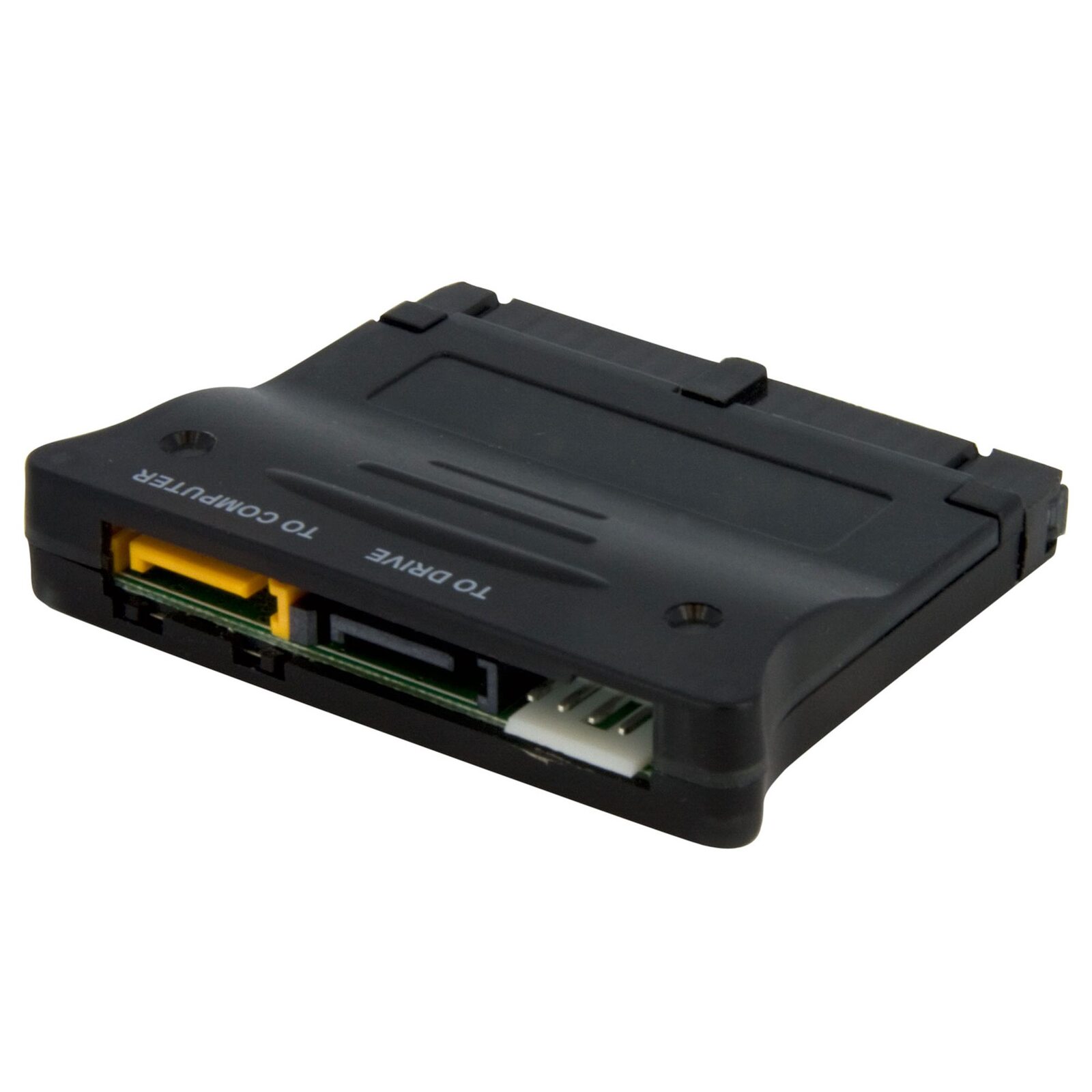

Star Tech Bi-Directional SATA IDE Adapter Converter

The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.

A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.

In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.


Specifications:

Packaging Information
Shipping (Package) Weight  : 102 g [3.6 oz]

Performance
Hardware Raid Supported  : No
Type and Rate  : SATA I (1.5 Gbps)

Physical Characteristics
Color  : Black
Material  : Plastic
Product Height  : 1.1 cm [0.4 in]
Product Length  : 61 mm [2.4 in]
Product Width  : 50 mm [2 in]
Weight of Product  : 20 g [0.7 oz]

Software
OS Compatibility  : OS independent; No software or drivers required

What's in the Box

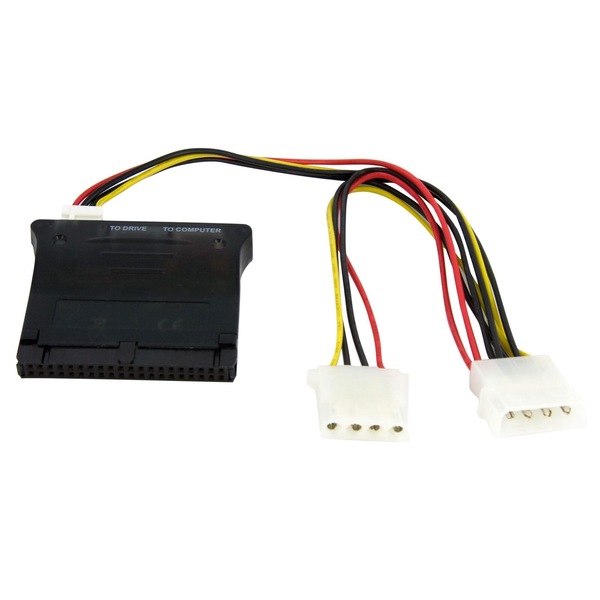

Included in Package  : Bi-Directional SATA IDE Converter
Instruction Manual
SATA Cable
SP4 to Dual LP4 Y Power Adapter

Packaging Information
Package Width  : 17.3 cm [6.8 in]
Package Length  : 14.2 cm [5.6 in]
Package Height  : 32 mm [1.3 in]

Indicators
LED Indicators  : Power - Red
HDD Activity - Green

Hardware
Number of Drives  : 1
Drive Size  : 2.5in & 3.5in
Compatible Drive Types  : SATA & IDE
Chipset ID  : SunplusIT - SPIF223A

Environmental
Storage Temperature  : -40°C to 150°C (-40°F to 302°F)
Operating Temperature  : 0°C to 70°C (32°F to 158°F)
Humidity  : 90% RH

Connector(s)
Connector Type(s)  : SP4 (4 pin, Small Drive Power) Male
SATA (7 pin, Data) Plug
IDE (40 Pin, EIDE/PATA) Female

This item comes with a 2 Years warranty

GTIN: 065030836982
