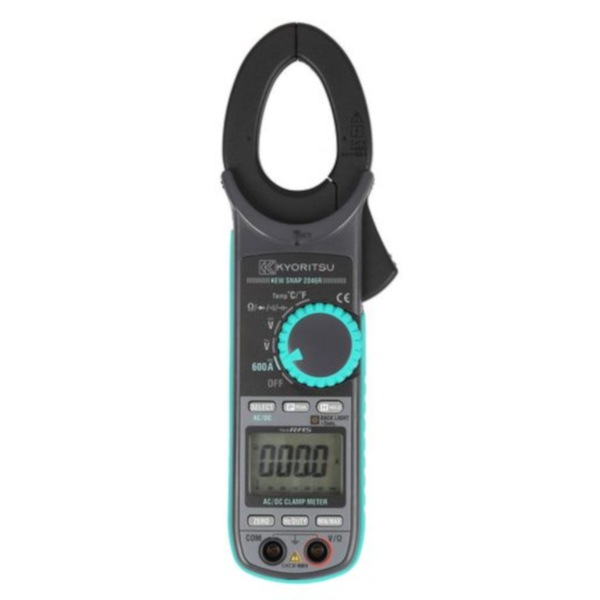

Kyoristu AC-DC Digital Clamp Meter

Image 1
$599.90

Collect 599 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

This AC/DC digital clamp meter complies with international safety standard IEC 61010-1 CAT IV 600V. It is suitable for measuring AC/DC voltage, current and resistance in low and high circuits. It can also be used for continuity test, capacitance test, temperature measurement (Requires temperature probe). True RMS enables an accurate measurement. It also has data hold function, Min/Max function, peak hold function, non-contact voltage function, etc. Double molded main body for comfortable single handed grip. Includes Carry case, 2x AAA batteries and 2x test leads. Designed to meet international safety standard IEC 61010-1 CAT IV 600V. CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits. Very useful for power distribution companies, power utilities and maintenance fields. True RMS enables an accurate measurement. AC A (RMS) 0 - 600.0A ±2.0%rdg±5dgt (50/60Hz) ±3.5%rdg±5dgt (40 - 500Hz) DC A 0 - 600.0A ±1.5%rdg±5dgt AC V 6/60/600V Auto Ranging ±1.5%rdg±4dgt (50/60Hz) ±3.5%rdg±5dgt (40 - 400Hz) DC V 600m/6/60/600V Auto Ranging ±1.0%rdg±3dgt Resistance Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging) ±1%rdg±5dgt (600 - 6M) / ±5%rdg±8dgt (60M) Continuity buzzer Buzzer Sounds at 100Ω Capacitance test 400n/4µ/40µF(Auto Ranging) Temperature -50ºC - +300ºC (With the use of Temperature probe 8216) Frequency/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9% Conductor size Ø33mm Safety Standard IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 Power source R03 (1.5V) (AAA) × 2 Dimensions 243(L) × 77(W) × 36(D)mm Weight 300g Included Accessories 7066A (Test leads), 9094 (Carrying case), Instruction Manual


Specifications:

12 Months

MPN: KEW2046R

Estimated Delivery Time Frame:5-7 business days

Ask a Question About This Product

Reference ID: 1433640
