LED-Logical DR11-200W Constant Voltage LED Driver For Indoor/Outdoor Use

DR11-200 Constant Voltage LED Driver

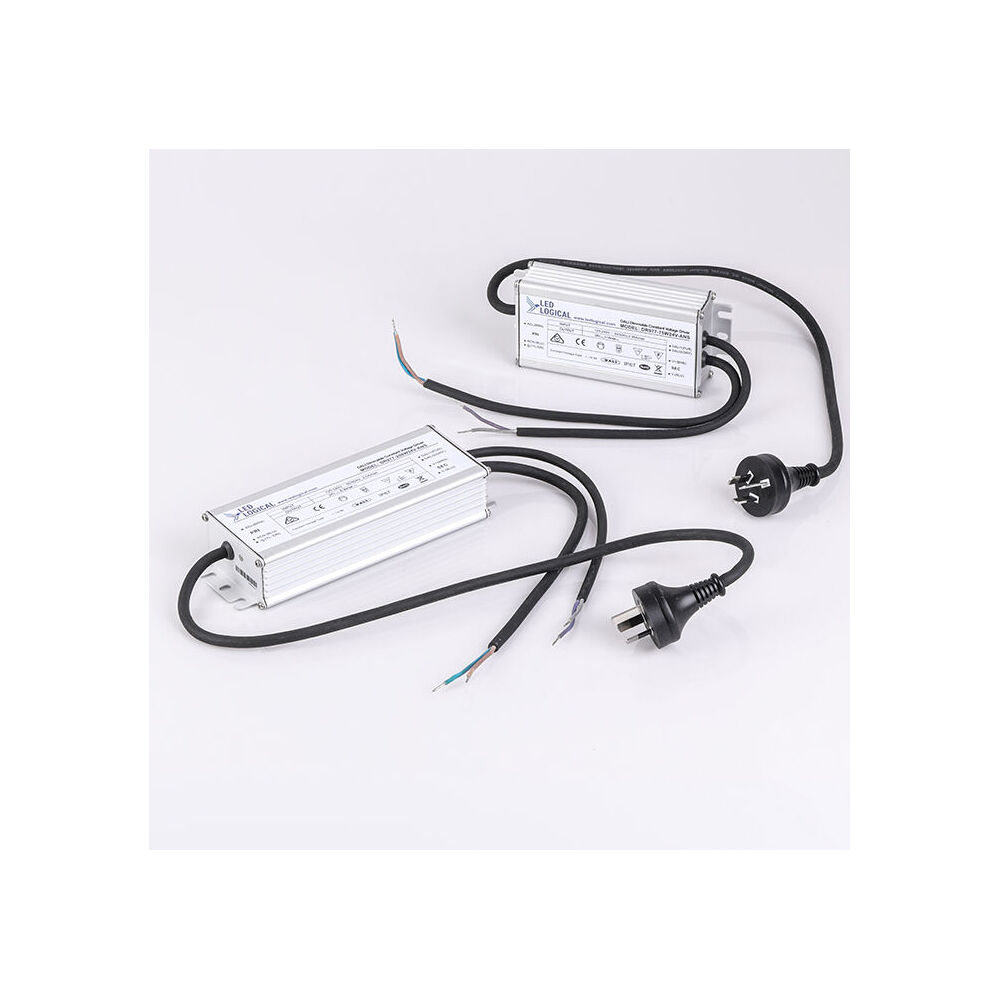

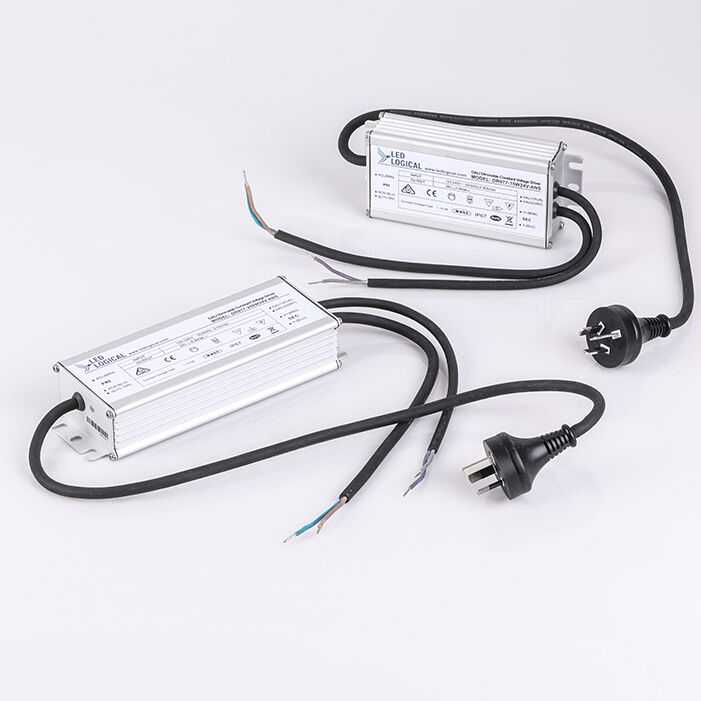

The DR11-200 is a high-quality, reliable constant voltage LED driver suitable for both indoor and outdoor use. Designed with a toughened case and double-insulated primary and secondary VED cables, it offers wide input voltage compatibility, high efficiency, and long-lasting reliability. Available in multiple output voltage options.

Main Features:
• Input Voltage: 90-305VAC
• Power Capacity: Max 200W
• Output Voltage: Constant Voltage Output
• Output Channels: Single Channel
• Connectivity: Double Insulated VED Cable

Input Specifications:
• Max Surge Voltage: 380VAC (2Hr Max)
• Typical Power Factor: >0.9 @ 60-100% load
• Typical Efficiency: >93% @ 240VAC

Output Specifications:
• Voltage Output Variants: 12VDC / 24VDC / 36VDC / 48VDC
• Max DC Output Current: 6.3A (12VDC) / 3.1A (24VDC)
• Voltage Tolerance: ±0.5%
• Rated Power Output: Max 200W
• Output Configuration: SELV

Control Characteristics:
• Power Supply Mode: Switchmode Device
• Dimming Option: Compatible with dimming controller*
• DALI-2 Version Available By Request

Built-In Protection:
• Short Circuit & Reverse Polarity: Auto Recovery
• Over Current Protection: Auto Recovery
• Thermal Overload Protection: Auto Recovery
• Surge Protection: Line to ground 10kV, IEC 61000-4-5

Standards & Compliance:
• Electrical Safety: RCM MARK, EN61347-1, EN61347-2-3
• Standards: EN61347-2-13, EN62384
• EMC Compliant: EN55015 / EN61000-3-2 / EN61000-3-3

Additional Specifications:
• Case Dimensions: 201 x 68 x 39 mm
• Working Temperature: -40°C – +90°C
• Max Case Temperature: 80°C
• Storage Temperature Range: -40°C – +85°C
• Primary Connection: Pre-fitted AS/NZS Flex & Plug
• MTBF: >105K hrs min @ 230VAC at full load
• IP Rating: IP67

Includes:
1 x LED Voltage Driver

GTIN: 0677478410930
