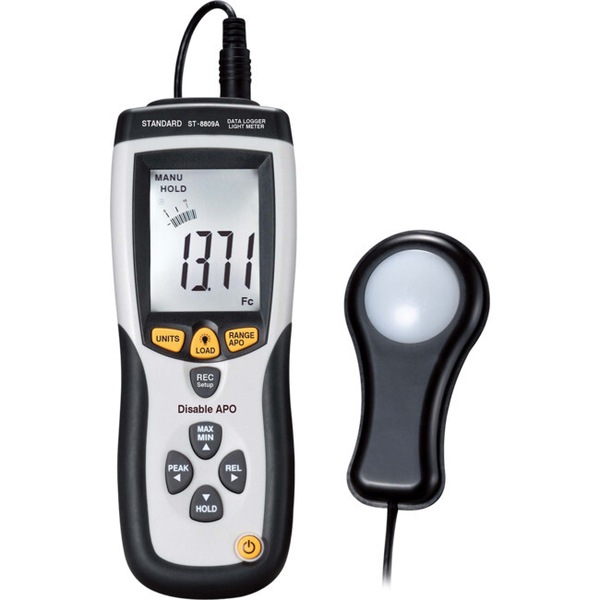

STANDARD ST-8809A LCD Display 400K LUX USB Output Light Meter

Image 1
$255.90

Collect 255 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

ST8809A provides accurate display light level in terms of Foot candles (FC) or LUX over wide range. Just turning the function switch to select the "lux" scale and setting the range to desired range, then moving the photo detector to the light source in a horizontal position and reading the illuminance norminal from the LCD display. When the measurement is completed, remove the photo detector from the light source.

Features:

  • Over range indication
  • Long life silicon photo diode inside
  • Measurement rate: 1.5 times per second
  • Wide range to 40,000FC/400,000 lux
  • LCD display counts: 4000
  • Auto ranging
  • Analog bargraph/segments: 41 segments
  • Peak hold
  • Relative mode
  • Max and Min hold
  • Auto power off
  • Low battery indication
  • User selectable FC/Lux
  • Output: USB
  • Capacity for data logging 99
  • Total accuracy: for C.I.E standard illuminate A (2856K)
Click on images for larger version

Includes durable carry case with padded foam

Side port for USB connection to PC

Photo detector comes with an attached cover for protection

Connect the light level meter to your PC for real time monitoring and data logging


Specifications:

  • Max range: 400,000 Lux
  • Accuracy: ±5% ±10d (<10,000Lux); ±10% ±10d (>10,000Lux)
  • Max resolution: 0.1Lux/0.01Fc
  • Measuring rate: 1.5 times/second
  • Photo detector: 115mm x 60mm x 27mm
  • Size (HxWxD): 203mm x 75mm x 50mm
  • Weight: 280g

Accessories:

  • 9V battery
  • USB A to mini B cable
  • Software CD
  • Carry case

Specifications:

12 month warranty

GTIN: 9328202032492

Estimated Delivery Time Frame:5-7 business days
