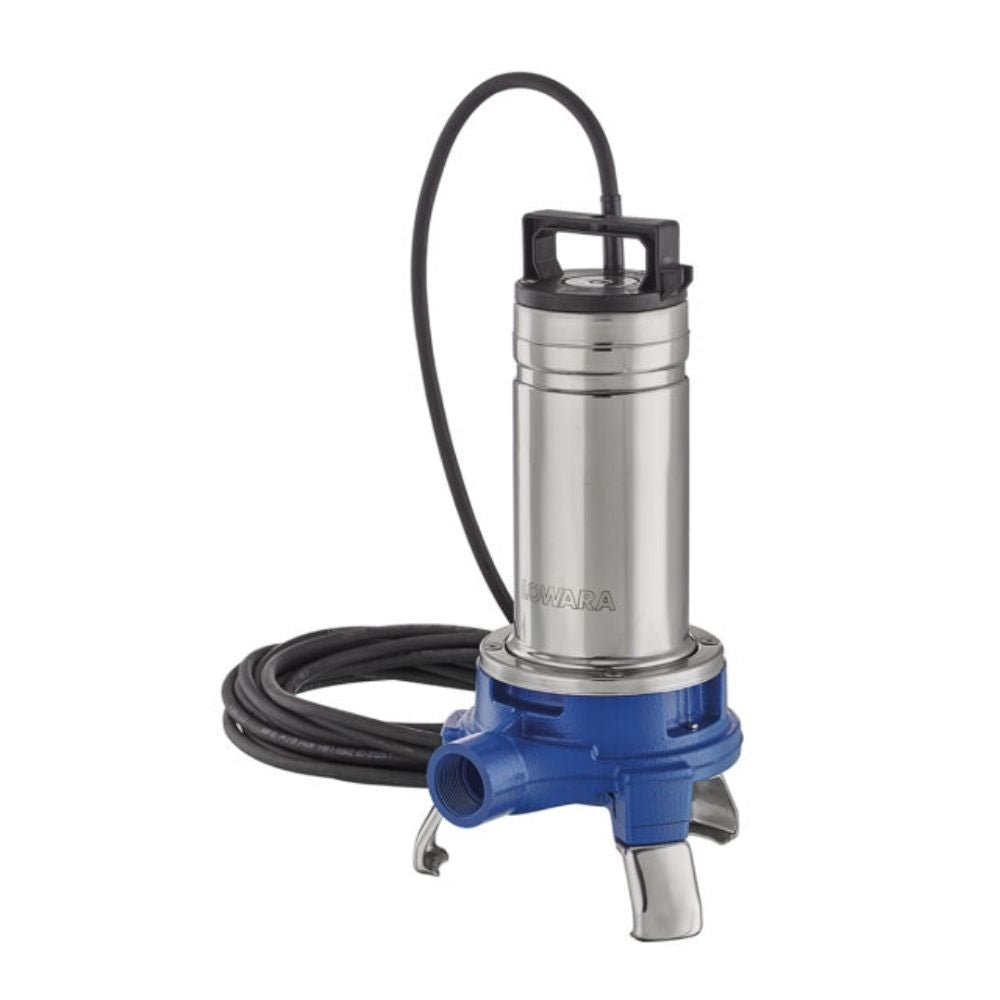

Lowara's DOMO GRI is a submersible grinder pump designed to deliver residential sewage containing suspended solids and wastewater to the sewer mains or a pressurized sewer network. Made with a heavy duty cutting device, the DOMO GRI will grind solids into a fine slurry easily passable through small diameter pipes. Available with or without a float switch.

Specifications:

• Delivery: up to 10.80 m³/h
• Head: up to 28 m
• Power supply: single-phase and three-phase 50 and 60 Hz
• Power: 1.10kW to 1.50kW
• Maximum immersion depth: 5 m
• Temperature of pumped liquid: 0°C to +35°C (with pump totally immersed)
• Insulation class: F (motor dry)
• Protection: IPX8
• Thermo-amperometric overload protection to stop pump supply in case of overheating (single phase version)

 Applications

• Pumping of sewage with suspended solids
• Emptying of septic tanks and residential sumps
• Draining of flooded areas
• Pumping water from pressurized sewer network

Materials

• Pump body: Cast Iron
• Motor casing: Stainless Steel AISI 304
• Impeller: Technopolymer PBT
• Inner mechanical seal: Silicon-carbide / Silicon-carbide / NBR (standard version)
• Grinder: High resistance Stainless Steel
• Lubricated by the DRIVELUB System
• Shaft end: Stainless steel
• Handle: Nylon

Market Sectors:

• Residential
• Commercial
• Agriculture
• Municipal

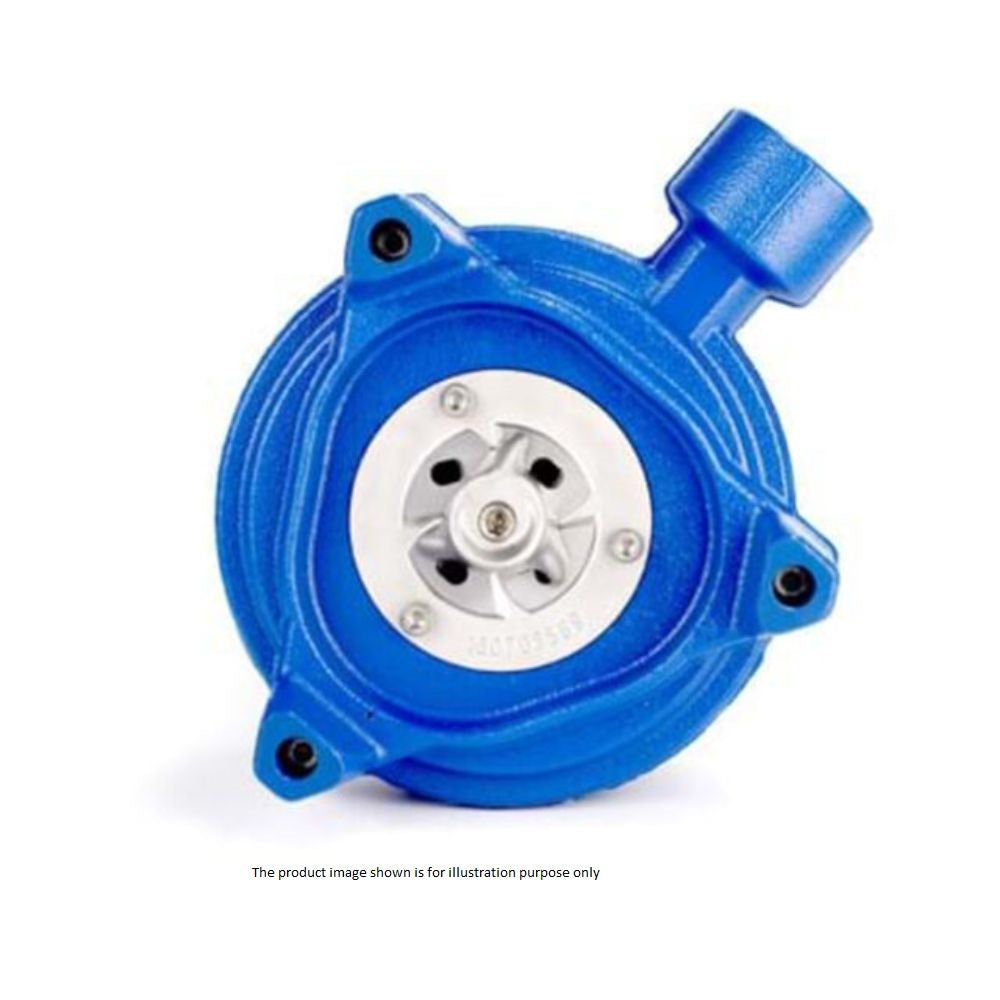

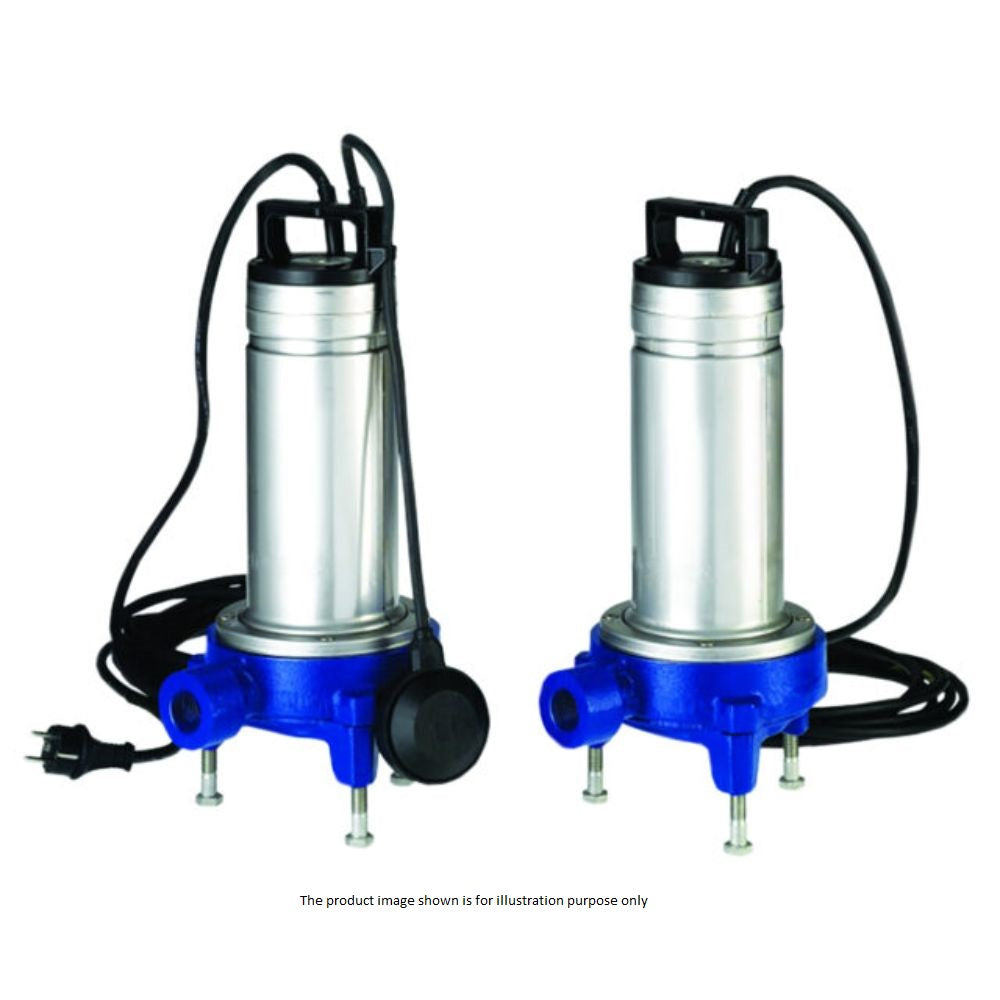

The product image shown is for illustration purpose only
