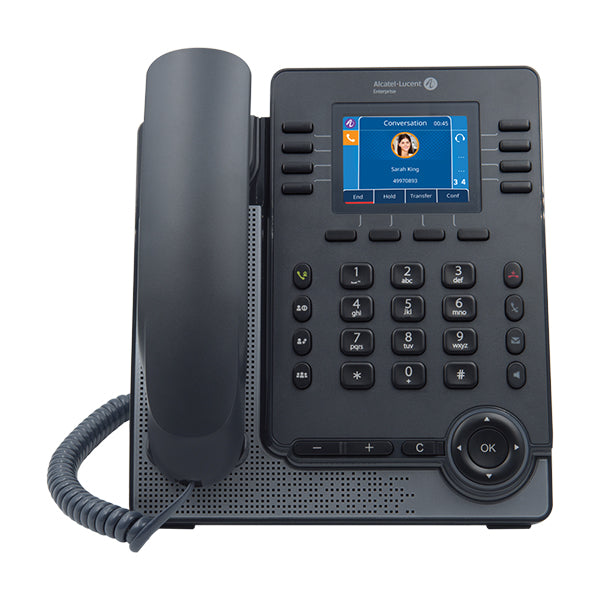

M5 DESKPHONE

The M5 DeskPhone from Alcatel-Lucent Enterprise offers a rich SIP communications experience with intuitive navigation and conversation comfort.

This elegant DeskPhone provides super wideband

audio in hands-free mode with echo canceling and double talk performance. The large 2.8” color screen makes it easy to connect quickly.

The user experience is enhanced with a 4-way navigation key, 8 line keys, 4 soft keys, and a user-friendly interface.

The M5 DeskPhone includes USB A/C ports making it more than a phone. It is possible to connect to a PC as an external loudspeaker to take advantage of the super wide band speaker phone or plug external devices such as Expansion Module (EM20 or EM200), headset, conference module, etc. The M5 DeskPhone supports a Wi-Fi dongle.

The M5 DeskPhone includes an adjustable foot stand and comes with customizable faceplates to promote brand awareness.

The standard SIP protocol provides rich telephony features supported by the major open SIP servers in the market.

The M5 DeskPhone can operate in Power over Ethernet (PoE) mode (Class 2).

SPECIFICATIONS

Physical characteristics

Height: 183mm (7.2 inches)

Width: 207mm (8.2 inches)

Depth: 35mm (1.4 inches)

Weight: 800g (1.77 lbs) incl. handset and foot stand

Color: Gray

Adjustable foot stand: 40° and 55°

Wall mountable

Display

2.8 inches color

320×240 LCD

Keys

8 line keys with LED

4 menu keys

Volume control keys (+ and -)

Navigator: 4-way navigation + OK

Hands-free, mute and message keys

Call hold, call transfer and redial key

Dial pad

Telephony features

8 SIP accounts

Call forward, call waiting, call transfer, call hold/resume, redial

Mute/unmute, voicemail, DND, auto answer

Local 5-party conference

Call log, local contacts (1000)

Audio characteristics

G.722, OPUS, iLBC

G711 (A-law and Mu-law), G.729AB

VAD (Voice Activity Detection), Comfort Noise Generation (CNG)

Acoustic echo cancellation

DTMF: In-Band, RFC2833, SIP INFO

Hearing Aid Compatible (HAC)

Power

Power over Ethernet (IEEE 802.3af), Class 2

External Power supply: 5V/2A (Optional accessory)

Connectivity

RJ-45 LAN: 10/100/1000M Ethernet

RJ-45 PC through 10/100/1000M Ethernet switch

RJ-9 connector for corded handset

USB Type A and USB Type C

Network and protocols

SIP v2 (RFC3261)

Static IP and DHCP

IPv4/IPv6

IEEE 802.1AB/LLDP-MED/QoS

TR069

Configuration

Web-based management

ALE Easy Provisioning Server (EPS)

ALE Easy Deployment Server (EDS)

Security

Authentication: Basic or digest, 802.1x

Denial of service (DoS) attack protection: Flooding

ARP Spoofing protection

Transport: TLS 1.2/1.0 and SRTP

Shipped with (X509v3) certificate installed¬ Certificates for 802.1x EAP-TLS (either Alcatel-Lucent or customer certificates)

Supporting SHA2 ALE Certificate, SCEP, OpenVPN

Languages

Multi-language support (menu): Arabic, Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English (American), English (British), Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish, Turkish

Safety

EN 60950-1: 2006 +A11: 2009 +A1: 2010 +AC: 2011+A12: 2011 +A2:2013

IEC 60950-1: 2005 +A1: 2009 +A2: 2013

EN 62368-1: 2014 +A11: 2017

CAN/CSA-C22.2 NO. 60950-1-07 +Am1: 2011 +Am2: 2014, ANSI/UL 60950-1-2014

EMC

EN 55032, CISPR 32

EN 55024, CISPR 24

EN 61000-3-2, EN 61000-3-3

FCC 47 CFR Part 15 B Subpart B

ICES-003 Issue 6 Canada

ETSI EN 301 489-1

ETSI EN 301 489-17

EN 55024

CISPR 24

CISPR 32

EN 55032

EN 61000-3-3 / IEC 61000-3-3

Eco-design

ErP 2009/125/EC, WEEE 2012/19/EU

ROHS 2011/65/EU, CHINA ROHS 2: GBT 26572-2011

REACH: European regulation: N° 1907/2006

Proposition 65

Packaging: EU Directive 94/62/EC

Hearing aid compatibility

US: Section 68.316 (HAC) and 68.317 of FCC 47 C.F.R. Part 68

Canada: CS-03 Part V, Issue 9 +Amendment 2

Australia/NZ: AS/ACIF S040: 2001

Environmental Conditions

Operating temperature: -5°C to +45°C

Relative humidity: 5% to 95%

Storage/transportation temperature: -25°C/+70°C

Accessories

3MK27006AA EMD20 Expansion module

3MK27007AA EM200 Expansion module

3MK27008AA wall mounting kit

3MK08005US external power adapter (US)

3MK08005EU external power adapter (EU)

3MK08005RW external power adapter (AU/UK)

PACKAGE CONTENTS

1 x Wired wideband handset

1 x Foot stand

1 x 1.5m Ethernet cable (cat5e)

1 x Safety sheet

1 x Quick user guide
