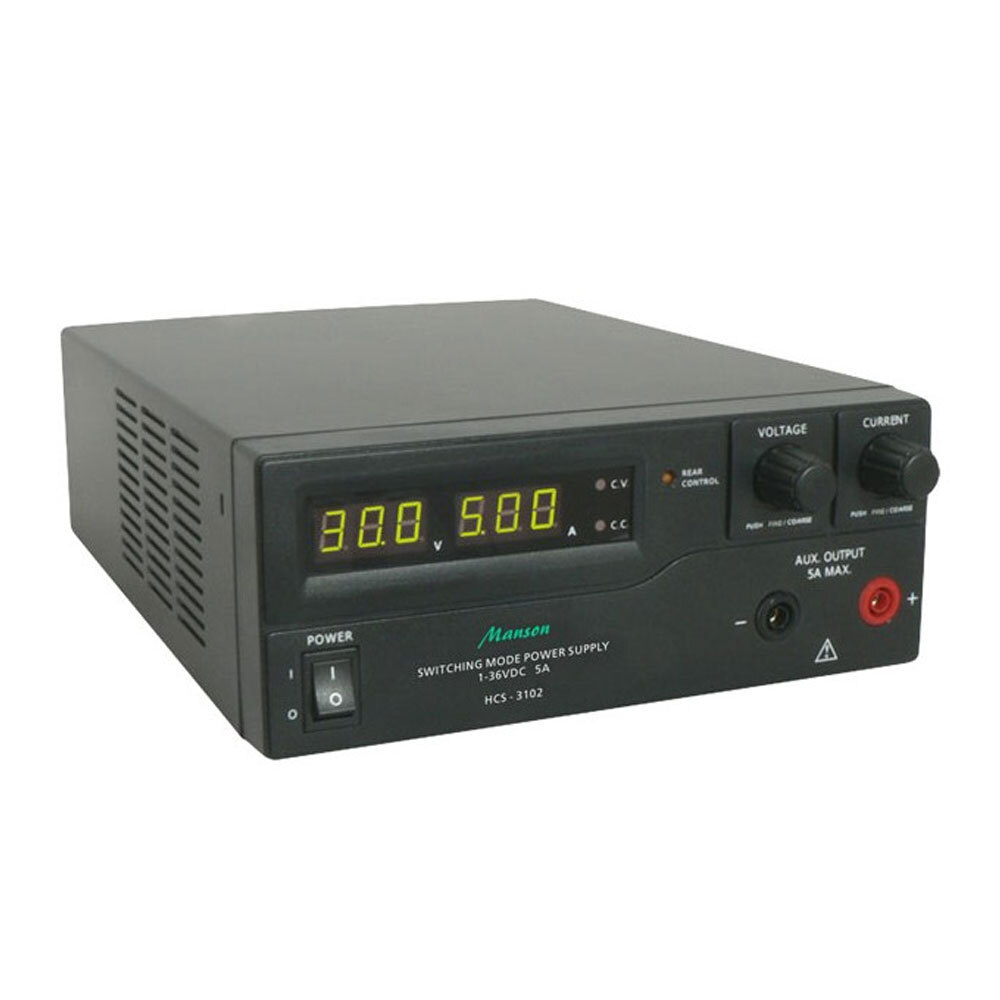

Manson 1-36VDC 5A Remote Programmable Switchmode Power Supply w/ Led Indicator

Image 1
Image 2
Hurry! 13 items left!
$316.80

Collect 316 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout

After the success of our previous HCS series, high power supplies, this new low power series has been developed with end-users' feedback in mind.

A USB control port has been added to allow cyclical operations with programmable voltage, current, period and time cycles.

Manson 1-36VDC 5A Remote Programmable Switchmode Power Supply is ideal for laboratory, university, workshop, production, quality control and sophisticated DIY applications.

Features:

  • Remote programmable by computer via USB

  • 20 programmable sets of voltage, current and cycle periods for repetitive operations up to 999 cycles

  • 3 user-defined voltage and current panel presets for frequent use

  • Wired remote control of Voltage, Current and Output on/off without computer

  • Rotary encoder knob with the fine and coarse adjustment

  • Smart cooling fan speed control

  • Self-diagnostic check on the LED display

  • Isolated ground, Active PFC and high power efficiency

  • Universal AC Input

  • Overload, Tracking Over-voltage Protections

  • Constant current limit setting with open-circuit output

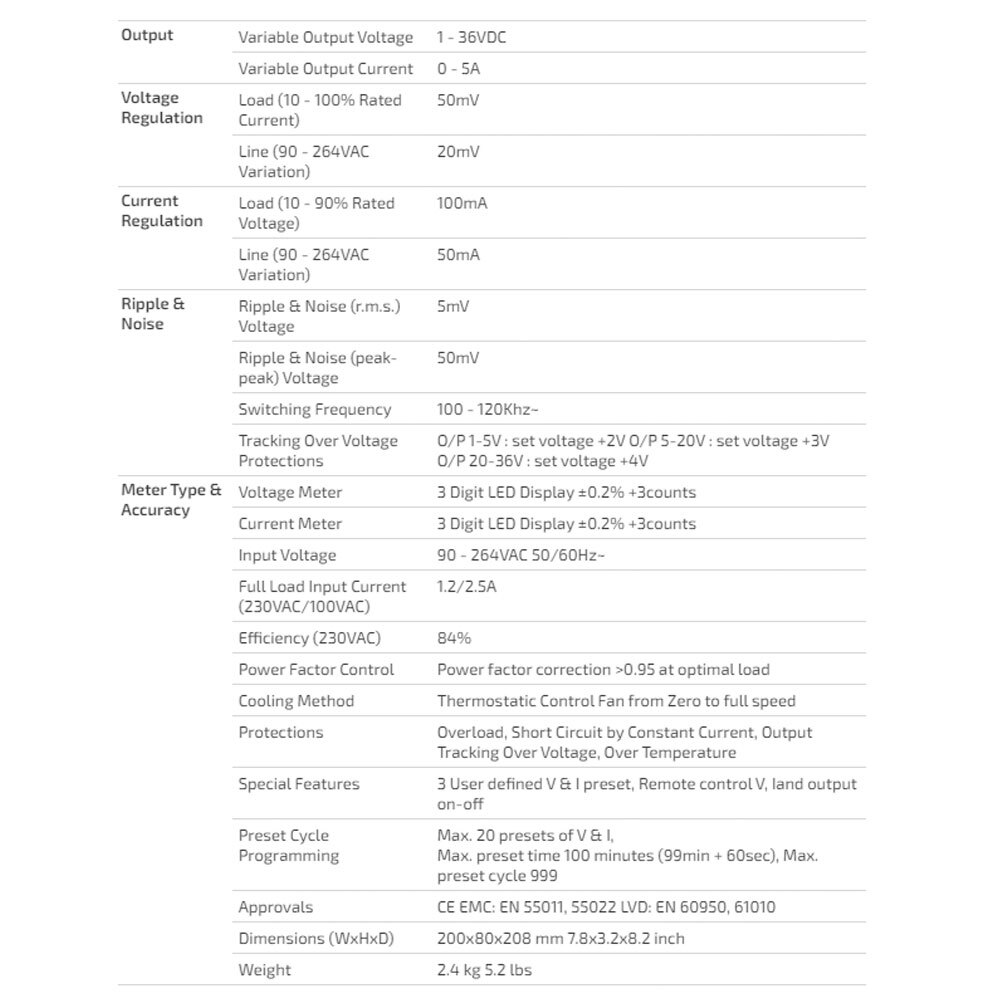

Specifications:

  • Variable Output Voltage: 1 - 36VDC

  • Variable Output Current: 0 - 5A

  • Load (10 - 100% Rated Current): 50m V

  • Line (90 - 264VAC Variation): 20m V

  • Load (10 - 90% Rated Voltage): 100 mA

  • Line (90 - 264VAC Variation): 50 mA

  • Ripple & Noise (r.m.s.) Voltage: 5mV

  • Ripple & Noise (peak-peak) Voltage: 50mV

  • Switching Frequency: 100 - 120Khz~

  • Tracking Over Voltage Protections: O/P 1-5V : set voltage +2V O/P 5-20V : set voltage +3V O/P 20-36V : set voltage +4V

  • Voltage Meter: 3 Digit LED Display ±0.2% +3counts

  • Current Meter: 3 Digit LED Display ±0.2% +3counts

  • Input Voltage: 90 - 264VAC 50/60Hz~

  • Full Load Input Current (230VAC/100VAC): 1.2/2.5A

  • AU/NZ Plug

This item comes with a 12-month warranty.

MPN: HCS3102G
