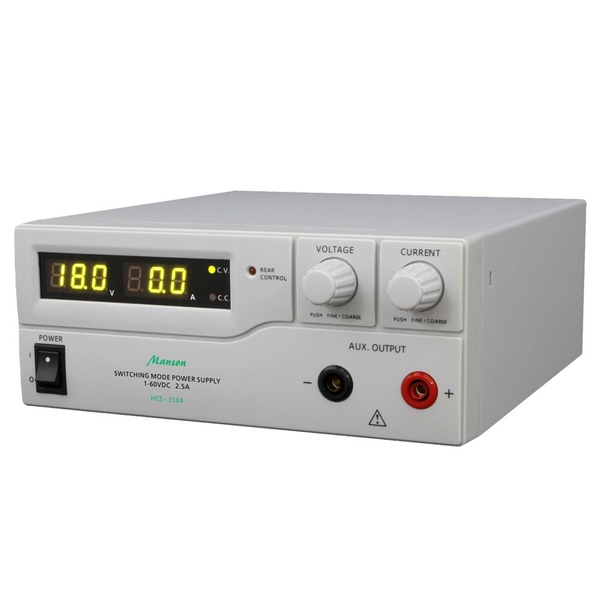

Manson 20.8cm 1-60VDC 2.5A LAB Power Supply Remote Programmable via USB White

Image 1
Image 2
Image 3
$395.1

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by KG Superstore

Manson 1-60VDC 2.5A LAB. Power Supply Remote Programmable adds a USB port for access to a computer to run cyclical operation with programmable voltage, current, period time and cycles. The on-housing presets, separate remote control, rotary encoder dual action control for easy tuning of voltage and current, and all the features of the original HCS are kept. In addition, it is of universal AC input voltage. It is probably the most cost-effective Remote Programmable Power supply with such advanced features and protections. It is ideal for laboratory, university, workshop, production, quality control and sophisticated DIY applications.

Features:

  • Remote Programmable via USB to computer

  • 20 programmable sets of V, I & cycle periods for repetitive operation up to 999 cycles

  • 3 user-defined V & I panel presets for frequent use

  • Analogue Remote Control of V, I, & output On-Off without a computer

  • Rotary encoder knob with definitive action of fine and coarse tuning

  • Smart cooling fan speed control from zero to full speed

  • Self-diagnostic check on the LED display and cooling fan on startup

  • Isolated ground, Active PFC & high power efficiency

  • Universal AC input

  • Overload, Tracking Over Voltage Protections

  • Constant Current limit setting with output open circuit

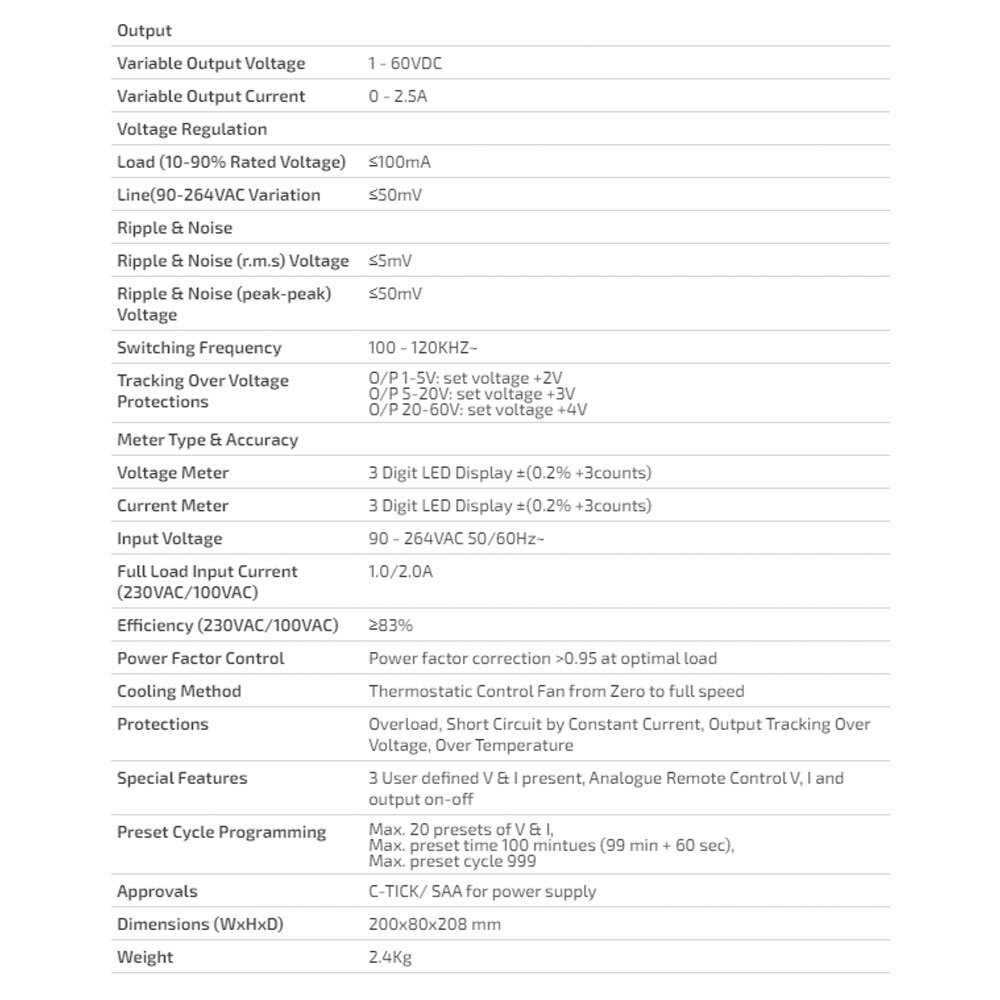

Specifications:

  • Colour: White

  • AU/NZ Plug

  • Variable Output Voltage: 1 - 60VDC

  • Variable Output Current: 0 - 2.5A

  • Load (10-90% Rated Voltage): ≤100mA

  • Line(90-264VAC Variation: ≤50mV

  • Ripple & Noise (r.m.s) Voltage: ≤5mV

  • Ripple & Noise (peak-peak) Voltage: ≤50mV

  • Switching Frequency: 100 - 120KHZ~

  • Voltage Meter: 3 Digit LED Display ±(0.2% +3counts)

  • Current Meter: 3 Digit LED Display ±(0.2% +3counts)

  • Input Voltage: 90 - 264VAC 50/60Hz~

  • Full Load Input Current (230VAC/100VAC): 1.0/2.0A

  • Efficiency (230VAC/100VAC): ≥83%

  • Dimensions: 20 x 8 x 20.8 cm (WxHxD)

  • Weight: 2.4 kg

Tracking Over Voltage Protections

  • O/P 1-5V: set voltage +2V

  • O/P 5-20V: set voltage +3V

  • O/P 20-60V: set voltage +4V

This item comes with a 12-month warranty.

GTIN: 9328202033277

Reference ID: 3314754
