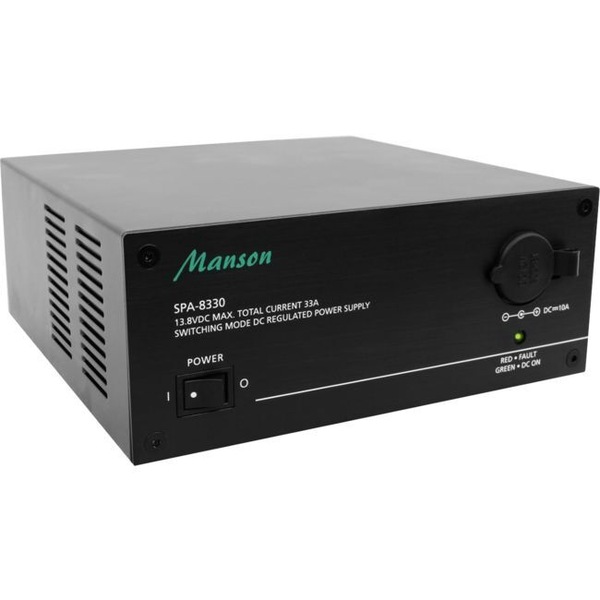

Manson 33A Cont 36A Max 13.8VDC Power Supply Bench Top w/ LED Indicator Black
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 359 Everyday Rewards points
Collect 359 Everyday Rewards points
Manson 33A Cont 36A Max 13.8VDC Power Supply Bench Top Black is an advanced new circuit design makes this power supply with higher efficiency, regulated output and specifically suitable for use with radio equipment. The power supply provides a stable, clean and RFI filtered suppressed and filtered DC source.
The smart fan speed control program will adapt the just the right speed (0-100%) to ensure a quiet and safe operation at various ambient temperature and power output.
The isolated ground design allows parallel and series connection of power supplies. The constant current limiting,over-temperature, over-voltage protections offer reliability and protection to the power supplies and the load.
Features
High RFI immunity
Wide Range AC input voltage
Quiet cooling fan variable speed operation
Overload, Short circuit, Over temperature protection by constant current
Power Factor Control
Isolated Ground
User-adjustable fine-tune setting (10 - 15V)

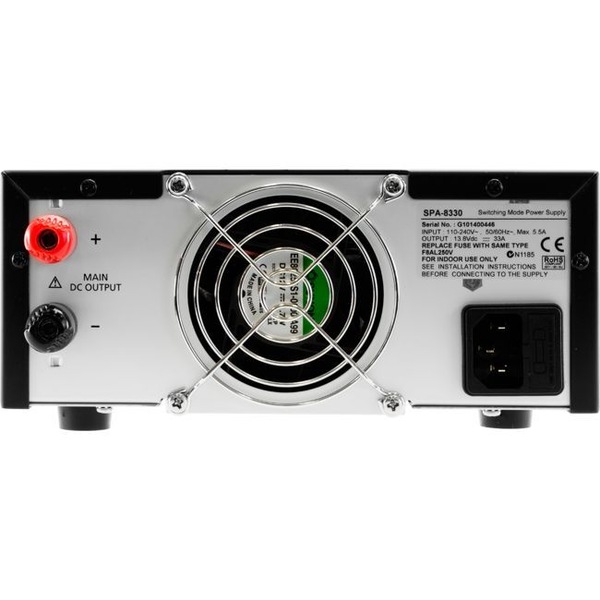

Binding post and cigar socket DC output
Output Voltage: Fixed 13.8VDC ±0.5V
Colour: Black
AU/NZ Plug
Output Current (Main Output Posts): 33A Continuous, 36A Max. (30sec ON / 30sec OFF)
Output Current (Main Output Posts + Cigar Socket): 33A Continuous, 36A Max. (30sec ON / 30sec OFF)
Ripple & Noise: ≤50mVp-p 5mVrms
Load Regulation (10-100% Load): ≤50mV
Line Regulation (100-264VAC Variation): ≤20mV
Input Voltage: 110 - 240VAC 50/60Hz~
Indicators: Red Color Fault LED Indicator
Cooling System: Fan Cool (0 to full speed)
Operating Temperature: 0 - 40°C
Dimensions Approx.: 20 x 21.3 x 8 cm (WxDxH)
Weight Approx.: 2.6 kg
Protection:
Overload
Over Temperature
Short Circuit Protection
(by Constant Current Circuitry and
Output Over-Voltage Protection)
Approvals:
CE EMC: EN 55022
LVD: EN 60950
This item comes with a 12-month warranty.
MPN: SPA8330B
