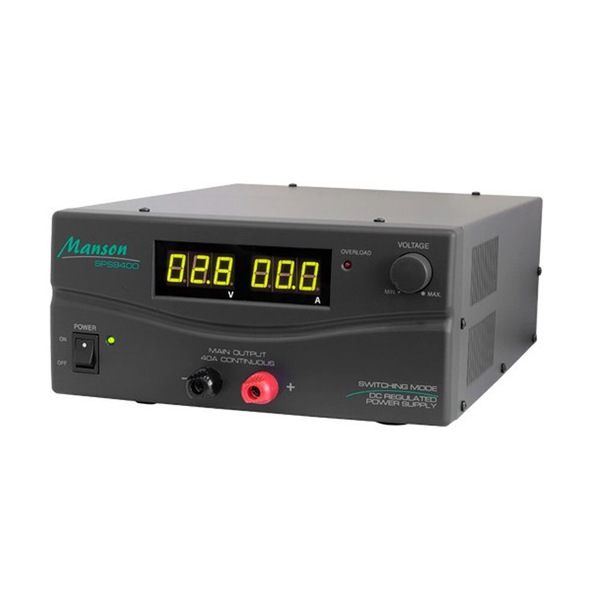

Manson 40Amp 3-15V DC Power Supply Digital Bench Top Dark Grey provides high current 40 Amps output in a lightweight and compact size case. They are suitable for a wide range of uses, such as radio equipment, and are ideal for high power car stereo work. In addition to variable output from 3 to 15VDC, a fixed 13.8VDC can be selected. Overload, over-temperature, and over-voltage protection are standard.
Features:
40A current output
High efficiency
Adjustable output voltages 3V to 15V
Fixed voltage mode at 13.8V
Lightweight and small size
Overload temperature protection
Current fold-back circuit with LED indicator prevents overloading
Overvoltage protection at 16.5V
Variable speed thermally controlled fan
High RFI stability
Colour: Dark Grey
Variable Output Voltage: 3-15 VDC
Fixed Output Voltage Mode: 13.8 VDC
Rated Output Current: 40A
Ripple and Noise (P-P): 50mV
Load Regulation: 200mV
Line Regulation: 50mV
Input Voltage: 230VAC / 50Hz
Efficiency: > 78%
Meter Type: LED Meter
V meter Range: 3 digit display
A meter Range: 3 digit display
Meter Accuracy: 1% + 2 Digits
Protection Devices: Overload, Short Circuit, Over Temperature, OVP
Cooling System: Variable Speed Thermally Control Fan
Approvals: CE EN61558, EN60950, EN55022, EN55011
Dimensions Approx.: 22 x 30 x 11 cm (WxDxH)
Weight Approx.: 3.5 Kg
Remarks: Power factor correction > 0.95 at optimal load
This item comes with a 12-month warranty.
MPN: SPS9400
