Collect 399 Everyday Rewards points
Brand Name: Maswell
RF Outlet is Australian selling channel for Maswell antennas.
4 meter Ultra low loss LMR 600 equivalent cable is supplied to tackle the loss issue at high frequency (above 5.0GHz).
ITEM ID:AN_Master_004_MIMO
High quality ABS antenna radome
7/24 Operation Capability

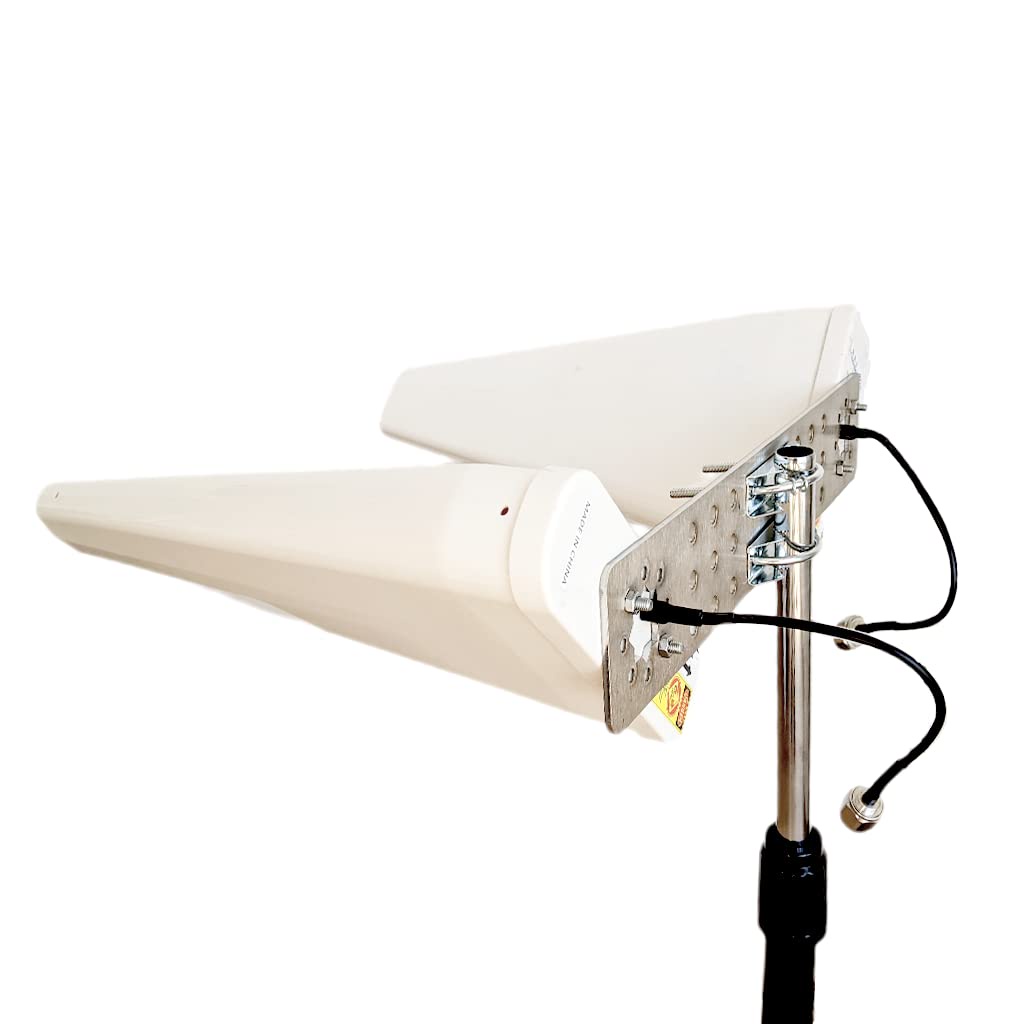

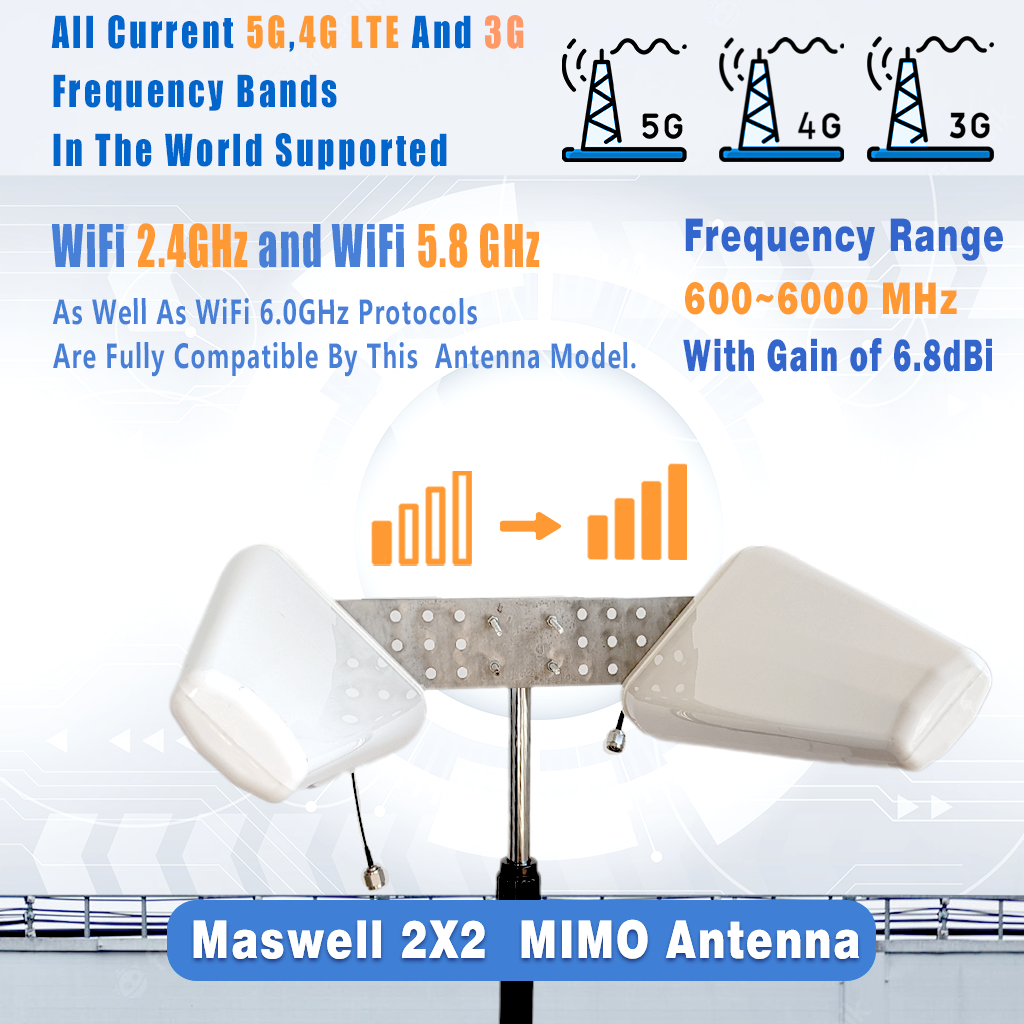

Two LPDA Antenna MIMO system for all cellular and WiFi bands
Applications:
5G bands: All the bands from the globe (including Australia) are supported:600MHz,3500MHz, 4800MHz etc.
4G/3G/GSM bands: All the bands from the globe (including Australia) are supported.
WiFi: All the wifi bands are supported: 2400MHz, 5800MHz and 6000MHz (wifi 6.0)
No matter what protocol you are using, this antenna will be suitable for your wireless applications
Repeater station system
Long distance telecommunication

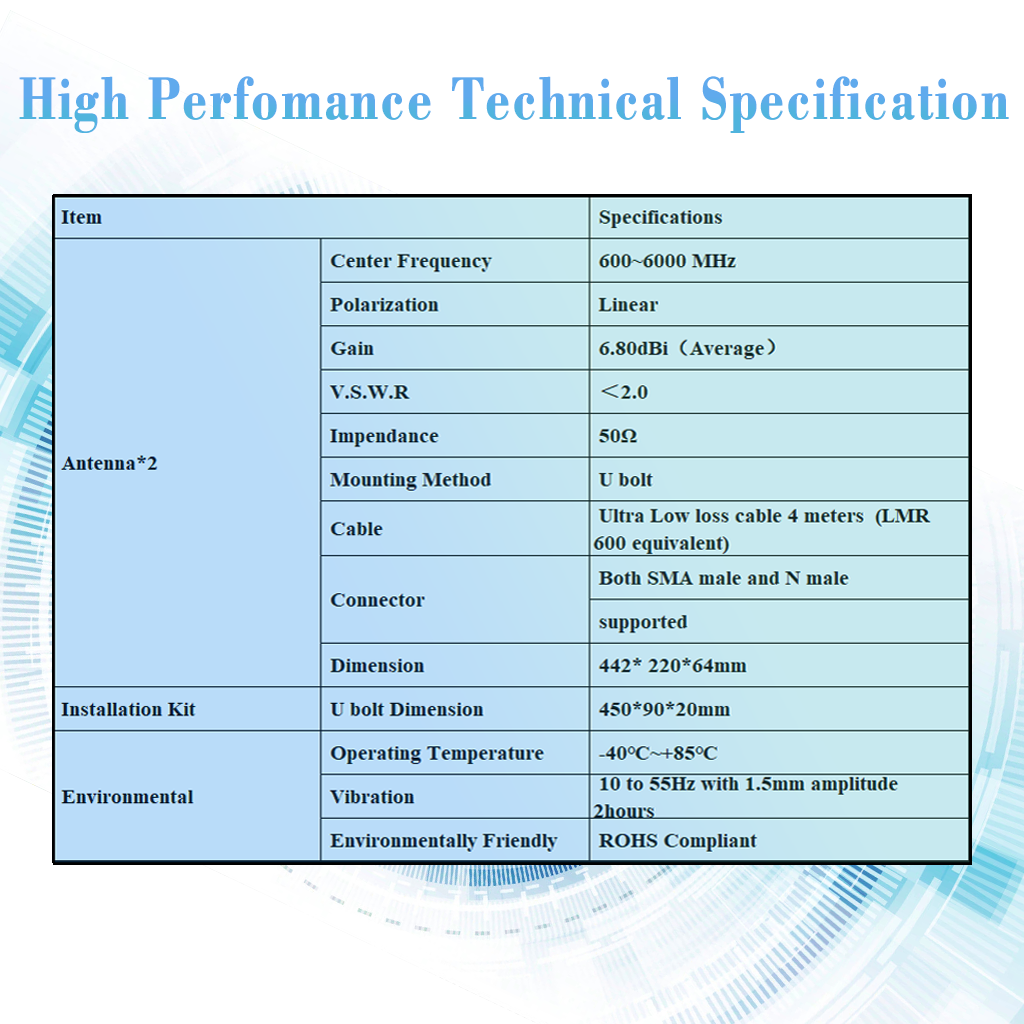

Electric specifications:
Frequency 600-6000MHz very wideband
Band Width 1700 MHz

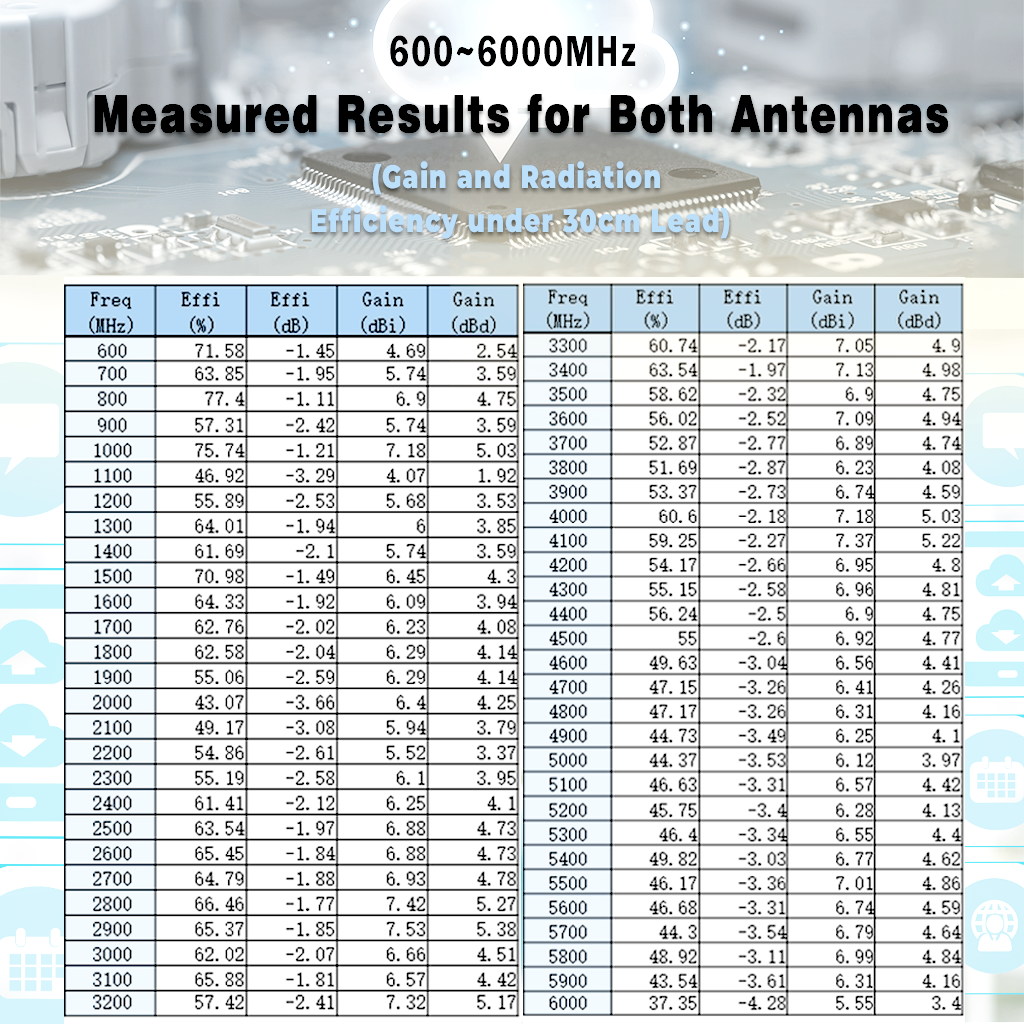

Gain 7.5 dBi

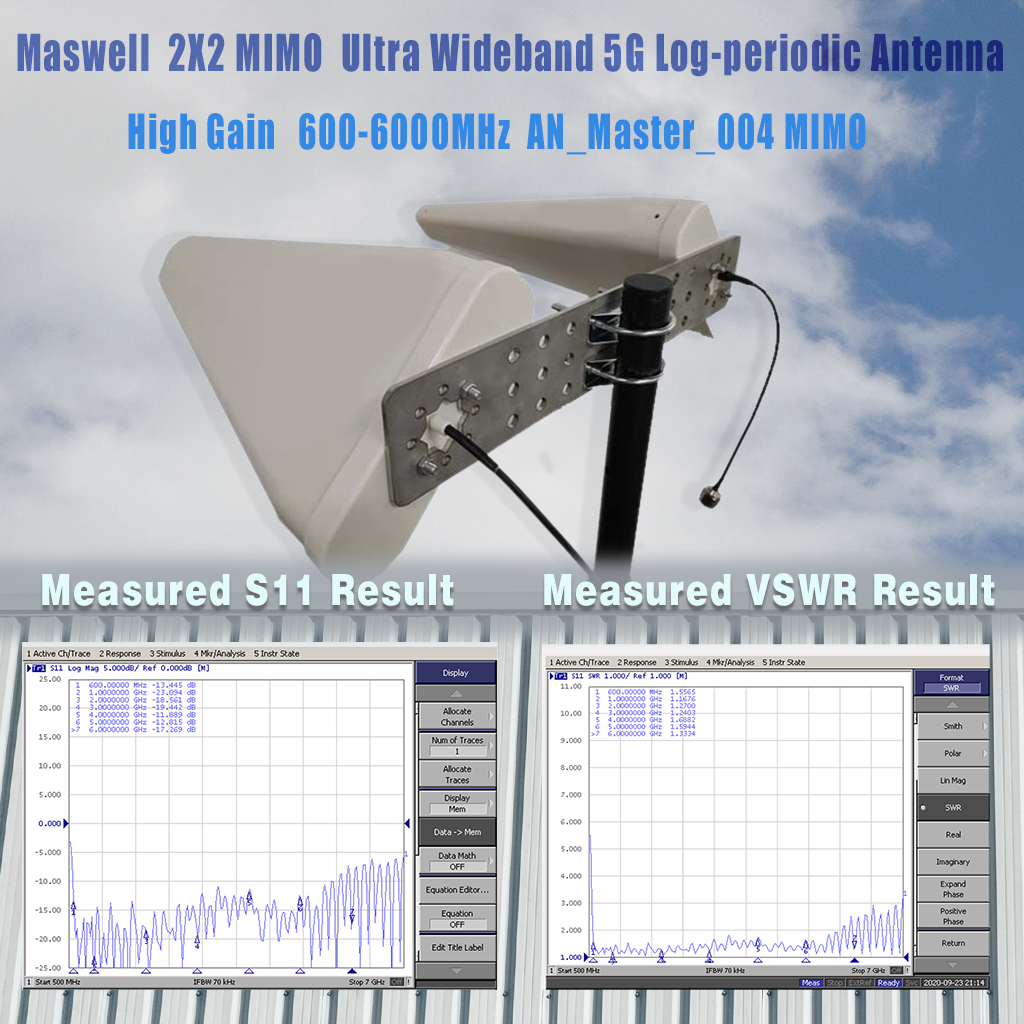

V.S.W.R ≤2
Input Impendence 50 ohmÂ
Polarization: linear horizontal or vertical
Maximum power: 100W
Lightning protection: DC ground
Mechanical specifications:
Dimensions: 442*220*64 mm
Cable length: 4 m
Antenna weight: 2 kg
Working Temp -40 Degrees Celsius ~+85 Degrees Celsius

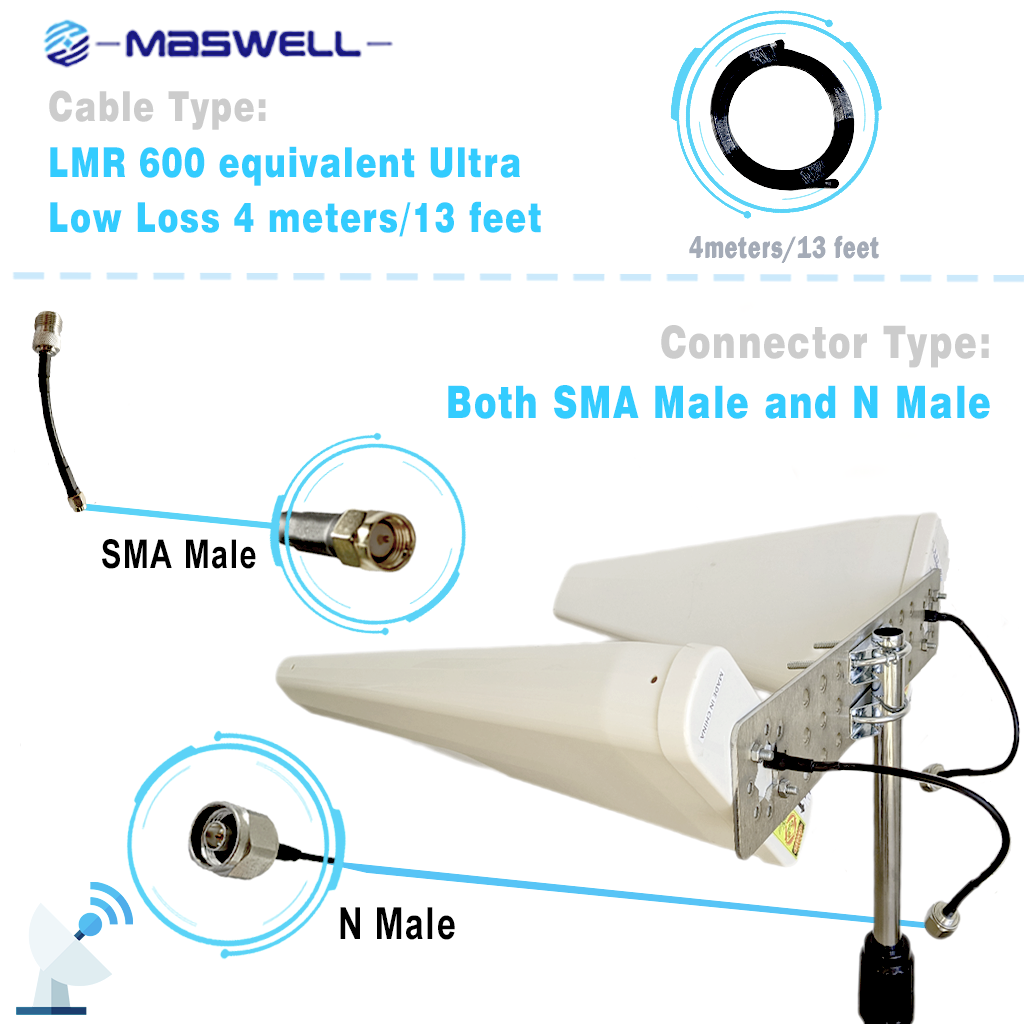

Connector type: SMA male or N male interface cable supplied.
4 meter Ultra low loss LMR 600 equivalent cable is supplied to tackle the loss issue at high frequency (above 5.0GHz).

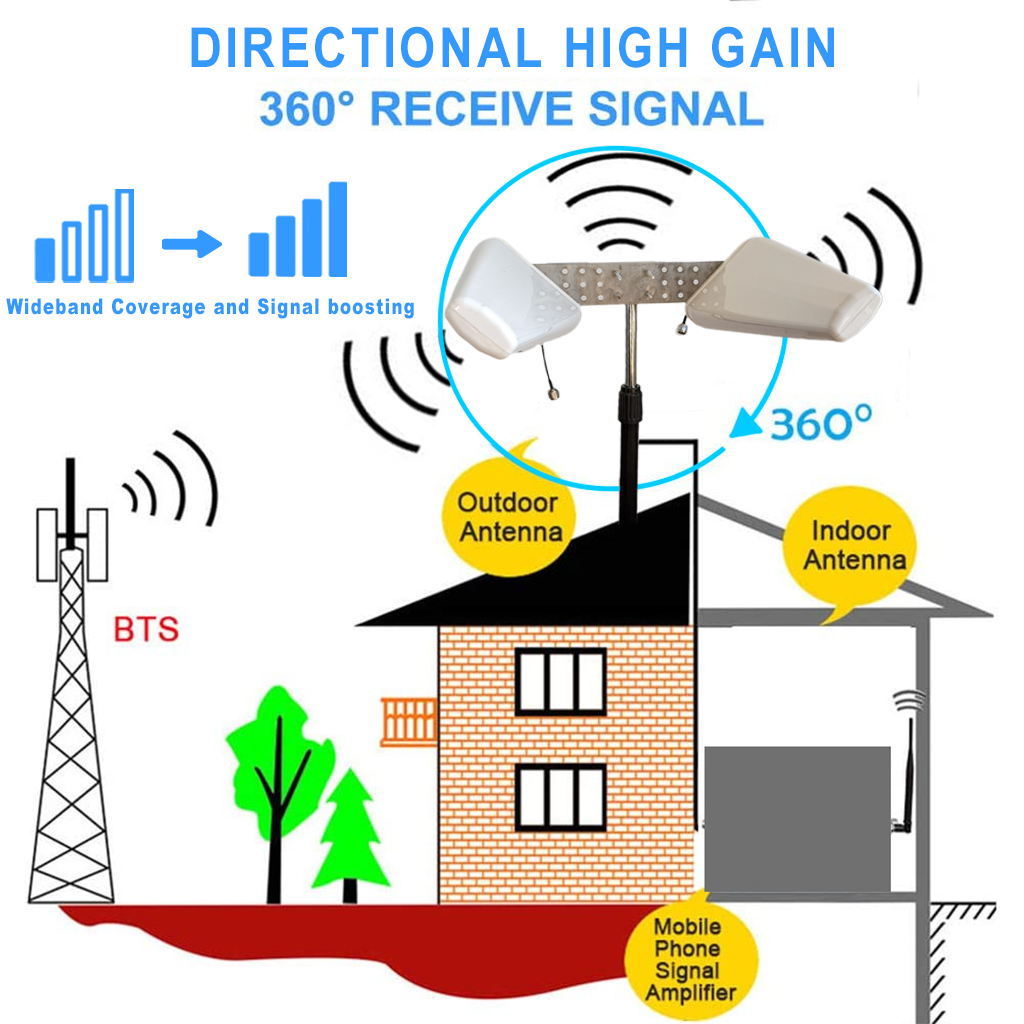

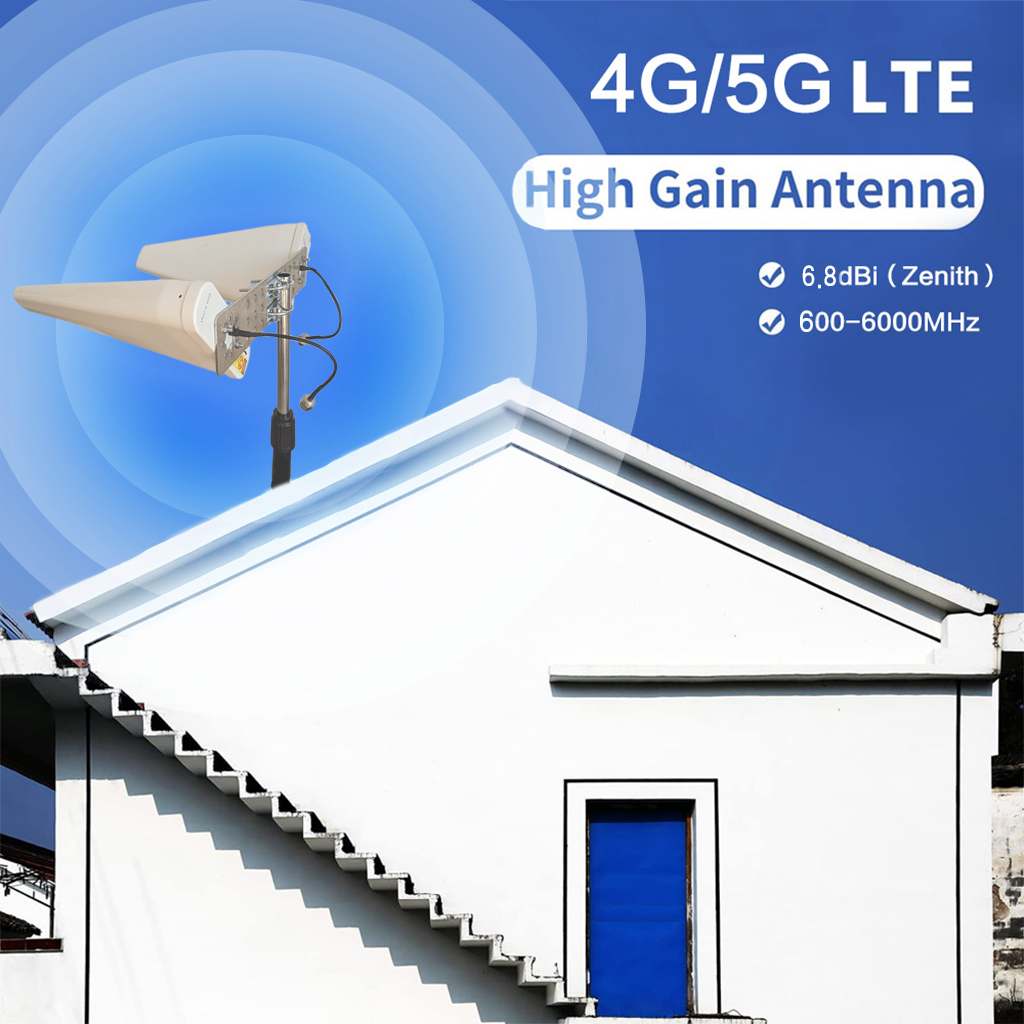

Outdoor wall/roof mount antenna for 5G/GSM/3G/4G signal boosting (medium gain of 7.5 dBi)
Suitable for all the Australian telcos' bands: Telstra, Optus and Vodafone

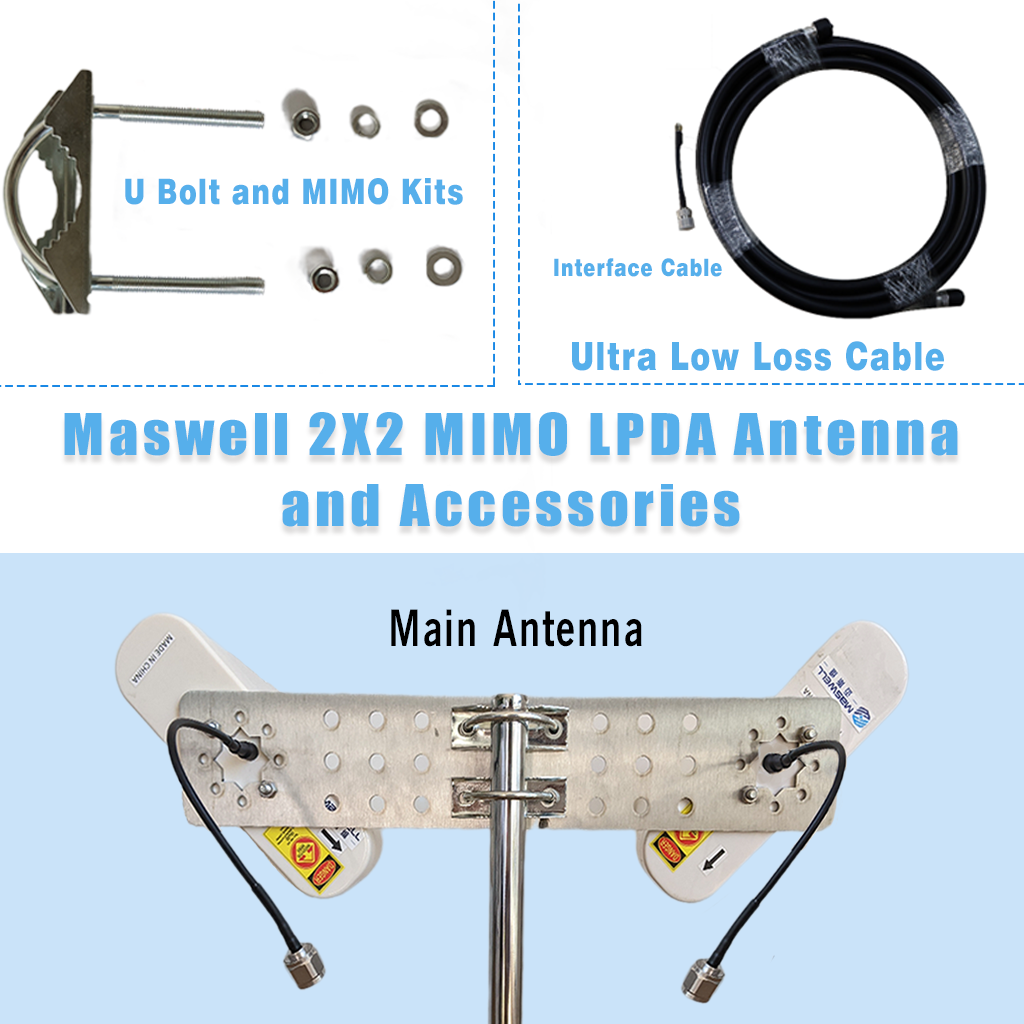

Packages Contain:
Box 1*2: LMDA antenna
Box 2*2: 1 piece of 4 meter ultra low loss cable plus 1 piece of interface cable
Bag 1*1: U bolt for both antennas installation
GTIN: 796167906605
Estimated Delivery Time Frame:15
