Brand Name: Maswell
RF Outlet is Australian selling channel for Maswell antennas.

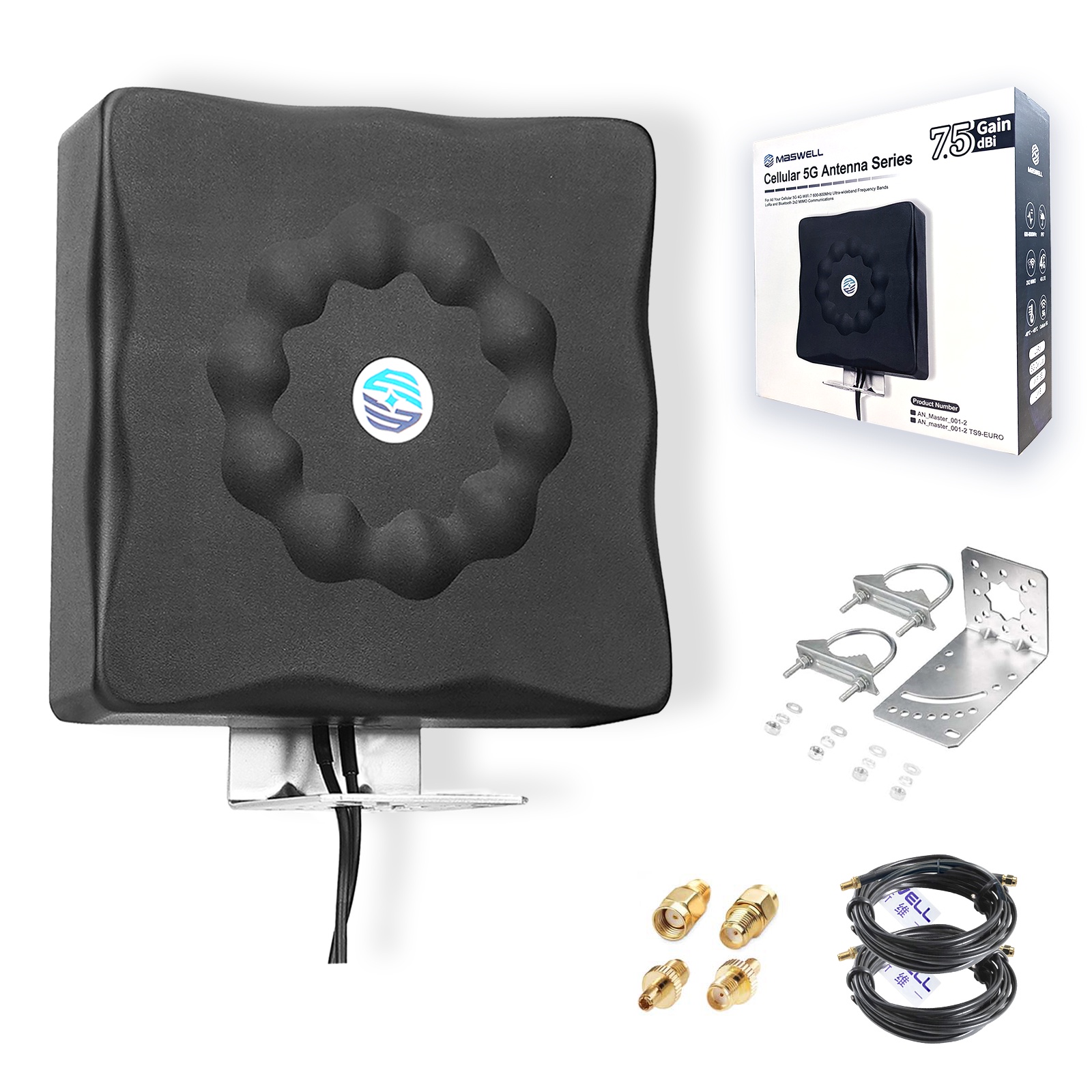

600MHz-8000MHz Ultra Wideband MIMO panel antenna for cellular 5G 4G and WiFi 6 applications with two leads
ITEM ID:AN_Master_001-2
High quality ASA antenna radome UV Stabilized
7/24 Operation Capability
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
 Vodafone: ALL 5G 4G LTE 3G Supported
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
Applications:

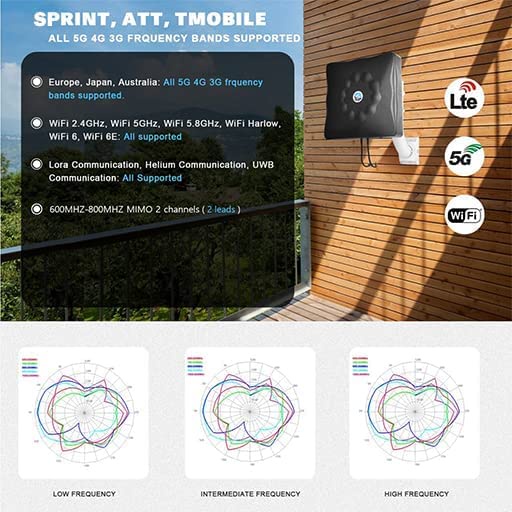

5G bands: All the bands from the globe (including Australia) are supported:600MHz,3500MHz, 4800MHz etc.
4G/3G/GSM bands: All the bands from the globe (including Australia) are supported.
WiFi: All the wifi bands are supported: 2400MHz, 5800MHz and 6000MHz (wifi 6.0)
No matter what protocol you are using, this antenna will be suitable for your wireless applications
Repeater station system
Long distance telecommunication

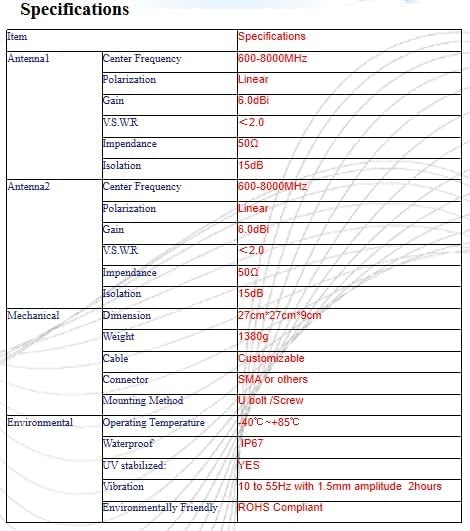

Electric specifications:
Frequency 600-8000MHz very wideband
Band Width 7400 MHz
Gain up to 7.5 dBi
V.S.W.R ≤2
Input Impendence 50 ohmÂ
Polarization: linear horizontal or vertical
Maximum power: 100W
Lightning protection: DC ground
Mechanical specifications:

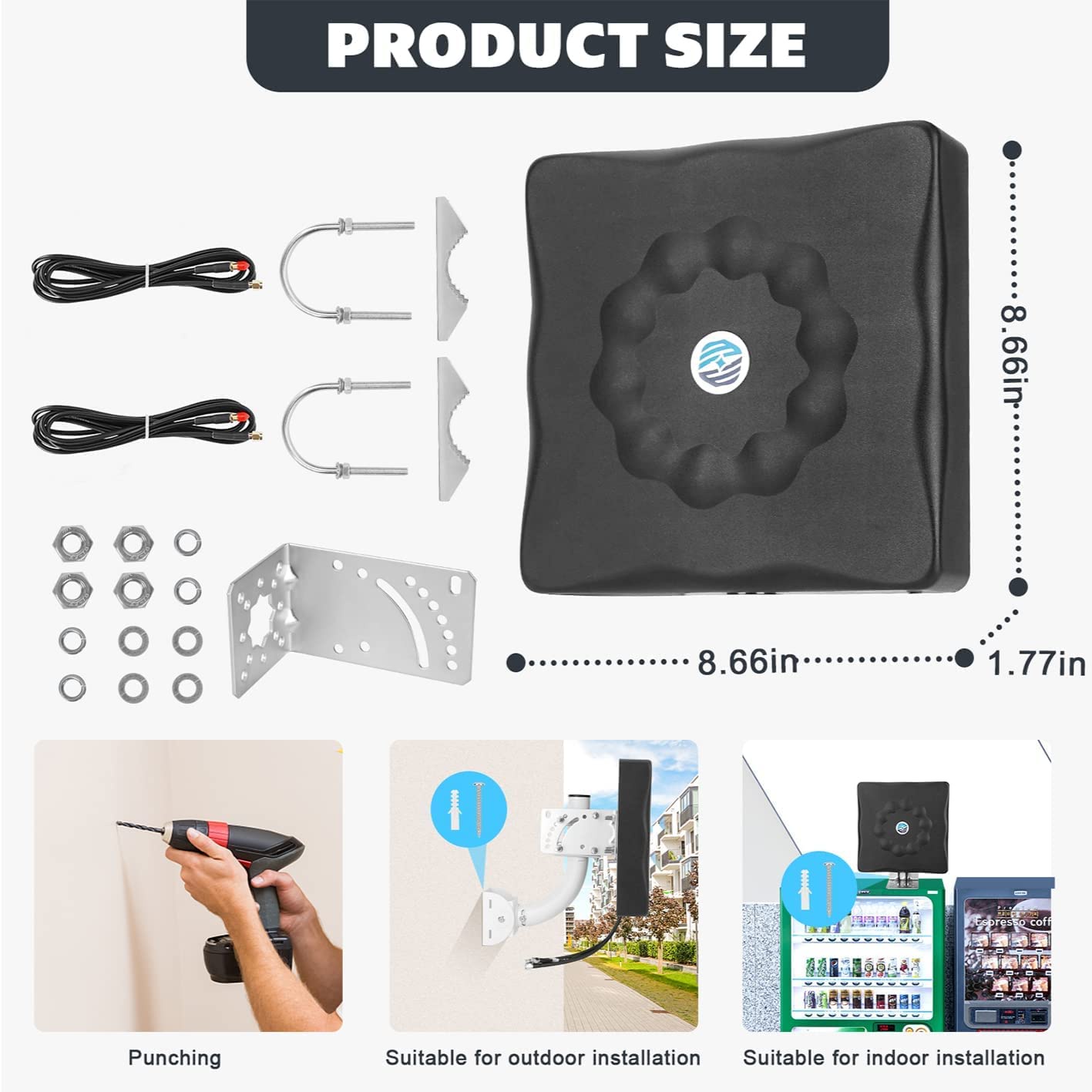

Dimensions: 22cm*22cm*4.5cm
Cable length: 2 m
Antenna weight: 1.4 kg
Working Temp -40 Degrees Celsius~+85 Degrees Celsius

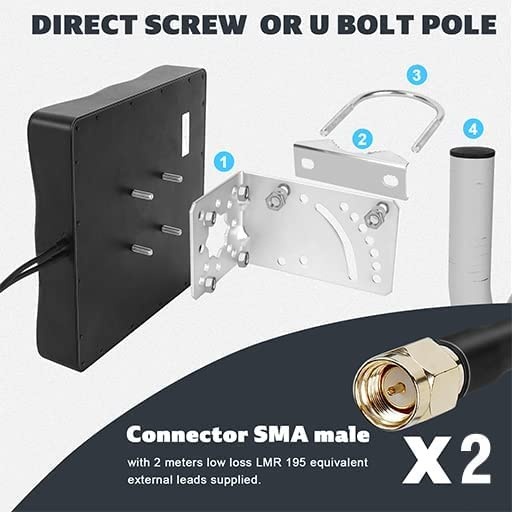

Connector type: SMA male for both leads
UV stabilized: Yes
Waterproof Grade: IP 67
EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019
China IP 67 Standard PASSED: GB/T4208-2017

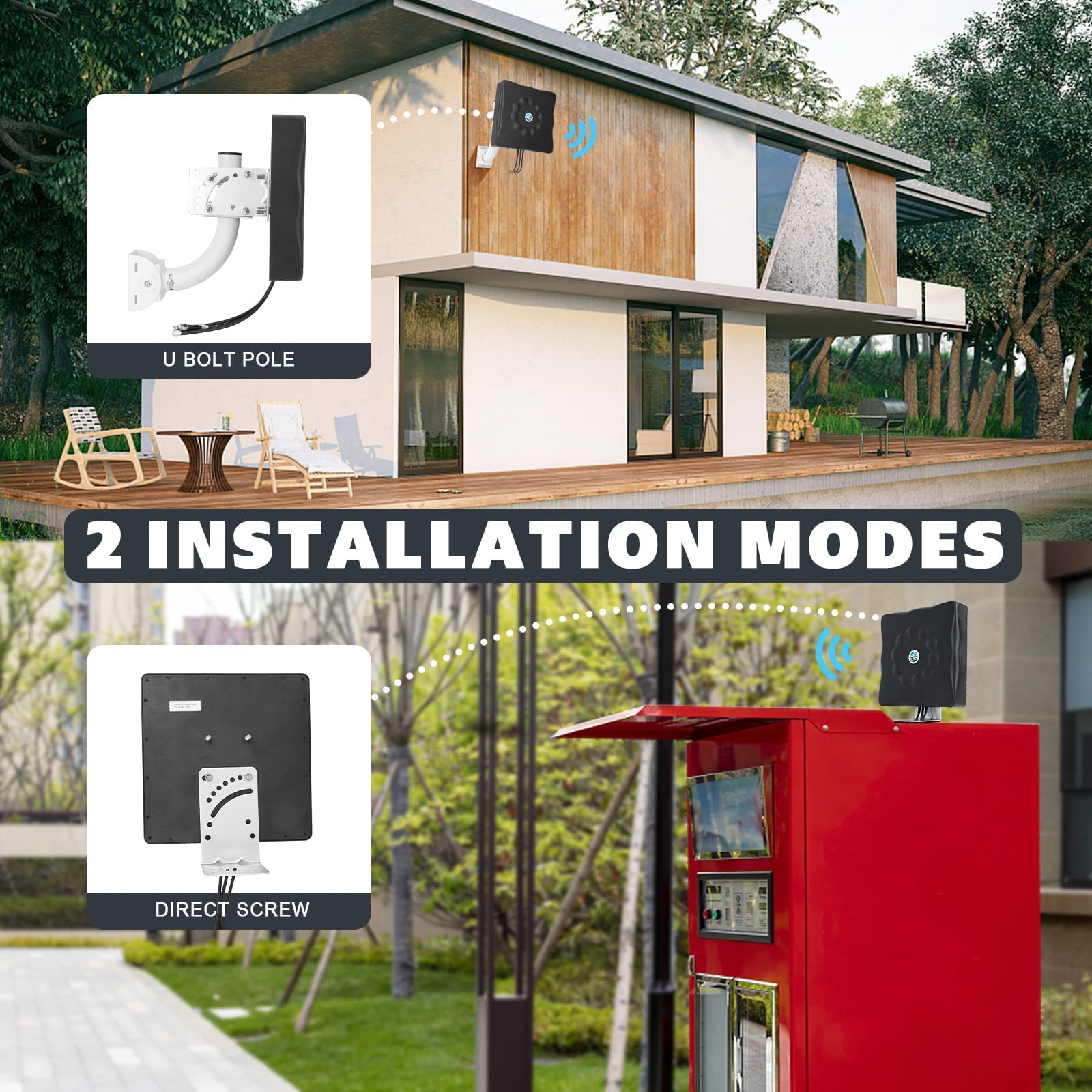

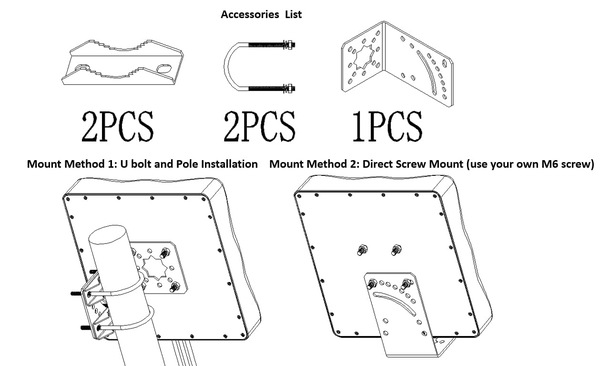

Mounting type:U bolt or Screw

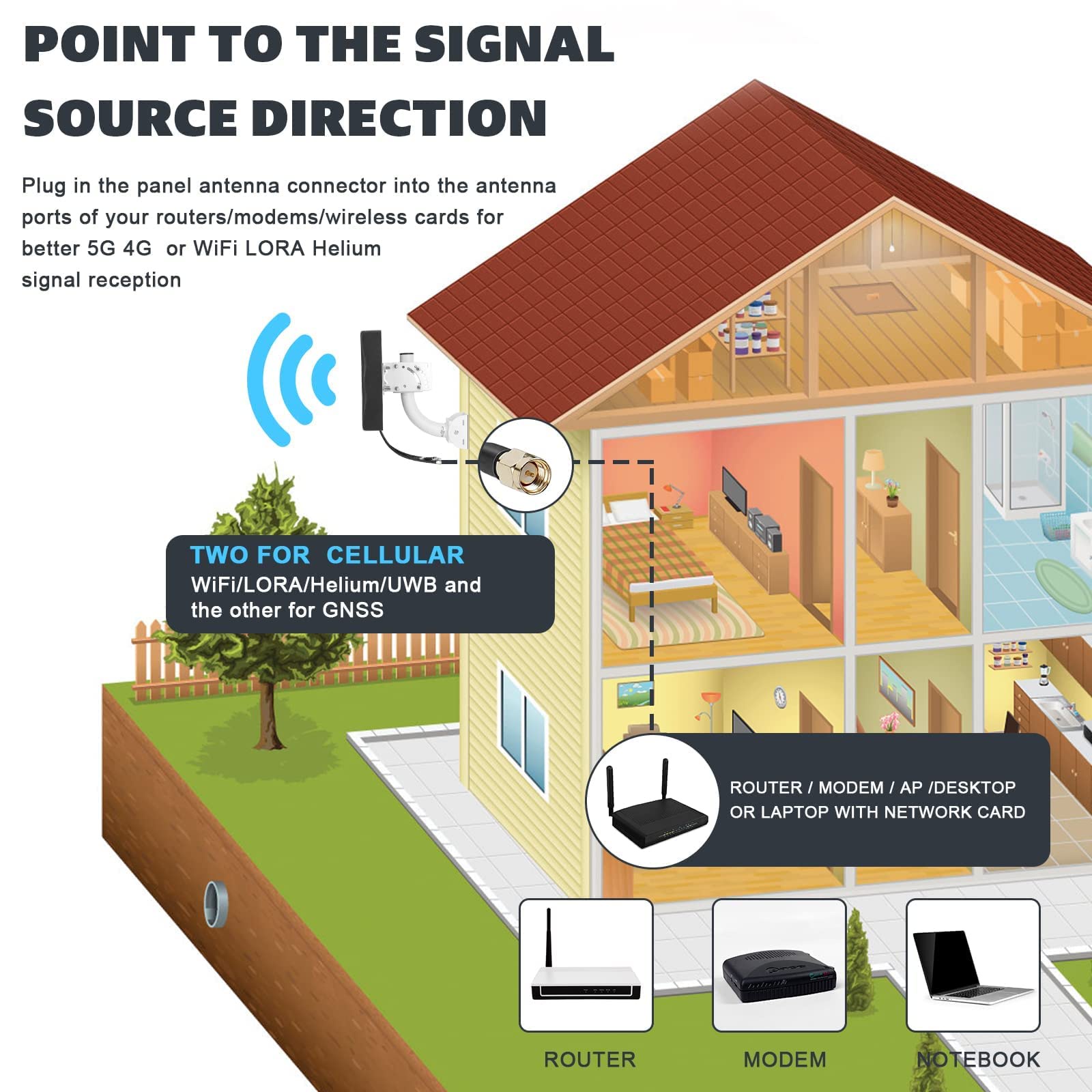

Outdoor wall/roof mount antenna for 5G/GSM/3G/4G signal boosting

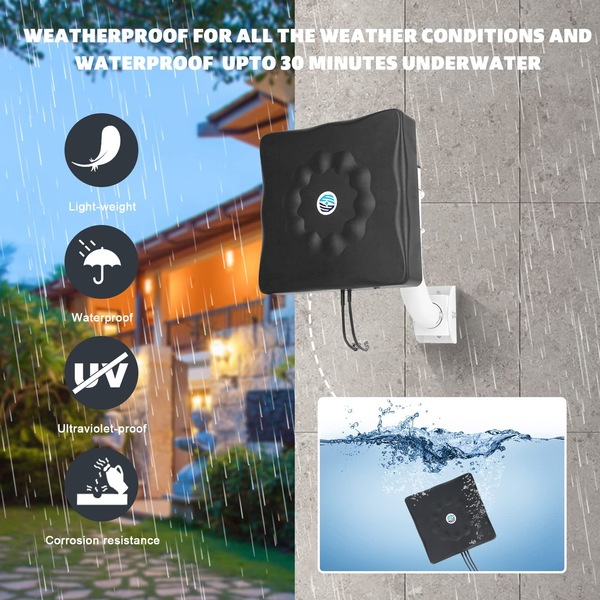

UV stabilized ASA radome plus IP 67 grade water proof (up to 30 minutes underwater)
Suitable for all the Australian telcos' bands: Telstra, Optus and Vodafone
Each Leads suitable for 5G 4G 3G and WiFi applications.
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
GTIN: 796167907145
