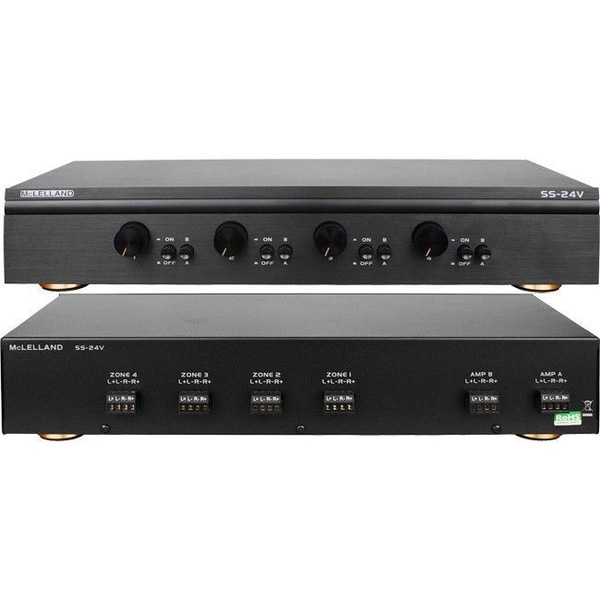

Mclelland 4-Way Premium Speaker Selector Dual Amplifier Sources Inputs 150W RMS

The SSV series Speaker Selectors are highly efficient dual-source speaker selectors that control pairs of speakers. The front panel provide a separate volume control for each speaker pair, allowing you to adjust the volume in each room from one convenient location. With two amplifier inputs, the SSV Series Speaker Selectors allow you to choose either program in each room. Each zone also has an on/off switch, which allows you to keep the volume control at a set level while turning the speakers on or off. The SSV series Speaker Selectors use high-quality impedance matching autoformers to maintain a safe operating load at the amplifier while distributing maximum power throughout your system. Designed for use with either 4 ohm or 8 ohm speakers, the SSV series products are equipped with internal jumpers to select the degree of impedance matching based on the impedance of your speakers and your amplifier's impedance requirements.

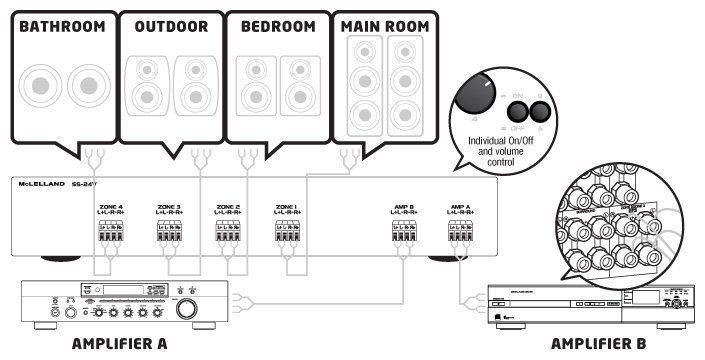

The independent A/B source enables the selection of two different amplifiers to any room in any combination simultaneously, all at varying volume levels. Ideal for both home and commercial installations.

Features

Dual amplifier sources inputs
4 Zone outputs with separate on/off switch and source switch
Separate rotary volume control for each output
No external power supply required!
A/B source selection for each room independently to choose between two source amplifiers
Spring terminals for convenient speaker cable termination - accepts up to 12AWG cable
Full transformer based circuit for impedance matching
Full metal casing - extra heavy duty construction
Specifications
Continuous (RMS):    150 watts per channel
Average Power:    180 watts per channel
Peak Power:    200 watts per channel
Volume Control:    42 dB attenuation/ 12 positions
Impedance matching:    Autoformers
Spring terminals:    Accept up to 12 gauge wire
Dimensions:    432 mm x 76mm x 159 mm
Weight:    4.05 kg
