MCLELLAND 120W DSP Class D Low Pass Filter Switch Subwoofer Power Amplifier

The PLA2FX power amplifier is designed to provide powerful output to speakers used in stereo sound system, 2.1 home theaters, gaming media system and some other listening applications. With Class-D output circuitry, the switching mode power supply offers high efficiency and excellent performance. PLA2FX can be used as two channels, 2.1 channels or bridge as one channel amplifier.
With the LPF switch, it could also be used as a subwoofer amplifier. Built-in DSP (Digital Signal processing) microprocessor to adjust the audio input signal digitally for any kind of speaker and music. Therefore, with its compact size and extremely flexible, the PLA2FX can be used in many different applications.

• Output power: 120W x 2 (@4 / 8 Ohm) 240W(Bridged)
• Class D circuit design in a compact size

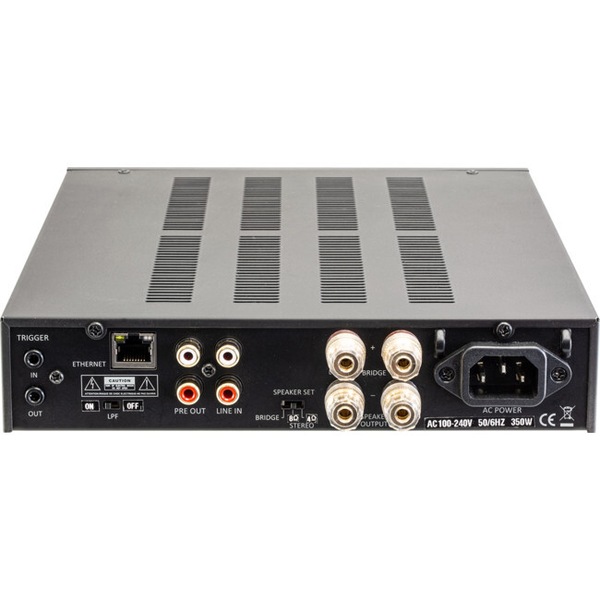

• Built-in DSP with Ethernet interface
• RCA analog audio inputs
• Audio RCA PRE-OUT connector to additional amplifier
• Low Pass Filter (LPF) switch sets the amplifier as a subwoofer amplifier.
• Speaker output binding post connectors
• Selection for Power-Up mode (ON/AUTO/TRIGGER)
• TRIGGER IN/OUT could be an external remote ON/OFF
• Natural cooling without Fan
• Activated standby mode active after 15 minutes of no signal detected

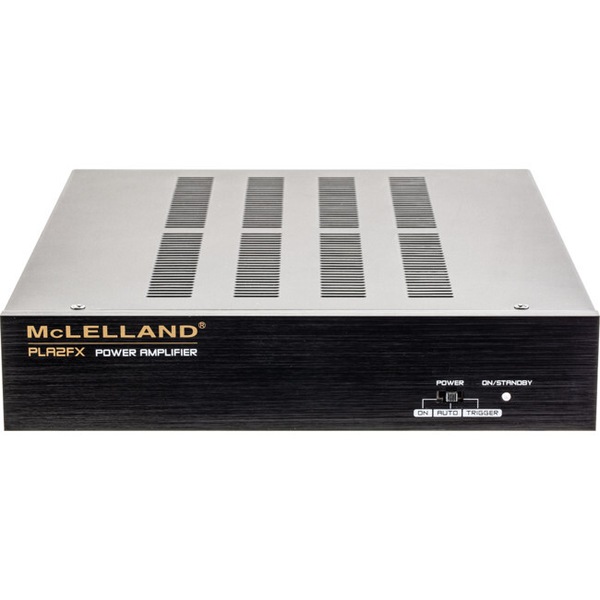

• Red LED (Front Panel) to indicate Standby mode is active
• Protection: Short circuit, Overheating, Overvoltage, Overcurrent

• Stereo Output : 120W x 2, 8Ω 120W x 2, 4Ω
• Bridged Output : 240W, 8Ω
• Frequency Response : 20 Hz ~ 20 kHz, +/- 2 dB @ 4Ω Load
• Low Pass Filter: 150 Hz
• Signal to Noise : >90dB A WTD
• THD: < 0.05%
• Input Sensitivity : 500m V (-4 dBu)
• Gain Value : 36 dB @ 8Ω
• Input Impedance : >10k, unbalanced
• Maximum Input Level : 2.5V (+10 dBu)
• Trigger In/Out: DC 12V
• Input Connectors: RCA jacks
• Trigger Connectors: 3.5 mm Jacks
• Output Connectors: Binding Posts, RCA (PRE-OUT)
• Power Requirements : 100 - 240 VAC, 50 - 60 Hz, 350W
• Standby Power Consumption : <3.0W
• Dimensions : 214mm(W) x 249.8mm(D) x 44mm(H)
• Net Weight: 1.9 Kg
