KINGRAY MDA15V 15Db VHF Low Noise Masthead Amplifier - Very Low Noise Figure <2.5Db 15DB

Image 1
$62

Collect 62 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview

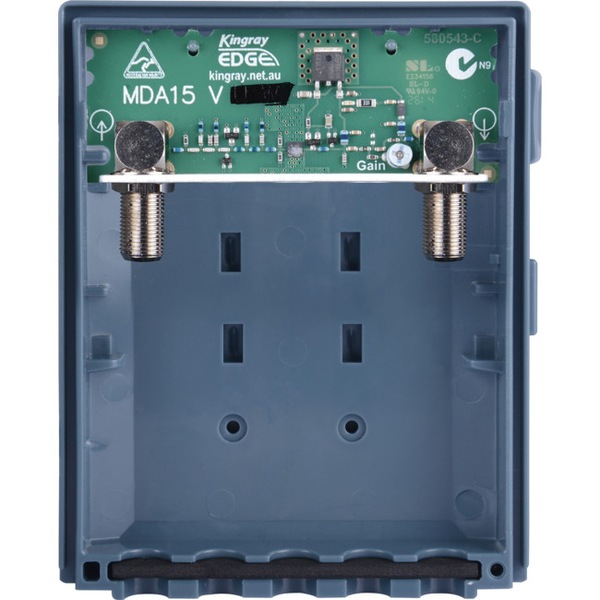

MDA15V 15DB VHF LOW NOISE MASTHEAD AMPLIFIER - KINGRAY
Kingray Introduces the MDA15 Low Noise Masthead Distribution Amplifier Range

Kingray are proud to announce the release of the MDA15 range of low noise masthead amplifiers. The characteristics of the IC selected provide a very low noise figure and an output figure comparable to
many distribution amplifiers, hence the name Masthead Distribution Amplifier (MDA). The MDA15 range consists of three models; MDA15V(VHF only), MDA15U (UHF only), and MDA15W (Wideband).
The range is designed to be powered by a DC power supply, ACpower supplies are not suitable. Whether the amplifier is used as a Masthead or Distribution Amplifier, the low noise figure, capacity for multiple channels with low distortion and a high output provides a solution for all installations and is proven especially effective in problem reception areas.

Specifications


Color: rgb(0, 0, 0); font-family: Arial, Helvetica, sans-serif; font-style: normal; font-variant: normal; font-weight: normal; letter-spacing: normal; line-height: 16.2000007629395px; orphans: auto; text-align: left; text-indent: 0px; text-transform: none; white-space: normal; widows: 1; word-spacing: 0px; -webkit-text-stroke-width: 0px; background-
Color: rgb(255, 255, 255);""> Frequency 174 - 230mhz Gain 15db Gain control 10db Noise Figure <2.5db Output Figure 113db @ -60dbimr Din 45004 B Return Loss >10db Supply Voltage 12-14V DC Only Filters 174mhz HP, 230Mhz LP Inputs 1


_


Weight: 0.195
