MSI B760M PROJECT ZERO Intel B760 Micro-ATX DDR5 Motherboard

Image 1
Image 2
Image 3
Limited Stock
$394.83

Collect 394 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

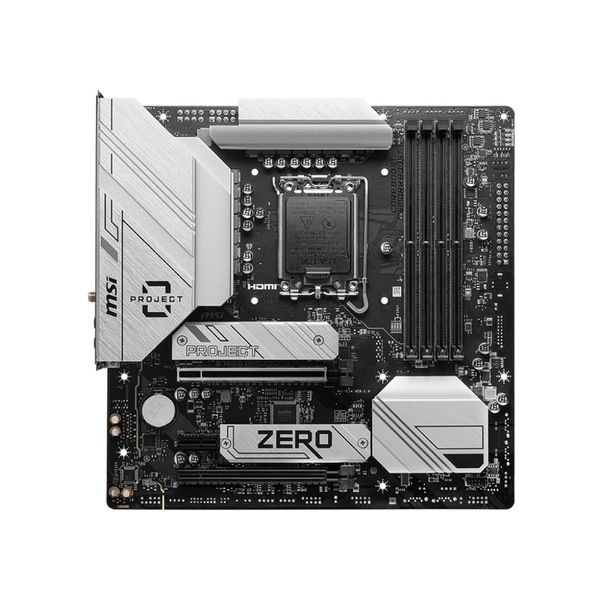

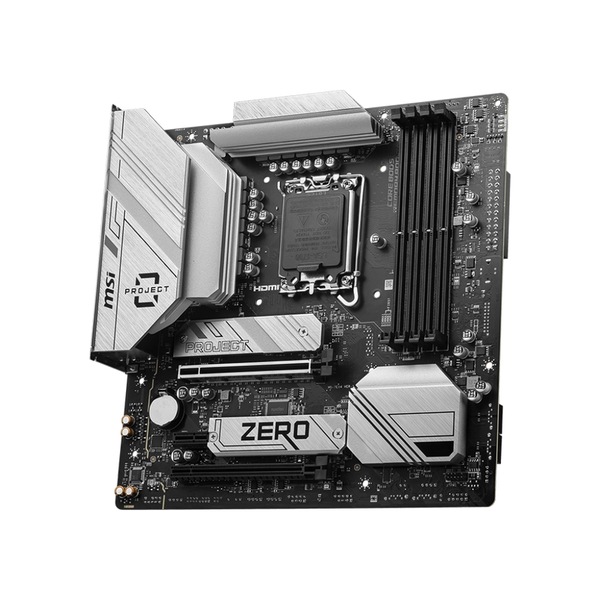

MSI B760M PROJECT ZERO

Features:
  • Support Intel® Coreâ„¢ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost: Reward your ears with studio grade sound
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Specifications:
  • Chipset :INTEL B760
  • CPU :Support Intel® Coreâ„¢ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA1700
  • Memory :4x DDR5, Maximum Memory Capacity 256GB
    Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    1DPC 1R Max speed up to 7800+ MHz
    1DPC 2R Max speed up to 6600+ MHz
    2DPC 1R Max speed up to 6400+ MHz
    2DPC 2R Max speed up to 5600+ MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile
  • Onboard Graphics :1x HDMIâ„¢
    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • Slot :2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • Storage :2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
  • RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB :4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Front)
    3x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
  • LAN :Realtek® 2.5Gbps LAN
  • WIRELESS LAN & BLUETOOTH :Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.3, FIPS, FISMA
    * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
  • Audio :Realtek® ALC897 Codec
    7.1-Channel High Performance Audio
    Supports S/PDIF output
  • Internal IO :1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    4x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    2x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
  • LED FEATURE :4x EZ Debug LED

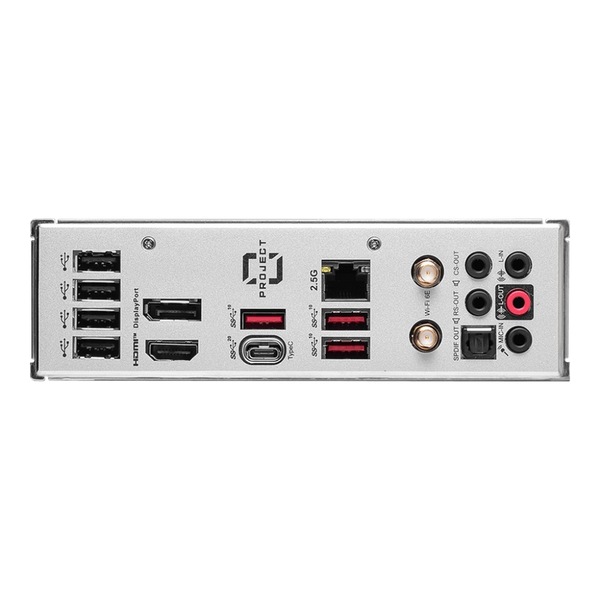

  • BACK PANEL PORTS :
    1. USB 2.0
    2. DisplayPort 1.4
    3. USB 3.2 Gen 2 10Gbps Type-A
    4. 2.5G LAN Port
    5. Wi-Fi / Bluetooth Antenna
    6. HD Audio Connectors
    7. HDMIâ„¢ 2.1 Port
    8. USB 3.2 Gen 2x2 20Gbps Type-C
    9. Optical S/PDIF OUT
  • OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB Info :mATX
    243.84mmx243.84mm

SKU: MB-MSI-B760MPRO
