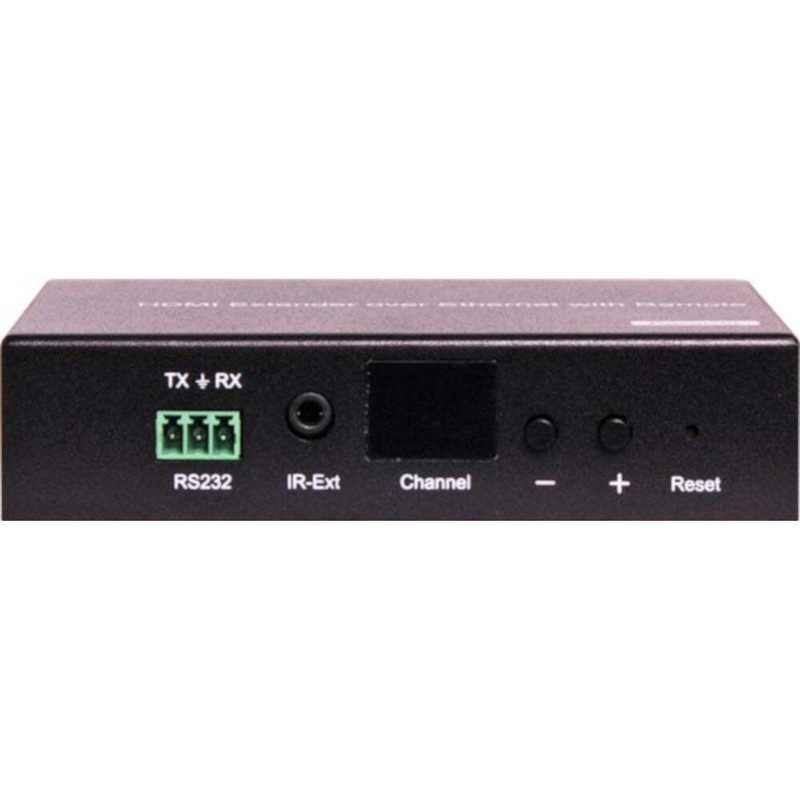

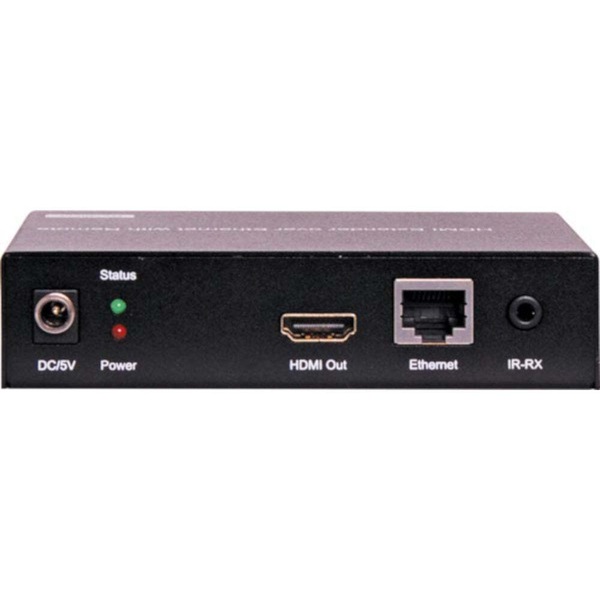

NAD HDMI Over IP UTP Balun Receiver With POE IR And RS232

Image 1
Image 2
$270.99

Collect 270 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

Converts a HDMI signal into a H.264 encoded stream (maximum 1080p @ 60Hz) and sends it over Cat5e/6 cable using internet protocol (IP) over a distance of 120 metres. The advantage of this method is a reduced network load without sacrificing signal quality. It also allows for data to be streamed over Wi-Fi.
These transmitters and receivers are very flexible, allowing for various system configurations including one to one, one to many, many to one and many to many modes. Up to 64 transmitters may be used and a total maximum of 256 transmitters & receivers per system. Each device in the system can be individually addressed with support for IGMP and DHCP automatic addressing.
Importantly, PoE (802.3af) has also been included, allowing for the transmitter and receiver to be powered directly from a PoE equipped switch, eliminating the need for individual plugpacks. It also allows an infra-red signal path back to the source equipment for remote control at the receiver location.
These units are ideally suited for multi source, multi screen environments such as clubs, pubs, convention centres, venues etc.
HDCP compliant.
Dimensions: 119 x 79.5 x 28mm
Transmitters sold separately
Features

  • 1080p @ 60Hz over 120m Cat5e/6
  • H.264 compression for reduced network load
  • Wi-Fi streaming compatible
  • Individually addressable RX & TX
  • Powered by PoE 802.3af
  • Wide-band IR pass 38KHz - 56KHz
  • RS-232 pass through
  • HDMI loop output
  • LPCM audio support
  • Up to 256 RX/TX units per system
  • Addressable groups (up to 64)
  • Supports DHCP
  • Works with standard ethernet an PoE switches
  • Access network streams via VLC on PC/tablet etc.
  • Includes power supply
  • 15Mbps streaming

Applications
Specifications

  • Performance
  • Protocol: H.264 encoder over TCP/IP
  • Video Format: 480i/480p/576i/576p/720o/1080p@60Hz
  • Audio Format: LPCM, Audio sampling rate 48kHz
  • Bit Rate: 15Mbps
  • HDCP: Yes
  • IR Frequency: 38-56 kHz
  • RS232 Baud Rate: Default 2400bps-8 options
  • IR: supports 38kHz
  • IP Setting& Group ID Setting
  • Default IP: TX: 192.168.1.11; RX: 192.168.1.12
  • Group ID: Group 00-Group 63
  • Receiver Connections
  • Input: 1x RJ45 input
  • Output: 1x HDMI socket
  • RS232: Phoenix RS232 port
  • General
  • Power Supply: DC 5V 1A
  • Power Consumption: Max 3 watt
  • Dimensions: 119 x 79.5 x 28mm


GTIN: 9321758186220
