Noctua NF-A14 PWM Chromax Black Swap 140mm 4-Pin PWM

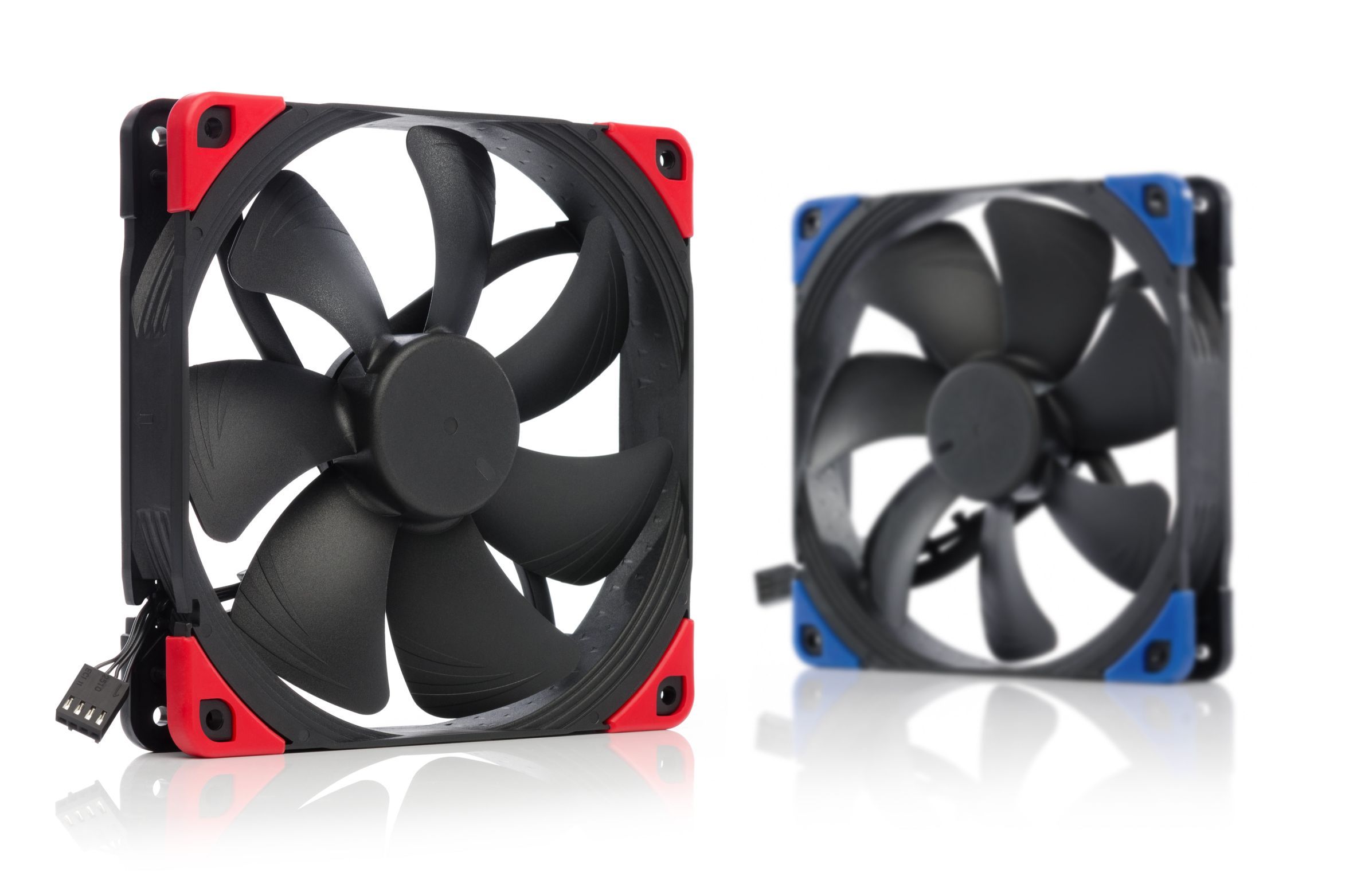

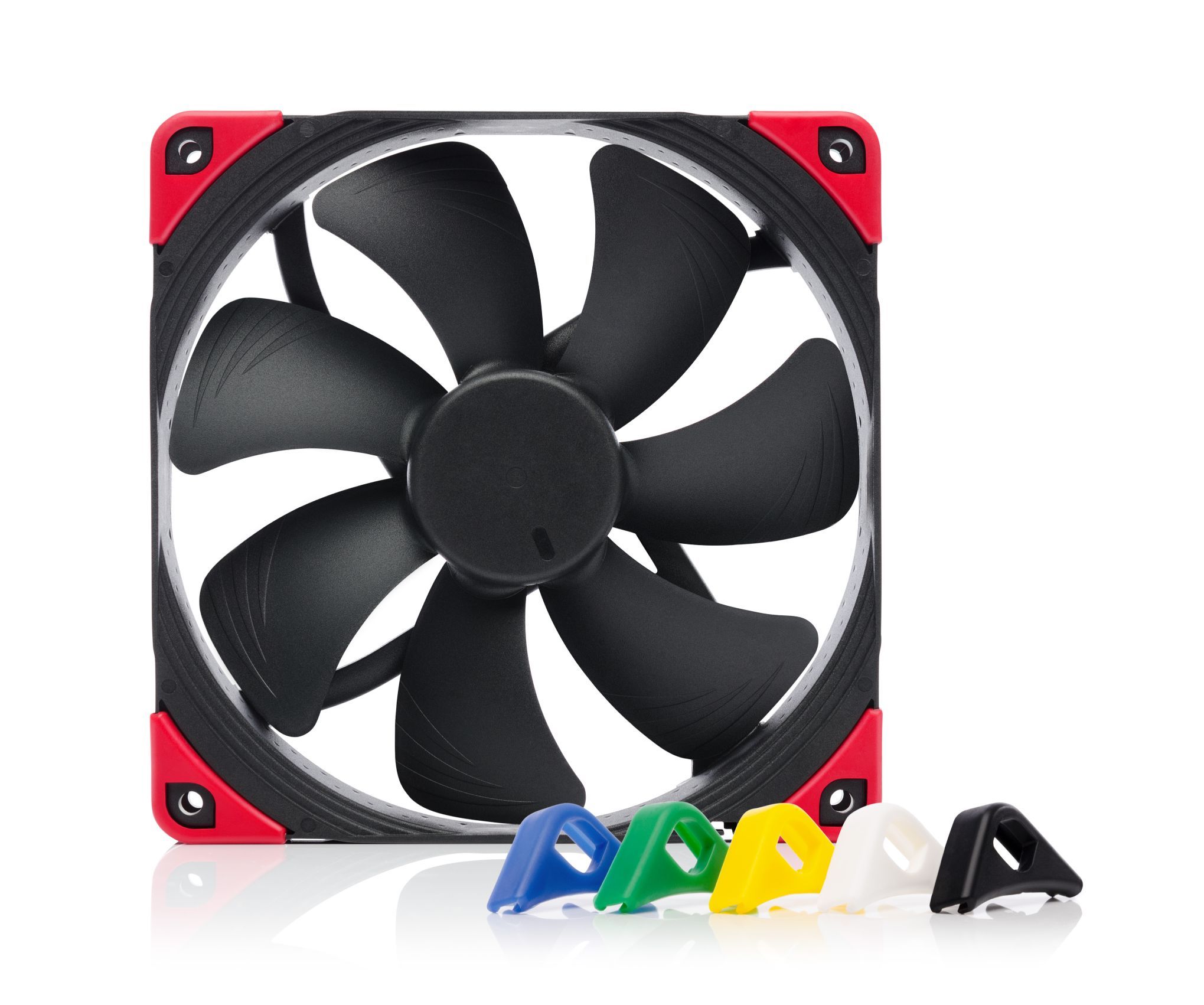

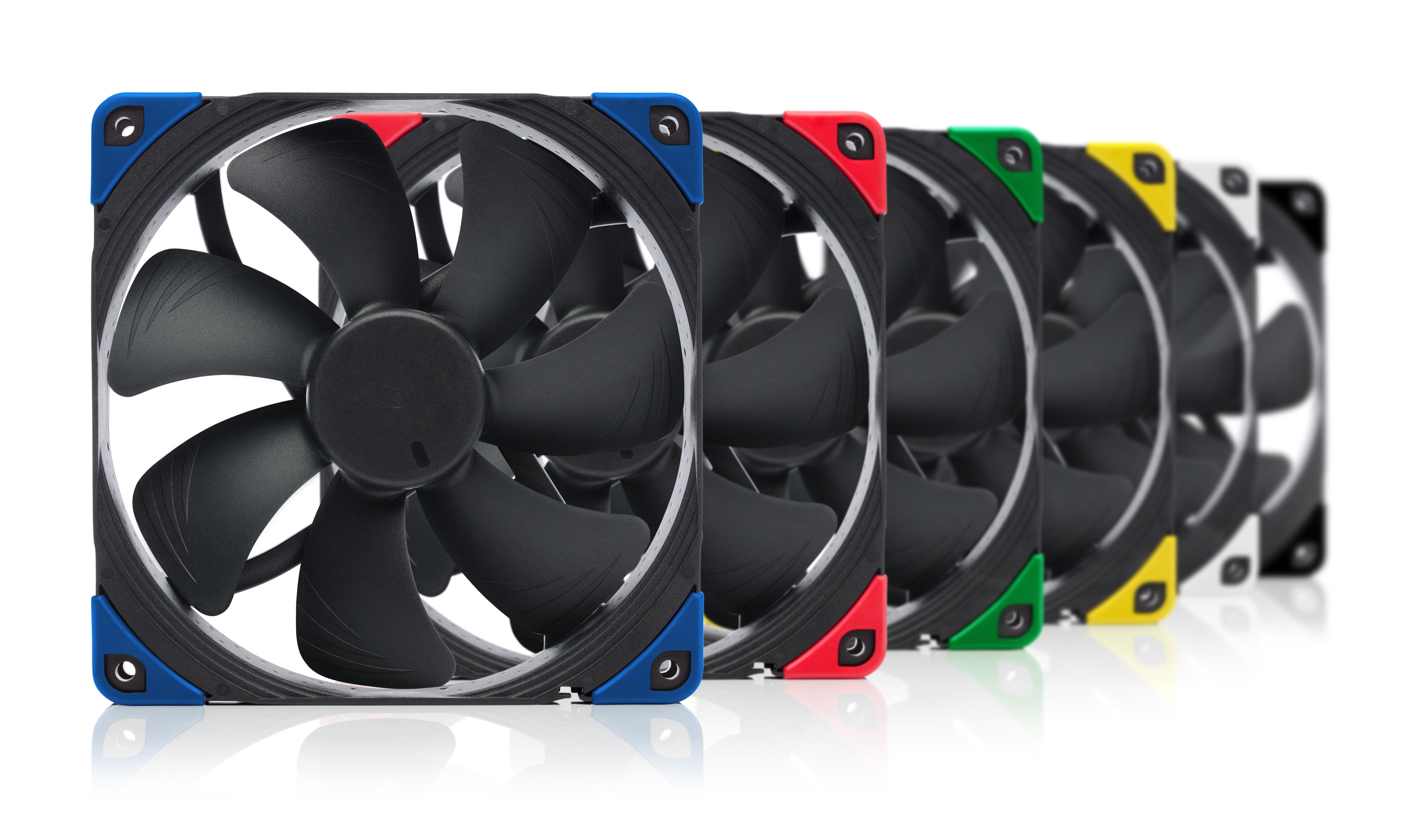

Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-A14 is one of Noctuas most renowned and popular 140mm fans. Its square frame makes it ideal for use on water cooling radiators or as a case fan. The chromax.black.swap edition combines the NF-A14s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables, additional anti-vibration pads and anti-vibration mounts are available separately. Topped off with Noctuas trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturers warranty, the NF-A14 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

FAN Specification

Size 140x140x25 mm

Mounting hole spacing 124,5x124,5 mm

Connector & pin-configuration 4-pin PWM

Cable length 1cm + 30cm NA-EC1 extension cable

Bearing SSO2

Blade geometry A-Series with Flow Acceleration Channels

Frame technology AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%) 1500 RPM

Min. rotational speed (PWM, +/-20%) 300 RPM

Airflow 140,2 m³/h

Acoustical noise 24,6 dB(A)

Static pressure 2,08 mm H?O

Max. input power 1,56 W

Max. input current 0,13 A

Operating voltage 12 V

MTTF > 150.000 h

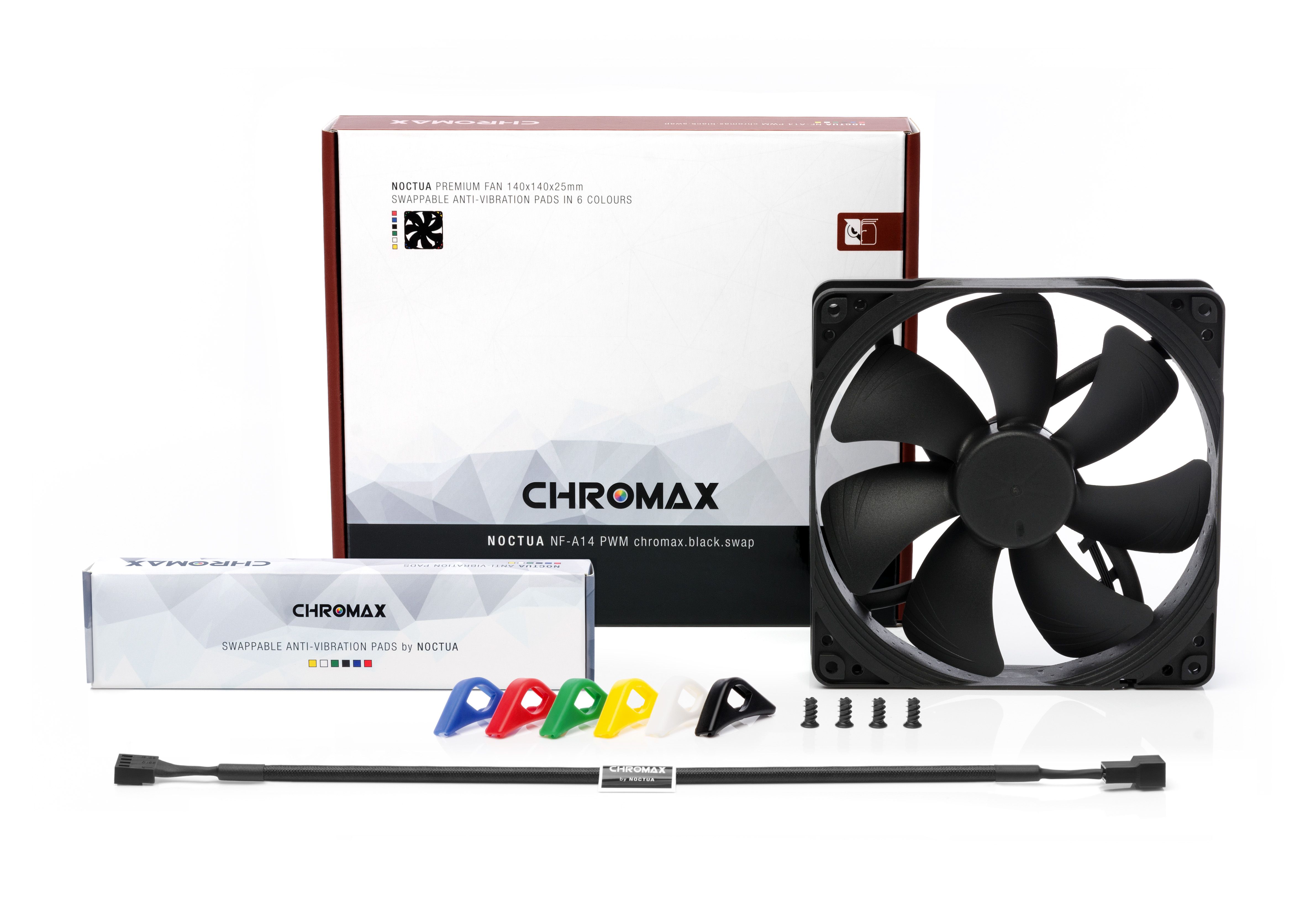

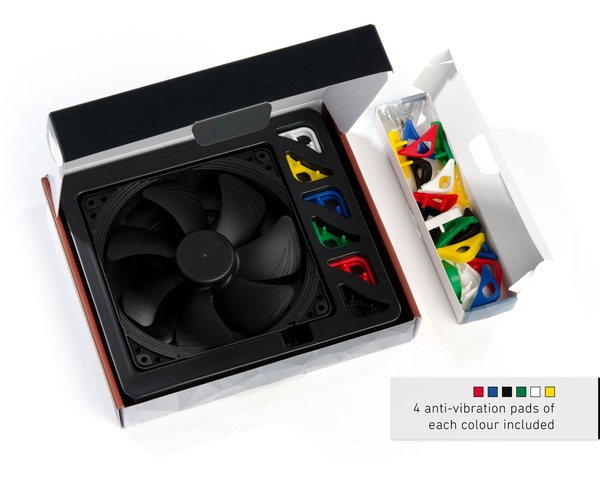

Scope of delivery

4x NA-AVP1 chromax.black anti-vibration pads

4x NA-AVP1 chromax.blue anti-vibration pads

4x NA-AVP1 chromax.green anti-vibration pads

4x NA-AVP1 chromax.red anti-vibration pads

4x NA-AVP1 chromax.white anti-vibration pads

4x NA-AVP1 chromax.yellow anti-vibration pads

4x fan screws

Warranty 6 years
