NOYAFA NF810 Multifunction Testing Mode Cable Detector or Tracer LAN Tester Blue

Image 1
Image 2
Image 3
Image 4
Image 5
$57.95

Collect 57 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

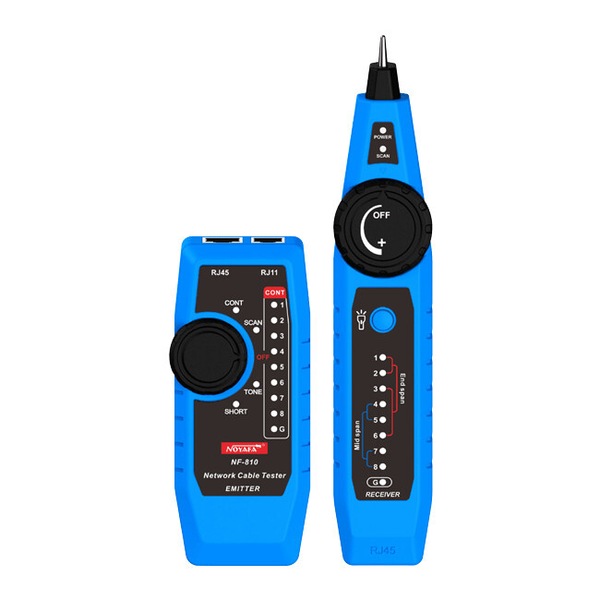

Multi-Function Network Tester, NF810

RJ11 Tracing / RJ45 Tracing / Electronic wire Tracing / PoE Tracing / Wiremap/ Against 60V / PoE Testing / TEL Testing / Lighting / Earphone.

Features
  • Multi-Function Testing Mode

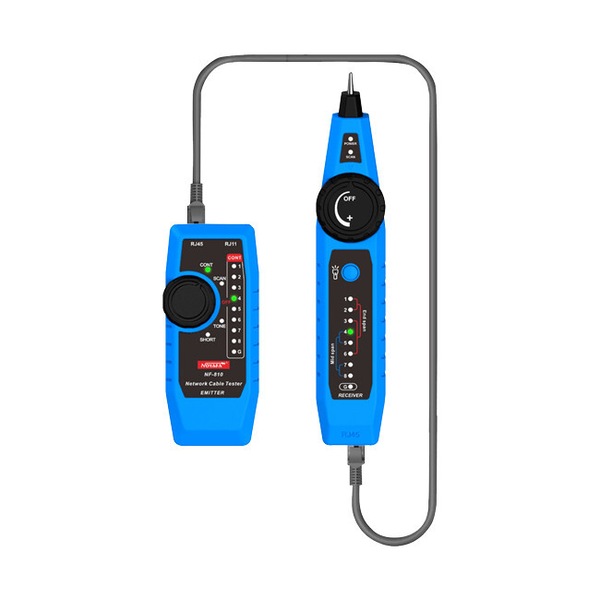

  • Wiremap function   Mainly used to detect the wire sequence, short circuit, open circuit, and cross of the network cable includes the STP cable and displays the test results in the form of wire sequence lights.
  • POE Switch Testing Identify which pins are providing power. when D1 D2 lighting, it means the Pin 1 and Pin2 supply power.

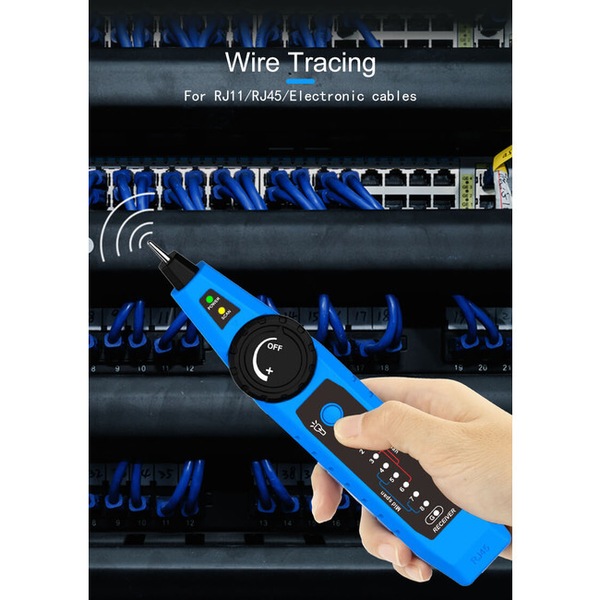

  • Wire Tracing Looking for RJ11/RJ15/Electronic cables through the sound of the receiver and the yellow-green signal indicator, the target line position can be easily located.
  • Telephone Line Status Detection Tests the polarity and on-off of the telephone line and detects the status of the telephone line, such as idle, ringing, and conversation.
  • LED Lighting Easy to work in a dark environment.
  • External Earphone Function Helps you to work well in a noisy environment.
Specifications
Power specification 9V Battery x2 (included)
Applicable network cable CAT5&CAT6/Telephone cable
Interface withstand voltage 60V
Transmitter Wiremap function Wiremap interface RJ45
Wiremap status light YES
Cross circuit,Result 9 line sequence LED green lights
Wire sequence and fault test YES
Wire shielded / unshielded YES
Short circuit prompt YES
Switch to line Switch to line RJ45 main interface + directly connected to the switch
short circuit prompt YES
Applicable cable Network cable, Telephone line
Scanning function scanning interface RJ45,RJ11
Signal transmission format Dual tone pulse
Signal transmission distance ≤1km
Test interface RJ11
Short circuit / channel test YES
Short circuit status indicator YES
Telephone line polarity state test YES
Maximum working current <70mA
  Size 201*45*27 ( mm)
Receiver Scanning Receiving Function YES
Sensitivity adjustment YES
Signal strength reminder YES
Headphone function YES
Tracking working current ≤40mA
POE switch test YES
Wiremap function YES
LED lighting YES
Size 125*28*45.3( mm)
What is in the box?

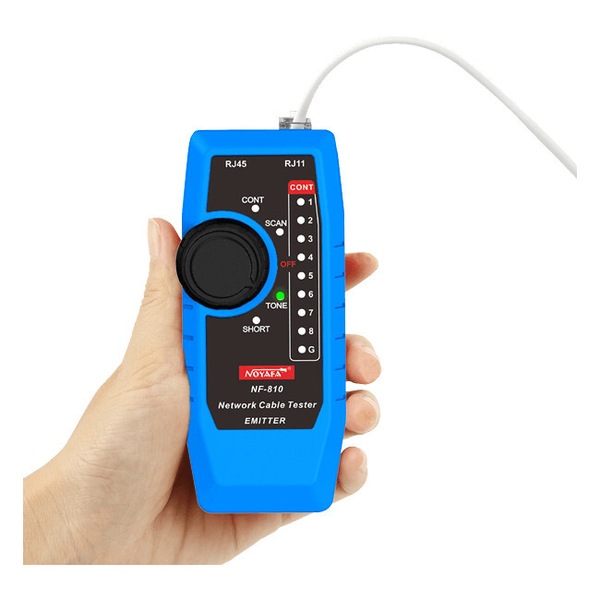

  • NF810 transmitter x1pc
  • NF810 receiver x 1pc
  • Earphone x 1pc
  • Short RJ45 cable x 1pc
  • Short RJ11 cable x 1pc
  • Alligator clip adapter cable x 1pc
  • Pouch x 1pc
  • 9V Battery x 2pcs
  • Manual x 1pc







GTIN: 9328202034212
