Oscilloscope DSO510 Handheld Digital Oscilloscope + Signal Generator 48MS/s 10MHz Compact Digital Portable Oscilloscope Multifunction Signal Generator

Product Description��

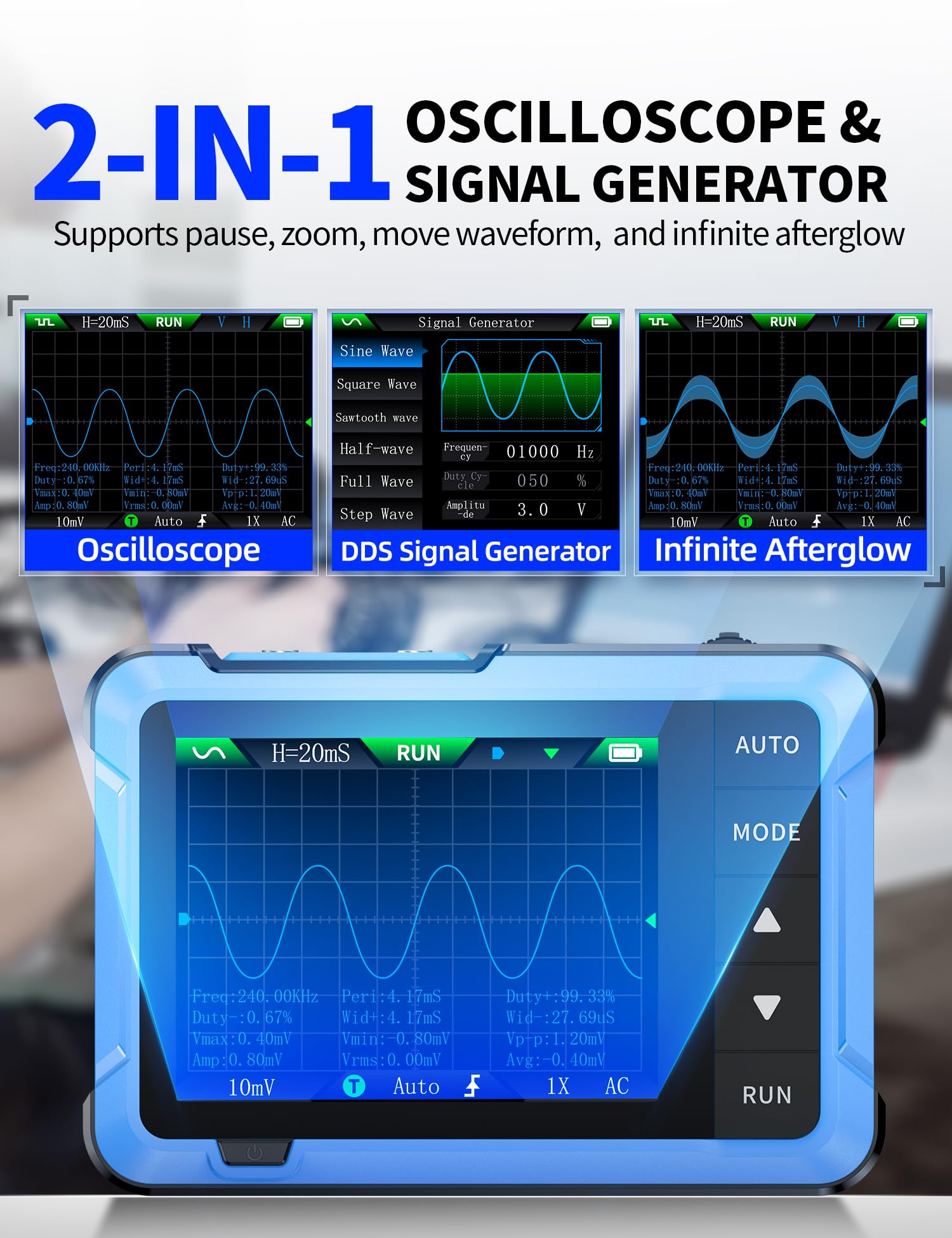

1. 2-in-1 function: the product built-in oscilloscope and signal generator function, the product is compact and cost-effective.
2.HD LCD screen: 2.8-inch high-definition display, resolution 320× 240.
3. Long-lasting battery life: built-in 1000mAH rechargeable lithium battery, equipped with an automatic shutdown function, both to achieve long life, but also to extend battery life.
4. One-key automatic mode: waveforms can be displayed immediately without complex adjustments.
5. Wide range of applications: ideal for advanced maintenance, development and DIY learning

Features:

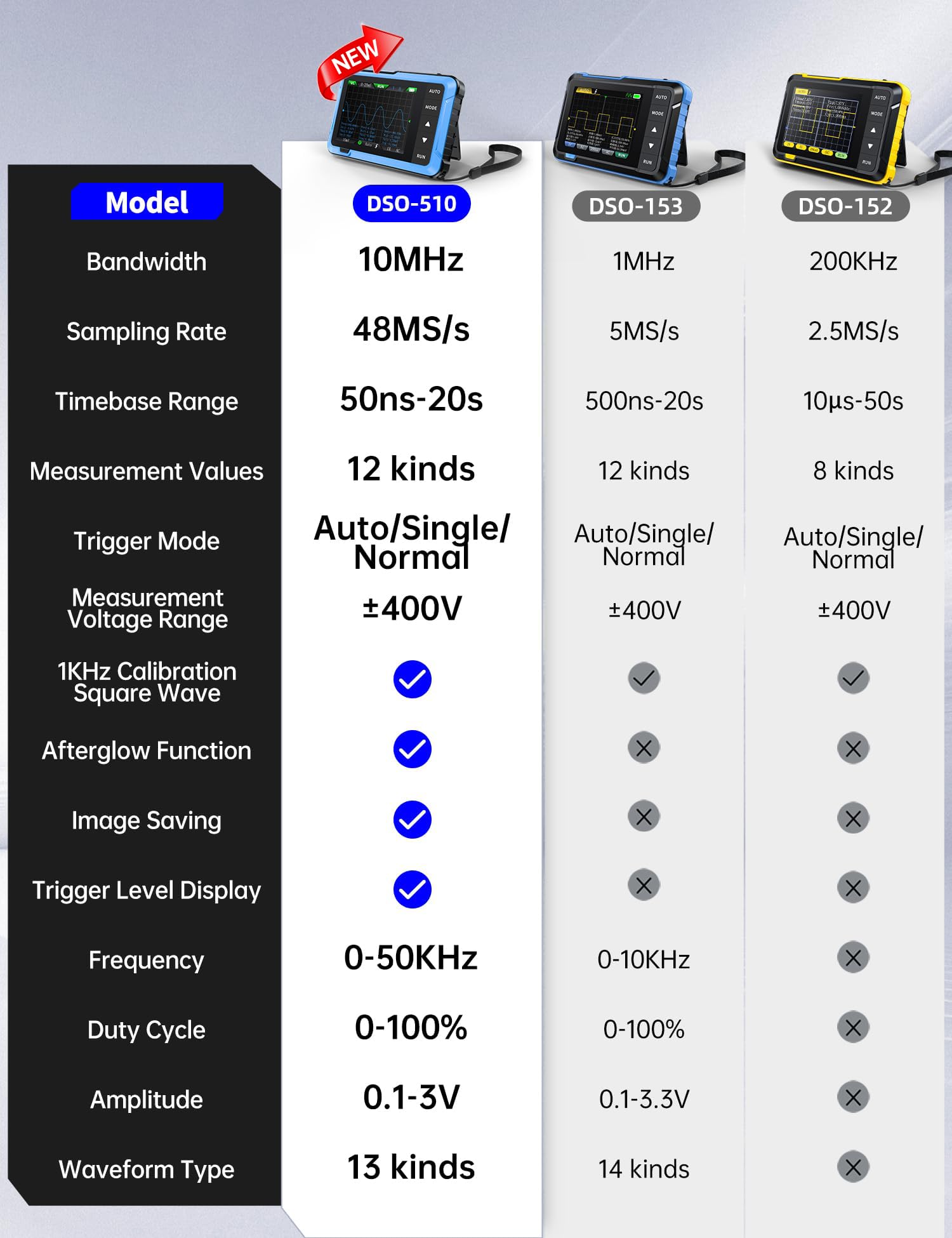

��Upgraded Version�� DSO-510 handheld oscilloscope is upgraded from DSM152 oscilloscope with 10 MHz high bandwidth, 48 MS/s high sampling rate, 50 ns-20 s time base range. It can measure up to 400V

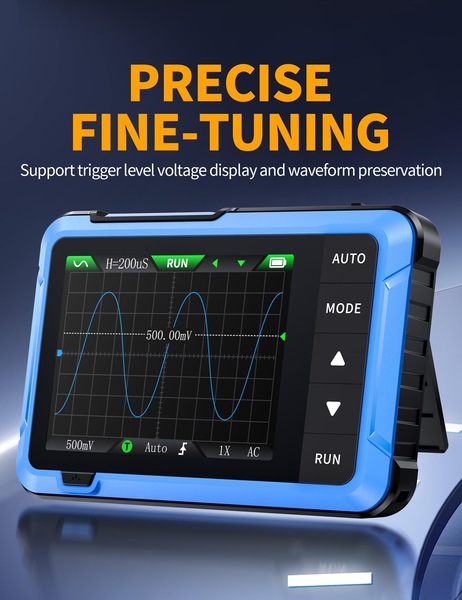

��Accurate Measurement��Digital portable oscilloscope supports display level and infinite afterglow, which can accurately capture signal characteristics. Supports waveform , pause, move and image save and export functions
DDS Signal Generator�� DSO-510 can output 13 kinds of waveforms, and the maximum waveform output frequency can reach 50KHz, which can meet the needs of diversified signal simulation and improve the efficiency of testing and ysis.

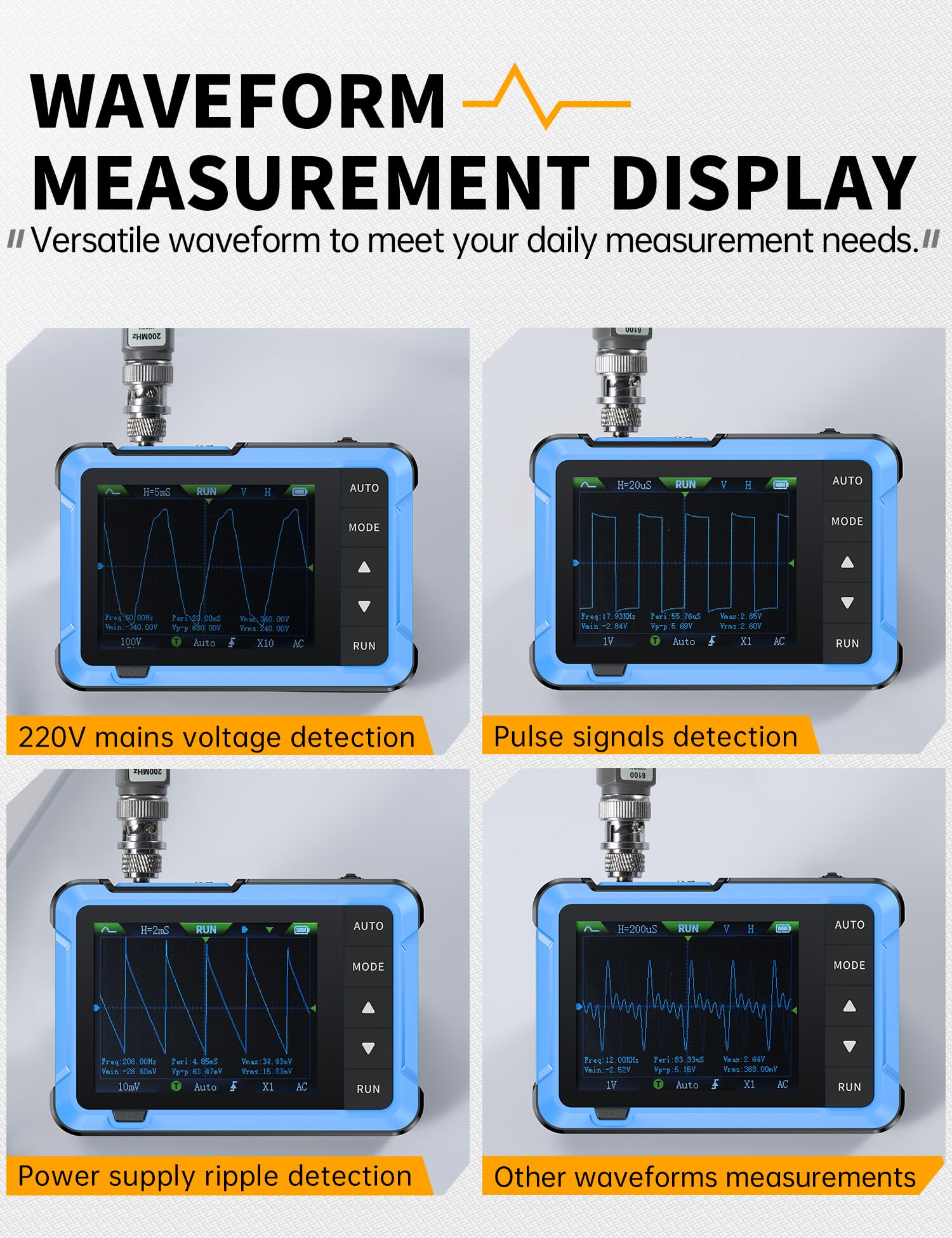

Professional Design��Suitable for periodic ogue signals and non-periodic digital signals.2.8-inch high-definition LCD display with 320*240 resolution, clear and easy to observe. One-key automatic function can automatically optimise the measurement parameters

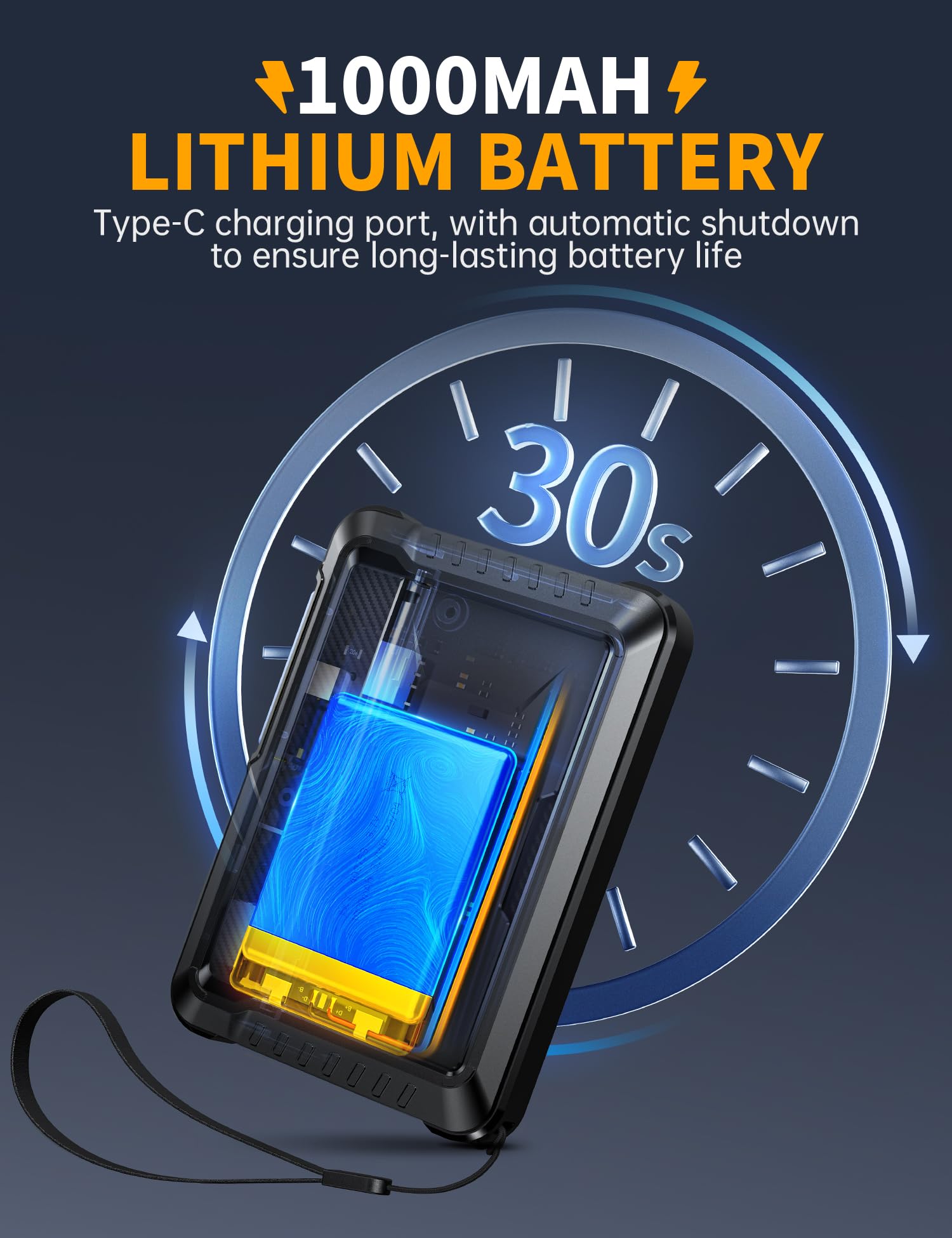

Long Battery Life��The car oscilloscope has a built-in 1000mAh high-quality lithium battery, which supports Type-C interface charging to ensure long-term worry- use

Basic Parameters
Display: 2.8 inches/ PPI: 320* 240
USB charging: Type-C interface 5V/1A
Li-ion battery ty: 1000mAh

Oscilloscope Parameters
Real-time sampling rate: 48MS/s
Bandwidth: 10MHz
Vertical sensitivity: 10mV/Div-10V/Div
Time base range: 50ns-20S
Voltage range: X1:±40V(Vpp:80V), X10:±400V(Vpp:800V)
Trigger mode: automatic/regular/single
Trigger edge: Rising edge/Falling edge
Coupling method: AC/DC
Calibration Square Wave: Frequency:1K;Duty Cycle:50%;Amplitude:3.3V

Signal generator parameters
Frequency: 0-50KHz
Duty Cycle: 0-100% (rectangular and sawtooth wave)
Amplitude: 0.1-3.0V

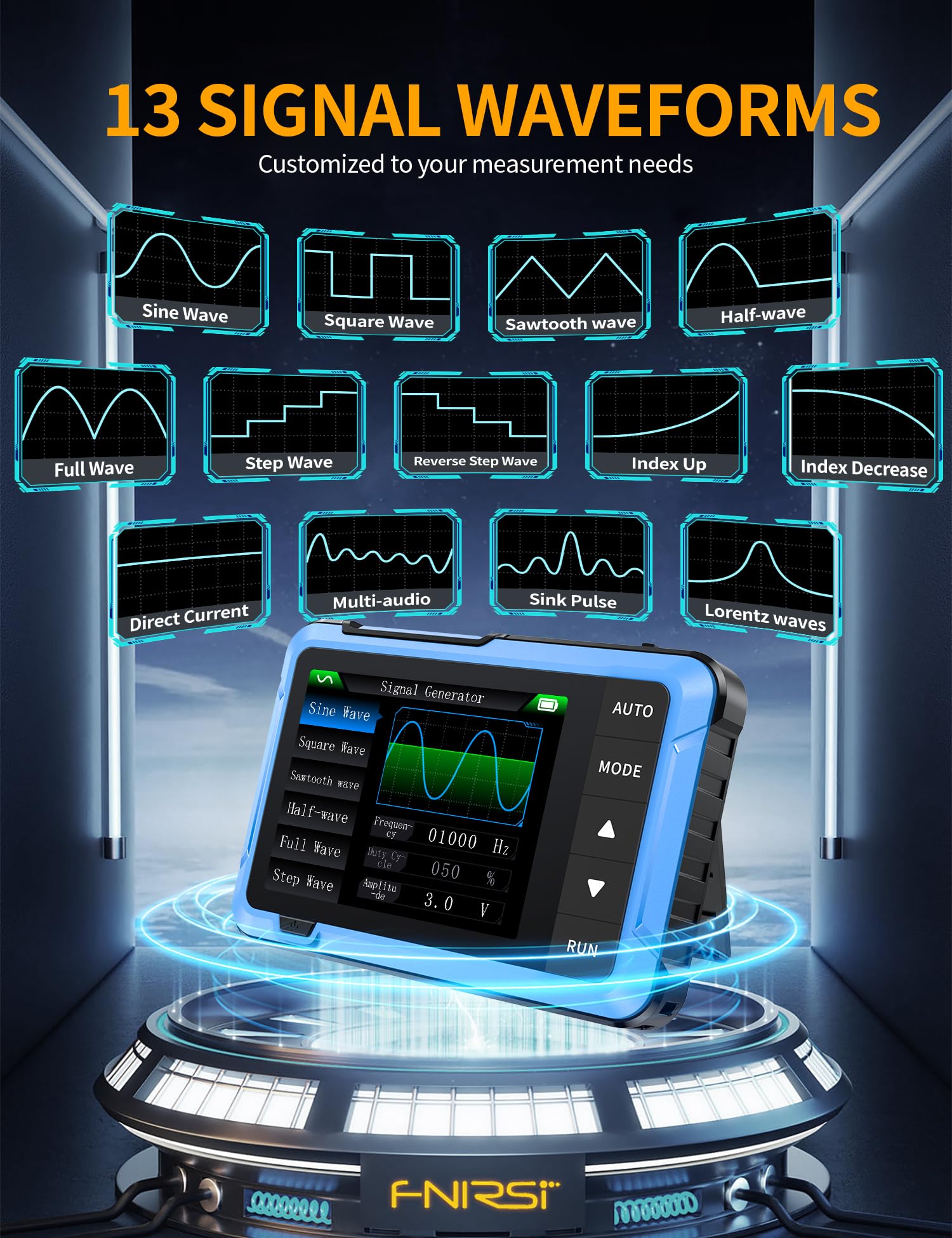

Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, reverse step wave, exponential rise, exponential fall, DC signal multi-audio, Sink pulse, Lorentz wave

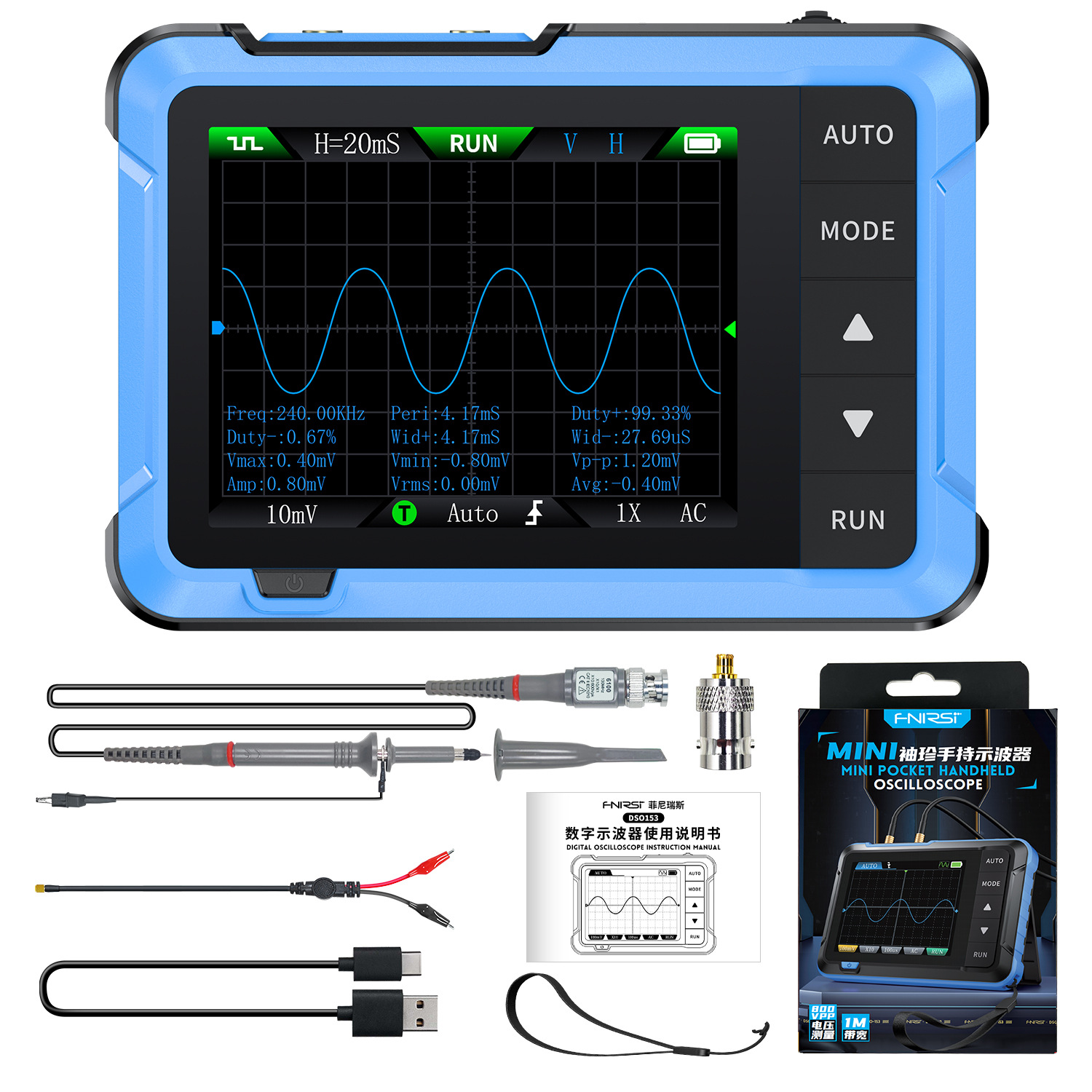

Package Includes
1 x Oscilloscope
1 x Instruction manual
1 x Lanyard
1 x Alligator Clip Probe
1 x Type-C charging cable
