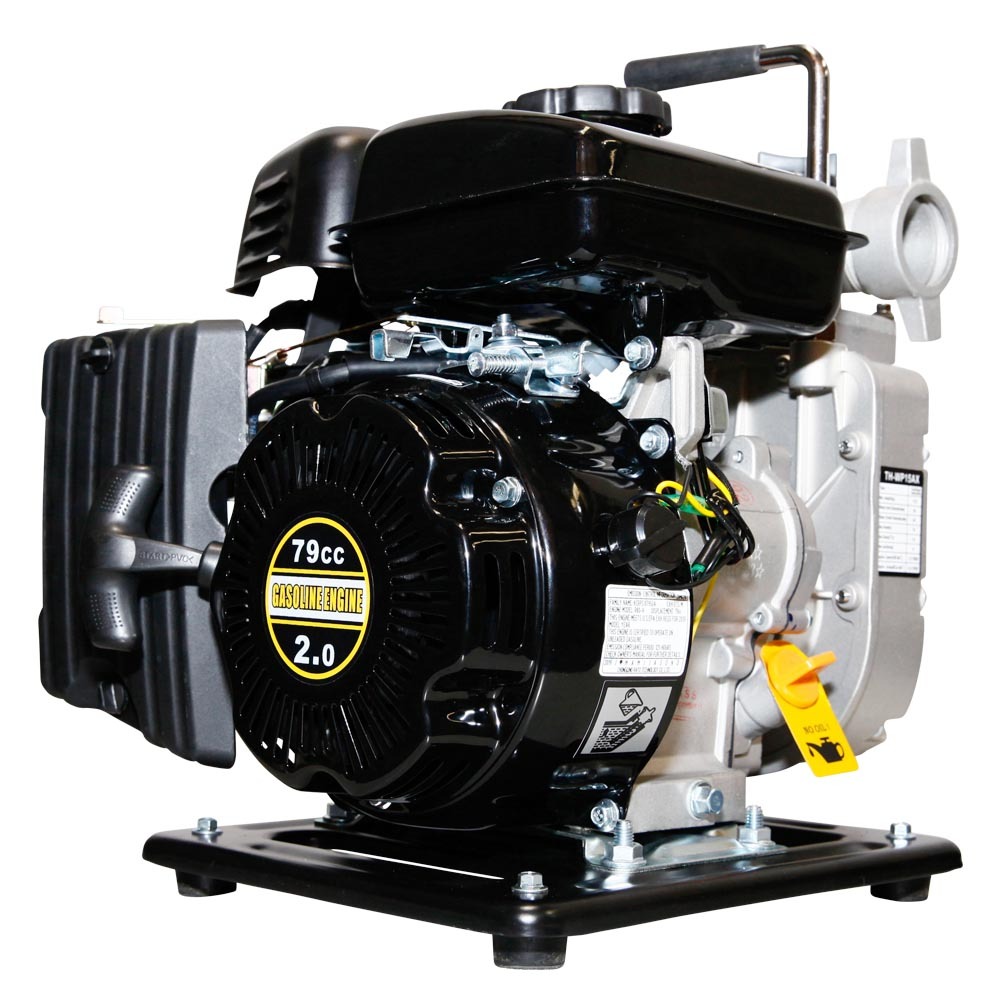

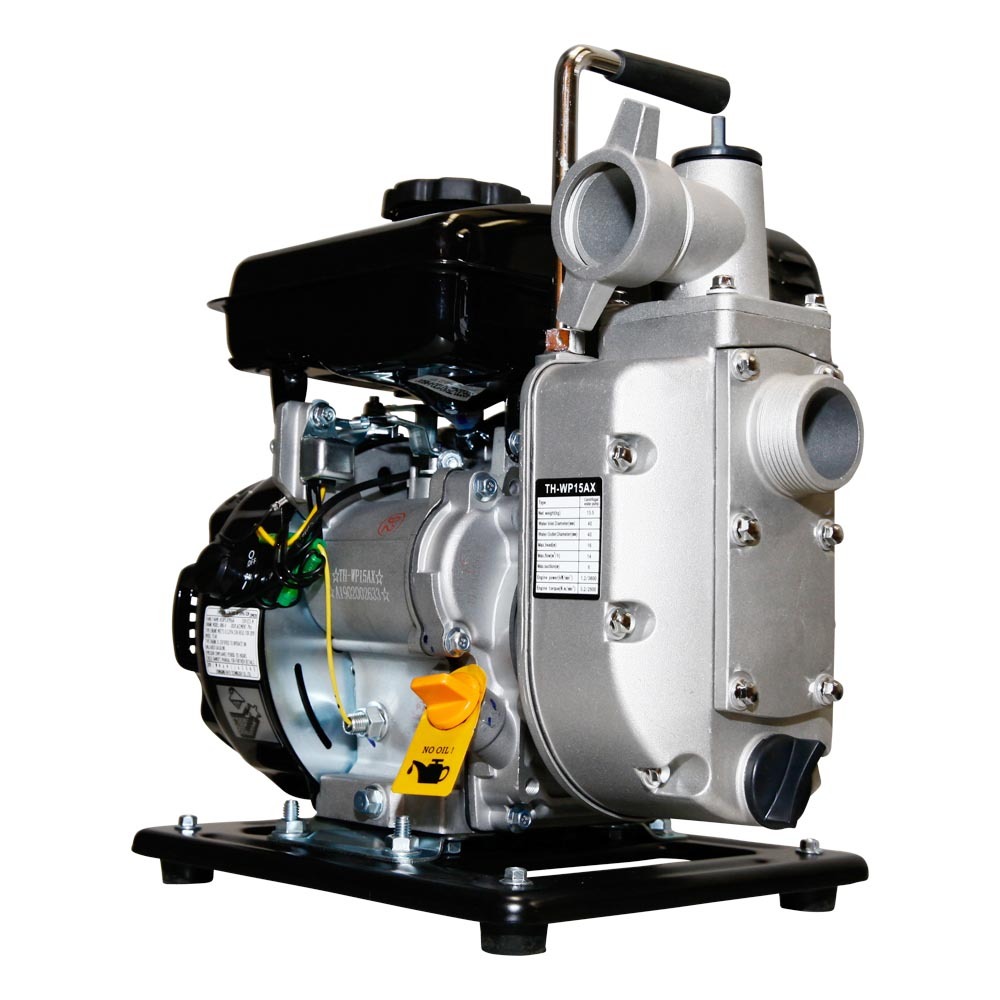

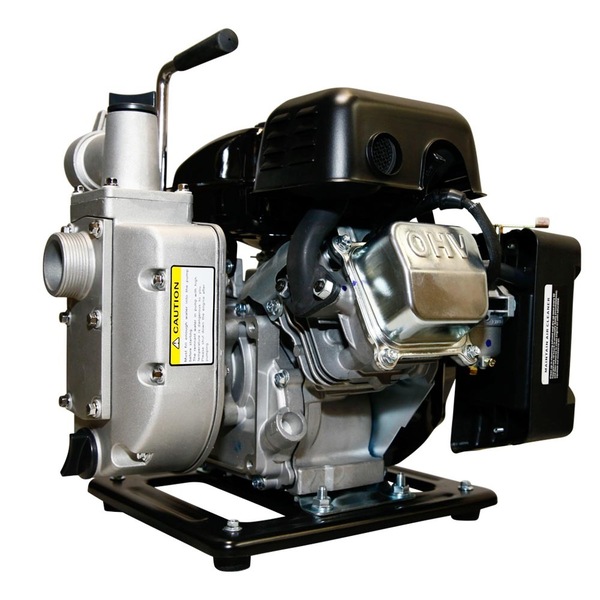

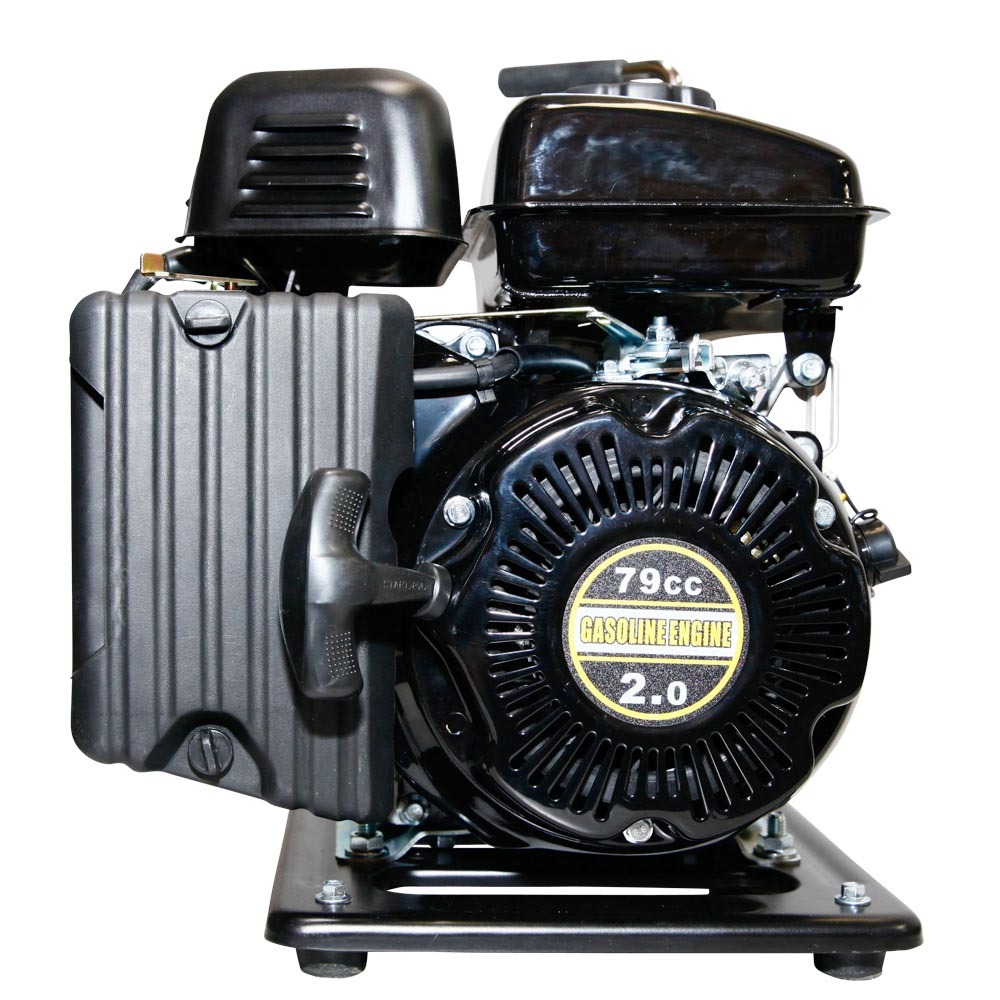

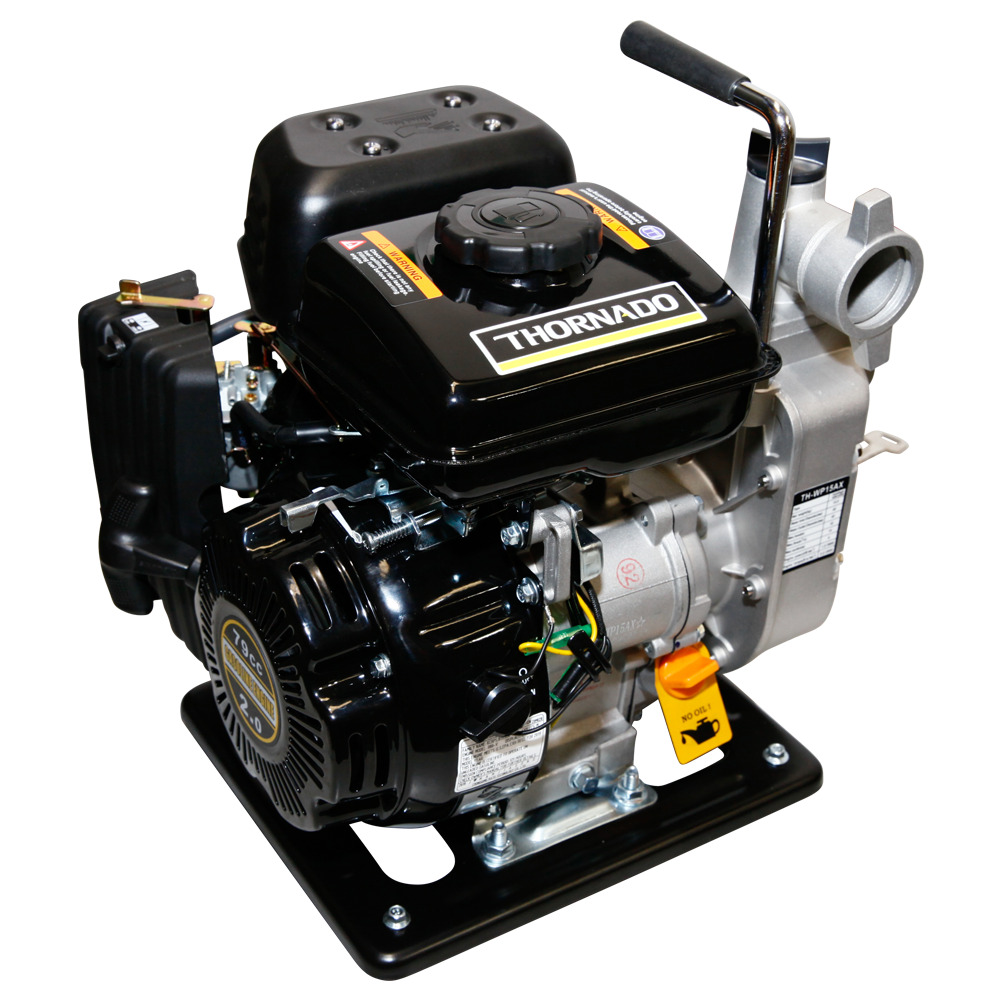

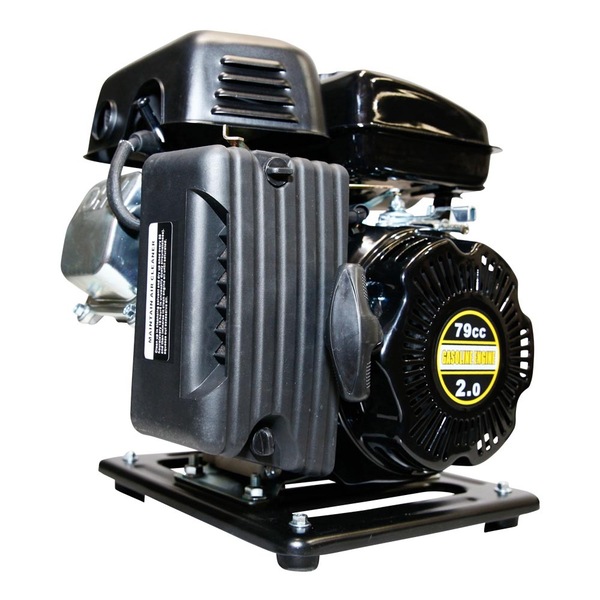

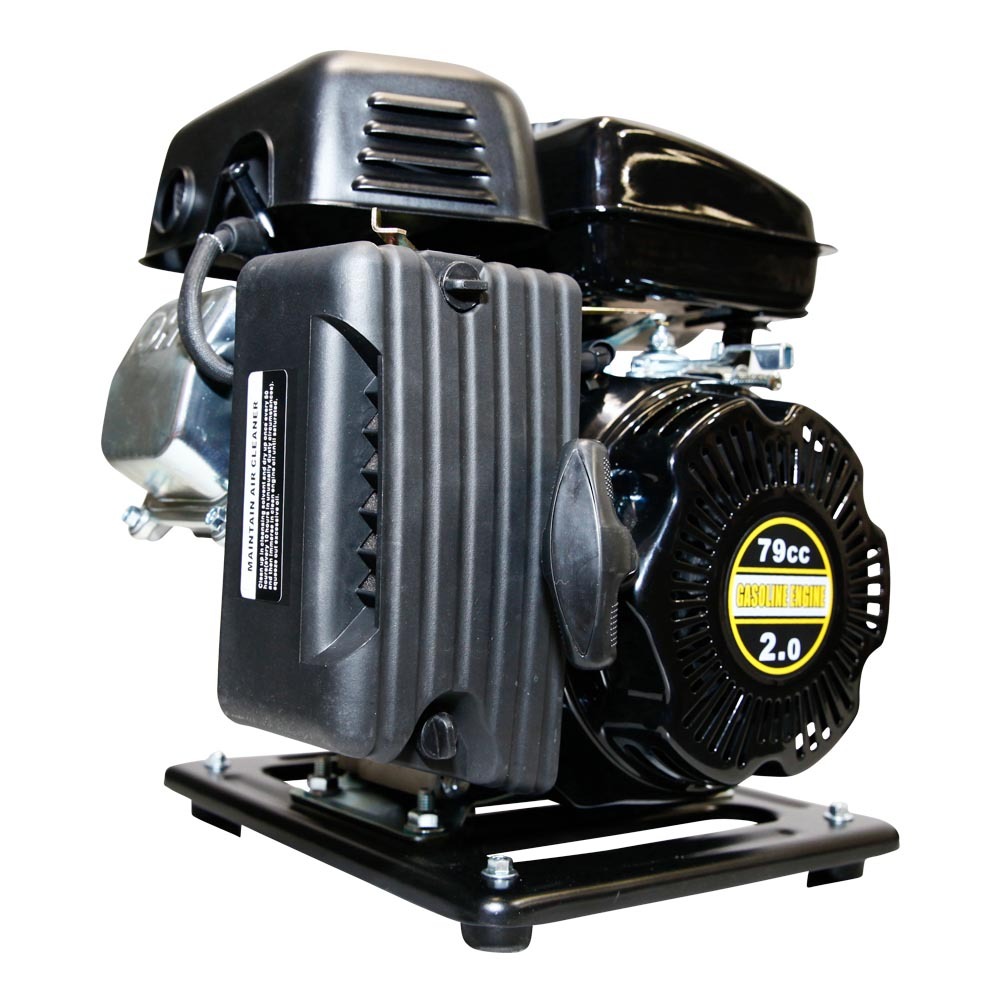

The new THORNADO 1.5 inch 2HP 4 Stroke SELF PRIMING portable water pump have been redesign and upgraded from our previous model "TH-WP15AL" for improved durability and service life. The Thornado water pump can quickly transfer clear water up to 14,000 L/hour. The pump is fitted with a 2HP petrol engine that features durable cast iron cylinder that withstand wear and abuse, fuel shut off for safe transport and fuel saving overhead valves for a cooler, cleaner performance. This pump makes it ideal for use in variety of locations including flower nurseries and gardens, water plants, mines, factories, ships, and villages where water needs to be drained remotely. The THORNADO water pump is an ideal solution not only for emergency jobs but also for daily routine.
SPECIFICATIONS | |
Model No | TH-WP15AX |
Type | Self priming, Centrifugal pump |
Inlet Size | 1.5 inch |
Outlet Size | 1.5 inch |
Max Lift Head | 16m |
Max Flow | 14,000 litres/hour |
Max Suction Depth | 6m |
Max Pressure | 22 PSI |
Material | Alluminium alloy pump housing,impeller and diffuser |
Engine | TH-R80 (2HP) |
Engine Type | 4 stroke, air cooled |
Max Power HP / Rpm | 2HP / 3600 Rpm |
Displacement | 79cc |
Fuel Type | Petrol |
Oil Type | SAE10w-30 / SAE30 |
Fuel Tank Capacity | 1.8L |
Oil Capacity | 0.35L |
Run Time Full Tank | 2h at ¾ load |
Starting System | Recoil start |
Product Length | 385mm |
Product Width | 340mm |
Product Height | 390mm |
Product Weight | 14kg |
In the Box | Hose fittings, hose clamps, intake strainer, user manual, |
Pump | TH-WP15AX |
Max Flow Rate | 14,000 litres/hour |
Max Suction Depth | 6m |
Max Head Lift | 16m |
Max Soft Solid Size | 4mm |
Mechanical Seal | Ceramic |
Included Accessories | Intake Strainer, Hose Clamps, Spark Plug Wrench |
Dimension (L, W, H) | 335 x 285 x 385 |
Net Weight | 13.75kg |
ENGINE | |
Displacement | 79cc |
Engine Type | 4 Stroke OHV Air Cooled Engine |
Engine Model | TH-R80 |
Certification | EPA Compliant |
Net Power HP / Rpm | 2HP / 3600 Rpm |
Fuel Type | Unleaded Petrol |
Fuel Tank Capacity | 1.8L |
Oil Type | SAE10w-30 / SAE30 |
Oil Capacity | 0.35L |
Run time @50% Load | ~2 hr |
PTO Shaft Rotation | Counter Clockwise |
Bore x Stroke | 52 mm x 37 mm |
Compression Ratio | 9.0 : 1 |
Spark Plug Compatible | E5TC (TorchTM) |
Model No | TH-WP15AL |
Type | Self priming, Centrifugal pump |
Inlet Size | 1.5 inch (40mm) |
Outlet Size | 1.5 inch (40mm) |
Max Lift Head | 20m |
Max Flow | 12,000 litres/hour |
Max Suction Depth | 4m |
Engine | TH-025R (2.5HP) |
Engine Type | 4 stroke, air cooled |
Max Power HP / Rpm | 2.5HP / 3600 Rpm |
Displacement | 97cc |
Fuel Type | Petrol |
Oil Type | SAE10w-30 / SAE30 |
Fuel Tank Capacity | 1.3L |
Oil Capacity | 0.3L |
Run Time Full Tank | 1h at ¾ load |
Starting System | Recoil manual start |
