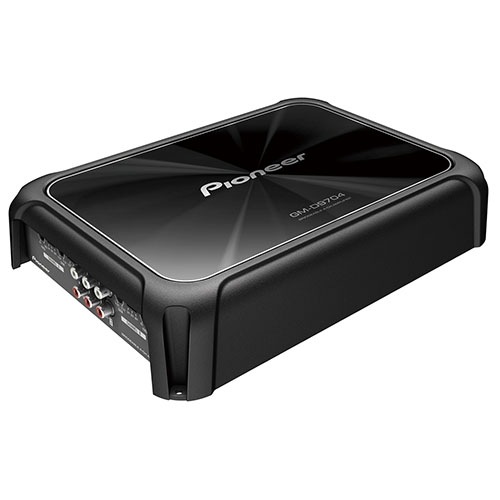

Pioneer GM-D9704 Class FD 4-Channel Bridgeable Amplifier
(Pioneer GM-D9704)

We Think You Should Know

• 4-Ch Class FD Bridgeable Amplifier



• 1600W Maximum Power



• 130W x 4 RMS Output - 4Ohm



• 200W x 4 RMS Output - 2Ohm



• Compact Design for Versatile Installation Options



• Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound

Overview

An amplifier shouldn't take up too much space, especially in your car. This Class-FD amp might just be what you're looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output of 1600W Max.

Features

Big Power, Small Size
Pioneer's new extra-efficient Class-FD digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

Improved Circuit Design
To prevent circuit shutdown, Pioneer's new digital amplifier circuit "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve a 1 Ohm connection. This design enhances the flexibility to connect multiple subwoofers to a system.

Variable Low Pass Filter
For extra flexibility, variable LPF and HPF make audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D9704 LPF and HPF are adjustable from 40 Hz to 500 Hz.
