Powertech Miniature 12V 3A PWM Solar 3-Stage Charge Controller w/ Timer Control

Image 1
Image 2
Image 3
Hurry! 3 items left!
$39.60

Collect 39 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by KG Superstore
Secure ways to pay at checkout

MINIATURE 12V SOLAR CONTROLLER

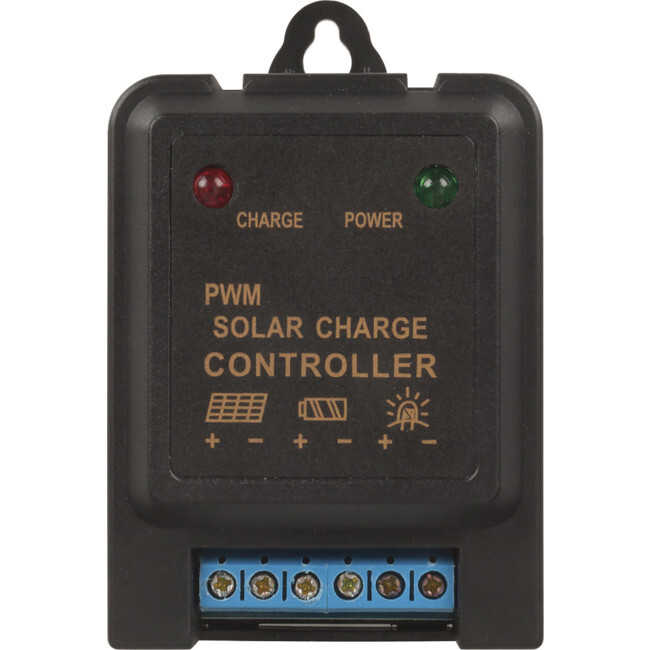

Miniature 12V 3A PWM Solar Charge Controller

This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connectedsolar panel. It features light and timer control, similar tostreet lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.

Features: - Red charge LED indicator
- Green power LED indicator
- Hang hook
- Battery voltage automatic identification
- PWM charging mode
- Comprehensive electronic protection

Specifications:
Rated Voltage: 12V
Strong Charging Pressure: 14.8V
Equilibrium Charging: 14.5V
Float Charging Pressure: 13.7V
Under Voltage: 10.8V
Under Recover Voltage: 13V
Non–Load Current: ≤6mA
Charging Circuit Voltage drop: ≤0.2V
Discharge Circuit Voltage drop: ≤0.1V

Specifications
DC Voltage : 12.0V
IP Rating : 22
Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects
Liquid/Moisture Ingress Protection : 2 - Dripping water when tilted to 15deg
Width : 52.0mm
Height : 22.0mm
Depth : 80.0mm
Weight : 33.0kg
Charge Controller Technology : Pulse Width Modulated (PWM)
Max Charging Current : 3.0A
Max Load Current : 3.0A

Includes:
1 x Solar Controller


Specifications:

Standard Consumer Warranty

GTIN: 9319236750346

Estimated Delivery Time Frame:2-7
