If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not workwith standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.
FYI: Most of the pre-made cat5/6 leads on the market are stranded cable not solid.

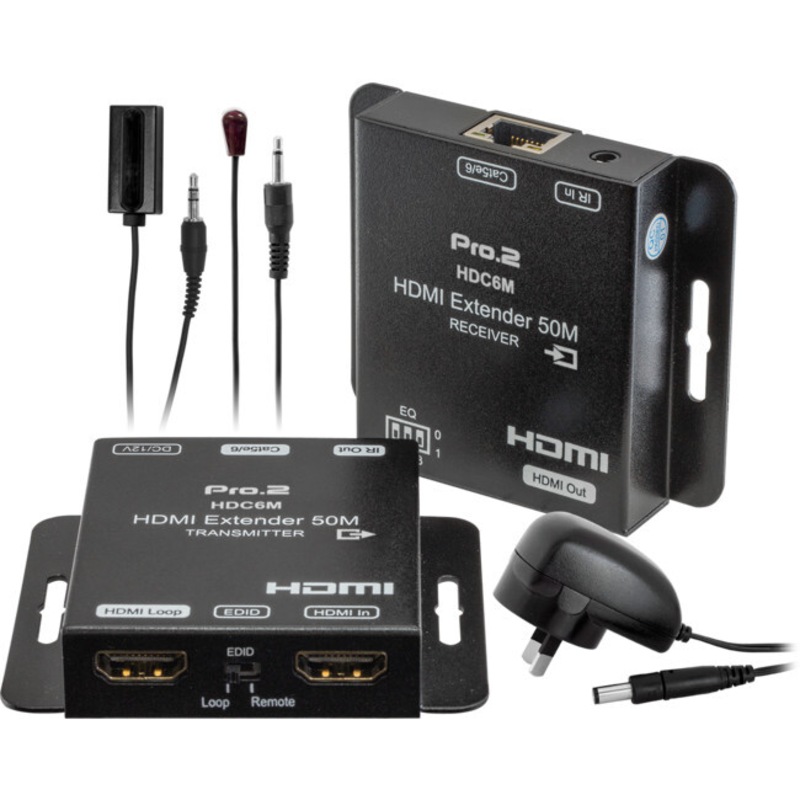

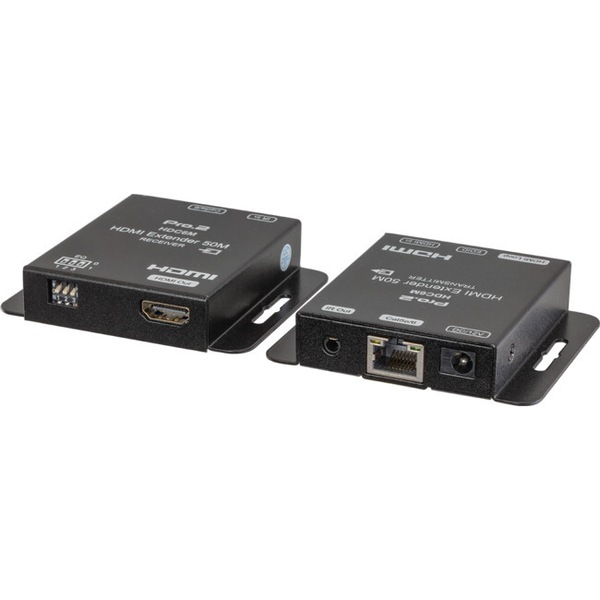

A neat and simple high definition HDMI mini extender kit.This kit extends your high definition AV sources from Blu-ray DVD Players, PS3 and XBOX, etc. up to a maximum of 50m via single solid CAT5E/ 6 cables through the wall cavities. The EDID feature increases its compatibility with players or displays. It supports a full 1080P high definition and integrates an infra-red control extender forfull controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection.

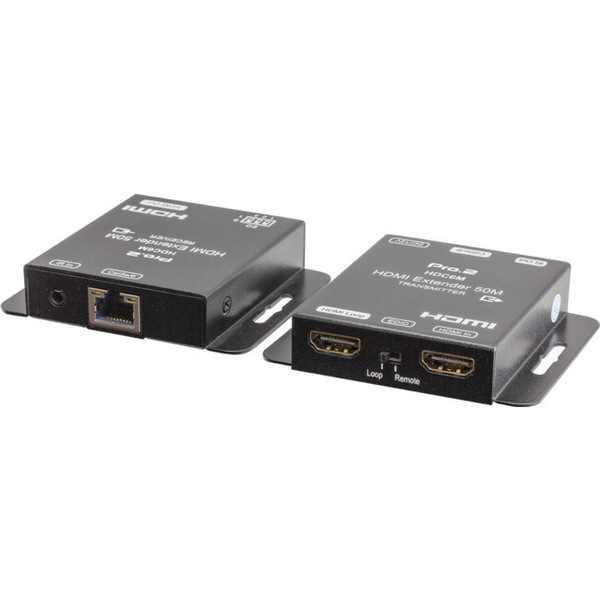

With local HDMI loop out on the transmitter, the device enables local viewing function. Which means you can view thevideo source locally as well as on the extended end.
Compared with the popular model, HDC6L, the compact design makes it easy to be mounted to the back of your TV and the new power over cable feature means it only requires one power supply at the transmitter end, no power supply is required at the receiver, which makes the installation even easier.
Please note: IEEE-568B standard solid cables are recommended for this kit.
|
Operating Temperature Range |
-5 to +40°C(+23 to +104°F) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Connectors on Transmitter |
HDMI Receptacle x 2 (1xHDMI input,1xHDMI loop output) |
|
Connectors on Receiver |
HDMI Receptacle x 1 |
|
Resolution outputs |
1080p/1080i/720p/576p/480p |
|
Audio format supported |
DTS-HD Master Audio, Dolby True HD, multi-channel 7.1, stereo etc |
|
Output Video Signal |
HDMI |
|
Dimension (L×W×H) |
TX: L79.3xW68xH16.5mm; RX: L79.3xW68xH16.5mm |
|
Power supply |
DC 12V1A Power supply |
|
Power consumption |
2W(MAX) |
|
Transmission Distance |
1080p up to 50m� |
|
Net Weight |
TX: 120g; RX:115g |
*Note: 50m distance is under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.
