If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not workwith standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.
FYI: Most of the pre-made cat5/6 leads on the market are stranded cable not solid.

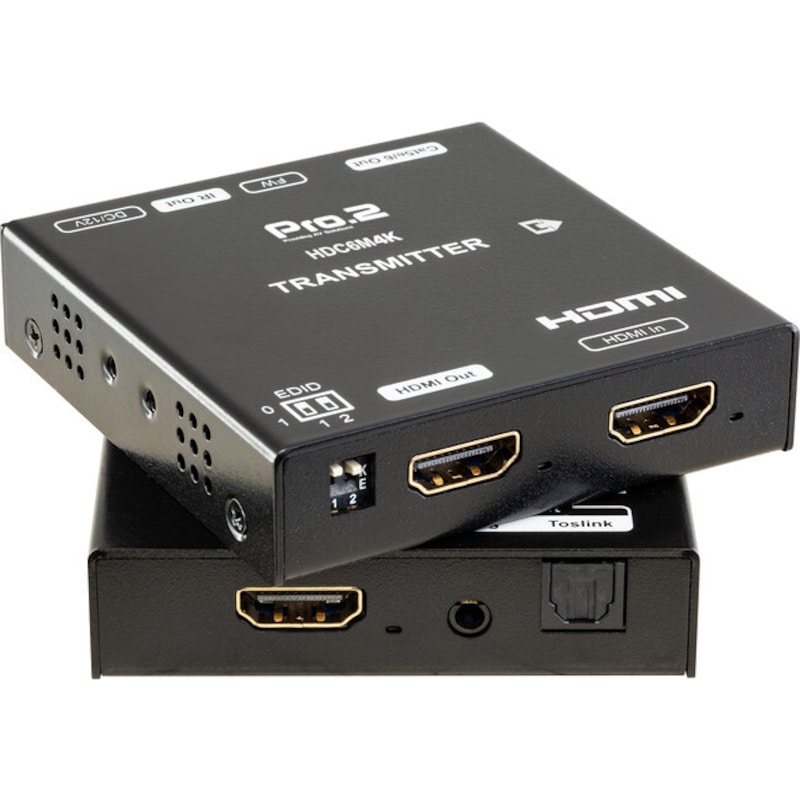

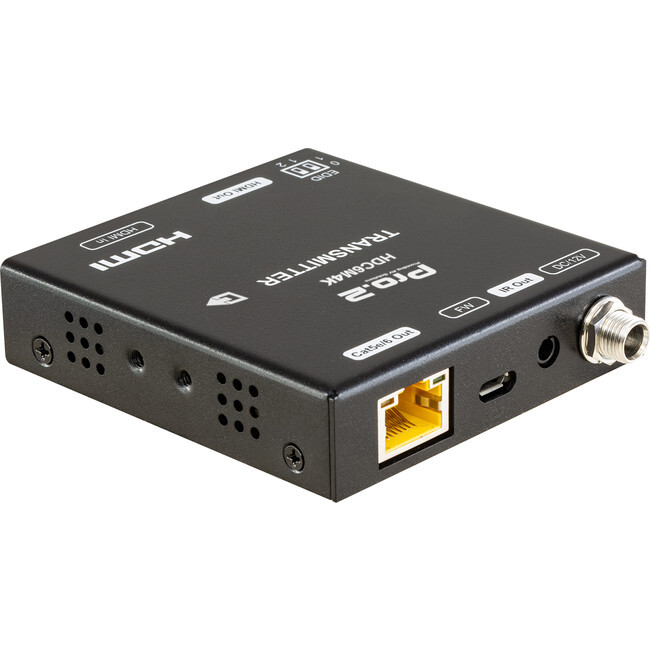

HDMI2.0 18G 4K extender over single solid UTP cable with local loop out!
This compact and simple HDC6M4K is the easiest way to extend your 4K HDMI via a single solid CAT5e/6 cable up to 70m*!
Please note: IEEE-568B standard solid cables are recommended for this kit.
Operating Temperature Range | -5 to +40' C (+23 to +104°F) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Transmitter connections | 1x HDMI input, 1 xHDMI loop out, 1x Power DC input |
IR TX input x 1 | |
Receiver connections | HDMI output x 1 |
IR RX input x 1 | |
Output resolution | 4k@ 60hz YUV4:4:4/ 4k@ 30HZ/1080P/1080i?/720P/576P/480P |
Audio format supported | DTS-HD Master Audio , Dolby True HD, LPCM7. 1 , PCM etc. |
Output Video Signal | HDMI |
Dimension (Lx WxH) | TX: L75.8mm x W72.2mm x H18 mm; RX: L75.8mm x W72.2 mm x H18 mm |
Power supply | DC 12V1A Power supply |
Power consumption | 3.8W (MAX) |
Transmission Distance | up to 70m under 4 K@ 60 Hz YUV4:4:4, 90m under 4K@ 30Hz/1080P |
Net Weight | TX: 305g; RX: 305g |
*PLEASE NOTE: 70m distance is under perfect transmission conditions including straight cable runs with no bends, kinks, electrical interference, patch panels, or wall outlets. Use CAT6 solid core cable for the best results.
