PRO SERIES 3 18GBPS - 4M HDMI LEAD

PRO SERIES 3 18GBPS - 4M HDMI LEAD

Hurry! 5 items left!
Price
$84
Collect 84 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (5) has been reached.

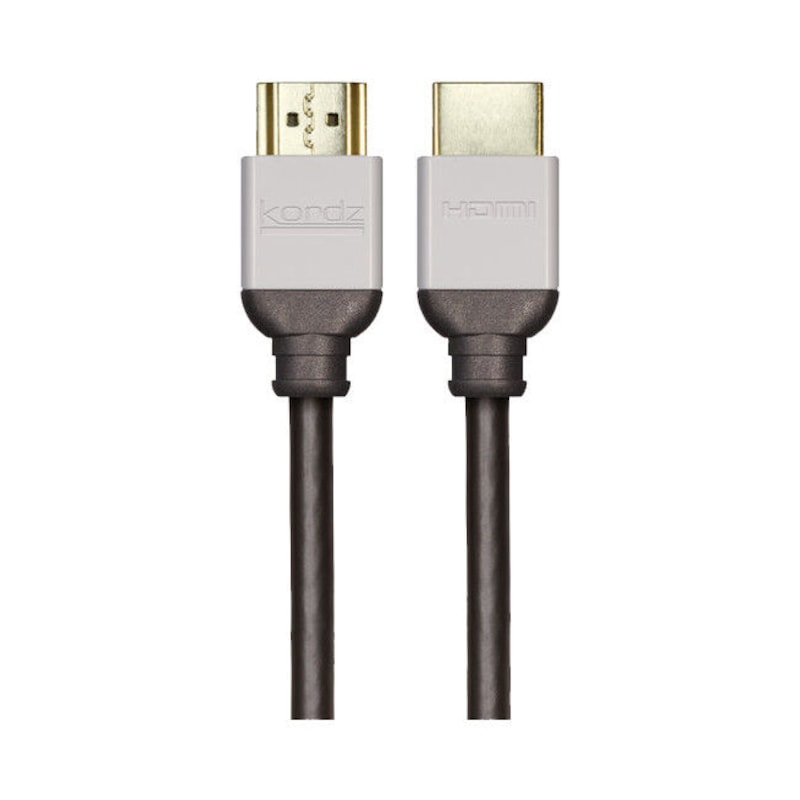

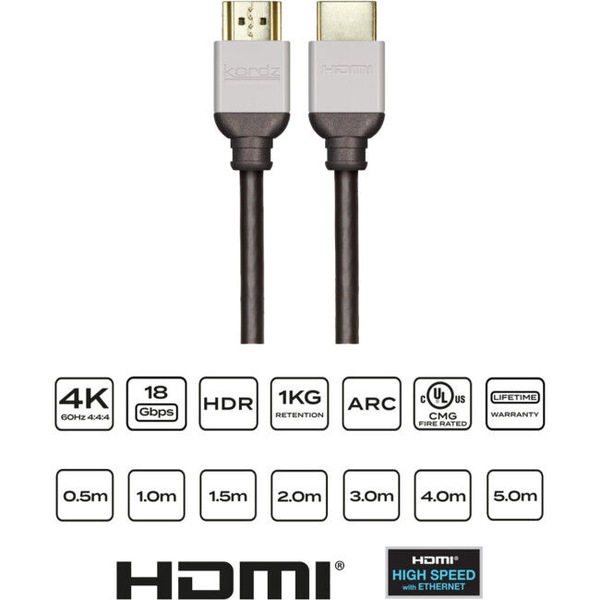

Kordz - K26016-0400-CH PRO3 Passive 18Gbps HDMI Cable

K26016-0400-CH
Length:
4.0m,
AWG:28
Technology: Passive





Kordz PRO3 Passive 18Gbps HDMI Cables are expertly designed for professional AV integrators, providing a hassle-free and electronics-free installation experience with compact, gold-plated 1kg retention HDMI connectors and a highly flexible fire-rated cable. Supporting 18Gbps 4K60 HDR up to 9m, they’re backed by the Kordz promise of ‘Connectivity Assured’.

KordzPRO³Series is engineered to increase AV installation uptime with high quality materials and production processes for an updated 18Gbps signal across all lengths. Each cable combines lightweight, small form-factor assemblies, gold-plated 1kg retention HDMI connectors and a highly flexible fire-rated cable to make installations easier for the professional AV integrator. This update also reduces the connector footprint by 65% of the previous model, is licensed to support all HDMI 2.0 features and is backed by a Lifetime Warranty.

  • Certified High Speed with Ethernet HDMI Cable.
  • All lengths support resolutions requiring 18Gbps transfer rates, including 4K60 HDR or 8K/30 4:2:0.
  • Every cable individually production tested.
  • Solid copper pins and lightweight, folded-gold plated HDMI connectors decrease oxidation and increase signal stability.
  • Environmentally friendly lightweight ABS connector assembly (65% of the previous iteration).
  • Highly flexible, UL CMG fire rated jacket fits any installation environment.
  • Benchmark inter-terminal uniformity through Kordz’ patented soldering techniques.
  • Licensed HDMI 2.0 Adopter product individually product tested on assembly line.
  • Kordz’s product performance guarantee and warranty for your lifetime.

Application
  • Data Rate: Up to 18.2Gbps (TMDS mode)
  • Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
  • Video Refresh Rate: Up to 240 frames per second
  • Colour Depth: Up to 16 bits
  • Colour Formats: RGB 4:4:4 / Y’CBCR4:2:2 / Y’CBCR4:2:0
  • Content Protection: Up to HDCP 2.2 supported
  • Audio Sample Rate / Channel: Up to 192KHz
  • Audio Sample Size: Up to 24 bits
  • Audio Channels: Up to 32 channels
  • Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
  • Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Ethernet channel, Audio Return Channel (ARC), Enhanced
  • Audio Return Channel (eARC), High Dynamic Range (HDR)
Specifications
Technical info
HDMI CERTIFICATION – 0.5m – 9.0m Lengths
  • HDMI CTS (Certified Test Specification): High Speed with Ethernet
  • Certified Data Rate: 6.0Gbpsc, 17.82Gbps agg
  • Supported Data Rate: ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD)
  • HDMI Clock: 27-340MHz
MECHANICAL
  • Cable Diameter: 30AWG 5.7mm/0.22”Ø| 28AWG 6.5mm/0.26”Ø| 24AWG 9.0mm/0.35”Ø
  • Mounting Length:cable gauge dependent (see below)
  • Cable Bend Radius: cable gauge dependent (see below)
  • Retention Force (nominal): 9.9N (1kg / 2.2lbs) +10/-5%
CONSTRUCTION
  • Primary Conductors: Solid 30-24AWG OFC, length dependent
  • Insulation on TMDS: HDPE, Foamed-PE, length dependent
  • Insulation on 4C + HEAC Pairs: HDPE
  • Shielding on TMDS Pairs: Al / Mylar, 125% coverage
  • Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 85% coverage
  • Cable Jacket: UL CMG fire-rated PVC composite materials
  • HDMI Connector Shell: Premium gauge folded steel, 1µ” 24K Gold plated
  • HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
  • Termination: High Frequency Soldering
  • Connector Assembly: ABS connector shell with PVC injection moulded boot and strain relief
Warranty

The Kordz PRO3 Passive HDMI Cable comes with our product Lifetime Warranty that promises maintained product functionality and performance foryourlifetime.





Product Code Desciption
  • K26016-0050-CH
0.5m / 1.6ft, 30AWG
  • K26016-0100-CH
1m / 3.3ft, 30AWG
  • K26016-0150-CH
1.5m / 4.9ft, 30AWG
  • K26016-0200-CH
2m / 6.6ft, 30AWG
  • K26016-0300-CH
3m / 9.8ft, 30AWG
  • K26016-0400-CH
4m / 13.1ft, 28AWG
  • K26016-0500-CH
5m / 16.4ft, 28AWG
  • K26016-0700-CH
7m / 23.0ft, 24AWG
  • K26016-0900-CH
9m / 29.5ft, 24AWG











GTIN: 9340382009408
