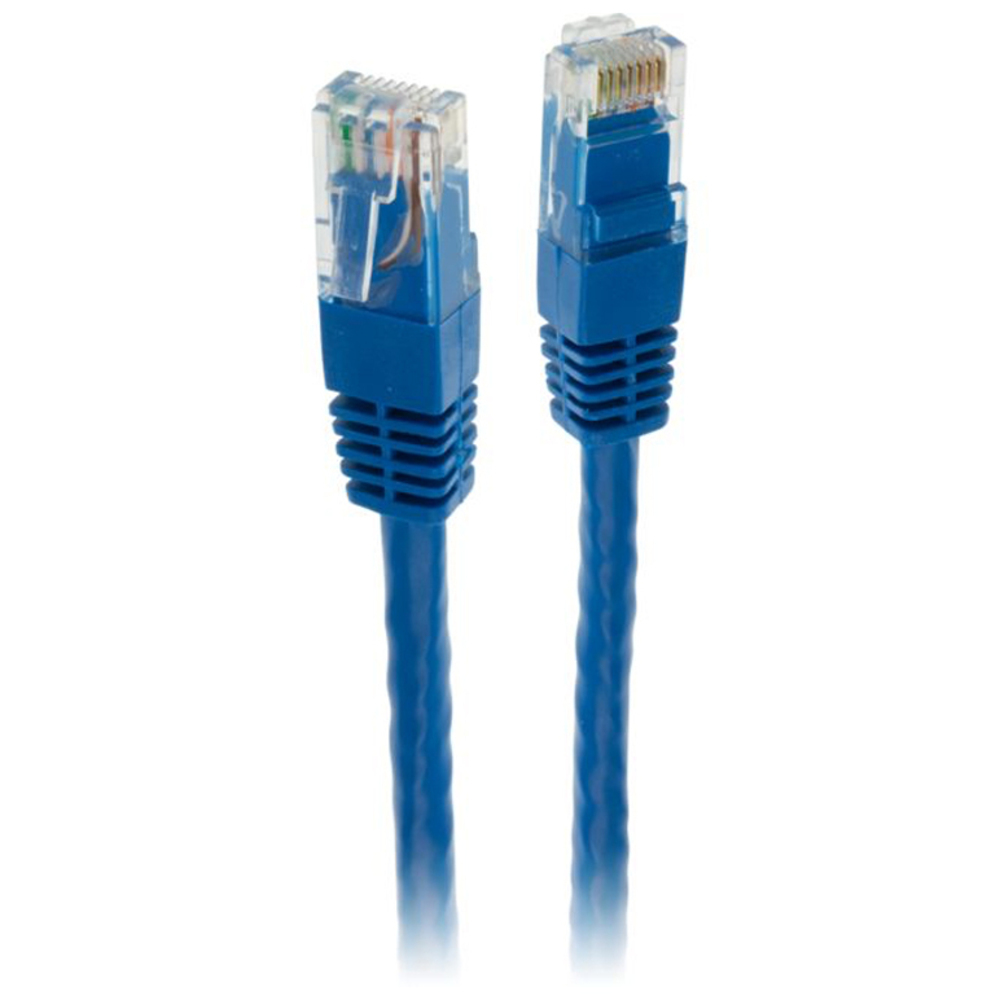

Pro2 15m Blue Cat 6 Cat6 RJ45 Ethernet Internet Network LAN Patch Cable Lead

Pro2 15m Blue Cat 6 Cat6 RJ45 Ethernet Internet Network LAN Patch Cable Lead

1 Review 5 1 Review
Limited Stock!
Price
$39
Collect 39 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (28) has been reached.



Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5/5e and Category 3 cable standards.

Compared with Cat-5 and Cat-5e, Cat-6 features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

To maintain transmission characteristics and network integrity, it's essential to use the correct type of patch-cord to match the installation. A network port will perform only at the level of the LOWEST-rated component in the chain.

Features:

  • UTP CAT6 Patch Lead - Each cord has eight multi-strand conductors in 4 twisted-pair T568A color coded configuration.
  • Quality cable material - Fitted with 50µ Category-6 compliant 2-row (staggered pins) plug and fully-molded strain-relief boot.
  • Molded strain relief & Low profile flush moulded boots - With molded strain relief RJ45 male-to-male connectors this cable will be strong, and robust.
  • Packaged in heat-sealed hang-sell bags.

Complies with the applicable electrical transmission characteristics and flame tests specified in:

  • AS/ACIFS008:2006
  • ISO/IEC 11801 Category 6
  • TIA/EIA-568-B.2-1 Category 6

Specifications:

The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

Conductor

Material Bare Copper

Size 24AWG

Construction 7/0.195±0.015mm

Insulation

Material HD-PE

Thickness Minimum at any point: 0.18mm

Maximum average: 0.20mm

Diameter: 0.96±0.03mm

Jacket

Material PVC

Thickness Minimum at any point: 0.50mm

Maximum average: 0.58mm

Diameter: 5.8±0.03mm

Category 6 Cable Standard:

  • Category 6 is a standard that aims to support transmission at frequencies up to 250 MHz over 100Ω twisted pair.
  • Supports current Category 6 applications such as 100BaseTX,100BaseVG, ATM, Gigabit Ethernet and all fast Ethernet protocols.

How to distinguish a Cat 6 plug from a Cat-5 or Cat-5E plug:

To distinguish a Cat-6 plug from a Cat-5 or a Cat-5E plug, just simply look at the way the cable's wires have been terminated at the end of the plug:

  • A Cat-5 or a Cat-5E plug will ALWAYS have all eight wires in a single row
  • The majority of Cat-6 plugs will have wires in two rows with four wires per row
  • Some Cat-6 plugs will have wires in two rows with 6 wires in the top row and 2 wires in the bottom row

This item comes with 12 month Warranty

GTIN: 9328202010117

Estimated Delivery Time Frame: 2-7
