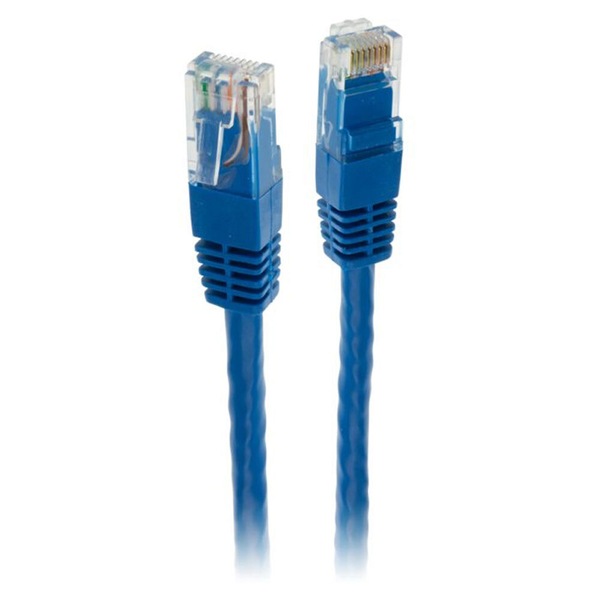

Pro2 3m CAT6 Patch Cable Lead Cord Network Ethernet Internet for PC MAC Router
,gravity=Center,allowExpansion)
Sold Out
Notify me when this product is back in stock
To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.
Notify me when this product is back in stock
To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.
Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.
Compared with Cat-5 and Cat-5e, Cat-6 features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).
To maintain transmission characteristics and network integrity, it's essential to use the correct type of patch-cord to match the installation. A network port will perform only at the level of the LOWEST-rated component in the chain.
Features:
UTP CAT6 Patch Lead - Each cord has eight multi-strand conductors in 4 twisted-pair T568A colour coded configuration.
Quality cable material - Fitted with 50µ Category-6 compliant 2-row (staggered pins) plug and fully-moulded strain-relief boot.
Moulded strain relief & Low profile flush moulded boots - With moulded strain relief RJ45 male-to-male connectors this cable will be strong, and robust.
Packaged in heat-sealed hang-sell bags.
Complies with the applicable electrical transmission characteristics and flame tests specified in:
AS/ACIFS008:2006
ISO/IEC 11801 Category 6
TIA/EIA-568-B.2-1 Category 6
Conductor
Material Bare Copper
Size 24AWG
Construction 7/0.195±0.015mm
Insulation
Material HD-PE
Thickness Minimum at any point: 0.18mm
Maximum average: 0.20mm
Diameter: 0.96±0.03mm
Jacket
Material PVC
Thickness Minimum at any point: 0.50mm
Maximum average: 0.58mm
Diameter: 5.8±0.03mm
Category 6 Cable Standard:
How to distinguish a Cat 6 plug from a Cat-5 or Cat-5E plug:
To distinguish a Cat-6 plug from a Cat-5 or a Cat-5E plug, just simply look at the way the cable's wires have been terminated at the end of the plug:
This item comes with a 12-month warranty.
GTIN: 9328202010087
Reference ID: 227998
