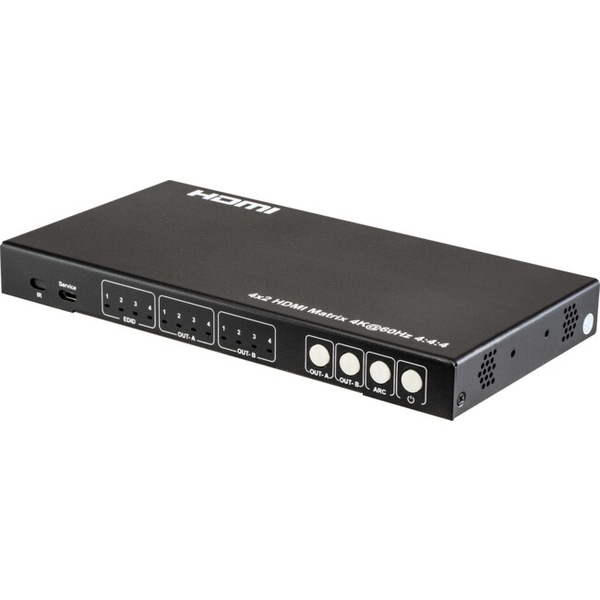

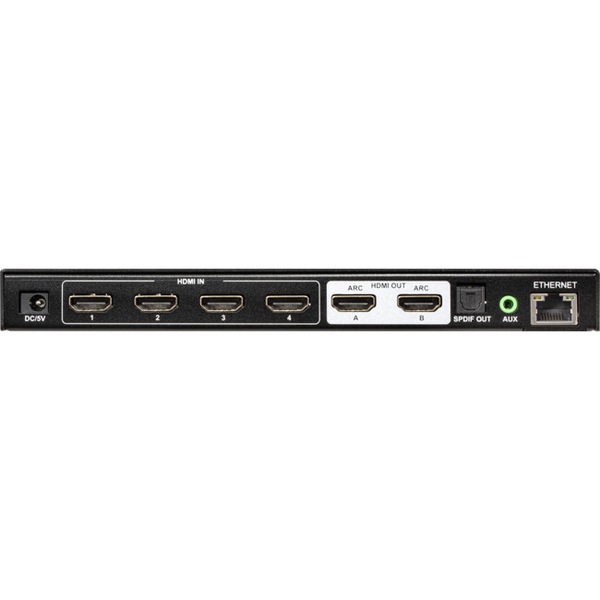

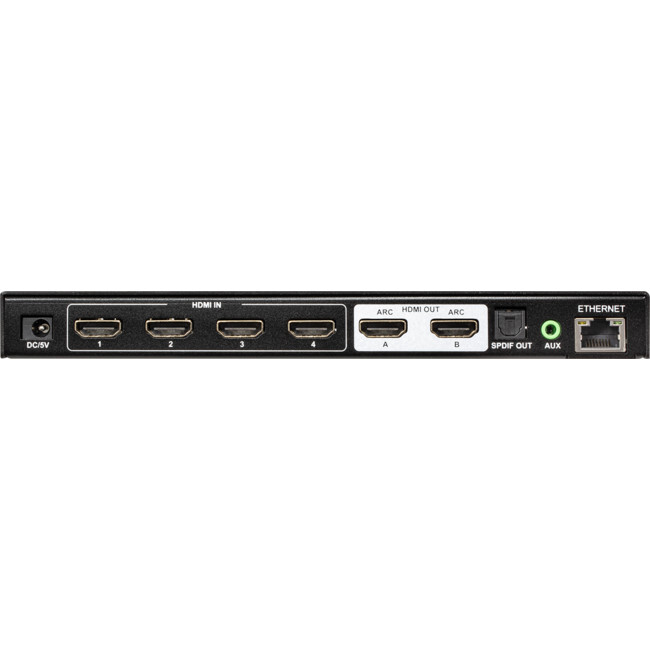

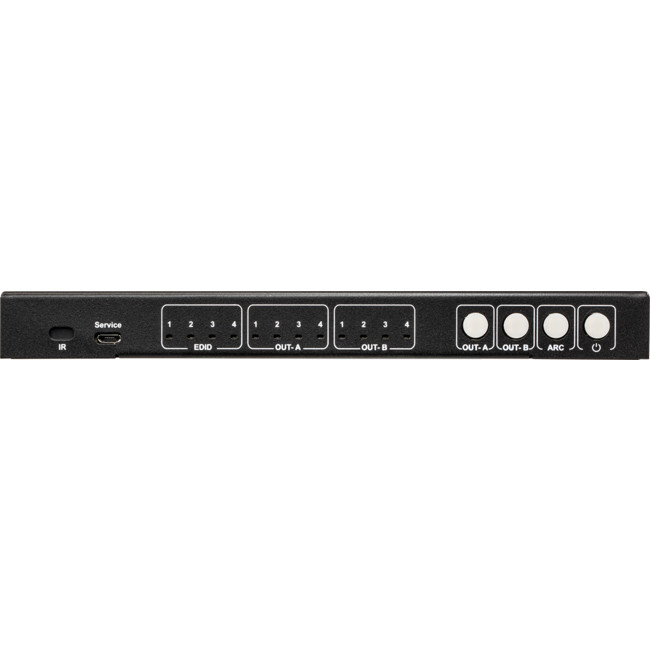

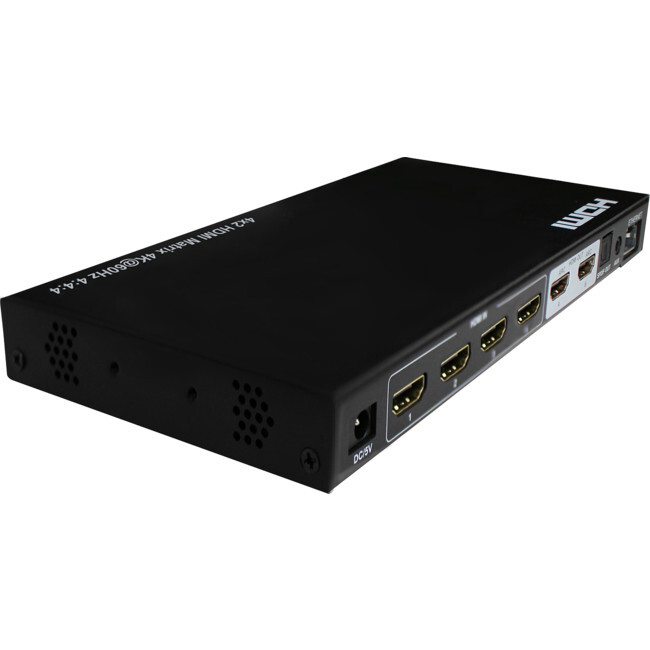

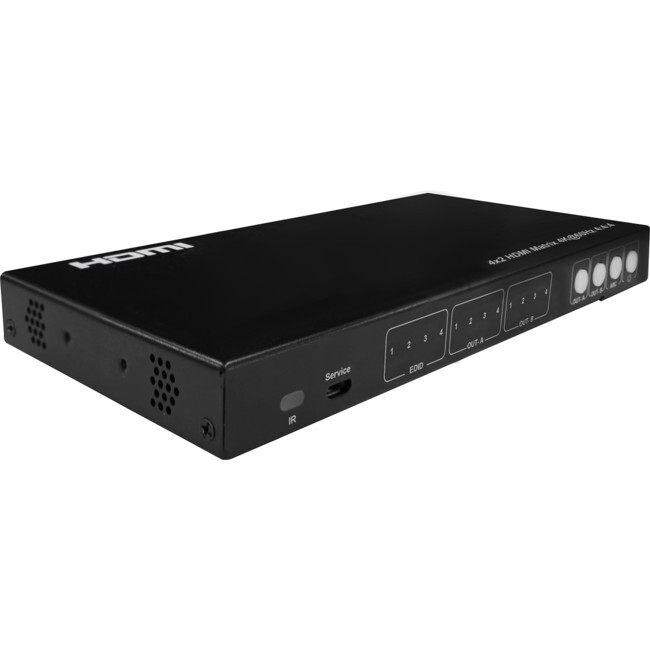

Pro2 4K-1080p Downscale ARC SPDIF/Audio Extraction 4X2 HDMI 18G Matrix Switcher

Image 1
Image 2
Image 3
Image 4
Image 5
$252

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by KG Superstore

18G HDMI 4X2 Matrix Switcher with ARC

Features:

  • Bandwidth up to 18 Gbps
  • HDMI 2.0 version(Support 4K@60Hz YUV4:4:4)
  • 4×2 HDMI Matrix,4×HDMI Inputs,2×HDMI Outputs
  • SPDIF out/Analog audio 2.0 extraction
  • HDCP 2.2/HDCP1.4 compliant
  • LPCM7.1/24-bit/96khz, Dolby Atmos and DTS-X
  • Support Dolby and HDR10
  • Support 3D,deep color max 12bit
  • Support CEC and ARC on both outputs
  • EDID management to have mixed EDID or copy EDID
  • Use as a downscaler to downscale from 4K60Hz to 1080p
  • Micro USB port for future firmware upgrade
  • Control the unit with the front panel button, IR remote control, web control, or third-party platform
  • The command list is available to integrate with the third-party platform

Specifications

  • Bandwidth: 18 Gbps
  • Resolution: 480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
  • 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
  • Operating Temperature Range: 0 to +40°C (32 to +104°F)
  • Operating Humidity Range: 5 to 90 % RH (no condensation)
  • Input Video Signal: 0.5-1.0 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Analog audio Ext port: 1x3.5mm audio jack
  • Output Video: HDMI 2.0+HDCP1.4/2.2
  • Output Audio: Support HD digital audio format,SPDIF out/Analog audio 2.0 out, LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X
  • Dimensions(WxHxD): L210 X W104.3 X H20.8mm
  • Net Weight: 0.66kg
  • Power consumption: 2.5W(Max)
  • Power supply: 5V 1A

What is in the box:

  • HDMIMX42ARCV2 x 1pc
  • 5V 1A DC power supply x 1pc
  • IR Remote control x 1pc
  • CD Disc x 1pc

Specifications:

Bandwidth up to 18 Gbps

This item comes with a 12 months warranty

GTIN: 9328202032867

Reference ID: 4124426
