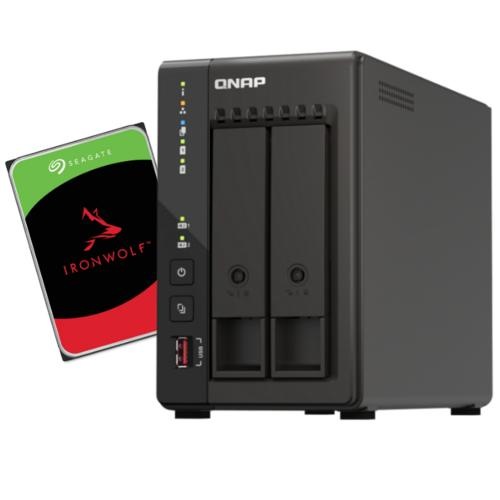

QNAP 253E 2-Bay 8GB NAS With 1X 10TB NAS HDD Bundle
QNAP TS-253E
Long-term availability
The TS-253E is powered by an Intel® Celeron® J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-253E an ideal choice for MSP, SI, and other IT-related businesses requiring matching NAS models for long-term projects.
24/7 surveillance solution for stores and branch offices
The TS-253E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices, stores, and other working spaces.
Record/monitor your environment
QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-253E and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Centrally manage up to 32 surveillance servers
If your business requires simultaneously managing multiple recording servers, then install QVR Center on the TS-253E. With QVR Center you can manage up to 32 surveillance servers and 10,000+ cameras with an easy-to-use interface.
Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-253E accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-Tâ„¢ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Seagate IronWolf 10TB NAS Internal HDD
Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 10TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (CMR) from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 10TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, air drive design, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
IronWolf Health Management
IronWolf Health Management focuses on prevention, intervention, and recovery
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
Rotational Vibration (RV) Sensors
IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
Multi-User Environments
IronWolf provides a workload rate of 180TB per year, which means that multiple users can upload and download data to the NAS server, knowing that IronWolf can handle the workload, whether you are a creative professional or small business
Designed for Always-On, Always-Accessible 24/7 Performance
Access data on your NAS virtually any time, whether remotely or on site
Cache Memory
IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster
1.0 Million Hours MTBF Limited 3-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24x7 Performance
Access your data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
1-8 bay business network attached storage (NAS)
QNAP TS-253E
CPU
Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® UHD Graphics
System Memory
8 GB on board (non-expandable)
Maximum Memory
8GB
Flash Memory
4GB (Dual boot OS protection)
Drive Bay
2 x 3.5-inch SATA 6Gb/s
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
M.2 Slot
2 x M.2 2280 PCIe Gen 3 x2
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)
USB 2.0 port
2
USB 3.2 Gen 2 (10Gbps) Port
2 x Type-A
HDMI Output
2 x HDMI 1.4b ( up to 3840 x 2160 @ 30Hz )
Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-2
Buttons
Power, Reset, USB Auto Copy
Dimensions (HxWxD)
168.5 × 102 × 225 mm
Weight (Net)
1.28 kg
Weight (Gross)
2.32 kg
Operating Temperature
0 - 40 °C (32°F - 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit
60W/65W adapter, 100-240V
Seagate IronWolf 10TB
Formatted (512 bytes/sector)
10TB
Heads
10
Discs
5
Bytes per logical sector
512
Bytes per physical sector
4096
Recording density, KBPI (Kb/in max)
2499
Track density, KTPI (ktracks/in, 0 skew)
487
Areal density, (Gb/in2, @ 0 skew mid-disk)
1215
Spindle speed (RPM)
7200
Internal data transfer rate (Mb/s max)
2169
Sustained data transfer rate OD (MiB/s max)
200 (210MB/s max)
I/O data-transfer rate (MB/s max)
600
ATA data-transfer modes supported
- PIO modes 0-4
- Multiword DMA modes 0-2
- Ultra DMA modes 0-6
Cache buffer
256MB (262,144KB)
Weight (maximum)
720g (1.587 lb)
Average latency
4.16ms
Power-on to ready (sec) (typ/max)
23/30
Standby to ready (sec) (typ/max)
23/30
Startup current (typical) 12V (peak)
1.8A
Voltage tolerance (including noise)
- 5V ±5%
- 12V ±10%
Operating ambient temperature (min °C)
0°C (Ambient)
Operating temperature (max °C)
65°C (Drive Reported Temperature) â€
Non-Operating temperature
-40° to 70°C (Ambient Temperature, see sections 2.6.1 and 2.10)
Temperature gradient (°C per hour max)
- 20°C (operating)
- 20°C (nonoperating)
Relative humidity
- 5% to 95% (operating)
- 5% to 95% (nonoperating)
Relative humidity gradient
20% per hour max
Altitude, operating
- -304.8 m to 3,048 m
- (-1000 ft to 10,000+ ft)
Altitude, nonoperating (below mean sea level, max)
- -304.8 m to 12,192 m
- (-1000 ft to 40,000+ ft)
Operational Shock (max at 2 ms - typical)
Read 70 Gs / Write 40 Gs
Non-Operational Shock (max at 2 ms - typical)
300 Gs
Linear Random Operating Vibration
10-500 Hz: 1.04Grms
Random Rotary Operating Vibration
20-1500Hz: 12.5 rads/s²
Linear Random Non-Operating Vibration
10-500 Hz: 2.0 Grms ref
Idle
- 2.8 (typical)
- 3.0 (max)
- During periods of drive idle, some offline activity may occur according to the
SMART specification, which may increase acoustic and power to operational levels
Performance seek 3.2 (typical)
3.4 (max)
Nonrecoverable read errors
1 sector per 10 bits read
Annualized Failure Rate (AFR)
0.87% based on 8760 POH
Maximum Rated Workload
- Maximum rate of <180TB/year
- Workloads exceeding the annualized rate may degrade the drive MTBF and impact product
reliability. The Annualized Workload Rate is in units of TB per year, or TB per 8760 power on
hours. Workload Rate = TB transferred * (8760 / recorded power on hours).
Load-unload cycles (command controlled)
600,000
Supports Hotplug operation per Serial ATA Revision 3.3 specification
Yes
- MPN: BDLQNP253E46
