Raspberry Pi 3 Model B+ Quad Core 1.4G WIFI Dual band 2.4G 5G POE Ethernet (POE Hat Need Purchase) The Newest Rappberry Pi Mainboard Offical Raspberry Pi Reseller [2842228]

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Limited Stock
$84.25

Collect 84 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Pay in 4 interest-free payments of $21.06 with Learn More
Raspberry Pi 3 Model B+ Quad Core 1.4G WIFI Dual band 2.4G 5G POE Ethernet (POE Hat Need Purchase) The Newest Rappberry Pi Mainboard Offical Raspberry Pi Reseller

NOTE: There is no click-in and click-out design for card reader on Raspberry Pi 3. You just need to insert your TF Card to bottom of card reader or pull card out directly.





The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range,boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz
and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced
wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

Obsolescence Statement
The Raspberry Pi 3 Model B+ will remain in production until at least January 2023.
NOTE: You will need to download the latest version of NOOBS / Raspbian for this board to function. Older versions will result with a "Rainbow Screen" along with a "Lightning Bolt" symbol.
The newest version of NOOBS (Offline and network install) is 2.7.0 which was released on 14/03/2018. Download link: HERE.
The newest version of RASPBIAN (Image with desktop based on Debian Stretch) is 4.9 which was released on 13/03/2018. Download link: HERE

Product Brief, Mechanical Drawings, And Schematics
Raspberry Pi 3 Model B+ product brief

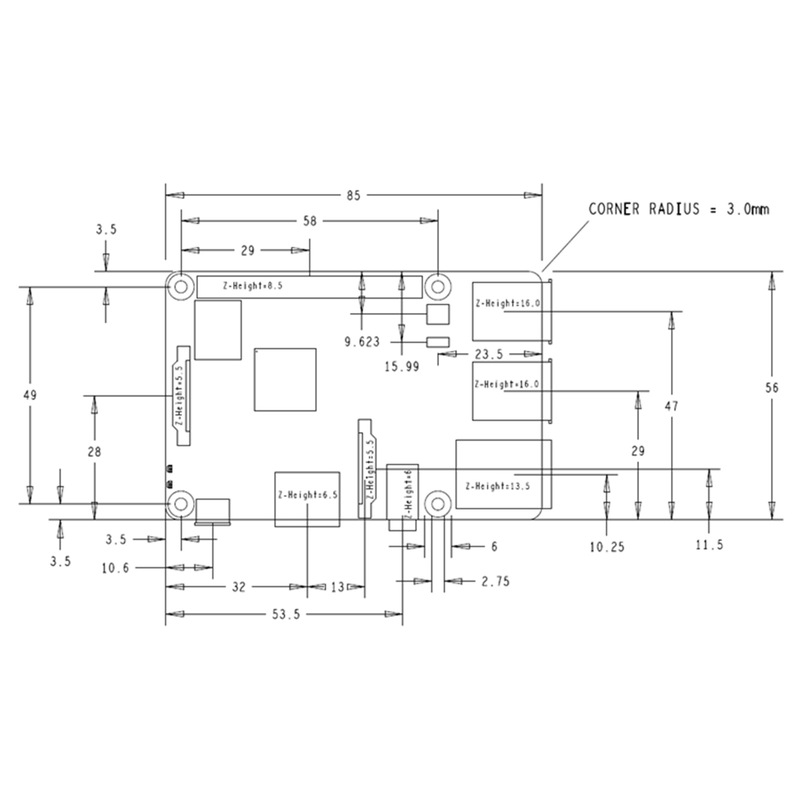

Raspberry Pi 3 Model B+ mechanical drawing
Raspberry Pi 3 Model B+ schematic diagrams
Hardware Specifications
More detailed information on Raspberry Pi hardware is available.
Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz

Memory
1GB LPDDR2 SDRAM

Connectivity
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
- Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
- 4 × USB 2.0 ports
Access Extended
40-pin GPIO header

Video & sound
- 1 × full size HDMI
- MIPI DSI display port
- MIPI CSI camera port
- 4 pole stereo output and composite video port

Multimedia
H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics

SD card support
Micro SD format for loading operating system and data storage

Input power
- 5V/2.5A DC via micro USB connector
- 5V DC via GPIO header
- Power over Ethernet (PoE)-enabled (requires separate PoE HAT)

Environment Operating temperature
0-50°C

Compliance
For a full list of local and regional product approvals, please visit http://www.raspberrypi.org/products/raspberry-pi-3-model-b+
- MPN: 2842228

GTIN: 713179640259
